Lenovo Global Technology Think System SR635 V3 ssj_ops@100% = 16,256,086
ssj_ops@100% per JVM = 338,668
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Sep 13, 2024
Hardware Availability: Nov-2024 Software Availability: Sep-2024 Publication: Oct 10, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     15,938,859
Calibration 2     16,270,593
Calibration 3     16,341,362
ssj_ops@calibrated=16,305,977
100% 99.7% 16,305,977 16,256,086
90% 90.0% 14,675,380 14,672,168
80% 80.0% 13,044,782 13,045,876
70% 70.0% 11,414,184 11,420,820
60% 59.9% 9,783,586 9,775,169
50% 50.0% 8,152,989 8,152,933
40% 40.0% 6,522,391 6,517,607
30% 30.0% 4,891,793 4,891,676
20% 20.0% 3,261,195 3,262,245
10% 10.0% 1,630,598 1,629,051
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR635 V3
Form Factor: 1U
CPU Name: AMD EPYC 9655 2.60 GHz
CPU Characteristics: 96-Core,2.60GHz 384MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 96 cores, 1 chip, 96 cores/chip
Hardware Threads: 192 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 384 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 12 x 16GB 1Rx8 PC5-6400-RD1; slots 1 to 12 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Lenovo P/N:4P57A82019
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2(OS Build 20348.2700)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:InlineSmallCode=1500 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:FreqInlineSize=2500 -XX:CompileThresholdScaling=210
JVM Affinity: start /NODE [0-11] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances: 48
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: KAE125W
Management Firmware Version: KAX341H
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5042881
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-R1IO8FMLLN3.001 341,198
WIN-R1IO8FMLLN3.002 341,280
WIN-R1IO8FMLLN3.003 336,542
WIN-R1IO8FMLLN3.004 337,069
WIN-R1IO8FMLLN3.005 340,872
WIN-R1IO8FMLLN3.006 330,982
WIN-R1IO8FMLLN3.007 336,270
WIN-R1IO8FMLLN3.008 339,621
WIN-R1IO8FMLLN3.009 343,459
WIN-R1IO8FMLLN3.010 339,426
WIN-R1IO8FMLLN3.011 342,689
WIN-R1IO8FMLLN3.012 333,375
WIN-R1IO8FMLLN3.013 339,827
WIN-R1IO8FMLLN3.014 338,036
WIN-R1IO8FMLLN3.015 338,324
WIN-R1IO8FMLLN3.016 339,783
WIN-R1IO8FMLLN3.017 334,891
WIN-R1IO8FMLLN3.018 342,594
WIN-R1IO8FMLLN3.019 328,678
WIN-R1IO8FMLLN3.020 341,718
WIN-R1IO8FMLLN3.021 336,477
WIN-R1IO8FMLLN3.022 343,487
WIN-R1IO8FMLLN3.023 342,831
WIN-R1IO8FMLLN3.024 336,636
WIN-R1IO8FMLLN3.025 330,172
WIN-R1IO8FMLLN3.026 343,825
WIN-R1IO8FMLLN3.027 346,201
WIN-R1IO8FMLLN3.028 342,794
WIN-R1IO8FMLLN3.029 342,280
WIN-R1IO8FMLLN3.030 334,238
WIN-R1IO8FMLLN3.031 336,783
WIN-R1IO8FMLLN3.032 335,615
WIN-R1IO8FMLLN3.033 341,779
WIN-R1IO8FMLLN3.034 344,487
WIN-R1IO8FMLLN3.035 341,235
WIN-R1IO8FMLLN3.036 331,700
WIN-R1IO8FMLLN3.037 341,876
WIN-R1IO8FMLLN3.038 338,306
WIN-R1IO8FMLLN3.039 337,455
WIN-R1IO8FMLLN3.040 340,621
WIN-R1IO8FMLLN3.041 336,182
WIN-R1IO8FMLLN3.042 337,439
WIN-R1IO8FMLLN3.043 339,503
WIN-R1IO8FMLLN3.044 335,214
WIN-R1IO8FMLLN3.045 334,138
WIN-R1IO8FMLLN3.046 343,006
WIN-R1IO8FMLLN3.047 341,284
WIN-R1IO8FMLLN3.048 333,889
ssj_ops@100% 16,256,086
ssj_ops@100% per JVM 338,668

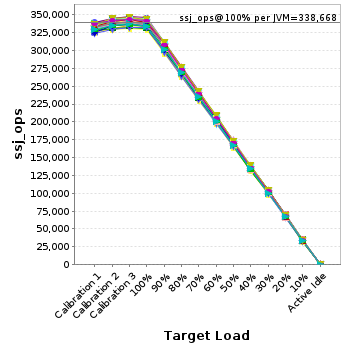

Graph of per-instance results
JVM 'WIN-R1IO8FMLLN3.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     334,511
Calibration 2     339,971
Calibration 3     344,586
ssj_ops@calibrated=342,278
100% 99.7% 342,278 341,198
90% 90.2% 308,050 308,822
80% 79.9% 273,823 273,334
70% 69.9% 239,595 239,237
60% 60.6% 205,367 207,449
50% 50.2% 171,139 171,698
40% 39.9% 136,911 136,507
30% 30.0% 102,683 102,537
20% 20.4% 68,456 69,694
10% 9.9% 34,228 34,006
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     338,820
Calibration 2     342,774
Calibration 3     344,506
ssj_ops@calibrated=343,640
100% 99.3% 343,640 341,280
90% 90.2% 309,276 310,087
80% 80.2% 274,912 275,552
70% 69.8% 240,548 240,032
60% 60.4% 206,184 207,511
50% 50.2% 171,820 172,599
40% 39.7% 137,456 136,481
30% 30.2% 103,092 103,904
20% 20.1% 68,728 69,087
10% 9.9% 34,364 34,125
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     329,634
Calibration 2     335,230
Calibration 3     337,204
ssj_ops@calibrated=336,217
100% 100.1% 336,217 336,542
90% 89.6% 302,595 301,213
80% 80.0% 268,973 268,888
70% 70.2% 235,352 236,141
60% 60.3% 201,730 202,825
50% 49.8% 168,108 167,580
40% 40.1% 134,487 134,860
30% 30.3% 100,865 101,848
20% 20.0% 67,243 67,320
10% 10.1% 33,622 33,879
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     329,480
Calibration 2     338,448
Calibration 3     337,815
ssj_ops@calibrated=338,132
100% 99.7% 338,132 337,069
90% 90.2% 304,318 304,984
80% 79.9% 270,505 270,160
70% 70.5% 236,692 238,336
60% 59.2% 202,879 200,130
50% 49.9% 169,066 168,731
40% 39.6% 135,253 133,952
30% 29.8% 101,439 100,756
20% 20.1% 67,626 67,865
10% 10.1% 33,813 34,315
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     332,560
Calibration 2     341,021
Calibration 3     341,103
ssj_ops@calibrated=341,062
100% 99.9% 341,062 340,872
90% 89.5% 306,956 305,094
80% 80.2% 272,849 273,700
70% 69.7% 238,743 237,730
60% 59.6% 204,637 203,343
50% 50.3% 170,531 171,501
40% 39.8% 136,425 135,850
30% 30.5% 102,319 103,944
20% 20.0% 68,212 68,352
10% 9.8% 34,106 33,440
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     325,946
Calibration 2     331,406
Calibration 3     331,235
ssj_ops@calibrated=331,320
100% 99.9% 331,320 330,982
90% 90.2% 298,188 298,928
80% 80.2% 265,056 265,838
70% 70.0% 231,924 231,929
60% 59.2% 198,792 196,075
50% 50.2% 165,660 166,405
40% 40.2% 132,528 133,351
30% 30.1% 99,396 99,769
20% 20.0% 66,264 66,324
10% 10.0% 33,132 32,974
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     330,723
Calibration 2     337,259
Calibration 3     337,420
ssj_ops@calibrated=337,339
100% 99.7% 337,339 336,270
90% 89.3% 303,606 301,258
80% 80.2% 269,872 270,567
70% 70.5% 236,138 237,797
60% 60.4% 202,404 203,858
50% 49.9% 168,670 168,184
40% 39.9% 134,936 134,566
30% 30.2% 101,202 101,942
20% 20.0% 67,468 67,611
10% 9.8% 33,734 33,098
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     330,575
Calibration 2     338,577
Calibration 3     340,673
ssj_ops@calibrated=339,625
100% 100.0% 339,625 339,621
90% 90.8% 305,663 308,343
80% 80.2% 271,700 272,292
70% 70.1% 237,738 238,143
60% 60.1% 203,775 203,965
50% 50.2% 169,813 170,345
40% 40.5% 135,850 137,617
30% 29.9% 101,888 101,509
20% 19.9% 67,925 67,473
10% 10.1% 33,963 34,261
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     336,375
Calibration 2     341,139
Calibration 3     344,524
ssj_ops@calibrated=342,831
100% 100.2% 342,831 343,459
90% 89.6% 308,548 307,063
80% 79.9% 274,265 274,057
70% 69.8% 239,982 239,192
60% 60.0% 205,699 205,688
50% 49.9% 171,416 170,999
40% 40.1% 137,133 137,616
30% 29.9% 102,849 102,398
20% 20.1% 68,566 68,786
10% 9.9% 34,283 34,104
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     334,967
Calibration 2     339,544
Calibration 3     342,830
ssj_ops@calibrated=341,187
100% 99.5% 341,187 339,426
90% 90.3% 307,069 308,223
80% 79.7% 272,950 272,068
70% 69.8% 238,831 238,248
60% 59.8% 204,712 203,898
50% 49.7% 170,594 169,441
40% 40.5% 136,475 138,093
30% 29.9% 102,356 102,101
20% 19.9% 68,237 68,013
10% 10.0% 34,119 33,984
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     335,948
Calibration 2     342,410
Calibration 3     342,635
ssj_ops@calibrated=342,522
100% 100.0% 342,522 342,689
90% 89.9% 308,270 307,836
80% 80.0% 274,018 273,870
70% 70.1% 239,766 240,197
60% 60.0% 205,513 205,525
50% 49.8% 171,261 170,560
40% 40.4% 137,009 138,451
30% 30.2% 102,757 103,330
20% 20.3% 68,504 69,498
10% 10.1% 34,252 34,665
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     324,735
Calibration 2     330,923
Calibration 3     335,369
ssj_ops@calibrated=333,146
100% 100.1% 333,146 333,375
90% 89.7% 299,831 298,954
80% 79.5% 266,517 264,974
70% 69.8% 233,202 232,579
60% 60.3% 199,888 200,810
50% 49.9% 166,573 166,227
40% 39.8% 133,258 132,460
30% 30.0% 99,944 99,858
20% 20.2% 66,629 67,175
10% 9.9% 33,315 33,111
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     333,733
Calibration 2     340,157
Calibration 3     341,764
ssj_ops@calibrated=340,961
100% 99.7% 340,961 339,827
90% 89.9% 306,865 306,668
80% 80.7% 272,769 275,243
70% 70.1% 238,673 238,981
60% 60.2% 204,576 205,239
50% 50.1% 170,480 170,674
40% 39.7% 136,384 135,427
30% 30.2% 102,288 102,987
20% 19.8% 68,192 67,607
10% 10.0% 34,096 34,116
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     333,235
Calibration 2     338,790
Calibration 3     340,117
ssj_ops@calibrated=339,453
100% 99.6% 339,453 338,036
90% 90.1% 305,508 305,757
80% 80.2% 271,563 272,361
70% 69.5% 237,617 235,761
60% 60.0% 203,672 203,512
50% 49.6% 169,727 168,258
40% 39.7% 135,781 134,929
30% 29.8% 101,836 101,109
20% 20.1% 67,891 68,194
10% 10.0% 33,945 34,087
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     333,003
Calibration 2     340,878
Calibration 3     341,408
ssj_ops@calibrated=341,143
100% 99.2% 341,143 338,324
90% 90.0% 307,028 307,036
80% 79.9% 272,914 272,657
70% 70.4% 238,800 240,003
60% 59.8% 204,686 203,916
50% 50.0% 170,571 170,496
40% 39.9% 136,457 136,080
30% 30.2% 102,343 102,867
20% 19.9% 68,229 67,984
10% 10.1% 34,114 34,481
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     330,436
Calibration 2     340,576
Calibration 3     341,500
ssj_ops@calibrated=341,038
100% 99.6% 341,038 339,783
90% 89.6% 306,934 305,734
80% 79.5% 272,830 271,066
70% 70.2% 238,726 239,450
60% 59.5% 204,623 203,058
50% 49.8% 170,519 169,935
40% 39.9% 136,415 136,125
30% 30.0% 102,311 102,369
20% 19.9% 68,208 68,011
10% 9.8% 34,104 33,412
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     322,871
Calibration 2     336,279
Calibration 3     338,320
ssj_ops@calibrated=337,299
100% 99.3% 337,299 334,891
90% 90.0% 303,569 303,442
80% 79.6% 269,839 268,646
70% 69.8% 236,109 235,519
60% 59.7% 202,380 201,204
50% 49.7% 168,650 167,583
40% 40.1% 134,920 135,109
30% 30.2% 101,190 101,711
20% 20.0% 67,460 67,323
10% 10.1% 33,730 34,195
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     337,045
Calibration 2     343,010
Calibration 3     344,603
ssj_ops@calibrated=343,806
100% 99.6% 343,806 342,594
90% 89.7% 309,426 308,527
80% 79.9% 275,045 274,671
70% 70.0% 240,664 240,502
60% 59.9% 206,284 206,009
50% 50.0% 171,903 171,944
40% 39.8% 137,523 136,722
30% 29.7% 103,142 102,268
20% 19.7% 68,761 67,857
10% 10.0% 34,381 34,498
Active Idle   0 0

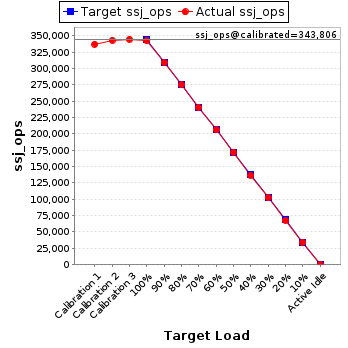

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     324,518
Calibration 2     329,912
Calibration 3     330,149
ssj_ops@calibrated=330,030
100% 99.6% 330,030 328,678
90% 89.5% 297,027 295,541
80% 79.9% 264,024 263,788
70% 69.8% 231,021 230,516
60% 59.8% 198,018 197,383
50% 49.8% 165,015 164,500
40% 40.0% 132,012 131,968
30% 29.8% 99,009 98,476
20% 20.3% 66,006 66,966
10% 10.0% 33,003 32,886
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     334,155
Calibration 2     342,544
Calibration 3     341,592
ssj_ops@calibrated=342,068
100% 99.9% 342,068 341,718
90% 90.0% 307,861 307,822
80% 79.8% 273,654 273,135
70% 70.0% 239,447 239,405
60% 60.0% 205,241 205,381
50% 50.2% 171,034 171,843
40% 40.3% 136,827 137,763
30% 29.8% 102,620 101,946
20% 20.0% 68,414 68,314
10% 10.0% 34,207 34,374
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     330,198
Calibration 2     337,507
Calibration 3     337,694
ssj_ops@calibrated=337,601
100% 99.7% 337,601 336,477
90% 90.2% 303,841 304,499
80% 79.9% 270,080 269,809
70% 70.3% 236,320 237,360
60% 60.0% 202,560 202,411
50% 49.9% 168,800 168,332
40% 40.1% 135,040 135,234
30% 30.2% 101,280 101,819
20% 19.8% 67,520 66,687
10% 9.9% 33,760 33,523
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     335,458
Calibration 2     344,167
Calibration 3     345,732
ssj_ops@calibrated=344,950
100% 99.6% 344,950 343,487
90% 89.6% 310,455 309,228
80% 79.8% 275,960 275,344
70% 70.0% 241,465 241,392
60% 59.8% 206,970 206,375
50% 50.0% 172,475 172,477
40% 39.8% 137,980 137,426
30% 29.9% 103,485 103,307
20% 20.2% 68,990 69,673
10% 9.8% 34,495 33,752
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     335,542
Calibration 2     341,800
Calibration 3     344,147
ssj_ops@calibrated=342,974
100% 100.0% 342,974 342,831
90% 90.0% 308,676 308,594
80% 80.0% 274,379 274,353
70% 69.6% 240,082 238,841
60% 60.1% 205,784 206,088
50% 50.6% 171,487 173,514
40% 39.6% 137,189 135,725
30% 30.2% 102,892 103,427
20% 19.9% 68,595 68,312
10% 9.8% 34,297 33,687
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     328,739
Calibration 2     336,427
Calibration 3     337,106
ssj_ops@calibrated=336,767
100% 100.0% 336,767 336,636
90% 89.9% 303,090 302,823
80% 80.1% 269,413 269,860
70% 70.4% 235,737 236,970
60% 59.7% 202,060 201,069
50% 50.2% 168,383 169,017
40% 39.9% 134,707 134,469
30% 30.1% 101,030 101,309
20% 20.3% 67,353 68,269
10% 10.2% 33,677 34,348
Active Idle   0 0

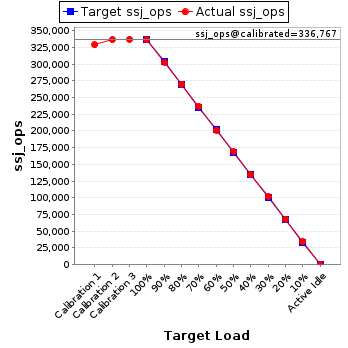

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     327,952
Calibration 2     330,531
Calibration 3     332,378
ssj_ops@calibrated=331,455
100% 99.6% 331,455 330,172
90% 90.2% 298,309 299,092
80% 81.1% 265,164 268,693
70% 70.1% 232,018 232,383
60% 59.9% 198,873 198,628
50% 50.1% 165,727 166,006
40% 39.8% 132,582 131,911
30% 30.1% 99,436 99,872
20% 20.2% 66,291 66,928
10% 10.0% 33,145 33,228
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     336,459
Calibration 2     344,939
Calibration 3     345,932
ssj_ops@calibrated=345,435
100% 99.5% 345,435 343,825
90% 89.9% 310,892 310,595
80% 80.0% 276,348 276,426
70% 70.0% 241,805 241,828
60% 60.0% 207,261 207,103
50% 50.0% 172,718 172,806
40% 39.9% 138,174 137,707
30% 30.0% 103,631 103,795
20% 20.0% 69,087 69,195
10% 9.9% 34,544 34,250
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     338,886
Calibration 2     344,731
Calibration 3     347,671
ssj_ops@calibrated=346,201
100% 100.0% 346,201 346,201
90% 90.1% 311,581 311,828
80% 80.1% 276,961 277,206
70% 70.6% 242,341 244,301
60% 59.7% 207,720 206,656
50% 49.9% 173,100 172,877
40% 40.3% 138,480 139,507
30% 29.9% 103,860 103,353
20% 20.1% 69,240 69,562
10% 10.1% 34,620 34,920
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     333,524
Calibration 2     343,427
Calibration 3     343,972
ssj_ops@calibrated=343,700
100% 99.7% 343,700 342,794
90% 90.0% 309,330 309,288
80% 79.8% 274,960 274,343
70% 70.2% 240,590 241,146
60% 59.8% 206,220 205,556
50% 50.1% 171,850 172,038
40% 39.9% 137,480 137,218
30% 30.1% 103,110 103,602
20% 20.0% 68,740 68,612
10% 9.9% 34,370 34,024
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     333,244
Calibration 2     341,568
Calibration 3     343,699
ssj_ops@calibrated=342,634
100% 99.9% 342,634 342,280
90% 89.3% 308,371 306,124
80% 79.9% 274,107 273,766
70% 70.2% 239,844 240,376
60% 59.8% 205,580 204,756
50% 49.9% 171,317 171,010
40% 39.8% 137,054 136,479
30% 29.8% 102,790 101,952
20% 19.9% 68,527 68,195
10% 10.1% 34,263 34,725
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     329,494
Calibration 2     334,820
Calibration 3     335,916
ssj_ops@calibrated=335,368
100% 99.7% 335,368 334,238
90% 90.7% 301,831 304,202
80% 79.9% 268,294 267,809
70% 69.9% 234,757 234,480
60% 60.0% 201,221 201,335
50% 50.3% 167,684 168,630
40% 40.1% 134,147 134,613
30% 29.7% 100,610 99,595
20% 19.8% 67,074 66,508
10% 10.2% 33,537 34,312
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     330,283
Calibration 2     336,821
Calibration 3     337,153
ssj_ops@calibrated=336,987
100% 99.9% 336,987 336,783
90% 90.1% 303,288 303,548
80% 80.2% 269,590 270,118
70% 70.4% 235,891 237,105
60% 60.0% 202,192 202,067
50% 50.0% 168,493 168,618
40% 39.9% 134,795 134,431
30% 30.1% 101,096 101,468
20% 20.0% 67,397 67,469
10% 10.2% 33,699 34,248
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     328,857
Calibration 2     336,976
Calibration 3     337,359
ssj_ops@calibrated=337,167
100% 99.5% 337,167 335,615
90% 89.7% 303,451 302,565
80% 80.2% 269,734 270,412
70% 70.2% 236,017 236,821
60% 59.8% 202,300 201,708
50% 50.0% 168,584 168,539
40% 40.0% 134,867 134,735
30% 30.0% 101,150 101,269
20% 19.9% 67,433 67,087
10% 10.0% 33,717 33,816
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     334,957
Calibration 2     344,313
Calibration 3     344,926
ssj_ops@calibrated=344,620
100% 99.2% 344,620 341,779
90% 90.0% 310,158 310,104
80% 80.1% 275,696 275,964
70% 70.3% 241,234 242,382
60% 60.0% 206,772 206,639
50% 50.3% 172,310 173,234
40% 40.2% 137,848 138,537
30% 29.7% 103,386 102,496
20% 20.0% 68,924 69,036
10% 9.9% 34,462 34,000
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     335,508
Calibration 2     344,266
Calibration 3     345,145
ssj_ops@calibrated=344,706
100% 99.9% 344,706 344,487
90% 90.2% 310,235 311,071
80% 79.7% 275,764 274,838
70% 70.4% 241,294 242,708
60% 60.0% 206,823 206,784
50% 49.9% 172,353 171,898
40% 40.2% 137,882 138,730
30% 29.8% 103,412 102,837
20% 20.1% 68,941 69,116
10% 9.8% 34,471 33,921
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     335,802
Calibration 2     340,510
Calibration 3     344,077
ssj_ops@calibrated=342,294
100% 99.7% 342,294 341,235
90% 90.0% 308,064 307,990
80% 80.4% 273,835 275,094
70% 69.6% 239,606 238,249
60% 60.2% 205,376 205,998
50% 49.9% 171,147 170,675
40% 40.0% 136,918 137,029
30% 29.8% 102,688 102,108
20% 19.9% 68,459 67,985
10% 9.9% 34,229 34,056
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     323,853
Calibration 2     329,820
Calibration 3     331,593
ssj_ops@calibrated=330,706
100% 100.3% 330,706 331,700
90% 89.8% 297,636 297,012
80% 79.6% 264,565 263,167
70% 69.8% 231,495 230,994
60% 59.9% 198,424 198,172
50% 49.9% 165,353 165,170
40% 40.3% 132,283 133,402
30% 30.0% 99,212 99,332
20% 19.9% 66,141 65,761
10% 9.9% 33,071 32,860
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     335,131
Calibration 2     342,625
Calibration 3     343,163
ssj_ops@calibrated=342,894
100% 99.7% 342,894 341,876
90% 90.0% 308,605 308,598
80% 79.9% 274,315 273,987
70% 69.6% 240,026 238,765
60% 60.1% 205,736 206,175
50% 50.2% 171,447 172,203
40% 39.8% 137,158 136,487
30% 30.0% 102,868 102,995
20% 20.2% 68,579 69,155
10% 10.1% 34,289 34,558
Active Idle   0 0

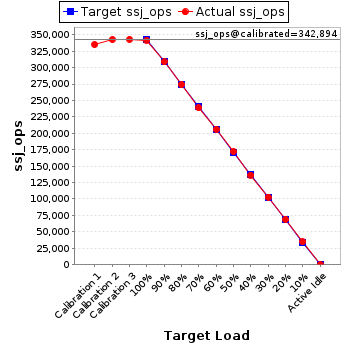

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     335,582
Calibration 2     339,252
Calibration 3     342,255
ssj_ops@calibrated=340,754
100% 99.3% 340,754 338,306
90% 90.5% 306,678 308,300
80% 80.1% 272,603 272,998
70% 70.0% 238,528 238,619
60% 60.0% 204,452 204,405
50% 50.5% 170,377 171,960
40% 40.1% 136,302 136,606
30% 30.1% 102,226 102,436
20% 19.9% 68,151 67,978
10% 10.0% 34,075 34,231
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     329,856
Calibration 2     338,121
Calibration 3     339,981
ssj_ops@calibrated=339,051
100% 99.5% 339,051 337,455
90% 90.0% 305,146 305,247
80% 80.4% 271,241 272,729
70% 69.6% 237,336 235,838
60% 60.1% 203,431 203,840
50% 49.9% 169,525 169,265
40% 39.8% 135,620 134,820
30% 29.8% 101,715 101,182
20% 19.9% 67,810 67,406
10% 9.8% 33,905 33,294
Active Idle   0 0

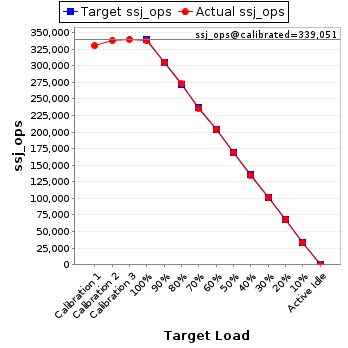

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     333,916
Calibration 2     341,228
Calibration 3     343,183
ssj_ops@calibrated=342,206
100% 99.5% 342,206 340,621
90% 90.0% 307,985 308,012
80% 80.2% 273,765 274,522
70% 70.3% 239,544 240,436
60% 60.1% 205,323 205,500
50% 50.0% 171,103 171,032
40% 40.0% 136,882 136,965
30% 29.9% 102,662 102,365
20% 19.9% 68,441 68,021
10% 10.0% 34,221 34,352
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     329,114
Calibration 2     336,696
Calibration 3     337,266
ssj_ops@calibrated=336,981
100% 99.8% 336,981 336,182
90% 90.0% 303,283 303,336
80% 79.7% 269,585 268,522
70% 70.6% 235,886 237,751
60% 59.7% 202,188 201,145
50% 49.8% 168,490 167,782
40% 39.8% 134,792 133,975
30% 29.9% 101,094 100,615
20% 19.8% 67,396 66,595
10% 10.0% 33,698 33,791
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     332,346
Calibration 2     338,066
Calibration 3     339,027
ssj_ops@calibrated=338,546
100% 99.7% 338,546 337,439
90% 90.1% 304,692 305,091
80% 79.2% 270,837 268,192
70% 69.8% 236,982 236,285
60% 59.7% 203,128 202,074
50% 50.0% 169,273 169,121
40% 39.8% 135,418 134,729
30% 30.2% 101,564 102,300
20% 20.3% 67,709 68,679
10% 10.0% 33,855 33,915
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     332,863
Calibration 2     340,217
Calibration 3     342,952
ssj_ops@calibrated=341,585
100% 99.4% 341,585 339,503
90% 90.7% 307,426 309,720
80% 80.9% 273,268 276,484
70% 70.5% 239,109 240,827
60% 59.8% 204,951 204,393
50% 50.0% 170,792 170,946
40% 40.0% 136,634 136,754
30% 29.8% 102,475 101,822
20% 19.8% 68,317 67,686
10% 10.1% 34,158 34,522
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     325,454
Calibration 2     334,289
Calibration 3     336,966
ssj_ops@calibrated=335,627
100% 99.9% 335,627 335,214
90% 89.7% 302,065 300,920
80% 79.9% 268,502 268,247
70% 69.7% 234,939 233,855
60% 60.4% 201,376 202,884
50% 50.3% 167,814 168,774
40% 39.9% 134,251 134,009
30% 30.0% 100,688 100,722
20% 20.2% 67,125 67,692
10% 10.0% 33,563 33,586
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     328,637
Calibration 2     334,447
Calibration 3     335,647
ssj_ops@calibrated=335,047
100% 99.7% 335,047 334,138
90% 90.2% 301,542 302,271
80% 80.1% 268,037 268,284
70% 69.8% 234,533 233,967
60% 60.2% 201,028 201,645
50% 49.8% 167,523 166,997
40% 39.5% 134,019 132,202
30% 30.2% 100,514 101,029
20% 20.0% 67,009 66,960
10% 9.8% 33,505 32,816
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     336,657
Calibration 2     344,554
Calibration 3     346,477
ssj_ops@calibrated=345,516
100% 99.3% 345,516 343,006
90% 90.1% 310,964 311,237
80% 79.9% 276,413 276,098
70% 70.2% 241,861 242,699
60% 60.5% 207,309 209,096
50% 49.9% 172,758 172,415
40% 40.2% 138,206 138,912
30% 30.0% 103,655 103,675
20% 19.9% 69,103 68,876
10% 9.9% 34,552 34,240
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     337,301
Calibration 2     342,629
Calibration 3     343,536
ssj_ops@calibrated=343,083
100% 99.5% 343,083 341,284
90% 89.8% 308,774 308,029
80% 79.5% 274,466 272,795
70% 69.8% 240,158 239,641
60% 59.8% 205,850 205,114
50% 49.8% 171,541 170,848
40% 39.6% 137,233 136,014
30% 30.0% 102,925 103,030
20% 19.8% 68,617 68,028
10% 10.1% 34,308 34,519
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R1IO8FMLLN3.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     329,975
Calibration 2     335,000
Calibration 3     337,056
ssj_ops@calibrated=336,028
100% 99.4% 336,028 333,889
90% 89.7% 302,425 301,514
80% 80.0% 268,822 268,954
70% 70.0% 235,219 235,104
60% 59.7% 201,617 200,773
50% 49.8% 168,014 167,246
40% 40.2% 134,411 135,053
30% 29.9% 100,808 100,334
20% 20.0% 67,206 67,321
10% 10.0% 33,603 33,549
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
