Lenovo Global Technology Think System SR635 V3 SPECpower_ssj2008 = 33,630 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Sep 13, 2024
Hardware Availability: Nov-2024 Software Availability: Sep-2024 Publication: Oct 10, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 376 23.0
Calibration 2 381 23.0
Calibration 3 381 23.1
100% 381 23.1
90% 345 23.1
80% 320 23.1
70% 296 23.1
60% 271 23.1
50% 247 23.2
40% 222 23.2
30% 197 23.2
20% 170 23.4
10% 142 23.4
Active Idle 73.4 23.4

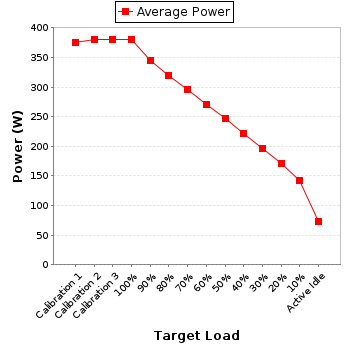

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3UD17023E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: GRG METROLOGY & TEST (BEIJING) CO.,LTD.
Calibration Label: J202308266858A-0003
Date of Calibration: 16-Oct-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to PSU 2
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 221 300.0 1.73 5.0 0.981 376 0.3%
Calibration 2 221 300.0 1.76 5.0 0.982 381 0.3%
Calibration 3 221 300.0 1.76 5.0 0.982 381 0.3%
100% 221 300.0 1.75 5.0 0.982 381 0.3%
90% 221 300.0 1.60 2.0 0.978 345 0.2%
80% 221 300.0 1.49 2.0 0.974 320 0.2%
70% 221 300.0 1.38 2.0 0.973 296 0.3%
60% 221 300.0 1.27 2.0 0.970 271 0.3%
50% 221 300.0 1.16 2.0 0.965 247 0.3%
40% 221 300.0 1.05 2.0 0.959 222 0.3%
30% 221 300.0 0.938 2.0 0.950 197 0.3%
20% 221 300.0 0.819 2.0 0.940 170 0.3%
10% 221 300.0 0.691 1.0 0.930 142 0.3%
Active Idle 221 300.0 0.403 1.0 0.824 73.4 0.4%
Power details for pwr1
