Supermicro SuperServer AS-3015A-i ssj_ops@100% = 1,557,736
ssj_ops@100% per JVM = 194,717
Test Sponsor: Supermicro SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Test Location: San Jose, CA, USA Test Date: Apr 12, 2024
Hardware Availability: May-2024 Software Availability: Feb-2024 Publication: May 21, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,592,237
Calibration 2     1,570,207
Calibration 3     1,558,193
ssj_ops@calibrated=1,564,200
100% 99.6% 1,564,200 1,557,736
90% 89.9% 1,407,780 1,406,868
80% 80.1% 1,251,360 1,252,292
70% 69.9% 1,094,940 1,093,599
60% 60.0% 938,520 938,161
50% 50.1% 782,100 782,910
40% 40.3% 625,680 630,637
30% 29.9% 469,260 468,236
20% 20.0% 312,840 312,746
10% 10.0% 156,420 156,771
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro
Model: SuperServer AS-3015A-i
Form Factor: 2U
CPU Name: AMD EPYC 4344P 3.8 GHz
CPU Characteristics: 8-Core, 3.8 GHz, 32MB L3 Cache
CPU Frequency (MHz): 3800
CPU(s) Enabled: 8 cores, 1 chip, 8 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 32 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 2 x 32 GB
Memory Details: 2 x 32GB 1Rx8 PC5-5200B; CPU1 A1,B1 populated.
Power Supply Quantity and Rating (W): 1 x 668
Power Supply Details: PWS-668-PQ
Disk Drive: 1 x 500GB Samsung SSD 980 PRO
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual LAN Intel I210 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Standard
OS Version: Version 21H2 (OS Build 20348.2402)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.1+12-LTS-39, mixed mode, sharing)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: start/NODE[0] /AFFINITY [0x3, 0xC, 0x30, 0xC0, 0x300, 0xC00, 0x3000, 0xC000]
JVM Instances: 8
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 1.2a
Management Firmware Version: 01.02.04
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
None
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-L7SBATHOKG8.001 191,398
WIN-L7SBATHOKG8.002 198,712
WIN-L7SBATHOKG8.003 195,265
WIN-L7SBATHOKG8.004 196,581
WIN-L7SBATHOKG8.005 195,372
WIN-L7SBATHOKG8.006 193,362
WIN-L7SBATHOKG8.007 193,503
WIN-L7SBATHOKG8.008 193,543
ssj_ops@100% 1,557,736
ssj_ops@100% per JVM 194,717

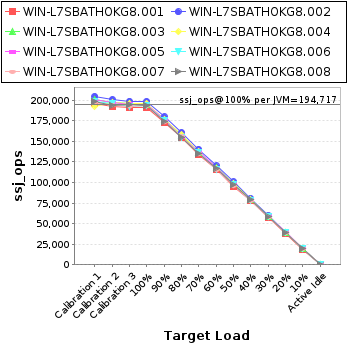

Graph of per-instance results
JVM 'WIN-L7SBATHOKG8.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,261
Calibration 2     192,690
Calibration 3     191,851
ssj_ops@calibrated=192,270
100% 99.5% 192,270 191,398
90% 90.1% 173,043 173,309
80% 80.3% 153,816 154,365
70% 69.7% 134,589 133,966
60% 60.5% 115,362 116,244
50% 49.7% 96,135 95,544
40% 40.4% 76,908 77,748
30% 29.8% 57,681 57,284
20% 19.8% 38,454 38,129
10% 9.7% 19,227 18,623
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-L7SBATHOKG8.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     204,929
Calibration 2     200,985
Calibration 3     199,071
ssj_ops@calibrated=200,028
100% 99.3% 200,028 198,712
90% 90.0% 180,025 180,108
80% 80.4% 160,022 160,783
70% 70.2% 140,019 140,482
60% 60.1% 120,017 120,231
50% 50.4% 100,014 100,832
40% 40.4% 80,011 80,803
30% 30.0% 60,008 60,061
20% 19.7% 40,006 39,491
10% 10.0% 20,003 19,953
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

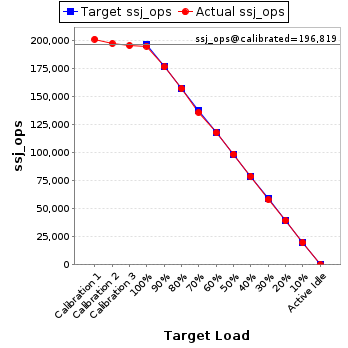

JVM 'WIN-L7SBATHOKG8.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     201,569
Calibration 2     197,657
Calibration 3     195,981
ssj_ops@calibrated=196,819
100% 99.2% 196,819 195,265
90% 89.8% 177,137 176,807
80% 80.1% 157,455 157,563
70% 69.2% 137,773 136,115
60% 59.9% 118,091 117,889
50% 50.2% 98,410 98,840
40% 40.1% 78,728 78,948
30% 29.5% 59,046 58,158
20% 20.0% 39,364 39,375
10% 10.1% 19,682 19,836
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-L7SBATHOKG8.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,101
Calibration 2     197,380
Calibration 3     196,191
ssj_ops@calibrated=196,786
100% 99.9% 196,786 196,581
90% 89.7% 177,107 176,490
80% 80.2% 157,428 157,878
70% 70.3% 137,750 138,334
60% 59.4% 118,071 116,961
50% 50.4% 98,393 99,178
40% 40.1% 78,714 78,978
30% 30.0% 59,036 59,043
20% 19.9% 39,357 39,229
10% 9.9% 19,679 19,561
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-L7SBATHOKG8.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     201,002
Calibration 2     196,877
Calibration 3     195,037
ssj_ops@calibrated=195,957
100% 99.7% 195,957 195,372
90% 90.0% 176,361 176,435
80% 79.1% 156,766 154,994
70% 70.3% 137,170 137,751
60% 60.1% 117,574 117,799
50% 50.1% 97,979 98,105
40% 40.2% 78,383 78,703
30% 30.1% 58,787 59,000
20% 20.3% 39,191 39,783
10% 10.0% 19,596 19,682
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-L7SBATHOKG8.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     199,145
Calibration 2     196,112
Calibration 3     192,774
ssj_ops@calibrated=194,443
100% 99.4% 194,443 193,362
90% 90.1% 174,999 175,111
80% 79.9% 155,554 155,271
70% 70.2% 136,110 136,544
60% 59.7% 116,666 116,174
50% 50.0% 97,221 97,188
40% 40.4% 77,777 78,474
30% 30.3% 58,333 58,866
20% 20.1% 38,889 39,012
10% 10.2% 19,444 19,786
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

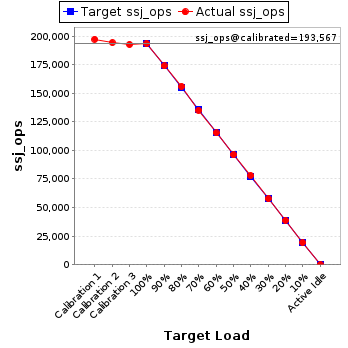

JVM 'WIN-L7SBATHOKG8.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,350
Calibration 2     194,326
Calibration 3     192,809
ssj_ops@calibrated=193,567
100% 100.0% 193,567 193,503
90% 89.9% 174,211 173,969
80% 80.7% 154,854 156,112
70% 69.8% 135,497 135,088
60% 59.6% 116,140 115,334
50% 49.7% 96,784 96,127
40% 40.3% 77,427 78,073
30% 29.8% 58,070 57,773
20% 20.1% 38,713 38,895
10% 10.0% 19,357 19,391
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-L7SBATHOKG8.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,881
Calibration 2     194,180
Calibration 3     194,479
ssj_ops@calibrated=194,330
100% 99.6% 194,330 193,543
90% 89.9% 174,897 174,638
80% 79.9% 155,464 155,326
70% 69.6% 136,031 135,320
60% 60.5% 116,598 117,529
50% 50.0% 97,165 97,096
40% 40.6% 77,732 78,909
30% 29.9% 58,299 58,052
20% 20.0% 38,866 38,833
10% 10.3% 19,433 19,937
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
