SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Fujitsu FUJITSU Server PRIMERGY TX2550 M7 | SPECpower_ssj2008 = 13,089 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Apr 9, 2024 |
| Hardware Availability: | May-2024 | Software Availability: | Oct-2023 | Publication: | Apr 24, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

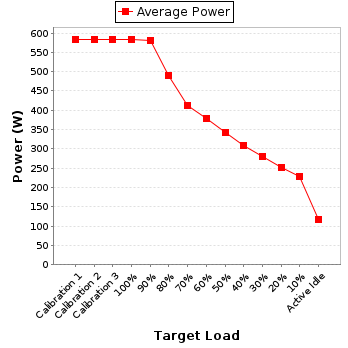

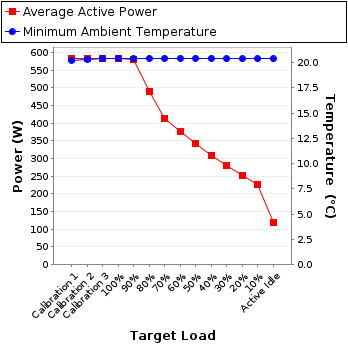

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 584 | 20.2 |
| Calibration 2 | 583 | 20.3 |
| Calibration 3 | 583 | 20.4 |
| 100% | 583 | 20.4 |
| 90% | 581 | 20.4 |
| 80% | 490 | 20.4 |
| 70% | 413 | 20.4 |
| 60% | 378 | 20.4 |
| 50% | 343 | 20.4 |
| 40% | 309 | 20.4 |
| 30% | 280 | 20.4 |
| 20% | 253 | 20.4 |
| 10% | 227 | 20.4 |
| Active Idle | 118 | 20.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | PW3336 |
| Serial Number: | 170121768 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | AIST (National Institute of Advanced Science and Technology) |
| Accredited by: | Kyosai Technos Co.,Ltd. |
| Calibration Label: | RY237000054 |
| Date of Calibration: | 05-Jul-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 203 | 300.0 | 2.90 | 5.0 | 0.991 | 584 | 0.2% |
| Calibration 2 | 203 | 300.0 | 2.90 | 5.0 | 0.991 | 583 | 0.2% |
| Calibration 3 | 203 | 300.0 | 2.90 | 5.0 | 0.991 | 583 | 0.2% |
| 100% | 203 | 300.0 | 2.90 | 5.0 | 0.991 | 583 | 0.2% |
| 90% | 203 | 300.0 | 2.89 | 5.0 | 0.991 | 581 | 0.2% |
| 80% | 203 | 300.0 | 2.46 | 5.0 | 0.986 | 490 | 0.3% |
| 70% | 203 | 300.0 | 2.07 | 5.0 | 0.981 | 413 | 0.3% |
| 60% | 203 | 300.0 | 1.90 | 5.0 | 0.977 | 378 | 0.3% |
| 50% | 203 | 300.0 | 1.73 | 5.0 | 0.972 | 343 | 0.3% |
| 40% | 203 | 300.0 | 1.57 | 5.0 | 0.967 | 309 | 0.4% |
| 30% | 203 | 300.0 | 1.43 | 5.0 | 0.963 | 280 | 0.4% |
| 20% | 203 | 300.0 | 1.30 | 2.0 | 0.958 | 253 | 0.2% |
| 10% | 203 | 300.0 | 1.18 | 2.0 | 0.952 | 227 | 0.3% |
| Active Idle | 203 | 300.0 | 0.659 | 2.0 | 0.881 | 118 | 0.4% |
