Lenovo Global Technology Think System SR665 V3 SPECpower_ssj2008 = 37,678 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Mar 21, 2024
Hardware Availability: Nov-2023 Software Availability: Jan-2024 Publication: Apr 23, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 745 23.8
Calibration 2 747 23.8
Calibration 3 748 23.8
100% 667 23.8
90% 593 23.9
80% 515 24.1
70% 457 24.2
60% 416 24.3
50% 379 24.4
40% 346 24.4
30% 305 24.4
20% 263 24.2
10% 217 24.2
Active Idle 106 24.2

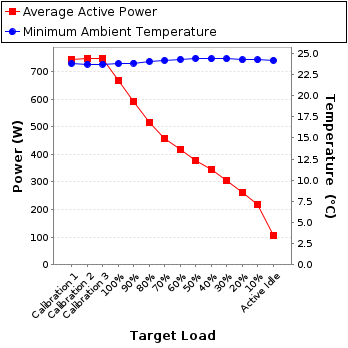

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3UD17023E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: GRG METROLOGY & TEST (BEIJING) CO.,LTD.
Calibration Label: J202308266858A-0003
Date of Calibration: 16-Oct-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 219 300.0 3.42 10.0 0.995 745 0.3%
Calibration 2 219 300.0 3.43 10.0 0.995 747 0.3%
Calibration 3 219 300.0 3.43 10.0 0.995 748 0.3%
100% 219 300.0 3.07 5.0 0.992 667 0.2%
90% 219 300.0 2.72 5.0 0.994 593 0.3%
80% 219 300.0 2.37 5.0 0.991 515 0.3%
70% 219 300.0 2.11 5.0 0.988 457 0.3%
60% 220 300.0 1.92 5.0 0.986 416 0.3%
50% 220 300.0 1.76 5.0 0.984 379 0.3%
40% 220 300.0 1.61 5.0 0.980 346 0.4%
30% 220 300.0 1.43 5.0 0.974 305 0.4%
20% 220 300.0 1.23 5.0 0.975 263 0.4%
10% 220 300.0 1.03 5.0 0.962 217 0.5%
Active Idle 220 300.0 0.566 5.0 0.863 106 0.8%
Power details for pwr1
