Lenovo Global Technology Think System SR665 V3 | ssj_ops@100% = 27,872,325 ssj_ops@100% per JVM = 217,753 |
||||
Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Single Node |
Tested By: | Lenovo Global Technology | Test Location: | Beijing, China | Test Date: | Mar 26, 2024 |
Hardware Availability: | Nov-2023 | Software Availability: | Jan-2024 | Publication: | Apr 23, 2024 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 28,087,405 | ||
Calibration 2 | 28,034,479 | ||
Calibration 3 | 28,091,342 | ||
ssj_ops@calibrated=28,062,910 | |||
100% | 99.3% | 28,062,910 | 27,872,325 |
90% | 89.9% | 25,256,619 | 25,241,531 |
80% | 80.1% | 22,450,328 | 22,465,437 |
70% | 70.0% | 19,644,037 | 19,650,993 |
60% | 60.0% | 16,837,746 | 16,836,003 |
50% | 50.0% | 14,031,455 | 14,024,890 |
40% | 40.0% | 11,225,164 | 11,233,244 |
30% | 30.0% | 8,418,873 | 8,418,390 |
20% | 20.0% | 5,612,582 | 5,615,571 |
10% | 10.0% | 2,806,291 | 2,805,105 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | 'SUT' |
Hardware | |
---|---|
Hardware Vendor: | Lenovo Global Technology |
Model: | Think System SR665 V3 |
Form Factor: | 2U |
CPU Name: | AMD EPYC 9754 |
CPU Characteristics: | 128-Core, AMD Core Performance Boost up to 3.10GHz, 2.25GHz, 256MB L3 Cache |
CPU Frequency (MHz): | 2250 |
CPU(s) Enabled: | 256 cores, 2 chips, 128 cores/chip |
Hardware Threads: | 512 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
Tertiary Cache: | 256 MB I+D on chip per chip, 32 MB shared / 8 cores |
Other Cache: | None |
Memory Amount (GB): | 384 |
# and size of DIMM: | 24 x 16 GB |
Memory Details: | 16GB 1Rx8 PC5-4800B-R; slots 1 to 24 populated |
Power Supply Quantity and Rating (W): | 1 x 1100 |
Power Supply Details: | Lenovo P/N:4P57A72666 |
Disk Drive: | 1 x 960GB M.2 SSD P/N:4XB7A13999 M.2 Module P/N:4Y37A79663 |
Disk Controller: | Integrated NVME controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238 |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 10000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled (see SUT Notes) |
Operating System (OS): | SUSE Linux Enterprise Server 15 SP4 |
OS Version: | 5.14.21-150400.22-default |
Filesystem: | xfs |
JVM Vendor: | Oracle Corporation |
JVM Version: | Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10 |
JVM Command-line Options: | -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:InlineSmallCode=3900 |
JVM Affinity: | for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 256, physicalCoreId + 257 } |
JVM Instances: | 128 |
JVM Initial Heap (MB): | 2048 |
JVM Maximum Heap (MB): | 2048 |
JVM Address Bits: | 64 |
Boot Firmware Version: | KAE116K |
Management Firmware Version: | KAX322V |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | None |
JVM Instance | ssj_ops@100% |
---|---|
kauai.001 | 226,078 |
kauai.002 | 219,807 |
kauai.003 | 217,867 |
kauai.004 | 222,219 |
kauai.005 | 225,781 |
kauai.006 | 222,250 |
kauai.007 | 226,188 |
kauai.008 | 217,964 |
kauai.009 | 212,587 |
kauai.010 | 211,775 |
kauai.011 | 218,957 |
kauai.012 | 215,480 |
kauai.013 | 226,404 |
kauai.014 | 224,949 |
kauai.015 | 223,215 |
kauai.016 | 219,287 |

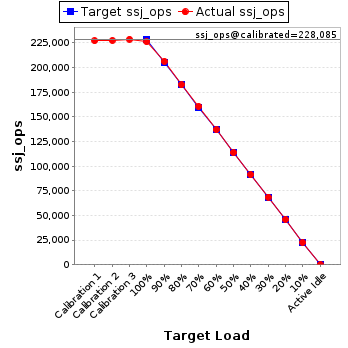

kauai.017 | 226,089 |
kauai.018 | 207,248 |
kauai.019 | 220,338 |
kauai.020 | 203,736 |
kauai.021 | 228,332 |
kauai.022 | 184,704 |
kauai.023 | 208,633 |
kauai.024 | 216,892 |
kauai.025 | 215,104 |
kauai.026 | 226,086 |
kauai.027 | 219,369 |
kauai.028 | 224,208 |
kauai.029 | 208,147 |
kauai.030 | 223,825 |
kauai.031 | 218,123 |

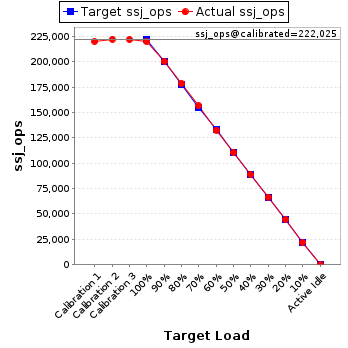

kauai.032 | 219,910 |
kauai.033 | 206,935 |
kauai.034 | 228,506 |
kauai.035 | 201,910 |
kauai.036 | 212,970 |
kauai.037 | 221,303 |
kauai.038 | 225,016 |
kauai.039 | 221,366 |
kauai.040 | 205,522 |
kauai.041 | 214,062 |
kauai.042 | 219,359 |
kauai.043 | 209,933 |
kauai.044 | 221,292 |
kauai.045 | 221,707 |
kauai.046 | 220,694 |
kauai.047 | 220,425 |
kauai.048 | 222,723 |
kauai.049 | 220,661 |
kauai.050 | 227,412 |
kauai.051 | 221,397 |

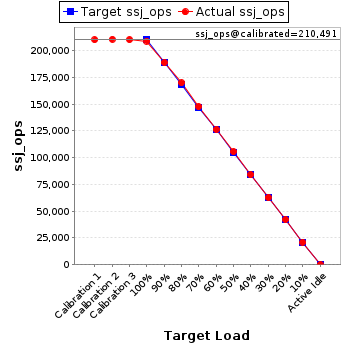

kauai.052 | 209,041 |
kauai.053 | 220,949 |
kauai.054 | 209,515 |
kauai.055 | 218,548 |
kauai.056 | 214,123 |
kauai.057 | 223,321 |
kauai.058 | 221,866 |
kauai.059 | 214,600 |
kauai.060 | 220,209 |
kauai.061 | 217,157 |
kauai.062 | 220,185 |
kauai.063 | 209,248 |
kauai.064 | 210,838 |
kauai.065 | 219,666 |
kauai.066 | 218,322 |
kauai.067 | 224,620 |
kauai.068 | 216,007 |
kauai.069 | 216,446 |
kauai.070 | 214,736 |
kauai.071 | 222,902 |
kauai.072 | 222,556 |
kauai.073 | 212,479 |
kauai.074 | 221,479 |
kauai.075 | 202,338 |
kauai.076 | 227,731 |
kauai.077 | 225,330 |
kauai.078 | 214,917 |

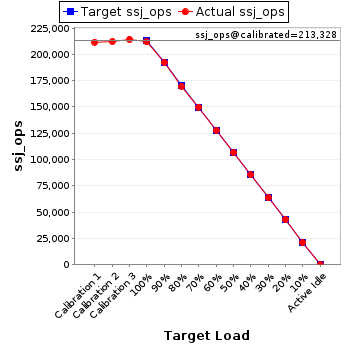

kauai.079 | 211,930 |
kauai.080 | 195,057 |
kauai.081 | 216,803 |
kauai.082 | 224,432 |
kauai.083 | 231,149 |
kauai.084 | 206,067 |
kauai.085 | 231,267 |
kauai.086 | 212,943 |
kauai.087 | 215,064 |
kauai.088 | 214,398 |
kauai.089 | 223,709 |
kauai.090 | 206,457 |
kauai.091 | 226,010 |
kauai.092 | 211,043 |
kauai.093 | 214,726 |
kauai.094 | 207,833 |
kauai.095 | 208,237 |
kauai.096 | 218,880 |
kauai.097 | 223,157 |
kauai.098 | 220,416 |
kauai.099 | 225,515 |
kauai.100 | 223,072 |
kauai.101 | 227,761 |
kauai.102 | 221,089 |
kauai.103 | 217,655 |
kauai.104 | 220,341 |
kauai.105 | 224,713 |
kauai.106 | 213,251 |
kauai.107 | 226,323 |
kauai.108 | 222,232 |
kauai.109 | 217,897 |
kauai.110 | 221,309 |
kauai.111 | 222,549 |
kauai.112 | 221,732 |
kauai.113 | 209,070 |
kauai.114 | 215,434 |
kauai.115 | 226,711 |
kauai.116 | 197,173 |
kauai.117 | 226,010 |
kauai.118 | 224,804 |
kauai.119 | 222,065 |
kauai.120 | 223,953 |
kauai.121 | 210,202 |
kauai.122 | 213,483 |
kauai.123 | 220,905 |

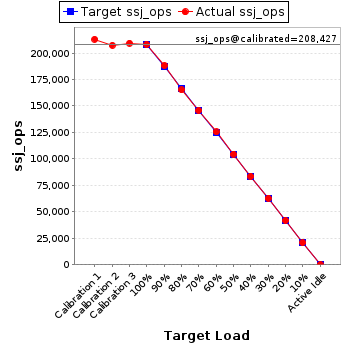

kauai.124 | 208,150 |
kauai.125 | 212,658 |
kauai.126 | 207,658 |
kauai.127 | 218,227 |
kauai.128 | 216,928 |
ssj_ops@100% | 27,872,325 |
ssj_ops@100% per JVM | 217,753 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 228,426 | ||
Calibration 2 | 228,164 | ||
Calibration 3 | 228,393 | ||
ssj_ops@calibrated=228,278 | |||
100% | 99.0% | 228,278 | 226,078 |
90% | 89.9% | 205,451 | 205,242 |
80% | 79.6% | 182,623 | 181,605 |
70% | 70.6% | 159,795 | 161,102 |
60% | 59.9% | 136,967 | 136,785 |
50% | 50.3% | 114,139 | 114,732 |
40% | 40.4% | 91,311 | 92,170 |
30% | 30.0% | 68,484 | 68,465 |
20% | 20.2% | 45,656 | 46,189 |
10% | 10.0% | 22,828 | 22,848 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 224,393 | ||
Calibration 2 | 221,485 | ||
Calibration 3 | 223,431 | ||
ssj_ops@calibrated=222,458 | |||
100% | 98.8% | 222,458 | 219,807 |
90% | 88.9% | 200,212 | 197,766 |
80% | 80.7% | 177,966 | 179,634 |
70% | 69.5% | 155,721 | 154,589 |
60% | 59.6% | 133,475 | 132,544 |
50% | 50.4% | 111,229 | 112,149 |
40% | 40.0% | 88,983 | 89,086 |
30% | 30.1% | 66,737 | 67,023 |
20% | 20.0% | 44,492 | 44,528 |
10% | 9.9% | 22,246 | 21,933 |
Active Idle | 0 | 0 |

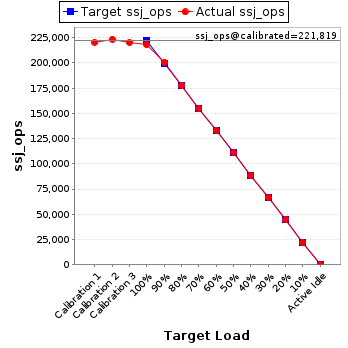

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 220,467 | ||
Calibration 2 | 223,444 | ||
Calibration 3 | 220,194 | ||
ssj_ops@calibrated=221,819 | |||
100% | 98.2% | 221,819 | 217,867 |
90% | 90.5% | 199,637 | 200,661 |
80% | 79.9% | 177,455 | 177,303 |
70% | 69.8% | 155,273 | 154,938 |
60% | 60.1% | 133,091 | 133,296 |
50% | 50.0% | 110,910 | 110,803 |
40% | 39.9% | 88,728 | 88,530 |
30% | 30.1% | 66,546 | 66,834 |
20% | 20.1% | 44,364 | 44,502 |
10% | 10.0% | 22,182 | 22,103 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,294 | ||
Calibration 2 | 222,328 | ||
Calibration 3 | 224,627 | ||
ssj_ops@calibrated=223,478 | |||
100% | 99.4% | 223,478 | 222,219 |
90% | 89.2% | 201,130 | 199,322 |
80% | 80.1% | 178,782 | 179,013 |
70% | 70.1% | 156,434 | 156,691 |
60% | 60.1% | 134,087 | 134,325 |
50% | 50.2% | 111,739 | 112,265 |
40% | 39.9% | 89,391 | 89,076 |
30% | 30.0% | 67,043 | 66,975 |
20% | 19.9% | 44,696 | 44,429 |
10% | 10.0% | 22,348 | 22,241 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 225,264 | ||
Calibration 2 | 227,396 | ||
Calibration 3 | 226,564 | ||
ssj_ops@calibrated=226,980 | |||
100% | 99.5% | 226,980 | 225,781 |
90% | 90.4% | 204,282 | 205,298 |
80% | 80.3% | 181,584 | 182,297 |
70% | 70.7% | 158,886 | 160,580 |
60% | 60.0% | 136,188 | 136,251 |
50% | 50.3% | 113,490 | 114,239 |
40% | 40.1% | 90,792 | 91,004 |
30% | 30.2% | 68,094 | 68,439 |
20% | 20.0% | 45,396 | 45,362 |
10% | 10.0% | 22,698 | 22,608 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 223,240 | ||
Calibration 2 | 223,956 | ||
Calibration 3 | 224,458 | ||
ssj_ops@calibrated=224,207 | |||
100% | 99.1% | 224,207 | 222,250 |
90% | 90.1% | 201,787 | 201,986 |
80% | 80.3% | 179,366 | 180,131 |
70% | 69.5% | 156,945 | 155,906 |
60% | 59.4% | 134,524 | 133,100 |
50% | 50.3% | 112,104 | 112,772 |
40% | 40.0% | 89,683 | 89,766 |
30% | 29.8% | 67,262 | 66,737 |
20% | 20.3% | 44,841 | 45,534 |
10% | 10.0% | 22,421 | 22,342 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 224,435 | ||
Calibration 2 | 227,333 | ||
Calibration 3 | 227,920 | ||
ssj_ops@calibrated=227,626 | |||
100% | 99.4% | 227,626 | 226,188 |
90% | 90.2% | 204,864 | 205,243 |
80% | 79.6% | 182,101 | 181,263 |
70% | 69.8% | 159,338 | 158,912 |
60% | 59.7% | 136,576 | 135,941 |
50% | 49.8% | 113,813 | 113,391 |
40% | 39.9% | 91,050 | 90,863 |
30% | 30.1% | 68,288 | 68,601 |
20% | 20.1% | 45,525 | 45,643 |
10% | 10.0% | 22,763 | 22,821 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 220,546 | ||
Calibration 2 | 220,290 | ||
Calibration 3 | 222,846 | ||
ssj_ops@calibrated=221,568 | |||
100% | 98.4% | 221,568 | 217,964 |
90% | 90.4% | 199,411 | 200,258 |
80% | 79.6% | 177,254 | 176,436 |
70% | 70.1% | 155,098 | 155,220 |
60% | 59.7% | 132,941 | 132,208 |
50% | 50.3% | 110,784 | 111,511 |
40% | 40.3% | 88,627 | 89,330 |
30% | 30.4% | 66,470 | 67,285 |
20% | 20.1% | 44,314 | 44,511 |
10% | 10.1% | 22,157 | 22,350 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 213,417 | ||
Calibration 2 | 213,386 | ||
Calibration 3 | 214,919 | ||
ssj_ops@calibrated=214,153 | |||
100% | 99.3% | 214,153 | 212,587 |
90% | 89.9% | 192,737 | 192,497 |
80% | 80.6% | 171,322 | 172,553 |
70% | 70.1% | 149,907 | 150,065 |
60% | 60.3% | 128,492 | 129,154 |
50% | 49.8% | 107,076 | 106,731 |
40% | 40.1% | 85,661 | 85,952 |
30% | 29.8% | 64,246 | 63,789 |
20% | 20.0% | 42,831 | 42,886 |
10% | 10.1% | 21,415 | 21,554 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 222,684 | ||
Calibration 2 | 212,214 | ||
Calibration 3 | 211,572 | ||
ssj_ops@calibrated=211,893 | |||
100% | 99.9% | 211,893 | 211,775 |
90% | 90.2% | 190,704 | 191,050 |
80% | 80.1% | 169,514 | 169,654 |
70% | 70.1% | 148,325 | 148,503 |
60% | 59.7% | 127,136 | 126,572 |
50% | 50.3% | 105,947 | 106,505 |
40% | 39.9% | 84,757 | 84,529 |
30% | 30.3% | 63,568 | 64,289 |
20% | 20.0% | 42,379 | 42,431 |
10% | 10.0% | 21,189 | 21,217 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 221,548 | ||
Calibration 2 | 218,789 | ||
Calibration 3 | 221,935 | ||
ssj_ops@calibrated=220,362 | |||
100% | 99.4% | 220,362 | 218,957 |
90% | 90.3% | 198,326 | 198,998 |
80% | 79.8% | 176,290 | 175,841 |
70% | 70.3% | 154,253 | 154,988 |
60% | 59.7% | 132,217 | 131,593 |
50% | 50.2% | 110,181 | 110,528 |
40% | 39.9% | 88,145 | 87,985 |
30% | 29.7% | 66,109 | 65,482 |
20% | 20.3% | 44,072 | 44,763 |
10% | 9.8% | 22,036 | 21,696 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 216,443 | ||
Calibration 2 | 219,608 | ||
Calibration 3 | 217,503 | ||
ssj_ops@calibrated=218,556 | |||
100% | 98.6% | 218,556 | 215,480 |
90% | 90.0% | 196,700 | 196,768 |
80% | 79.2% | 174,845 | 173,182 |
70% | 69.6% | 152,989 | 152,205 |
60% | 60.3% | 131,133 | 131,684 |
50% | 49.7% | 109,278 | 108,570 |
40% | 39.5% | 87,422 | 86,305 |
30% | 30.0% | 65,567 | 65,575 |
20% | 19.9% | 43,711 | 43,539 |
10% | 9.9% | 21,856 | 21,723 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 229,605 | ||
Calibration 2 | 227,513 | ||
Calibration 3 | 228,851 | ||
ssj_ops@calibrated=228,182 | |||
100% | 99.2% | 228,182 | 226,404 |
90% | 90.2% | 205,364 | 205,881 |
80% | 80.5% | 182,545 | 183,635 |
70% | 70.3% | 159,727 | 160,375 |
60% | 59.6% | 136,909 | 136,024 |
50% | 49.7% | 114,091 | 113,294 |
40% | 39.6% | 91,273 | 90,355 |
30% | 30.3% | 68,455 | 69,109 |
20% | 20.3% | 45,636 | 46,401 |
10% | 9.9% | 22,818 | 22,615 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 225,339 | ||
Calibration 2 | 225,252 | ||
Calibration 3 | 226,501 | ||
ssj_ops@calibrated=225,876 | |||
100% | 99.6% | 225,876 | 224,949 |
90% | 90.5% | 203,289 | 204,373 |
80% | 79.8% | 180,701 | 180,305 |
70% | 69.4% | 158,113 | 156,835 |
60% | 60.3% | 135,526 | 136,230 |
50% | 50.1% | 112,938 | 113,169 |
40% | 40.3% | 90,350 | 90,954 |
30% | 30.5% | 67,763 | 68,869 |
20% | 20.1% | 45,175 | 45,484 |
10% | 10.0% | 22,588 | 22,600 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 224,131 | ||
Calibration 2 | 225,670 | ||
Calibration 3 | 227,344 | ||
ssj_ops@calibrated=226,507 | |||
100% | 98.5% | 226,507 | 223,215 |
90% | 90.4% | 203,856 | 204,713 |
80% | 79.4% | 181,205 | 179,776 |
70% | 70.2% | 158,555 | 159,063 |
60% | 60.0% | 135,904 | 135,878 |
50% | 50.1% | 113,253 | 113,447 |
40% | 39.9% | 90,603 | 90,287 |
30% | 29.4% | 67,952 | 66,605 |
20% | 20.1% | 45,301 | 45,538 |
10% | 10.1% | 22,651 | 22,928 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,048 | ||
Calibration 2 | 222,594 | ||
Calibration 3 | 224,021 | ||
ssj_ops@calibrated=223,307 | |||
100% | 98.2% | 223,307 | 219,287 |
90% | 90.2% | 200,977 | 201,395 |
80% | 79.9% | 178,646 | 178,523 |
70% | 70.0% | 156,315 | 156,253 |
60% | 60.1% | 133,984 | 134,151 |
50% | 49.9% | 111,654 | 111,470 |
40% | 39.8% | 89,323 | 88,851 |
30% | 29.8% | 66,992 | 66,567 |
20% | 20.1% | 44,661 | 44,919 |
10% | 10.0% | 22,331 | 22,437 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 227,154 | ||
Calibration 2 | 227,442 | ||
Calibration 3 | 228,728 | ||
ssj_ops@calibrated=228,085 | |||
100% | 99.1% | 228,085 | 226,089 |
90% | 90.5% | 205,276 | 206,318 |
80% | 80.0% | 182,468 | 182,364 |
70% | 70.5% | 159,659 | 160,688 |
60% | 60.1% | 136,851 | 136,982 |
50% | 49.9% | 114,042 | 113,816 |
40% | 40.0% | 91,234 | 91,171 |
30% | 30.1% | 68,425 | 68,597 |
20% | 20.1% | 45,617 | 45,863 |
10% | 9.9% | 22,808 | 22,583 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 207,626 | ||
Calibration 2 | 206,789 | ||
Calibration 3 | 208,486 | ||
ssj_ops@calibrated=207,638 | |||
100% | 99.8% | 207,638 | 207,248 |
90% | 90.2% | 186,874 | 187,191 |
80% | 79.9% | 166,110 | 165,803 |
70% | 69.9% | 145,346 | 145,186 |
60% | 59.9% | 124,583 | 124,327 |
50% | 49.7% | 103,819 | 103,094 |
40% | 39.9% | 83,055 | 82,757 |
30% | 29.6% | 62,291 | 61,511 |
20% | 20.0% | 41,528 | 41,436 |
10% | 9.7% | 20,764 | 20,192 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,201 | ||
Calibration 2 | 221,175 | ||
Calibration 3 | 220,837 | ||
ssj_ops@calibrated=221,006 | |||
100% | 99.7% | 221,006 | 220,338 |
90% | 90.2% | 198,905 | 199,279 |
80% | 80.2% | 176,805 | 177,176 |
70% | 69.6% | 154,704 | 153,913 |
60% | 59.8% | 132,604 | 132,206 |
50% | 50.2% | 110,503 | 111,033 |
40% | 40.1% | 88,402 | 88,524 |
30% | 30.1% | 66,302 | 66,559 |
20% | 20.1% | 44,201 | 44,454 |
10% | 9.9% | 22,101 | 21,871 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,890 | ||
Calibration 2 | 205,648 | ||
Calibration 3 | 205,586 | ||
ssj_ops@calibrated=205,617 | |||
100% | 99.1% | 205,617 | 203,736 |
90% | 89.3% | 185,055 | 183,520 |
80% | 80.0% | 164,494 | 164,420 |
70% | 69.7% | 143,932 | 143,282 |
60% | 60.7% | 123,370 | 124,819 |
50% | 50.1% | 102,808 | 103,061 |
40% | 40.4% | 82,247 | 83,044 |
30% | 29.4% | 61,685 | 60,382 |
20% | 20.1% | 41,123 | 41,264 |
10% | 9.8% | 20,562 | 20,217 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 229,580 | ||
Calibration 2 | 228,293 | ||
Calibration 3 | 227,295 | ||
ssj_ops@calibrated=227,794 | |||
100% | 100.2% | 227,794 | 228,332 |
90% | 90.4% | 205,014 | 205,882 |
80% | 80.6% | 182,235 | 183,673 |
70% | 70.1% | 159,456 | 159,733 |
60% | 59.4% | 136,676 | 135,305 |
50% | 50.3% | 113,897 | 114,519 |
40% | 40.2% | 91,117 | 91,512 |
30% | 29.7% | 68,338 | 67,738 |
20% | 19.9% | 45,559 | 45,280 |
10% | 10.1% | 22,779 | 22,936 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 183,573 | ||
Calibration 2 | 185,735 | ||
Calibration 3 | 187,303 | ||
ssj_ops@calibrated=186,519 | |||
100% | 99.0% | 186,519 | 184,704 |
90% | 90.7% | 167,867 | 169,164 |
80% | 80.3% | 149,215 | 149,690 |
70% | 69.2% | 130,563 | 129,018 |
60% | 60.6% | 111,911 | 113,046 |
50% | 50.4% | 93,259 | 93,996 |
40% | 40.4% | 74,607 | 75,408 |
30% | 29.9% | 55,956 | 55,683 |
20% | 19.9% | 37,304 | 37,166 |
10% | 10.0% | 18,652 | 18,625 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 226,314 | ||
Calibration 2 | 210,774 | ||
Calibration 3 | 211,150 | ||
ssj_ops@calibrated=210,962 | |||
100% | 98.9% | 210,962 | 208,633 |
90% | 89.5% | 189,866 | 188,715 |
80% | 80.2% | 168,770 | 169,100 |
70% | 70.0% | 147,673 | 147,702 |
60% | 59.7% | 126,577 | 125,971 |
50% | 50.0% | 105,481 | 105,517 |
40% | 40.0% | 84,385 | 84,316 |
30% | 30.0% | 63,289 | 63,381 |
20% | 20.0% | 42,192 | 42,177 |
10% | 10.0% | 21,096 | 21,193 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 215,765 | ||
Calibration 2 | 219,936 | ||
Calibration 3 | 218,068 | ||
ssj_ops@calibrated=219,002 | |||
100% | 99.0% | 219,002 | 216,892 |
90% | 89.6% | 197,102 | 196,168 |
80% | 79.7% | 175,202 | 174,653 |
70% | 70.0% | 153,301 | 153,376 |
60% | 59.4% | 131,401 | 130,172 |
50% | 50.2% | 109,501 | 110,036 |
40% | 40.4% | 87,601 | 88,493 |
30% | 29.7% | 65,701 | 65,100 |
20% | 20.0% | 43,800 | 43,834 |
10% | 10.0% | 21,900 | 21,892 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 217,542 | ||
Calibration 2 | 217,645 | ||
Calibration 3 | 216,809 | ||
ssj_ops@calibrated=217,227 | |||
100% | 99.0% | 217,227 | 215,104 |
90% | 90.2% | 195,504 | 195,860 |
80% | 79.9% | 173,782 | 173,655 |
70% | 70.8% | 152,059 | 153,792 |
60% | 60.7% | 130,336 | 131,865 |
50% | 49.8% | 108,614 | 108,089 |
40% | 40.4% | 86,891 | 87,798 |
30% | 30.1% | 65,168 | 65,322 |
20% | 20.1% | 43,445 | 43,631 |
10% | 9.9% | 21,723 | 21,604 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 224,901 | ||
Calibration 2 | 226,279 | ||
Calibration 3 | 227,778 | ||
ssj_ops@calibrated=227,029 | |||
100% | 99.6% | 227,029 | 226,086 |
90% | 89.2% | 204,326 | 202,424 |
80% | 80.1% | 181,623 | 181,921 |
70% | 69.5% | 158,920 | 157,882 |
60% | 61.0% | 136,217 | 138,381 |
50% | 50.2% | 113,514 | 113,922 |
40% | 39.5% | 90,811 | 89,709 |
30% | 30.0% | 68,109 | 68,000 |
20% | 20.1% | 45,406 | 45,724 |
10% | 9.9% | 22,703 | 22,540 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 221,420 | ||
Calibration 2 | 219,650 | ||
Calibration 3 | 219,224 | ||
ssj_ops@calibrated=219,437 | |||
100% | 100.0% | 219,437 | 219,369 |
90% | 89.8% | 197,493 | 197,048 |
80% | 79.9% | 175,549 | 175,297 |
70% | 70.4% | 153,606 | 154,509 |
60% | 60.1% | 131,662 | 131,812 |
50% | 50.0% | 109,718 | 109,743 |
40% | 40.0% | 87,775 | 87,770 |
30% | 30.0% | 65,831 | 65,874 |
20% | 20.4% | 43,887 | 44,762 |
10% | 9.9% | 21,944 | 21,785 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 222,828 | ||
Calibration 2 | 226,676 | ||
Calibration 3 | 227,292 | ||
ssj_ops@calibrated=226,984 | |||
100% | 98.8% | 226,984 | 224,208 |
90% | 89.5% | 204,286 | 203,148 |
80% | 80.1% | 181,587 | 181,828 |
70% | 69.9% | 158,889 | 158,757 |
60% | 60.5% | 136,190 | 137,309 |
50% | 50.3% | 113,492 | 114,238 |
40% | 39.8% | 90,794 | 90,309 |
30% | 29.9% | 68,095 | 67,900 |
20% | 19.8% | 45,397 | 44,867 |
10% | 10.1% | 22,698 | 22,867 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 209,031 | ||
Calibration 2 | 209,694 | ||
Calibration 3 | 210,010 | ||
ssj_ops@calibrated=209,852 | |||
100% | 99.2% | 209,852 | 208,147 |
90% | 89.7% | 188,866 | 188,305 |
80% | 80.2% | 167,881 | 168,208 |
70% | 70.4% | 146,896 | 147,680 |
60% | 59.8% | 125,911 | 125,586 |
50% | 50.3% | 104,926 | 105,596 |
40% | 39.8% | 83,941 | 83,528 |
30% | 30.1% | 62,955 | 63,120 |
20% | 20.0% | 41,970 | 42,069 |
10% | 10.0% | 20,985 | 20,950 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 220,073 | ||
Calibration 2 | 224,068 | ||
Calibration 3 | 225,072 | ||
ssj_ops@calibrated=224,570 | |||
100% | 99.7% | 224,570 | 223,825 |
90% | 90.1% | 202,113 | 202,251 |
80% | 80.3% | 179,656 | 180,327 |
70% | 69.3% | 157,199 | 155,563 |
60% | 60.0% | 134,742 | 134,721 |
50% | 50.5% | 112,285 | 113,430 |
40% | 40.0% | 89,828 | 89,799 |
30% | 30.1% | 67,371 | 67,676 |
20% | 20.2% | 44,914 | 45,395 |
10% | 10.0% | 22,457 | 22,529 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 222,782 | ||
Calibration 2 | 218,130 | ||
Calibration 3 | 220,970 | ||
ssj_ops@calibrated=219,550 | |||
100% | 99.3% | 219,550 | 218,123 |
90% | 90.6% | 197,595 | 198,909 |
80% | 80.0% | 175,640 | 175,626 |
70% | 70.1% | 153,685 | 153,858 |
60% | 60.0% | 131,730 | 131,646 |
50% | 49.5% | 109,775 | 108,629 |
40% | 40.1% | 87,820 | 87,966 |
30% | 30.1% | 65,865 | 66,124 |
20% | 20.0% | 43,910 | 43,861 |
10% | 10.1% | 21,955 | 22,179 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 220,045 | ||
Calibration 2 | 222,217 | ||
Calibration 3 | 221,832 | ||
ssj_ops@calibrated=222,025 | |||
100% | 99.0% | 222,025 | 219,910 |
90% | 90.3% | 199,822 | 200,386 |
80% | 80.5% | 177,620 | 178,737 |
70% | 70.5% | 155,417 | 156,511 |
60% | 59.7% | 133,215 | 132,554 |
50% | 49.9% | 111,012 | 110,710 |
40% | 40.1% | 88,810 | 89,018 |
30% | 30.0% | 66,607 | 66,673 |
20% | 20.0% | 44,405 | 44,444 |
10% | 9.8% | 22,202 | 21,754 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 210,222 | ||
Calibration 2 | 207,840 | ||
Calibration 3 | 208,178 | ||
ssj_ops@calibrated=208,009 | |||
100% | 99.5% | 208,009 | 206,935 |
90% | 90.5% | 187,208 | 188,179 |
80% | 79.5% | 166,407 | 165,288 |
70% | 70.4% | 145,607 | 146,482 |
60% | 59.7% | 124,806 | 124,176 |
50% | 49.8% | 104,005 | 103,635 |
40% | 39.8% | 83,204 | 82,754 |
30% | 30.1% | 62,403 | 62,672 |
20% | 19.9% | 41,602 | 41,376 |
10% | 10.0% | 20,801 | 20,858 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 229,053 | ||
Calibration 2 | 229,349 | ||
Calibration 3 | 229,386 | ||
ssj_ops@calibrated=229,367 | |||
100% | 99.6% | 229,367 | 228,506 |
90% | 89.5% | 206,431 | 205,262 |
80% | 80.4% | 183,494 | 184,319 |
70% | 69.5% | 160,557 | 159,464 |
60% | 60.0% | 137,620 | 137,637 |
50% | 49.8% | 114,684 | 114,211 |
40% | 40.1% | 91,747 | 92,079 |
30% | 30.3% | 68,810 | 69,419 |
20% | 19.9% | 45,873 | 45,633 |
10% | 10.1% | 22,937 | 23,132 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,782 | ||
Calibration 2 | 201,858 | ||
Calibration 3 | 202,821 | ||
ssj_ops@calibrated=202,340 | |||
100% | 99.8% | 202,340 | 201,910 |
90% | 90.2% | 182,106 | 182,514 |
80% | 79.9% | 161,872 | 161,623 |
70% | 69.7% | 141,638 | 141,131 |
60% | 59.8% | 121,404 | 120,959 |
50% | 50.3% | 101,170 | 101,748 |
40% | 39.7% | 80,936 | 80,243 |
30% | 30.1% | 60,702 | 60,918 |
20% | 20.3% | 40,468 | 41,017 |
10% | 10.1% | 20,234 | 20,355 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 216,206 | ||
Calibration 2 | 215,493 | ||
Calibration 3 | 215,762 | ||
ssj_ops@calibrated=215,628 | |||
100% | 98.8% | 215,628 | 212,970 |
90% | 89.8% | 194,065 | 193,702 |
80% | 80.4% | 172,502 | 173,429 |
70% | 69.7% | 150,939 | 150,380 |
60% | 60.1% | 129,377 | 129,596 |
50% | 50.6% | 107,814 | 109,189 |
40% | 40.3% | 86,251 | 86,901 |
30% | 29.7% | 64,688 | 64,042 |
20% | 20.1% | 43,126 | 43,364 |
10% | 9.9% | 21,563 | 21,358 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 221,975 | ||
Calibration 2 | 221,593 | ||
Calibration 3 | 224,020 | ||
ssj_ops@calibrated=222,807 | |||
100% | 99.3% | 222,807 | 221,303 |
90% | 90.0% | 200,526 | 200,505 |
80% | 80.5% | 178,245 | 179,273 |
70% | 69.8% | 155,965 | 155,444 |
60% | 60.5% | 133,684 | 134,720 |
50% | 49.6% | 111,403 | 110,478 |
40% | 40.1% | 89,123 | 89,421 |
30% | 30.0% | 66,842 | 66,850 |
20% | 20.1% | 44,561 | 44,771 |
10% | 10.0% | 22,281 | 22,221 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 224,176 | ||
Calibration 2 | 226,898 | ||
Calibration 3 | 225,287 | ||
ssj_ops@calibrated=226,093 | |||
100% | 99.5% | 226,093 | 225,016 |
90% | 89.9% | 203,484 | 203,191 |
80% | 80.0% | 180,874 | 180,958 |
70% | 70.3% | 158,265 | 158,993 |
60% | 60.0% | 135,656 | 135,598 |
50% | 49.7% | 113,046 | 112,459 |
40% | 39.9% | 90,437 | 90,323 |
30% | 30.2% | 67,828 | 68,171 |
20% | 20.0% | 45,219 | 45,299 |
10% | 10.2% | 22,609 | 22,978 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 224,492 | ||
Calibration 2 | 223,138 | ||
Calibration 3 | 223,204 | ||
ssj_ops@calibrated=223,171 | |||
100% | 99.2% | 223,171 | 221,366 |
90% | 90.3% | 200,854 | 201,469 |
80% | 80.4% | 178,537 | 179,410 |
70% | 70.1% | 156,220 | 156,527 |
60% | 60.7% | 133,903 | 135,512 |
50% | 49.9% | 111,586 | 111,442 |
40% | 40.2% | 89,268 | 89,649 |
30% | 29.9% | 66,951 | 66,826 |
20% | 20.0% | 44,634 | 44,668 |
10% | 10.3% | 22,317 | 23,018 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,161 | ||
Calibration 2 | 207,592 | ||
Calibration 3 | 207,524 | ||
ssj_ops@calibrated=207,558 | |||
100% | 99.0% | 207,558 | 205,522 |
90% | 90.2% | 186,802 | 187,303 |
80% | 79.4% | 166,047 | 164,877 |
70% | 69.9% | 145,291 | 144,985 |
60% | 60.5% | 124,535 | 125,491 |
50% | 49.7% | 103,779 | 103,070 |
40% | 40.4% | 83,023 | 83,784 |
30% | 30.0% | 62,267 | 62,274 |
20% | 19.9% | 41,512 | 41,223 |
10% | 10.0% | 20,756 | 20,846 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 220,789 | ||
Calibration 2 | 212,443 | ||
Calibration 3 | 214,527 | ||
ssj_ops@calibrated=213,485 | |||
100% | 100.3% | 213,485 | 214,062 |
90% | 89.6% | 192,137 | 191,313 |
80% | 80.3% | 170,788 | 171,375 |
70% | 70.4% | 149,440 | 150,204 |
60% | 60.2% | 128,091 | 128,511 |
50% | 49.8% | 106,743 | 106,238 |
40% | 39.9% | 85,394 | 85,142 |
30% | 30.0% | 64,046 | 63,962 |
20% | 19.4% | 42,697 | 41,459 |
10% | 10.0% | 21,349 | 21,412 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 220,096 | ||
Calibration 2 | 221,507 | ||
Calibration 3 | 222,162 | ||
ssj_ops@calibrated=221,835 | |||
100% | 98.9% | 221,835 | 219,359 |
90% | 90.2% | 199,651 | 200,138 |
80% | 79.8% | 177,468 | 177,125 |
70% | 69.8% | 155,284 | 154,853 |
60% | 60.3% | 133,101 | 133,829 |
50% | 50.3% | 110,917 | 111,537 |
40% | 40.0% | 88,734 | 88,822 |
30% | 30.0% | 66,550 | 66,564 |
20% | 20.4% | 44,367 | 45,282 |
10% | 10.2% | 22,183 | 22,705 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 210,697 | ||
Calibration 2 | 211,171 | ||
Calibration 3 | 211,678 | ||
ssj_ops@calibrated=211,424 | |||
100% | 99.3% | 211,424 | 209,933 |
90% | 90.6% | 190,282 | 191,573 |
80% | 79.9% | 169,139 | 168,881 |
70% | 69.5% | 147,997 | 146,998 |
60% | 60.4% | 126,855 | 127,796 |
50% | 50.1% | 105,712 | 105,865 |
40% | 40.3% | 84,570 | 85,189 |
30% | 30.0% | 63,427 | 63,412 |
20% | 19.8% | 42,285 | 41,924 |
10% | 9.9% | 21,142 | 20,878 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 223,918 | ||
Calibration 2 | 223,767 | ||
Calibration 3 | 222,884 | ||
ssj_ops@calibrated=223,325 | |||
100% | 99.1% | 223,325 | 221,292 |
90% | 89.8% | 200,993 | 200,501 |
80% | 80.0% | 178,660 | 178,571 |
70% | 69.5% | 156,328 | 155,182 |
60% | 60.0% | 133,995 | 134,090 |
50% | 49.8% | 111,663 | 111,325 |
40% | 39.9% | 89,330 | 89,024 |
30% | 29.9% | 66,998 | 66,680 |
20% | 20.1% | 44,665 | 44,933 |
10% | 10.1% | 22,333 | 22,446 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 224,542 | ||
Calibration 2 | 222,174 | ||
Calibration 3 | 223,691 | ||
ssj_ops@calibrated=222,933 | |||
100% | 99.5% | 222,933 | 221,707 |
90% | 89.9% | 200,639 | 200,478 |
80% | 80.1% | 178,346 | 178,591 |
70% | 69.9% | 156,053 | 155,863 |
60% | 59.8% | 133,760 | 133,276 |
50% | 49.4% | 111,466 | 110,164 |
40% | 40.2% | 89,173 | 89,596 |
30% | 30.1% | 66,880 | 67,169 |
20% | 20.1% | 44,587 | 44,721 |
10% | 10.0% | 22,293 | 22,374 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 224,782 | ||
Calibration 2 | 221,279 | ||
Calibration 3 | 223,490 | ||
ssj_ops@calibrated=222,385 | |||
100% | 99.2% | 222,385 | 220,694 |
90% | 89.9% | 200,146 | 199,870 |
80% | 80.2% | 177,908 | 178,460 |
70% | 70.3% | 155,669 | 156,388 |
60% | 59.3% | 133,431 | 131,889 |
50% | 49.6% | 111,192 | 110,373 |
40% | 39.6% | 88,954 | 88,038 |
30% | 30.4% | 66,715 | 67,570 |
20% | 20.1% | 44,477 | 44,682 |
10% | 10.0% | 22,238 | 22,321 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 222,499 | ||
Calibration 2 | 223,347 | ||
Calibration 3 | 222,963 | ||
ssj_ops@calibrated=223,155 | |||
100% | 98.8% | 223,155 | 220,425 |
90% | 89.7% | 200,839 | 200,277 |
80% | 80.9% | 178,524 | 180,430 |
70% | 69.8% | 156,208 | 155,766 |
60% | 60.1% | 133,893 | 134,197 |
50% | 49.2% | 111,577 | 109,748 |
40% | 39.9% | 89,262 | 89,093 |
30% | 30.3% | 66,946 | 67,688 |
20% | 20.0% | 44,631 | 44,611 |
10% | 10.1% | 22,315 | 22,642 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 220,916 | ||
Calibration 2 | 224,207 | ||
Calibration 3 | 225,124 | ||
ssj_ops@calibrated=224,666 | |||
100% | 99.1% | 224,666 | 222,723 |
90% | 89.9% | 202,199 | 201,887 |
80% | 79.9% | 179,733 | 179,608 |
70% | 69.3% | 157,266 | 155,656 |
60% | 60.0% | 134,799 | 134,830 |
50% | 50.2% | 112,333 | 112,690 |
40% | 40.2% | 89,866 | 90,214 |
30% | 30.2% | 67,400 | 67,737 |
20% | 20.0% | 44,933 | 44,944 |
10% | 9.9% | 22,467 | 22,192 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 222,201 | ||
Calibration 2 | 221,427 | ||
Calibration 3 | 220,447 | ||
ssj_ops@calibrated=220,937 | |||
100% | 99.9% | 220,937 | 220,661 |
90% | 90.2% | 198,843 | 199,306 |
80% | 79.9% | 176,750 | 176,591 |
70% | 69.9% | 154,656 | 154,490 |
60% | 59.9% | 132,562 | 132,258 |
50% | 49.7% | 110,469 | 109,824 |
40% | 39.7% | 88,375 | 87,749 |
30% | 30.3% | 66,281 | 66,869 |
20% | 20.1% | 44,187 | 44,480 |
10% | 10.2% | 22,094 | 22,596 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 223,009 | ||
Calibration 2 | 226,476 | ||
Calibration 3 | 231,223 | ||
ssj_ops@calibrated=228,850 | |||
100% | 99.4% | 228,850 | 227,412 |
90% | 90.7% | 205,965 | 207,484 |
80% | 79.9% | 183,080 | 182,873 |
70% | 70.3% | 160,195 | 160,968 |
60% | 59.9% | 137,310 | 137,118 |
50% | 49.8% | 114,425 | 113,868 |
40% | 40.5% | 91,540 | 92,714 |
30% | 30.0% | 68,655 | 68,717 |
20% | 19.9% | 45,770 | 45,627 |
10% | 9.8% | 22,885 | 22,356 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 222,239 | ||
Calibration 2 | 222,800 | ||
Calibration 3 | 223,485 | ||
ssj_ops@calibrated=223,143 | |||
100% | 99.2% | 223,143 | 221,397 |
90% | 90.0% | 200,828 | 200,826 |
80% | 79.9% | 178,514 | 178,355 |
70% | 69.2% | 156,200 | 154,335 |
60% | 60.3% | 133,886 | 134,461 |
50% | 49.9% | 111,571 | 111,367 |
40% | 39.6% | 89,257 | 88,367 |
30% | 30.2% | 66,943 | 67,332 |
20% | 20.0% | 44,629 | 44,623 |
10% | 10.1% | 22,314 | 22,469 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 210,225 | ||
Calibration 2 | 210,741 | ||
Calibration 3 | 210,240 | ||
ssj_ops@calibrated=210,491 | |||
100% | 99.3% | 210,491 | 209,041 |
90% | 89.8% | 189,442 | 188,989 |
80% | 80.7% | 168,392 | 169,923 |
70% | 70.2% | 147,343 | 147,799 |
60% | 60.1% | 126,294 | 126,506 |
50% | 50.2% | 105,245 | 105,651 |
40% | 39.9% | 84,196 | 83,979 |
30% | 29.8% | 63,147 | 62,733 |
20% | 20.0% | 42,098 | 42,085 |
10% | 10.0% | 21,049 | 21,087 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,814 | ||
Calibration 2 | 221,873 | ||
Calibration 3 | 222,399 | ||
ssj_ops@calibrated=222,136 | |||
100% | 99.5% | 222,136 | 220,949 |
90% | 89.3% | 199,922 | 198,309 |
80% | 80.4% | 177,709 | 178,694 |
70% | 71.0% | 155,495 | 157,737 |
60% | 60.2% | 133,282 | 133,745 |
50% | 49.6% | 111,068 | 110,082 |
40% | 39.9% | 88,854 | 88,620 |
30% | 29.7% | 66,641 | 66,019 |
20% | 19.6% | 44,427 | 43,585 |
10% | 10.0% | 22,214 | 22,114 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 213,422 | ||
Calibration 2 | 212,038 | ||
Calibration 3 | 212,769 | ||
ssj_ops@calibrated=212,404 | |||
100% | 98.6% | 212,404 | 209,515 |
90% | 89.3% | 191,163 | 189,693 |
80% | 80.0% | 169,923 | 169,837 |
70% | 70.4% | 148,683 | 149,630 |
60% | 60.2% | 127,442 | 127,931 |
50% | 50.1% | 106,202 | 106,338 |
40% | 39.8% | 84,962 | 84,590 |
30% | 30.2% | 63,721 | 64,215 |
20% | 20.2% | 42,481 | 42,992 |
10% | 10.1% | 21,240 | 21,374 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,746 | ||
Calibration 2 | 219,041 | ||
Calibration 3 | 218,817 | ||
ssj_ops@calibrated=218,929 | |||
100% | 99.8% | 218,929 | 218,548 |
90% | 90.2% | 197,036 | 197,504 |
80% | 79.9% | 175,143 | 174,997 |
70% | 69.2% | 153,250 | 151,483 |
60% | 59.7% | 131,357 | 130,791 |
50% | 49.9% | 109,464 | 109,235 |
40% | 40.4% | 87,572 | 88,409 |
30% | 29.9% | 65,679 | 65,500 |
20% | 19.8% | 43,786 | 43,294 |
10% | 10.0% | 21,893 | 21,868 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 212,831 | ||
Calibration 2 | 216,087 | ||
Calibration 3 | 214,993 | ||
ssj_ops@calibrated=215,540 | |||
100% | 99.3% | 215,540 | 214,123 |
90% | 90.6% | 193,986 | 195,305 |
80% | 79.6% | 172,432 | 171,497 |
70% | 70.6% | 150,878 | 152,132 |
60% | 60.3% | 129,324 | 129,933 |
50% | 50.1% | 107,770 | 107,885 |
40% | 39.9% | 86,216 | 86,102 |
30% | 29.9% | 64,662 | 64,431 |
20% | 19.8% | 43,108 | 42,646 |
10% | 10.3% | 21,554 | 22,144 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 221,550 | ||
Calibration 2 | 224,149 | ||
Calibration 3 | 224,319 | ||
ssj_ops@calibrated=224,234 | |||
100% | 99.6% | 224,234 | 223,321 |
90% | 89.9% | 201,810 | 201,536 |
80% | 79.6% | 179,387 | 178,394 |
70% | 69.9% | 156,963 | 156,814 |
60% | 59.0% | 134,540 | 132,407 |
50% | 50.2% | 112,117 | 112,677 |
40% | 39.8% | 89,693 | 89,311 |
30% | 29.7% | 67,270 | 66,703 |
20% | 20.3% | 44,847 | 45,422 |
10% | 9.7% | 22,423 | 21,829 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 225,085 | ||
Calibration 2 | 225,051 | ||
Calibration 3 | 226,124 | ||
ssj_ops@calibrated=225,587 | |||
100% | 98.4% | 225,587 | 221,866 |
90% | 90.2% | 203,029 | 203,581 |
80% | 79.3% | 180,470 | 178,937 |
70% | 69.9% | 157,911 | 157,599 |
60% | 60.2% | 135,352 | 135,863 |
50% | 50.1% | 112,794 | 112,926 |
40% | 39.8% | 90,235 | 89,760 |
30% | 30.4% | 67,676 | 68,467 |
20% | 20.1% | 45,117 | 45,403 |
10% | 10.0% | 22,559 | 22,558 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 213,488 | ||
Calibration 2 | 215,710 | ||
Calibration 3 | 215,408 | ||
ssj_ops@calibrated=215,559 | |||
100% | 99.6% | 215,559 | 214,600 |
90% | 90.1% | 194,003 | 194,151 |
80% | 79.8% | 172,447 | 172,036 |
70% | 70.5% | 150,891 | 152,047 |
60% | 59.6% | 129,335 | 128,573 |
50% | 50.5% | 107,779 | 108,759 |
40% | 40.0% | 86,224 | 86,263 |
30% | 30.3% | 64,668 | 65,321 |
20% | 19.7% | 43,112 | 42,533 |
10% | 10.1% | 21,556 | 21,664 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 220,860 | ||
Calibration 2 | 221,663 | ||
Calibration 3 | 222,486 | ||
ssj_ops@calibrated=222,075 | |||
100% | 99.2% | 222,075 | 220,209 |
90% | 90.4% | 199,867 | 200,812 |
80% | 79.8% | 177,660 | 177,137 |
70% | 70.1% | 155,452 | 155,733 |
60% | 60.0% | 133,245 | 133,288 |
50% | 50.7% | 111,037 | 112,658 |
40% | 39.9% | 88,830 | 88,685 |
30% | 29.5% | 66,622 | 65,441 |
20% | 19.9% | 44,415 | 44,138 |
10% | 10.1% | 22,207 | 22,349 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 215,922 | ||
Calibration 2 | 218,516 | ||
Calibration 3 | 217,537 | ||
ssj_ops@calibrated=218,027 | |||
100% | 99.6% | 218,027 | 217,157 |
90% | 90.3% | 196,224 | 196,972 |
80% | 79.9% | 174,421 | 174,305 |
70% | 70.2% | 152,619 | 152,951 |
60% | 59.6% | 130,816 | 130,044 |
50% | 50.1% | 109,013 | 109,316 |
40% | 39.7% | 87,211 | 86,462 |
30% | 30.2% | 65,408 | 65,900 |
20% | 19.7% | 43,605 | 42,921 |
10% | 9.9% | 21,803 | 21,492 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,180 | ||
Calibration 2 | 220,444 | ||
Calibration 3 | 221,584 | ||
ssj_ops@calibrated=221,014 | |||
100% | 99.6% | 221,014 | 220,185 |
90% | 90.6% | 198,913 | 200,138 |
80% | 80.2% | 176,811 | 177,258 |
70% | 70.0% | 154,710 | 154,768 |
60% | 60.0% | 132,608 | 132,633 |
50% | 50.1% | 110,507 | 110,628 |
40% | 39.9% | 88,406 | 88,200 |
30% | 29.4% | 66,304 | 64,934 |
20% | 19.9% | 44,203 | 44,015 |
10% | 9.8% | 22,101 | 21,697 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 221,696 | ||
Calibration 2 | 209,762 | ||
Calibration 3 | 211,358 | ||
ssj_ops@calibrated=210,560 | |||
100% | 99.4% | 210,560 | 209,248 |
90% | 90.0% | 189,504 | 189,523 |
80% | 80.0% | 168,448 | 168,500 |
70% | 69.9% | 147,392 | 147,237 |
60% | 59.8% | 126,336 | 125,966 |
50% | 49.7% | 105,280 | 104,642 |
40% | 39.6% | 84,224 | 83,478 |
30% | 29.7% | 63,168 | 62,570 |
20% | 19.8% | 42,112 | 41,618 |
10% | 10.1% | 21,056 | 21,200 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 211,491 | ||
Calibration 2 | 213,017 | ||
Calibration 3 | 213,528 | ||
ssj_ops@calibrated=213,273 | |||
100% | 98.9% | 213,273 | 210,838 |
90% | 89.7% | 191,945 | 191,301 |
80% | 79.6% | 170,618 | 169,707 |
70% | 70.3% | 149,291 | 150,008 |
60% | 60.3% | 127,964 | 128,603 |
50% | 49.8% | 106,636 | 106,173 |
40% | 40.2% | 85,309 | 85,687 |
30% | 29.9% | 63,982 | 63,762 |
20% | 19.8% | 42,655 | 42,269 |
10% | 10.0% | 21,327 | 21,396 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,061 | ||
Calibration 2 | 219,269 | ||
Calibration 3 | 222,428 | ||
ssj_ops@calibrated=220,849 | |||
100% | 99.5% | 220,849 | 219,666 |
90% | 89.8% | 198,764 | 198,220 |
80% | 79.7% | 176,679 | 175,974 |
70% | 70.3% | 154,594 | 155,189 |
60% | 60.0% | 132,509 | 132,469 |
50% | 50.2% | 110,424 | 110,775 |
40% | 40.3% | 88,339 | 88,975 |
30% | 30.2% | 66,255 | 66,588 |
20% | 20.0% | 44,170 | 44,231 |
10% | 10.0% | 22,085 | 22,012 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 222,561 | ||
Calibration 2 | 220,064 | ||
Calibration 3 | 219,240 | ||
ssj_ops@calibrated=219,652 | |||
100% | 99.4% | 219,652 | 218,322 |
90% | 90.4% | 197,687 | 198,635 |
80% | 79.5% | 175,722 | 174,650 |
70% | 69.7% | 153,756 | 153,103 |
60% | 60.1% | 131,791 | 131,959 |
50% | 49.6% | 109,826 | 109,019 |
40% | 40.3% | 87,861 | 88,538 |
30% | 30.2% | 65,896 | 66,298 |
20% | 19.8% | 43,930 | 43,384 |
10% | 10.0% | 21,965 | 21,881 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 221,917 | ||
Calibration 2 | 227,280 | ||
Calibration 3 | 226,624 | ||
ssj_ops@calibrated=226,952 | |||
100% | 99.0% | 226,952 | 224,620 |
90% | 89.9% | 204,257 | 204,041 |
80% | 80.3% | 181,561 | 182,288 |
70% | 70.2% | 158,866 | 159,270 |
60% | 60.2% | 136,171 | 136,574 |
50% | 50.1% | 113,476 | 113,635 |
40% | 40.1% | 90,781 | 90,985 |
30% | 30.2% | 68,086 | 68,563 |
20% | 20.0% | 45,390 | 45,431 |
10% | 9.9% | 22,695 | 22,488 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 217,368 | ||
Calibration 2 | 217,410 | ||
Calibration 3 | 218,021 | ||
ssj_ops@calibrated=217,715 | |||
100% | 99.2% | 217,715 | 216,007 |
90% | 89.8% | 195,944 | 195,496 |
80% | 80.9% | 174,172 | 176,075 |
70% | 70.1% | 152,401 | 152,684 |
60% | 60.5% | 130,629 | 131,768 |
50% | 50.0% | 108,858 | 108,876 |
40% | 40.1% | 87,086 | 87,278 |
30% | 30.1% | 65,315 | 65,558 |
20% | 20.3% | 43,543 | 44,106 |
10% | 9.9% | 21,772 | 21,562 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 216,140 | ||
Calibration 2 | 217,572 | ||
Calibration 3 | 216,614 | ||
ssj_ops@calibrated=217,093 | |||
100% | 99.7% | 217,093 | 216,446 |
90% | 89.8% | 195,384 | 194,881 |
80% | 80.0% | 173,674 | 173,669 |
70% | 69.9% | 151,965 | 151,784 |
60% | 59.4% | 130,256 | 128,947 |
50% | 49.5% | 108,546 | 107,538 |
40% | 39.8% | 86,837 | 86,351 |
30% | 29.7% | 65,128 | 64,578 |
20% | 20.0% | 43,419 | 43,475 |
10% | 10.0% | 21,709 | 21,802 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,978 | ||
Calibration 2 | 215,902 | ||
Calibration 3 | 215,664 | ||
ssj_ops@calibrated=215,783 | |||
100% | 99.5% | 215,783 | 214,736 |
90% | 89.5% | 194,205 | 193,208 |
80% | 79.9% | 172,627 | 172,465 |
70% | 70.0% | 151,048 | 150,949 |
60% | 60.1% | 129,470 | 129,790 |
50% | 49.9% | 107,892 | 107,648 |
40% | 40.2% | 86,313 | 86,700 |
30% | 30.2% | 64,735 | 65,147 |
20% | 20.0% | 43,157 | 43,236 |
10% | 10.1% | 21,578 | 21,795 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 222,012 | ||
Calibration 2 | 224,042 | ||
Calibration 3 | 223,420 | ||
ssj_ops@calibrated=223,731 | |||
100% | 99.6% | 223,731 | 222,902 |
90% | 90.3% | 201,358 | 202,133 |
80% | 80.0% | 178,985 | 178,926 |
70% | 70.3% | 156,612 | 157,226 |
60% | 59.5% | 134,239 | 133,049 |
50% | 50.2% | 111,866 | 112,340 |
40% | 39.9% | 89,492 | 89,274 |
30% | 29.7% | 67,119 | 66,363 |
20% | 20.1% | 44,746 | 44,862 |
10% | 9.9% | 22,373 | 22,213 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 220,958 | ||
Calibration 2 | 224,224 | ||
Calibration 3 | 226,094 | ||
ssj_ops@calibrated=225,159 | |||
100% | 98.8% | 225,159 | 222,556 |
90% | 89.6% | 202,643 | 201,851 |
80% | 80.0% | 180,127 | 180,081 |
70% | 70.2% | 157,611 | 158,031 |
60% | 59.6% | 135,095 | 134,121 |
50% | 50.5% | 112,579 | 113,759 |
40% | 40.1% | 90,063 | 90,190 |
30% | 29.9% | 67,548 | 67,407 |
20% | 20.0% | 45,032 | 45,086 |
10% | 10.4% | 22,516 | 23,354 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,200 | ||
Calibration 2 | 212,214 | ||
Calibration 3 | 214,447 | ||
ssj_ops@calibrated=213,331 | |||
100% | 99.6% | 213,331 | 212,479 |
90% | 89.4% | 191,998 | 190,622 |
80% | 79.7% | 170,665 | 170,083 |
70% | 69.5% | 149,331 | 148,366 |
60% | 60.2% | 127,998 | 128,483 |
50% | 50.0% | 106,665 | 106,588 |
40% | 40.3% | 85,332 | 85,882 |
30% | 29.3% | 63,999 | 62,599 |
20% | 19.9% | 42,666 | 42,510 |
10% | 10.1% | 21,333 | 21,542 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 224,531 | ||
Calibration 2 | 225,341 | ||
Calibration 3 | 224,832 | ||
ssj_ops@calibrated=225,086 | |||
100% | 98.4% | 225,086 | 221,479 |
90% | 90.4% | 202,578 | 203,495 |
80% | 79.7% | 180,069 | 179,377 |
70% | 69.9% | 157,560 | 157,342 |
60% | 60.2% | 135,052 | 135,567 |
50% | 49.8% | 112,543 | 111,992 |
40% | 40.4% | 90,034 | 90,950 |
30% | 30.1% | 67,526 | 67,846 |
20% | 20.1% | 45,017 | 45,306 |
10% | 10.2% | 22,509 | 22,983 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 200,071 | ||
Calibration 2 | 202,655 | ||
Calibration 3 | 204,807 | ||
ssj_ops@calibrated=203,731 | |||
100% | 99.3% | 203,731 | 202,338 |
90% | 90.4% | 183,358 | 184,097 |
80% | 80.5% | 162,985 | 164,013 |
70% | 69.8% | 142,611 | 142,263 |
60% | 60.3% | 122,238 | 122,804 |
50% | 49.7% | 101,865 | 101,214 |
40% | 40.6% | 81,492 | 82,640 |
30% | 30.2% | 61,119 | 61,451 |
20% | 20.2% | 40,746 | 41,119 |
10% | 10.0% | 20,373 | 20,276 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 228,970 | ||
Calibration 2 | 228,421 | ||
Calibration 3 | 228,908 | ||
ssj_ops@calibrated=228,665 | |||
100% | 99.6% | 228,665 | 227,731 |
90% | 89.8% | 205,798 | 205,255 |
80% | 80.1% | 182,932 | 183,207 |
70% | 70.3% | 160,065 | 160,830 |
60% | 59.8% | 137,199 | 136,718 |
50% | 50.1% | 114,332 | 114,658 |
40% | 40.3% | 91,466 | 92,066 |
30% | 29.8% | 68,599 | 68,046 |
20% | 19.9% | 45,733 | 45,546 |
10% | 9.9% | 22,866 | 22,737 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 225,776 | ||
Calibration 2 | 227,379 | ||
Calibration 3 | 227,405 | ||
ssj_ops@calibrated=227,392 | |||
100% | 99.1% | 227,392 | 225,330 |
90% | 89.8% | 204,653 | 204,160 |
80% | 80.6% | 181,914 | 183,250 |
70% | 69.5% | 159,174 | 158,020 |
60% | 60.1% | 136,435 | 136,555 |
50% | 49.8% | 113,696 | 113,215 |
40% | 40.0% | 90,957 | 90,896 |
30% | 30.2% | 68,218 | 68,724 |
20% | 20.2% | 45,478 | 45,947 |
10% | 9.9% | 22,739 | 22,505 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 213,798 | ||
Calibration 2 | 212,899 | ||
Calibration 3 | 215,781 | ||
ssj_ops@calibrated=214,340 | |||
100% | 100.3% | 214,340 | 214,917 |
90% | 89.0% | 192,906 | 190,865 |
80% | 81.4% | 171,472 | 174,456 |
70% | 69.6% | 150,038 | 149,138 |
60% | 59.9% | 128,604 | 128,480 |
50% | 50.1% | 107,170 | 107,486 |
40% | 39.9% | 85,736 | 85,533 |
30% | 30.2% | 64,302 | 64,724 |
20% | 19.9% | 42,868 | 42,658 |
10% | 9.8% | 21,434 | 21,030 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 211,743 | ||
Calibration 2 | 212,260 | ||
Calibration 3 | 214,397 | ||
ssj_ops@calibrated=213,328 | |||
100% | 99.3% | 213,328 | 211,930 |
90% | 90.3% | 191,996 | 192,539 |
80% | 79.6% | 170,663 | 169,907 |
70% | 70.3% | 149,330 | 149,916 |
60% | 60.0% | 127,997 | 127,938 |
50% | 50.1% | 106,664 | 106,794 |
40% | 40.0% | 85,331 | 85,328 |
30% | 29.8% | 63,999 | 63,609 |
20% | 20.0% | 42,666 | 42,717 |
10% | 9.9% | 21,333 | 21,122 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 207,399 | ||
Calibration 2 | 195,857 | ||
Calibration 3 | 196,390 | ||
ssj_ops@calibrated=196,123 | |||
100% | 99.5% | 196,123 | 195,057 |
90% | 90.0% | 176,511 | 176,439 |
80% | 80.2% | 156,899 | 157,361 |
70% | 70.8% | 137,286 | 138,824 |
60% | 59.9% | 117,674 | 117,418 |
50% | 50.0% | 98,062 | 98,014 |
40% | 40.0% | 78,449 | 78,441 |
30% | 30.4% | 58,837 | 59,626 |
20% | 19.8% | 39,225 | 38,851 |
10% | 9.9% | 19,612 | 19,379 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 216,130 | ||
Calibration 2 | 218,145 | ||
Calibration 3 | 218,027 | ||
ssj_ops@calibrated=218,086 | |||
100% | 99.4% | 218,086 | 216,803 |
90% | 89.5% | 196,278 | 195,132 |
80% | 80.6% | 174,469 | 175,881 |
70% | 70.1% | 152,660 | 152,946 |
60% | 59.8% | 130,852 | 130,436 |
50% | 49.9% | 109,043 | 108,762 |
40% | 40.1% | 87,234 | 87,561 |
30% | 29.8% | 65,426 | 65,000 |
20% | 19.9% | 43,617 | 43,407 |
10% | 10.0% | 21,809 | 21,875 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 224,293 | ||
Calibration 2 | 224,952 | ||
Calibration 3 | 225,872 | ||
ssj_ops@calibrated=225,412 | |||
100% | 99.6% | 225,412 | 224,432 |
90% | 90.2% | 202,871 | 203,313 |
80% | 80.0% | 180,330 | 180,354 |
70% | 69.9% | 157,788 | 157,567 |
60% | 59.9% | 135,247 | 134,938 |
50% | 49.9% | 112,706 | 112,403 |
40% | 40.2% | 90,165 | 90,571 |
30% | 29.9% | 67,624 | 67,415 |
20% | 20.0% | 45,082 | 45,178 |
10% | 9.9% | 22,541 | 22,303 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 232,528 | ||
Calibration 2 | 230,909 | ||
Calibration 3 | 231,803 | ||
ssj_ops@calibrated=231,356 | |||
100% | 99.9% | 231,356 | 231,149 |
90% | 90.5% | 208,220 | 209,312 |
80% | 79.8% | 185,085 | 184,693 |
70% | 69.8% | 161,949 | 161,517 |
60% | 59.9% | 138,814 | 138,693 |
50% | 49.6% | 115,678 | 114,733 |
40% | 40.3% | 92,542 | 93,148 |
30% | 29.7% | 69,407 | 68,827 |
20% | 20.1% | 46,271 | 46,540 |
10% | 9.9% | 23,136 | 22,942 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 206,097 | ||
Calibration 2 | 206,361 | ||
Calibration 3 | 206,619 | ||
ssj_ops@calibrated=206,490 | |||
100% | 99.8% | 206,490 | 206,067 |
90% | 89.6% | 185,841 | 185,090 |
80% | 80.0% | 165,192 | 165,092 |
70% | 70.6% | 144,543 | 145,720 |
60% | 59.7% | 123,894 | 123,374 |
50% | 49.8% | 103,245 | 102,741 |
40% | 40.3% | 82,596 | 83,245 |
30% | 30.3% | 61,947 | 62,510 |
20% | 20.0% | 41,298 | 41,327 |
10% | 10.0% | 20,649 | 20,717 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 232,119 | ||
Calibration 2 | 229,970 | ||
Calibration 3 | 232,616 | ||
ssj_ops@calibrated=231,293 | |||
100% | 100.0% | 231,293 | 231,267 |
90% | 89.9% | 208,163 | 208,037 |
80% | 79.4% | 185,034 | 183,674 |
70% | 69.8% | 161,905 | 161,450 |
60% | 59.6% | 138,776 | 137,889 |
50% | 50.3% | 115,646 | 116,327 |
40% | 40.0% | 92,517 | 92,453 |
30% | 29.9% | 69,388 | 69,103 |
20% | 19.9% | 46,259 | 46,018 |
10% | 10.1% | 23,129 | 23,416 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 215,515 | ||
Calibration 2 | 214,438 | ||
Calibration 3 | 214,766 | ||
ssj_ops@calibrated=214,602 | |||
100% | 99.2% | 214,602 | 212,943 |
90% | 89.3% | 193,142 | 191,721 |
80% | 80.0% | 171,681 | 171,679 |
70% | 70.1% | 150,221 | 150,450 |
60% | 60.5% | 128,761 | 129,833 |
50% | 50.0% | 107,301 | 107,282 |
40% | 39.8% | 85,841 | 85,353 |
30% | 29.8% | 64,381 | 63,848 |
20% | 20.0% | 42,920 | 42,991 |
10% | 10.0% | 21,460 | 21,462 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,246 | ||
Calibration 2 | 218,237 | ||
Calibration 3 | 217,154 | ||
ssj_ops@calibrated=217,696 | |||
100% | 98.8% | 217,696 | 215,064 |
90% | 89.6% | 195,926 | 195,125 |
80% | 80.4% | 174,156 | 175,031 |
70% | 69.9% | 152,387 | 152,117 |
60% | 59.9% | 130,617 | 130,302 |
50% | 50.0% | 108,848 | 108,796 |
40% | 40.2% | 87,078 | 87,557 |
30% | 30.1% | 65,309 | 65,582 |
20% | 20.1% | 43,539 | 43,834 |
10% | 10.1% | 21,770 | 21,937 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,283 | ||
Calibration 2 | 216,857 | ||
Calibration 3 | 215,769 | ||
ssj_ops@calibrated=216,313 | |||
100% | 99.1% | 216,313 | 214,398 |
90% | 90.1% | 194,682 | 194,800 |
80% | 79.9% | 173,050 | 172,746 |
70% | 69.6% | 151,419 | 150,643 |
60% | 60.3% | 129,788 | 130,495 |
50% | 50.0% | 108,157 | 108,085 |
40% | 40.6% | 86,525 | 87,884 |
30% | 30.1% | 64,894 | 65,123 |
20% | 19.8% | 43,263 | 42,831 |
10% | 9.9% | 21,631 | 21,429 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 225,717 | ||
Calibration 2 | 222,124 | ||
Calibration 3 | 224,034 | ||
ssj_ops@calibrated=223,079 | |||
100% | 100.3% | 223,079 | 223,709 |
90% | 90.3% | 200,771 | 201,412 |
80% | 81.1% | 178,463 | 181,017 |
70% | 70.5% | 156,155 | 157,381 |
60% | 59.5% | 133,847 | 132,707 |
50% | 50.0% | 111,540 | 111,527 |
40% | 40.8% | 89,232 | 90,918 |
30% | 30.2% | 66,924 | 67,332 |
20% | 20.1% | 44,616 | 44,853 |
10% | 10.0% | 22,308 | 22,290 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 204,086 | ||
Calibration 2 | 207,395 | ||
Calibration 3 | 206,742 | ||
ssj_ops@calibrated=207,068 | |||
100% | 99.7% | 207,068 | 206,457 |
90% | 90.4% | 186,362 | 187,234 |
80% | 79.3% | 165,655 | 164,278 |
70% | 69.6% | 144,948 | 144,022 |
60% | 59.6% | 124,241 | 123,332 |
50% | 49.6% | 103,534 | 102,786 |
40% | 39.4% | 82,827 | 81,492 |
30% | 30.2% | 62,121 | 62,539 |
20% | 20.0% | 41,414 | 41,400 |
10% | 9.9% | 20,707 | 20,409 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 227,920 | ||
Calibration 2 | 227,699 | ||
Calibration 3 | 228,174 | ||
ssj_ops@calibrated=227,937 | |||
100% | 99.2% | 227,937 | 226,010 |
90% | 90.2% | 205,143 | 205,502 |
80% | 80.5% | 182,349 | 183,536 |
70% | 69.7% | 159,556 | 158,955 |
60% | 59.7% | 136,762 | 136,192 |
50% | 49.8% | 113,968 | 113,446 |
40% | 40.3% | 91,175 | 91,855 |
30% | 29.8% | 68,381 | 68,008 |
20% | 19.8% | 45,587 | 45,078 |
10% | 10.1% | 22,794 | 22,933 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 212,726 | ||
Calibration 2 | 212,133 | ||
Calibration 3 | 214,545 | ||
ssj_ops@calibrated=213,339 | |||
100% | 98.9% | 213,339 | 211,043 |
90% | 89.9% | 192,005 | 191,741 |
80% | 79.7% | 170,671 | 170,016 |
70% | 70.3% | 149,337 | 149,998 |
60% | 59.5% | 128,003 | 126,927 |
50% | 50.1% | 106,669 | 106,869 |
40% | 40.7% | 85,335 | 86,773 |
30% | 29.9% | 64,002 | 63,807 |
20% | 20.1% | 42,668 | 42,823 |
10% | 10.2% | 21,334 | 21,662 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 213,114 | ||
Calibration 2 | 212,987 | ||
Calibration 3 | 215,387 | ||
ssj_ops@calibrated=214,187 | |||
100% | 100.3% | 214,187 | 214,726 |
90% | 90.0% | 192,768 | 192,721 |
80% | 79.8% | 171,350 | 170,895 |
70% | 70.6% | 149,931 | 151,119 |
60% | 59.5% | 128,512 | 127,501 |
50% | 49.8% | 107,094 | 106,559 |
40% | 40.1% | 85,675 | 85,924 |
30% | 29.9% | 64,256 | 64,040 |
20% | 20.1% | 42,837 | 43,003 |
10% | 10.0% | 21,419 | 21,399 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 206,871 | ||
Calibration 2 | 207,869 | ||
Calibration 3 | 208,228 | ||
ssj_ops@calibrated=208,048 | |||
100% | 99.9% | 208,048 | 207,833 |
90% | 90.3% | 187,243 | 187,927 |
80% | 80.3% | 166,439 | 166,960 |
70% | 69.9% | 145,634 | 145,459 |
60% | 60.1% | 124,829 | 125,033 |
50% | 49.7% | 104,024 | 103,390 |
40% | 40.1% | 83,219 | 83,475 |
30% | 30.2% | 62,414 | 62,815 |
20% | 20.6% | 41,610 | 42,766 |
10% | 9.9% | 20,805 | 20,512 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 212,952 | ||
Calibration 2 | 211,801 | ||
Calibration 3 | 211,863 | ||
ssj_ops@calibrated=211,832 | |||
100% | 98.3% | 211,832 | 208,237 |
90% | 89.7% | 190,649 | 190,033 |
80% | 79.8% | 169,466 | 169,095 |
70% | 70.0% | 148,282 | 148,306 |
60% | 59.6% | 127,099 | 126,203 |
50% | 49.5% | 105,916 | 104,920 |
40% | 40.1% | 84,733 | 84,880 |
30% | 30.1% | 63,550 | 63,709 |
20% | 20.0% | 42,366 | 42,467 |
10% | 10.2% | 21,183 | 21,536 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 223,815 | ||
Calibration 2 | 222,491 | ||
Calibration 3 | 221,702 | ||
ssj_ops@calibrated=222,097 | |||
100% | 98.6% | 222,097 | 218,880 |
90% | 89.6% | 199,887 | 199,048 |
80% | 80.3% | 177,677 | 178,305 |
70% | 69.9% | 155,468 | 155,188 |
60% | 59.9% | 133,258 | 132,981 |
50% | 50.1% | 111,048 | 111,172 |
40% | 39.9% | 88,839 | 88,698 |
30% | 29.7% | 66,629 | 65,896 |
20% | 19.8% | 44,419 | 43,990 |
10% | 9.9% | 22,210 | 21,912 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 224,640 | ||
Calibration 2 | 223,172 | ||
Calibration 3 | 224,696 | ||
ssj_ops@calibrated=223,934 | |||
100% | 99.7% | 223,934 | 223,157 |
90% | 89.8% | 201,541 | 200,986 |
80% | 79.4% | 179,147 | 177,797 |
70% | 70.2% | 156,754 | 157,298 |
60% | 59.9% | 134,360 | 134,027 |
50% | 50.3% | 111,967 | 112,633 |
40% | 40.3% | 89,574 | 90,318 |
30% | 30.1% | 67,180 | 67,305 |
20% | 20.1% | 44,787 | 45,040 |
10% | 9.8% | 22,393 | 21,992 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 222,771 | ||
Calibration 2 | 221,414 | ||
Calibration 3 | 222,123 | ||
ssj_ops@calibrated=221,768 | |||
100% | 99.4% | 221,768 | 220,416 |
90% | 89.4% | 199,592 | 198,243 |
80% | 79.7% | 177,415 | 176,816 |
70% | 70.8% | 155,238 | 156,932 |
60% | 60.6% | 133,061 | 134,390 |
50% | 49.8% | 110,884 | 110,505 |
40% | 39.8% | 88,707 | 88,286 |
30% | 29.9% | 66,531 | 66,336 |
20% | 20.2% | 44,354 | 44,708 |
10% | 9.8% | 22,177 | 21,771 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 225,533 | ||
Calibration 2 | 226,920 | ||
Calibration 3 | 226,008 | ||
ssj_ops@calibrated=226,464 | |||
100% | 99.6% | 226,464 | 225,515 |
90% | 90.2% | 203,818 | 204,322 |
80% | 79.6% | 181,171 | 180,303 |
70% | 70.3% | 158,525 | 159,230 |
60% | 60.2% | 135,878 | 136,320 |
50% | 49.9% | 113,232 | 112,907 |
40% | 39.8% | 90,586 | 90,187 |
30% | 30.4% | 67,939 | 68,833 |
20% | 19.9% | 45,293 | 45,151 |
10% | 10.1% | 22,646 | 22,912 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 223,848 | ||
Calibration 2 | 226,082 | ||
Calibration 3 | 226,603 | ||
ssj_ops@calibrated=226,342 | |||
100% | 98.6% | 226,342 | 223,072 |
90% | 89.7% | 203,708 | 202,987 |
80% | 79.9% | 181,074 | 180,779 |
70% | 69.9% | 158,440 | 158,250 |
60% | 60.4% | 135,805 | 136,698 |
50% | 50.1% | 113,171 | 113,391 |
40% | 40.0% | 90,537 | 90,508 |
30% | 30.4% | 67,903 | 68,725 |
20% | 20.0% | 45,268 | 45,336 |
10% | 9.8% | 22,634 | 22,194 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 228,408 | ||
Calibration 2 | 229,483 | ||
Calibration 3 | 230,854 | ||
ssj_ops@calibrated=230,168 | |||
100% | 99.0% | 230,168 | 227,761 |
90% | 89.9% | 207,152 | 206,887 |
80% | 79.4% | 184,135 | 182,640 |
70% | 70.2% | 161,118 | 161,623 |
60% | 60.4% | 138,101 | 139,037 |
50% | 49.4% | 115,084 | 113,802 |
40% | 39.8% | 92,067 | 91,691 |
30% | 30.1% | 69,051 | 69,369 |
20% | 20.0% | 46,034 | 45,951 |
10% | 9.7% | 23,017 | 22,379 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,823 | ||
Calibration 2 | 221,259 | ||
Calibration 3 | 222,297 | ||
ssj_ops@calibrated=221,778 | |||
100% | 99.7% | 221,778 | 221,089 |
90% | 89.8% | 199,600 | 199,140 |
80% | 80.1% | 177,422 | 177,683 |
70% | 69.8% | 155,244 | 154,747 |
60% | 60.2% | 133,067 | 133,586 |
50% | 49.8% | 110,889 | 110,436 |
40% | 40.1% | 88,711 | 88,952 |
30% | 29.9% | 66,533 | 66,203 |
20% | 20.2% | 44,356 | 44,900 |
10% | 9.9% | 22,178 | 21,918 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,938 | ||
Calibration 2 | 219,679 | ||
Calibration 3 | 218,550 | ||
ssj_ops@calibrated=219,114 | |||
100% | 99.3% | 219,114 | 217,655 |
90% | 89.2% | 197,203 | 195,462 |
80% | 79.6% | 175,292 | 174,379 |
70% | 69.3% | 153,380 | 151,855 |
60% | 60.5% | 131,469 | 132,480 |
50% | 49.6% | 109,557 | 108,651 |
40% | 40.1% | 87,646 | 87,830 |
30% | 30.1% | 65,734 | 65,869 |
20% | 19.9% | 43,823 | 43,516 |
10% | 10.3% | 21,911 | 22,492 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 223,285 | ||
Calibration 2 | 222,584 | ||
Calibration 3 | 222,458 | ||
ssj_ops@calibrated=222,521 | |||
100% | 99.0% | 222,521 | 220,341 |
90% | 90.0% | 200,269 | 200,365 |
80% | 80.6% | 178,017 | 179,402 |
70% | 70.1% | 155,765 | 156,076 |
60% | 59.7% | 133,513 | 132,888 |
50% | 49.9% | 111,261 | 111,144 |
40% | 40.2% | 89,008 | 89,519 |
30% | 30.3% | 66,756 | 67,349 |
20% | 20.0% | 44,504 | 44,496 |
10% | 9.8% | 22,252 | 21,837 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 226,003 | ||
Calibration 2 | 225,644 | ||
Calibration 3 | 225,774 | ||
ssj_ops@calibrated=225,709 | |||
100% | 99.6% | 225,709 | 224,713 |
90% | 89.9% | 203,138 | 202,892 |
80% | 80.3% | 180,567 | 181,308 |
70% | 69.8% | 157,996 | 157,435 |
60% | 59.8% | 135,425 | 134,887 |
50% | 50.3% | 112,855 | 113,464 |
40% | 39.9% | 90,284 | 90,026 |
30% | 29.6% | 67,713 | 66,922 |
20% | 20.1% | 45,142 | 45,324 |
10% | 10.0% | 22,571 | 22,512 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 217,092 | ||
Calibration 2 | 215,029 | ||
Calibration 3 | 214,499 | ||
ssj_ops@calibrated=214,764 | |||
100% | 99.3% | 214,764 | 213,251 |
90% | 89.6% | 193,288 | 192,519 |
80% | 79.8% | 171,811 | 171,480 |
70% | 69.9% | 150,335 | 150,190 |
60% | 60.0% | 128,858 | 128,838 |
50% | 50.3% | 107,382 | 108,118 |
40% | 39.9% | 85,906 | 85,735 |
30% | 29.7% | 64,429 | 63,690 |
20% | 20.1% | 42,953 | 43,068 |
10% | 10.1% | 21,476 | 21,642 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 227,055 | ||
Calibration 2 | 228,507 | ||
Calibration 3 | 226,623 | ||
ssj_ops@calibrated=227,565 | |||
100% | 99.5% | 227,565 | 226,323 |
90% | 90.5% | 204,809 | 205,878 |
80% | 80.5% | 182,052 | 183,151 |
70% | 70.5% | 159,296 | 160,386 |
60% | 59.9% | 136,539 | 136,248 |
50% | 50.2% | 113,783 | 114,298 |
40% | 40.1% | 91,026 | 91,151 |
30% | 29.9% | 68,270 | 67,995 |
20% | 19.8% | 45,513 | 45,059 |
10% | 10.2% | 22,757 | 23,197 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 223,681 | ||
Calibration 2 | 222,967 | ||
Calibration 3 | 223,153 | ||
ssj_ops@calibrated=223,060 | |||
100% | 99.6% | 223,060 | 222,232 |
90% | 89.8% | 200,754 | 200,336 |
80% | 80.2% | 178,448 | 178,810 |
70% | 70.4% | 156,142 | 157,043 |
60% | 60.4% | 133,836 | 134,701 |
50% | 49.3% | 111,530 | 110,000 |
40% | 39.6% | 89,224 | 88,393 |
30% | 29.7% | 66,918 | 66,149 |
20% | 19.8% | 44,612 | 44,263 |
10% | 10.1% | 22,306 | 22,446 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 217,265 | ||
Calibration 2 | 219,701 | ||
Calibration 3 | 218,921 | ||
ssj_ops@calibrated=219,311 | |||
100% | 99.4% | 219,311 | 217,897 |
90% | 89.6% | 197,380 | 196,421 |
80% | 80.8% | 175,449 | 177,125 |
70% | 70.0% | 153,518 | 153,509 |
60% | 60.2% | 131,587 | 132,134 |
50% | 49.2% | 109,655 | 107,933 |
40% | 39.8% | 87,724 | 87,334 |
30% | 29.9% | 65,793 | 65,510 |
20% | 19.8% | 43,862 | 43,448 |
10% | 10.0% | 21,931 | 21,997 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 221,332 | ||
Calibration 2 | 223,118 | ||
Calibration 3 | 221,778 | ||
ssj_ops@calibrated=222,448 | |||
100% | 99.5% | 222,448 | 221,309 |
90% | 89.6% | 200,203 | 199,366 |
80% | 79.3% | 177,958 | 176,448 |
70% | 70.6% | 155,714 | 157,069 |
60% | 59.7% | 133,469 | 132,716 |
50% | 50.2% | 111,224 | 111,575 |
40% | 39.5% | 88,979 | 87,944 |
30% | 29.4% | 66,734 | 65,475 |
20% | 19.8% | 44,490 | 44,090 |
10% | 9.9% | 22,245 | 21,937 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 224,951 | ||
Calibration 2 | 223,594 | ||
Calibration 3 | 224,514 | ||
ssj_ops@calibrated=224,054 | |||
100% | 99.3% | 224,054 | 222,549 |
90% | 89.8% | 201,648 | 201,122 |
80% | 80.3% | 179,243 | 179,996 |
70% | 69.4% | 156,838 | 155,488 |
60% | 60.6% | 134,432 | 135,717 |
50% | 50.3% | 112,027 | 112,610 |
40% | 40.1% | 89,622 | 89,839 |
30% | 30.0% | 67,216 | 67,326 |
20% | 20.1% | 44,811 | 44,958 |
10% | 10.2% | 22,405 | 22,841 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 221,602 | ||
Calibration 2 | 222,904 | ||
Calibration 3 | 222,105 | ||
ssj_ops@calibrated=222,505 | |||
100% | 99.7% | 222,505 | 221,732 |
90% | 89.4% | 200,254 | 199,022 |
80% | 80.5% | 178,004 | 179,151 |
70% | 70.0% | 155,753 | 155,745 |
60% | 59.6% | 133,503 | 132,556 |
50% | 50.0% | 111,252 | 111,211 |
40% | 39.7% | 89,002 | 88,439 |
30% | 29.7% | 66,751 | 66,064 |
20% | 19.9% | 44,501 | 44,213 |
10% | 10.0% | 22,250 | 22,148 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,436 | ||
Calibration 2 | 209,773 | ||
Calibration 3 | 208,608 | ||
ssj_ops@calibrated=209,191 | |||
100% | 99.9% | 209,191 | 209,070 |
90% | 90.1% | 188,272 | 188,493 |
80% | 80.0% | 167,353 | 167,256 |
70% | 70.4% | 146,434 | 147,240 |
60% | 60.0% | 125,514 | 125,438 |
50% | 50.7% | 104,595 | 106,031 |
40% | 40.4% | 83,676 | 84,467 |
30% | 30.1% | 62,757 | 63,051 |
20% | 20.2% | 41,838 | 42,304 |
10% | 10.2% | 20,919 | 21,345 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 215,768 | ||
Calibration 2 | 214,243 | ||
Calibration 3 | 215,347 | ||
ssj_ops@calibrated=214,795 | |||
100% | 100.3% | 214,795 | 215,434 |
90% | 89.6% | 193,316 | 192,455 |
80% | 80.4% | 171,836 | 172,715 |
70% | 69.9% | 150,357 | 150,149 |
60% | 60.7% | 128,877 | 130,417 |
50% | 49.9% | 107,398 | 107,249 |
40% | 40.0% | 85,918 | 85,911 |
30% | 29.8% | 64,439 | 63,953 |
20% | 19.8% | 42,959 | 42,593 |
10% | 10.0% | 21,480 | 21,429 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 227,966 | ||
Calibration 2 | 229,559 | ||
Calibration 3 | 228,718 | ||
ssj_ops@calibrated=229,138 | |||
100% | 98.9% | 229,138 | 226,711 |
90% | 89.8% | 206,225 | 205,853 |
80% | 79.8% | 183,311 | 182,895 |
70% | 70.0% | 160,397 | 160,485 |
60% | 59.6% | 137,483 | 136,596 |
50% | 49.5% | 114,569 | 113,531 |
40% | 39.6% | 91,655 | 90,654 |
30% | 30.2% | 68,742 | 69,198 |
20% | 19.9% | 45,828 | 45,579 |
10% | 9.9% | 22,914 | 22,758 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 207,192 | ||
Calibration 2 | 199,585 | ||
Calibration 3 | 199,965 | ||
ssj_ops@calibrated=199,775 | |||
100% | 98.7% | 199,775 | 197,173 |
90% | 90.3% | 179,797 | 180,390 |
80% | 79.5% | 159,820 | 158,883 |
70% | 70.4% | 139,842 | 140,706 |
60% | 60.0% | 119,865 | 119,807 |
50% | 50.3% | 99,887 | 100,546 |
40% | 40.3% | 79,910 | 80,519 |
30% | 30.0% | 59,932 | 59,917 |
20% | 19.9% | 39,955 | 39,705 |
10% | 10.1% | 19,977 | 20,233 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 227,597 | ||
Calibration 2 | 226,146 | ||
Calibration 3 | 225,220 | ||
ssj_ops@calibrated=225,683 | |||
100% | 100.1% | 225,683 | 226,010 |
90% | 89.6% | 203,115 | 202,267 |
80% | 80.6% | 180,546 | 181,808 |
70% | 69.6% | 157,978 | 157,112 |
60% | 59.9% | 135,410 | 135,245 |
50% | 50.2% | 112,841 | 113,390 |
40% | 39.6% | 90,273 | 89,350 |
30% | 29.8% | 67,705 | 67,265 |
20% | 20.3% | 45,137 | 45,733 |
10% | 10.0% | 22,568 | 22,558 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 225,388 | ||
Calibration 2 | 227,582 | ||
Calibration 3 | 225,625 | ||
ssj_ops@calibrated=226,603 | |||
100% | 99.2% | 226,603 | 224,804 |
90% | 89.7% | 203,943 | 203,362 |
80% | 80.1% | 181,283 | 181,517 |
70% | 69.7% | 158,622 | 157,961 |
60% | 60.2% | 135,962 | 136,450 |
50% | 49.8% | 113,302 | 112,883 |
40% | 39.9% | 90,641 | 90,371 |
30% | 30.3% | 67,981 | 68,642 |
20% | 20.1% | 45,321 | 45,504 |
10% | 9.8% | 22,660 | 22,300 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 224,730 | ||
Calibration 2 | 224,075 | ||
Calibration 3 | 222,505 | ||
ssj_ops@calibrated=223,290 | |||
100% | 99.5% | 223,290 | 222,065 |
90% | 89.4% | 200,961 | 199,643 |
80% | 80.4% | 178,632 | 179,555 |
70% | 70.5% | 156,303 | 157,490 |
60% | 60.2% | 133,974 | 134,526 |
50% | 50.3% | 111,645 | 112,220 |
40% | 40.3% | 89,316 | 89,927 |
30% | 30.1% | 66,987 | 67,225 |
20% | 19.9% | 44,658 | 44,355 |
10% | 10.0% | 22,329 | 22,310 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 222,928 | ||
Calibration 2 | 223,631 | ||
Calibration 3 | 225,509 | ||
ssj_ops@calibrated=224,570 | |||
100% | 99.7% | 224,570 | 223,953 |
90% | 89.9% | 202,113 | 201,815 |
80% | 80.5% | 179,656 | 180,799 |
70% | 70.1% | 157,199 | 157,346 |
60% | 59.6% | 134,742 | 133,828 |
50% | 49.9% | 112,285 | 112,085 |
40% | 40.3% | 89,828 | 90,433 |
30% | 29.7% | 67,371 | 66,772 |
20% | 20.0% | 44,914 | 44,927 |
10% | 10.2% | 22,457 | 22,868 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 211,300 | ||
Calibration 2 | 212,814 | ||
Calibration 3 | 212,145 | ||
ssj_ops@calibrated=212,480 | |||
100% | 98.9% | 212,480 | 210,202 |
90% | 90.1% | 191,232 | 191,508 |
80% | 80.1% | 169,984 | 170,180 |
70% | 70.3% | 148,736 | 149,314 |
60% | 60.2% | 127,488 | 127,837 |
50% | 50.1% | 106,240 | 106,481 |
40% | 40.0% | 84,992 | 84,975 |
30% | 30.5% | 63,744 | 64,730 |
20% | 20.1% | 42,496 | 42,734 |
10% | 10.0% | 21,248 | 21,329 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,876 | ||
Calibration 2 | 217,075 | ||
Calibration 3 | 214,823 | ||
ssj_ops@calibrated=215,949 | |||
100% | 98.9% | 215,949 | 213,483 |
90% | 89.8% | 194,354 | 193,991 |
80% | 79.8% | 172,759 | 172,407 |
70% | 69.7% | 151,164 | 150,546 |
60% | 59.7% | 129,569 | 128,939 |
50% | 49.6% | 107,974 | 107,197 |
40% | 39.9% | 86,380 | 86,269 |
30% | 30.2% | 64,785 | 65,195 |
20% | 19.5% | 43,190 | 42,085 |
10% | 10.0% | 21,595 | 21,635 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 224,026 | ||
Calibration 2 | 222,547 | ||
Calibration 3 | 223,512 | ||
ssj_ops@calibrated=223,030 | |||
100% | 99.0% | 223,030 | 220,905 |
90% | 90.2% | 200,727 | 201,147 |
80% | 80.3% | 178,424 | 179,142 |
70% | 69.9% | 156,121 | 155,986 |
60% | 60.3% | 133,818 | 134,485 |
50% | 50.0% | 111,515 | 111,479 |
40% | 39.9% | 89,212 | 88,911 |
30% | 30.0% | 66,909 | 66,986 |
20% | 20.1% | 44,606 | 44,870 |
10% | 10.0% | 22,303 | 22,392 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 213,082 | ||
Calibration 2 | 207,404 | ||
Calibration 3 | 209,450 | ||
ssj_ops@calibrated=208,427 | |||
100% | 99.9% | 208,427 | 208,150 |
90% | 90.3% | 187,584 | 188,224 |
80% | 79.2% | 166,741 | 165,164 |
70% | 70.0% | 145,899 | 145,856 |
60% | 60.2% | 125,056 | 125,416 |
50% | 50.2% | 104,213 | 104,572 |
40% | 40.1% | 83,371 | 83,570 |
30% | 30.2% | 62,528 | 62,871 |
20% | 20.1% | 41,685 | 41,879 |
10% | 10.0% | 20,843 | 20,782 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 211,151 | ||
Calibration 2 | 214,001 | ||
Calibration 3 | 214,297 | ||
ssj_ops@calibrated=214,149 | |||
100% | 99.3% | 214,149 | 212,658 |
90% | 89.9% | 192,734 | 192,573 |
80% | 80.5% | 171,319 | 172,389 |
70% | 70.4% | 149,904 | 150,866 |
60% | 60.2% | 128,489 | 128,967 |
50% | 50.0% | 107,075 | 107,157 |
40% | 40.2% | 85,660 | 86,169 |
30% | 30.1% | 64,245 | 64,461 |
20% | 19.9% | 42,830 | 42,621 |
10% | 10.0% | 21,415 | 21,442 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 216,356 | ||
Calibration 2 | 208,253 | ||
Calibration 3 | 210,101 | ||
ssj_ops@calibrated=209,177 | |||
100% | 99.3% | 209,177 | 207,658 |
90% | 89.3% | 188,259 | 186,813 |
80% | 80.5% | 167,342 | 168,424 |
70% | 70.5% | 146,424 | 147,509 |
60% | 59.8% | 125,506 | 125,140 |
50% | 49.7% | 104,589 | 104,026 |
40% | 39.8% | 83,671 | 83,322 |
30% | 30.2% | 62,753 | 63,197 |
20% | 20.0% | 41,835 | 41,908 |
10% | 9.9% | 20,918 | 20,607 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 220,389 | ||
Calibration 2 | 218,270 | ||
Calibration 3 | 221,169 | ||
ssj_ops@calibrated=219,720 | |||
100% | 99.3% | 219,720 | 218,227 |
90% | 89.9% | 197,748 | 197,481 |
80% | 80.3% | 175,776 | 176,340 |
70% | 69.9% | 153,804 | 153,691 |
60% | 59.6% | 131,832 | 130,997 |
50% | 49.9% | 109,860 | 109,609 |
40% | 40.1% | 87,888 | 88,100 |
30% | 30.1% | 65,916 | 66,047 |
20% | 20.1% | 43,944 | 44,090 |
10% | 10.0% | 21,972 | 22,067 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 216,032 | ||
Calibration 2 | 218,285 | ||
Calibration 3 | 218,081 | ||
ssj_ops@calibrated=218,183 | |||
100% | 99.4% | 218,183 | 216,928 |
90% | 89.8% | 196,365 | 195,866 |
80% | 80.1% | 174,546 | 174,774 |
70% | 69.8% | 152,728 | 152,363 |
60% | 59.8% | 130,910 | 130,551 |
50% | 50.1% | 109,091 | 109,203 |
40% | 40.1% | 87,273 | 87,513 |
30% | 30.2% | 65,455 | 65,922 |
20% | 20.1% | 43,637 | 43,749 |
10% | 10.0% | 21,818 | 21,750 |
Active Idle | 0 | 0 |
