Dell Inc. PowerEdge HS5610 (Intel Xeon Gold 6448Y, 2.10 GHz) ssj_ops@100% = 8,451,740
ssj_ops@100% per JVM = 132,058
Test Sponsor: Dell Inc. SPEC License #: 6573 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Feb 20, 2024
Hardware Availability: Apr-2023 Software Availability: Aug-2022 Publication: Mar 26, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     8,569,395
Calibration 2     8,445,935
Calibration 3     8,461,954
ssj_ops@calibrated=8,453,945
100% 100.0% 8,453,945 8,451,740
90% 90.1% 7,608,550 7,612,792
80% 79.9% 6,763,156 6,755,727
70% 70.0% 5,917,761 5,914,792
60% 59.9% 5,072,367 5,066,320
50% 49.9% 4,226,972 4,218,395
40% 40.0% 3,381,578 3,379,976
30% 30.1% 2,536,183 2,546,332
20% 20.0% 1,690,789 1,690,487
10% 10.0% 845,394 843,642
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: PowerEdge HS5610
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge HS5610 (Intel Xeon Gold 6448Y, 2.10 GHz)
Form Factor: 1U
CPU Name: Intel Xeon Gold 6448Y
CPU Characteristics: 32-Core, 2.10GHz, 60MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16 x 16GB 1Rx8 PC5-4800-R (Slots A1-8, B1-8 populated)
Power Supply Quantity and Rating (W): 1 x 1400
Power Supply Details: 1400W 80Plus Titanium, Dell p/n 1CW9G
Disk Drive: 1 x Dell DC NVMe PE8010 RI U.2 960GB Dell p/n XCDFV
Disk Controller: Integrated PCIe Controller
# and type of Network Interface Cards (NICs) Installed: Onboard 1 x Dual Port Broadcom NetXtreme Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver power plan enabled in OS
Operating System (OS): Microsoft Windows Server 2022 Standard 21H2
OS Version: 20348.14873
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.17+10-LTS-269, mixed mode
JVM Command-line Options: -server -Xms3328m -Xmx3328m -Xmn3200m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000,0xC0000,0x300000,0xC00000,0x3000000,0xC000000,0x30000000,0xC0000000,0x300000000,0xC00000000,0x3000000000,0xC000000000]
JVM Instances: 64
JVM Initial Heap (MB): 3328
JVM Maximum Heap (MB): 3328
JVM Address Bits: 64
Boot Firmware Version: 1.6.6
Management Firmware Version: 7.10.05.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: n/a
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-UTP6TLJRQ3V.001 132,557
WIN-UTP6TLJRQ3V.002 135,170
WIN-UTP6TLJRQ3V.003 132,833
WIN-UTP6TLJRQ3V.004 134,133
WIN-UTP6TLJRQ3V.005 133,026
WIN-UTP6TLJRQ3V.006 133,186
WIN-UTP6TLJRQ3V.007 133,046
WIN-UTP6TLJRQ3V.008 135,016
WIN-UTP6TLJRQ3V.009 131,578
WIN-UTP6TLJRQ3V.010 132,750
WIN-UTP6TLJRQ3V.011 129,571
WIN-UTP6TLJRQ3V.012 133,219
WIN-UTP6TLJRQ3V.013 131,230
WIN-UTP6TLJRQ3V.014 130,910
WIN-UTP6TLJRQ3V.015 130,136
WIN-UTP6TLJRQ3V.016 130,009
WIN-UTP6TLJRQ3V.017 130,172
WIN-UTP6TLJRQ3V.018 133,464
WIN-UTP6TLJRQ3V.019 134,547
WIN-UTP6TLJRQ3V.020 132,128
WIN-UTP6TLJRQ3V.021 129,997
WIN-UTP6TLJRQ3V.022 134,227
WIN-UTP6TLJRQ3V.023 132,856
WIN-UTP6TLJRQ3V.024 135,603
WIN-UTP6TLJRQ3V.025 131,972
WIN-UTP6TLJRQ3V.026 134,634
WIN-UTP6TLJRQ3V.027 131,016
WIN-UTP6TLJRQ3V.028 136,382
WIN-UTP6TLJRQ3V.029 134,974
WIN-UTP6TLJRQ3V.030 134,012
WIN-UTP6TLJRQ3V.031 130,882
WIN-UTP6TLJRQ3V.032 128,686
WIN-UTP6TLJRQ3V.033 128,575
WIN-UTP6TLJRQ3V.034 133,191
WIN-UTP6TLJRQ3V.035 132,529
WIN-UTP6TLJRQ3V.036 134,744
WIN-UTP6TLJRQ3V.037 128,432
WIN-UTP6TLJRQ3V.038 132,522
WIN-UTP6TLJRQ3V.039 132,804
WIN-UTP6TLJRQ3V.040 133,756
WIN-UTP6TLJRQ3V.041 129,138
WIN-UTP6TLJRQ3V.042 134,141
WIN-UTP6TLJRQ3V.043 130,473
WIN-UTP6TLJRQ3V.044 134,247
WIN-UTP6TLJRQ3V.045 132,207
WIN-UTP6TLJRQ3V.046 129,920
WIN-UTP6TLJRQ3V.047 127,698
WIN-UTP6TLJRQ3V.048 129,354
WIN-UTP6TLJRQ3V.049 128,434
WIN-UTP6TLJRQ3V.050 133,233
WIN-UTP6TLJRQ3V.051 132,287
WIN-UTP6TLJRQ3V.052 131,075
WIN-UTP6TLJRQ3V.053 129,343
WIN-UTP6TLJRQ3V.054 134,008
WIN-UTP6TLJRQ3V.055 132,762
WIN-UTP6TLJRQ3V.056 134,493
WIN-UTP6TLJRQ3V.057 130,769
WIN-UTP6TLJRQ3V.058 134,294
WIN-UTP6TLJRQ3V.059 130,010
WIN-UTP6TLJRQ3V.060 134,212
WIN-UTP6TLJRQ3V.061 132,058
WIN-UTP6TLJRQ3V.062 129,953
WIN-UTP6TLJRQ3V.063 128,773
WIN-UTP6TLJRQ3V.064 128,382
ssj_ops@100% 8,451,740
ssj_ops@100% per JVM 132,058

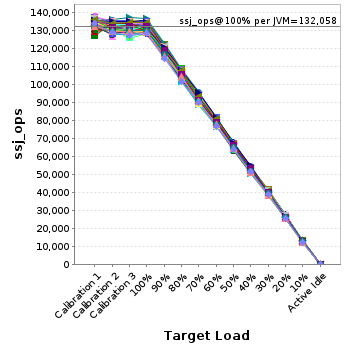

Graph of per-instance results
JVM 'WIN-UTP6TLJRQ3V.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,189
Calibration 2     130,603
Calibration 3     133,021
ssj_ops@calibrated=131,812
100% 100.6% 131,812 132,557
90% 89.7% 118,631 118,259
80% 80.1% 105,450 105,615
70% 70.8% 92,268 93,266
60% 59.0% 79,087 77,764
50% 49.5% 65,906 65,268
40% 39.7% 52,725 52,391
30% 30.7% 39,544 40,502
20% 20.0% 26,362 26,328
10% 10.1% 13,181 13,291
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,007
Calibration 2     135,313
Calibration 3     135,406
ssj_ops@calibrated=135,360
100% 99.9% 135,360 135,170
90% 90.4% 121,824 122,359
80% 79.8% 108,288 108,078
70% 70.5% 94,752 95,477
60% 60.5% 81,216 81,870
50% 49.6% 67,680 67,127
40% 40.2% 54,144 54,475
30% 29.9% 40,608 40,405
20% 19.9% 27,072 26,898
10% 10.0% 13,536 13,546
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,455
Calibration 2     131,533
Calibration 3     133,739
ssj_ops@calibrated=132,636
100% 100.1% 132,636 132,833
90% 91.0% 119,372 120,644
80% 80.3% 106,109 106,482
70% 71.1% 92,845 94,278
60% 59.6% 79,581 79,072
50% 49.9% 66,318 66,120
40% 40.3% 53,054 53,454
30% 30.4% 39,791 40,293
20% 20.1% 26,527 26,710
10% 9.9% 13,264 13,120
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,796
Calibration 2     133,658
Calibration 3     134,028
ssj_ops@calibrated=133,843
100% 100.2% 133,843 134,133
90% 90.8% 120,459 121,587
80% 78.8% 107,074 105,493
70% 70.4% 93,690 94,219
60% 59.1% 80,306 79,085
50% 50.0% 66,922 66,951
40% 39.9% 53,537 53,346
30% 30.3% 40,153 40,570
20% 20.1% 26,769 26,845
10% 10.0% 13,384 13,351
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,042
Calibration 2     130,901
Calibration 3     133,343
ssj_ops@calibrated=132,122
100% 100.7% 132,122 133,026
90% 90.4% 118,910 119,379
80% 80.1% 105,697 105,856
70% 69.6% 92,485 91,924
60% 60.1% 79,273 79,408
50% 49.5% 66,061 65,462
40% 39.7% 52,849 52,469
30% 30.4% 39,637 40,116
20% 19.8% 26,424 26,145
10% 10.0% 13,212 13,203
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,327
Calibration 2     133,332
Calibration 3     133,940
ssj_ops@calibrated=133,636
100% 99.7% 133,636 133,186
90% 89.9% 120,272 120,078
80% 79.4% 106,909 106,095
70% 70.6% 93,545 94,319
60% 59.4% 80,182 79,424
50% 49.9% 66,818 66,658
40% 39.9% 53,454 53,374
30% 29.5% 40,091 39,451
20% 19.7% 26,727 26,317
10% 10.0% 13,364 13,325
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,817
Calibration 2     132,033
Calibration 3     134,271
ssj_ops@calibrated=133,152
100% 99.9% 133,152 133,046
90% 90.7% 119,837 120,792
80% 80.3% 106,521 106,971
70% 70.4% 93,206 93,774
60% 59.8% 79,891 79,610
50% 49.7% 66,576 66,185
40% 40.8% 53,261 54,343
30% 29.7% 39,946 39,543
20% 20.1% 26,630 26,776
10% 10.4% 13,315 13,804
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,725
Calibration 2     134,206
Calibration 3     134,400
ssj_ops@calibrated=134,303
100% 100.5% 134,303 135,016
90% 90.0% 120,873 120,876
80% 79.8% 107,442 107,150
70% 70.3% 94,012 94,480
60% 60.0% 80,582 80,593
50% 50.2% 67,152 67,431
40% 40.4% 53,721 54,295
30% 29.4% 40,291 39,534
20% 20.1% 26,861 27,027
10% 10.0% 13,430 13,383
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,685
Calibration 2     133,753
Calibration 3     127,482
ssj_ops@calibrated=130,618
100% 100.7% 130,618 131,578
90% 89.8% 117,556 117,312
80% 80.4% 104,494 104,990
70% 70.0% 91,432 91,386
60% 60.2% 78,371 78,602
50% 48.7% 65,309 63,654
40% 40.1% 52,247 52,422
30% 30.1% 39,185 39,331
20% 20.3% 26,124 26,464
10% 9.8% 13,062 12,816
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,897
Calibration 2     132,344
Calibration 3     130,762
ssj_ops@calibrated=131,553
100% 100.9% 131,553 132,750
90% 90.0% 118,398 118,349
80% 80.3% 105,243 105,599
70% 68.8% 92,087 90,483
60% 60.6% 78,932 79,732
50% 49.7% 65,777 65,411
40% 39.7% 52,621 52,245
30% 29.6% 39,466 38,915
20% 19.7% 26,311 25,915
10% 10.4% 13,155 13,675
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,429
Calibration 2     134,137
Calibration 3     134,046
ssj_ops@calibrated=134,092
100% 96.6% 134,092 129,571
90% 89.6% 120,682 120,115
80% 81.2% 107,273 108,844
70% 70.4% 93,864 94,448
60% 59.6% 80,455 79,860
50% 49.3% 67,046 66,118
40% 39.7% 53,637 53,269
30% 29.9% 40,227 40,103
20% 19.9% 26,818 26,728
10% 10.1% 13,409 13,512
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,843
Calibration 2     133,193
Calibration 3     133,140
ssj_ops@calibrated=133,167
100% 100.0% 133,167 133,219
90% 90.0% 119,850 119,845
80% 79.7% 106,533 106,105
70% 70.3% 93,217 93,596
60% 59.5% 79,900 79,199
50% 49.8% 66,583 66,313
40% 40.2% 53,267 53,509
30% 29.9% 39,950 39,816
20% 19.9% 26,633 26,448
10% 10.1% 13,317 13,495
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,252
Calibration 2     132,683
Calibration 3     132,912
ssj_ops@calibrated=132,797
100% 98.8% 132,797 131,230
90% 89.8% 119,518 119,199
80% 79.7% 106,238 105,836
70% 70.4% 92,958 93,509
60% 59.6% 79,678 79,192
50% 50.1% 66,399 66,542
40% 40.4% 53,119 53,667
30% 30.1% 39,839 40,022
20% 20.3% 26,559 26,957
10% 9.8% 13,280 13,008
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,407
Calibration 2     130,792
Calibration 3     131,098
ssj_ops@calibrated=130,945
100% 100.0% 130,945 130,910
90% 91.6% 117,850 119,987
80% 79.7% 104,756 104,400
70% 69.1% 91,661 90,438
60% 60.0% 78,567 78,579
50% 49.6% 65,472 64,995
40% 39.8% 52,378 52,112
30% 30.1% 39,283 39,385
20% 20.6% 26,189 26,936
10% 9.6% 13,094 12,580
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,091
Calibration 2     128,874
Calibration 3     128,599
ssj_ops@calibrated=128,736
100% 101.1% 128,736 130,136
90% 90.1% 115,863 116,010
80% 78.8% 102,989 101,415
70% 70.3% 90,116 90,557
60% 60.4% 77,242 77,784
50% 50.4% 64,368 64,883
40% 40.4% 51,495 52,035
30% 30.0% 38,621 38,683
20% 20.2% 25,747 25,969
10% 10.0% 12,874 12,912
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,981
Calibration 2     128,612
Calibration 3     130,798
ssj_ops@calibrated=129,705
100% 100.2% 129,705 130,009
90% 90.6% 116,735 117,551
80% 79.3% 103,764 102,857
70% 69.9% 90,794 90,666
60% 60.1% 77,823 77,954
50% 49.6% 64,853 64,380
40% 39.5% 51,882 51,210
30% 29.8% 38,912 38,709
20% 19.9% 25,941 25,795
10% 10.0% 12,971 12,920
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,959
Calibration 2     129,157
Calibration 3     131,014
ssj_ops@calibrated=130,086
100% 100.1% 130,086 130,172
90% 90.5% 117,077 117,677
80% 79.6% 104,069 103,528
70% 69.2% 91,060 90,031
60% 59.7% 78,051 77,665
50% 50.0% 65,043 65,006
40% 39.4% 52,034 51,258
30% 30.5% 39,026 39,661
20% 19.8% 26,017 25,717
10% 10.0% 13,009 13,029
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,597
Calibration 2     132,896
Calibration 3     133,660
ssj_ops@calibrated=133,278
100% 100.1% 133,278 133,464
90% 89.6% 119,950 119,394
80% 79.4% 106,622 105,788
70% 70.2% 93,295 93,508
60% 59.8% 79,967 79,746
50% 49.8% 66,639 66,377
40% 39.9% 53,311 53,155
30% 30.2% 39,983 40,311
20% 19.6% 26,656 26,180
10% 10.2% 13,328 13,533
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,658
Calibration 2     130,945
Calibration 3     135,999
ssj_ops@calibrated=133,472
100% 100.8% 133,472 134,547
90% 89.8% 120,125 119,832
80% 80.0% 106,777 106,750
70% 69.7% 93,430 92,974
60% 59.7% 80,083 79,702
50% 50.3% 66,736 67,107
40% 39.8% 53,389 53,148
30% 30.3% 40,042 40,419
20% 20.1% 26,694 26,802
10% 10.0% 13,347 13,371
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,622
Calibration 2     130,972
Calibration 3     131,904
ssj_ops@calibrated=131,438
100% 100.5% 131,438 132,128
90% 89.8% 118,294 117,977
80% 80.3% 105,150 105,546
70% 70.1% 92,007 92,141
60% 59.1% 78,863 77,702
50% 50.3% 65,719 66,057
40% 40.0% 52,575 52,592
30% 30.7% 39,431 40,358
20% 19.9% 26,288 26,136
10% 9.8% 13,144 12,866
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,333
Calibration 2     133,666
Calibration 3     126,053
ssj_ops@calibrated=129,859
100% 100.1% 129,859 129,997
90% 90.7% 116,873 117,723
80% 80.8% 103,887 104,961
70% 70.1% 90,902 91,021
60% 59.9% 77,916 77,835
50% 50.3% 64,930 65,294
40% 40.3% 51,944 52,342
30% 29.6% 38,958 38,489
20% 21.1% 25,972 27,336
10% 10.0% 12,986 12,925
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,387
Calibration 2     134,654
Calibration 3     133,231
ssj_ops@calibrated=133,942
100% 100.2% 133,942 134,227
90% 90.3% 120,548 120,884
80% 80.5% 107,154 107,793
70% 70.0% 93,759 93,746
60% 60.0% 80,365 80,322
50% 49.6% 66,971 66,438
40% 40.1% 53,577 53,728
30% 30.6% 40,183 40,998
20% 20.2% 26,788 27,012
10% 10.0% 13,394 13,449
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,367
Calibration 2     134,208
Calibration 3     130,505
ssj_ops@calibrated=132,357
100% 100.4% 132,357 132,856
90% 90.3% 119,121 119,527
80% 79.9% 105,885 105,812
70% 69.4% 92,650 91,829
60% 59.8% 79,414 79,215
50% 49.7% 66,178 65,828
40% 40.1% 52,943 53,068
30% 29.8% 39,707 39,479
20% 20.0% 26,471 26,470
10% 10.1% 13,236 13,371
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,725
Calibration 2     135,064
Calibration 3     134,720
ssj_ops@calibrated=134,892
100% 100.5% 134,892 135,603
90% 90.2% 121,403 121,609
80% 80.2% 107,914 108,215
70% 69.8% 94,425 94,107
60% 59.3% 80,935 79,924
50% 50.3% 67,446 67,818
40% 40.0% 53,957 53,979
30% 30.5% 40,468 41,109
20% 20.4% 26,978 27,582
10% 10.0% 13,489 13,458
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,476
Calibration 2     134,990
Calibration 3     135,050
ssj_ops@calibrated=135,020
100% 97.7% 135,020 131,972
90% 89.8% 121,518 121,185
80% 79.9% 108,016 107,901
70% 69.6% 94,514 93,936
60% 60.2% 81,012 81,253
50% 50.2% 67,510 67,774
40% 40.3% 54,008 54,439
30% 30.0% 40,506 40,467
20% 19.7% 27,004 26,536
10% 9.7% 13,502 13,094
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,678
Calibration 2     134,816
Calibration 3     134,712
ssj_ops@calibrated=134,764
100% 99.9% 134,764 134,634
90% 90.4% 121,288 121,859
80% 79.5% 107,812 107,134
70% 70.2% 94,335 94,626
60% 59.9% 80,859 80,668
50% 49.6% 67,382 66,852
40% 40.0% 53,906 53,840
30% 30.8% 40,429 41,481
20% 19.7% 26,953 26,486
10% 10.1% 13,476 13,662
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,479
Calibration 2     133,399
Calibration 3     133,862
ssj_ops@calibrated=133,631
100% 98.0% 133,631 131,016
90% 90.9% 120,268 121,451
80% 79.6% 106,905 106,384
70% 69.5% 93,541 92,815
60% 60.5% 80,178 80,792
50% 49.9% 66,815 66,690
40% 39.7% 53,452 53,051
30% 29.6% 40,089 39,606
20% 20.1% 26,726 26,862
10% 10.0% 13,363 13,374
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,963
Calibration 2     135,691
Calibration 3     136,912
ssj_ops@calibrated=136,301
100% 100.1% 136,301 136,382
90% 89.9% 122,671 122,478
80% 79.4% 109,041 108,221
70% 70.4% 95,411 95,984
60% 59.2% 81,781 80,728
50% 50.2% 68,151 68,420
40% 39.3% 54,520 53,537
30% 29.9% 40,890 40,805
20% 20.0% 27,260 27,322
10% 9.9% 13,630 13,448
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,551
Calibration 2     131,927
Calibration 3     134,534
ssj_ops@calibrated=133,230
100% 101.3% 133,230 134,974
90% 89.5% 119,907 119,176
80% 80.1% 106,584 106,737
70% 70.3% 93,261 93,620
60% 59.9% 79,938 79,813
50% 49.9% 66,615 66,546
40% 39.7% 53,292 52,839
30% 30.5% 39,969 40,699
20% 20.2% 26,646 26,890
10% 9.8% 13,323 13,029
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,741
Calibration 2     133,863
Calibration 3     134,300
ssj_ops@calibrated=134,082
100% 99.9% 134,082 134,012
90% 90.2% 120,674 120,882
80% 78.9% 107,265 105,830
70% 70.1% 93,857 94,009
60% 59.6% 80,449 79,960
50% 49.9% 67,041 66,866
40% 40.2% 53,633 53,905
30% 30.3% 40,225 40,568
20% 19.9% 26,816 26,651
10% 9.9% 13,408 13,254
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,821
Calibration 2     129,425
Calibration 3     131,666
ssj_ops@calibrated=130,545
100% 100.3% 130,545 130,882
90% 90.5% 117,491 118,092
80% 80.4% 104,436 104,990
70% 69.6% 91,382 90,886
60% 59.9% 78,327 78,223
50% 50.1% 65,273 65,345
40% 39.8% 52,218 51,929
30% 31.1% 39,164 40,606
20% 20.3% 26,109 26,443
10% 10.2% 13,055 13,283
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,039
Calibration 2     128,233
Calibration 3     128,267
ssj_ops@calibrated=128,250
100% 100.3% 128,250 128,686
90% 90.1% 115,425 115,546
80% 79.7% 102,600 102,253
70% 70.4% 89,775 90,326
60% 60.0% 76,950 76,950
50% 50.0% 64,125 64,137
40% 40.0% 51,300 51,293
30% 29.7% 38,475 38,088
20% 20.1% 25,650 25,819
10% 9.8% 12,825 12,510
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,030
Calibration 2     126,424
Calibration 3     132,393
ssj_ops@calibrated=129,408
100% 99.4% 129,408 128,575
90% 89.5% 116,467 115,758
80% 79.2% 103,526 102,443
70% 70.4% 90,586 91,087
60% 59.7% 77,645 77,222
50% 49.7% 64,704 64,302
40% 40.2% 51,763 52,030
30% 29.9% 38,822 38,635
20% 20.0% 25,882 25,888
10% 10.2% 12,941 13,158
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,063
Calibration 2     132,194
Calibration 3     133,021
ssj_ops@calibrated=132,608
100% 100.4% 132,608 133,191
90% 90.7% 119,347 120,295
80% 78.3% 106,086 103,785
70% 69.7% 92,825 92,437
60% 60.3% 79,565 79,999
50% 49.9% 66,304 66,199
40% 40.3% 53,043 53,428
30% 30.5% 39,782 40,486
20% 20.2% 26,522 26,749
10% 10.1% 13,261 13,442
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,893
Calibration 2     129,706
Calibration 3     132,330
ssj_ops@calibrated=131,018
100% 101.2% 131,018 132,529
90% 89.6% 117,916 117,441
80% 79.1% 104,814 103,651
70% 69.4% 91,712 90,896
60% 60.3% 78,611 79,045
50% 49.3% 65,509 64,623
40% 39.8% 52,407 52,183
30% 29.7% 39,305 38,863
20% 20.0% 26,204 26,168
10% 10.2% 13,102 13,358
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,320
Calibration 2     133,895
Calibration 3     134,331
ssj_ops@calibrated=134,113
100% 100.5% 134,113 134,744
90% 89.8% 120,702 120,438
80% 80.9% 107,290 108,450
70% 70.3% 93,879 94,340
60% 60.8% 80,468 81,599
50% 49.9% 67,057 66,913
40% 40.3% 53,645 54,068
30% 29.5% 40,234 39,588
20% 20.2% 26,823 27,146
10% 10.1% 13,411 13,506
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,784
Calibration 2     130,252
Calibration 3     125,268
ssj_ops@calibrated=127,760
100% 100.5% 127,760 128,432
90% 90.3% 114,984 115,390
80% 80.2% 102,208 102,447
70% 69.1% 89,432 88,326
60% 60.7% 76,656 77,546
50% 49.7% 63,880 63,464
40% 40.3% 51,104 51,445
30% 29.8% 38,328 38,026
20% 20.0% 25,552 25,591
10% 9.6% 12,776 12,245
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,211
Calibration 2     132,412
Calibration 3     130,769
ssj_ops@calibrated=131,590
100% 100.7% 131,590 132,522
90% 89.9% 118,431 118,341
80% 80.4% 105,272 105,735
70% 70.6% 92,113 92,865
60% 58.8% 78,954 77,438
50% 49.8% 65,795 65,596
40% 40.2% 52,636 52,846
30% 30.3% 39,477 39,936
20% 19.9% 26,318 26,216
10% 10.0% 13,159 13,160
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,675
Calibration 2     134,937
Calibration 3     131,059
ssj_ops@calibrated=132,998
100% 99.9% 132,998 132,804
90% 90.6% 119,698 120,483
80% 80.3% 106,398 106,823
70% 69.4% 93,098 92,264
60% 60.6% 79,799 80,578
50% 50.2% 66,499 66,714
40% 40.1% 53,199 53,306
30% 30.2% 39,899 40,179
20% 19.9% 26,600 26,524
10% 10.1% 13,300 13,494
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,771
Calibration 2     133,406
Calibration 3     133,117
ssj_ops@calibrated=133,262
100% 100.4% 133,262 133,756
90% 90.4% 119,936 120,454
80% 79.2% 106,609 105,590
70% 70.4% 93,283 93,781
60% 60.4% 79,957 80,508
50% 50.0% 66,631 66,629
40% 39.6% 53,305 52,838
30% 30.4% 39,979 40,553
20% 19.9% 26,652 26,454
10% 9.8% 13,326 13,062
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,645
Calibration 2     134,853
Calibration 3     134,790
ssj_ops@calibrated=134,821
100% 95.8% 134,821 129,138
90% 89.6% 121,339 120,867
80% 79.5% 107,857 107,239
70% 70.1% 94,375 94,475
60% 59.4% 80,893 80,093
50% 50.0% 67,411 67,443
40% 39.7% 53,929 53,511
30% 29.6% 40,446 39,910
20% 20.1% 26,964 27,096
10% 10.0% 13,482 13,462
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,016
Calibration 2     134,225
Calibration 3     134,093
ssj_ops@calibrated=134,159
100% 100.0% 134,159 134,141
90% 90.1% 120,743 120,892
80% 80.5% 107,327 107,995
70% 70.1% 93,911 94,110
60% 59.8% 80,495 80,259
50% 49.9% 67,080 66,953
40% 40.4% 53,664 54,242
30% 30.1% 40,248 40,439
20% 20.0% 26,832 26,827
10% 10.1% 13,416 13,592
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,452
Calibration 2     130,531
Calibration 3     130,725
ssj_ops@calibrated=130,628
100% 99.9% 130,628 130,473
90% 89.7% 117,565 117,210
80% 80.0% 104,503 104,537
70% 69.9% 91,440 91,298
60% 60.0% 78,377 78,314
50% 49.6% 65,314 64,813
40% 40.1% 52,251 52,384
30% 29.8% 39,188 38,948
20% 19.7% 26,126 25,787
10% 9.7% 13,063 12,716
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,539
Calibration 2     133,495
Calibration 3     133,724
ssj_ops@calibrated=133,610
100% 100.5% 133,610 134,247
90% 89.8% 120,249 119,920
80% 79.9% 106,888 106,754
70% 69.7% 93,527 93,067
60% 60.3% 80,166 80,540
50% 50.7% 66,805 67,678
40% 40.2% 53,444 53,687
30% 30.0% 40,083 40,096
20% 19.9% 26,722 26,637
10% 9.7% 13,361 12,915
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,598
Calibration 2     130,264
Calibration 3     133,409
ssj_ops@calibrated=131,836
100% 100.3% 131,836 132,207
90% 90.4% 118,653 119,155
80% 80.4% 105,469 106,042
70% 69.3% 92,285 91,321
60% 60.2% 79,102 79,335
50% 49.9% 65,918 65,772
40% 39.9% 52,735 52,576
30% 30.3% 39,551 39,989
20% 19.7% 26,367 26,001
10% 9.8% 13,184 12,966
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,589
Calibration 2     129,644
Calibration 3     130,007
ssj_ops@calibrated=129,825
100% 100.1% 129,825 129,920
90% 90.4% 116,843 117,329
80% 80.9% 103,860 105,002
70% 70.1% 90,878 91,008
60% 59.8% 77,895 77,669
50% 50.0% 64,913 64,864
40% 40.2% 51,930 52,166
30% 30.2% 38,948 39,150
20% 20.1% 25,965 26,057
10% 9.9% 12,983 12,916
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,122
Calibration 2     129,341
Calibration 3     128,470
ssj_ops@calibrated=128,906
100% 99.1% 128,906 127,698
90% 90.1% 116,015 116,198
80% 79.8% 103,124 102,861
70% 69.8% 90,234 89,919
60% 60.3% 77,343 77,753
50% 50.4% 64,453 64,919
40% 40.2% 51,562 51,784
30% 30.4% 38,672 39,179
20% 19.8% 25,781 25,539
10% 10.2% 12,891 13,149
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,009
Calibration 2     127,842
Calibration 3     127,811
ssj_ops@calibrated=127,826
100% 101.2% 127,826 129,354
90% 91.3% 115,044 116,675
80% 79.4% 102,261 101,440
70% 69.5% 89,478 88,827
60% 60.0% 76,696 76,686
50% 50.1% 63,913 64,096
40% 39.5% 51,130 50,525
30% 29.8% 38,348 38,139
20% 20.0% 25,565 25,562
10% 9.8% 12,783 12,585
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,286
Calibration 2     127,618
Calibration 3     130,410
ssj_ops@calibrated=129,014
100% 99.6% 129,014 128,434
90% 90.1% 116,113 116,180
80% 79.4% 103,211 102,453
70% 70.3% 90,310 90,683
60% 59.7% 77,408 77,026
50% 49.2% 64,507 63,456
40% 39.5% 51,606 50,968
30% 30.0% 38,704 38,740
20% 20.0% 25,803 25,837
10% 10.4% 12,901 13,370
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,202
Calibration 2     131,975
Calibration 3     132,760
ssj_ops@calibrated=132,367
100% 100.7% 132,367 133,233
90% 90.5% 119,131 119,740
80% 79.3% 105,894 104,921
70% 70.1% 92,657 92,829
60% 60.2% 79,420 79,638
50% 51.0% 66,184 67,459
40% 40.1% 52,947 53,130
30% 30.5% 39,710 40,355
20% 19.7% 26,473 26,109
10% 9.9% 13,237 13,104
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,774
Calibration 2     128,240
Calibration 3     134,053
ssj_ops@calibrated=131,147
100% 100.9% 131,147 132,287
90% 90.2% 118,032 118,276
80% 80.4% 104,917 105,426
70% 70.6% 91,803 92,586
60% 60.7% 78,688 79,606
50% 49.8% 65,573 65,263
40% 39.9% 52,459 52,320
30% 29.7% 39,344 38,940
20% 19.6% 26,229 25,742
10% 10.1% 13,115 13,208
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,361
Calibration 2     129,945
Calibration 3     130,733
ssj_ops@calibrated=130,339
100% 100.6% 130,339 131,075
90% 89.9% 117,305 117,183
80% 79.8% 104,271 103,967
70% 70.3% 91,237 91,578
60% 60.3% 78,204 78,557
50% 49.2% 65,170 64,062
40% 39.9% 52,136 52,064
30% 30.7% 39,102 40,027
20% 19.6% 26,068 25,605
10% 10.0% 13,034 12,971
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,792
Calibration 2     129,703
Calibration 3     129,446
ssj_ops@calibrated=129,574
100% 99.8% 129,574 129,343
90% 89.9% 116,617 116,465
80% 80.2% 103,659 103,922
70% 69.1% 90,702 89,479
60% 59.4% 77,745 77,025
50% 50.0% 64,787 64,822
40% 39.7% 51,830 51,431
30% 30.2% 38,872 39,085
20% 20.4% 25,915 26,403
10% 9.9% 12,957 12,879
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,429
Calibration 2     133,616
Calibration 3     133,751
ssj_ops@calibrated=133,684
100% 100.2% 133,684 134,008
90% 89.4% 120,315 119,461
80% 80.0% 106,947 106,934
70% 69.1% 93,579 92,347
60% 60.0% 80,210 80,229
50% 50.3% 66,842 67,217
40% 40.0% 53,473 53,432
30% 30.1% 40,105 40,184
20% 20.1% 26,737 26,827
10% 9.9% 13,368 13,266
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,633
Calibration 2     134,103
Calibration 3     129,967
ssj_ops@calibrated=132,035
100% 100.6% 132,035 132,762
90% 89.0% 118,831 117,493
80% 80.2% 105,628 105,902
70% 70.1% 92,424 92,572
60% 59.8% 79,221 78,979
50% 49.7% 66,017 65,642
40% 40.0% 52,814 52,793
30% 30.3% 39,610 40,051
20% 20.1% 26,407 26,602
10% 10.4% 13,203 13,687
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,672
Calibration 2     133,961
Calibration 3     134,022
ssj_ops@calibrated=133,991
100% 100.4% 133,991 134,493
90% 89.9% 120,592 120,501
80% 80.0% 107,193 107,128
70% 70.5% 93,794 94,468
60% 59.9% 80,395 80,218
50% 49.8% 66,996 66,772
40% 39.8% 53,597 53,296
30% 30.5% 40,197 40,863
20% 20.2% 26,798 27,074
10% 10.2% 13,399 13,625
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,288
Calibration 2     133,626
Calibration 3     133,871
ssj_ops@calibrated=133,749
100% 97.8% 133,749 130,769
90% 90.0% 120,374 120,362
80% 80.3% 106,999 107,428
70% 69.8% 93,624 93,343
60% 59.5% 80,249 79,613
50% 50.3% 66,874 67,250
40% 39.8% 53,499 53,167
30% 30.0% 40,125 40,161
20% 20.0% 26,750 26,703
10% 10.0% 13,375 13,412
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,566
Calibration 2     134,886
Calibration 3     135,106
ssj_ops@calibrated=134,996
100% 99.5% 134,996 134,294
90% 89.2% 121,496 120,405
80% 79.7% 107,997 107,557
70% 70.7% 94,497 95,376
60% 60.5% 80,997 81,714
50% 49.9% 67,498 67,426
40% 40.6% 53,998 54,777
30% 29.8% 40,499 40,164
20% 19.9% 26,999 26,856
10% 9.9% 13,500 13,299
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,573
Calibration 2     132,249
Calibration 3     132,461
ssj_ops@calibrated=132,355
100% 98.2% 132,355 130,010
90% 88.9% 119,119 117,646
80% 81.1% 105,884 107,358
70% 69.1% 92,648 91,483
60% 59.7% 79,413 79,005
50% 49.4% 66,177 65,336
40% 39.6% 52,942 52,385
30% 30.3% 39,706 40,098
20% 19.8% 26,471 26,200
10% 10.1% 13,235 13,333
Active Idle   0 0

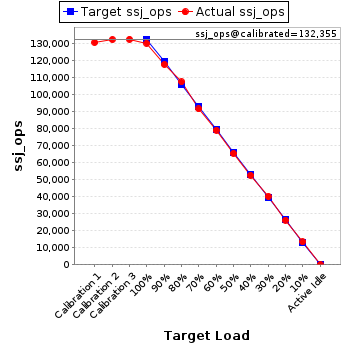

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,930
Calibration 2     133,864
Calibration 3     134,227
ssj_ops@calibrated=134,046
100% 100.1% 134,046 134,212
90% 89.1% 120,641 119,497
80% 80.2% 107,236 107,453
70% 69.6% 93,832 93,295
60% 60.3% 80,427 80,829
50% 49.8% 67,023 66,695
40% 39.7% 53,618 53,181
30% 30.5% 40,214 40,875
20% 19.6% 26,809 26,316
10% 10.1% 13,405 13,591
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,791
Calibration 2     131,578
Calibration 3     131,856
ssj_ops@calibrated=131,717
100% 100.3% 131,717 132,058
90% 90.2% 118,545 118,825
80% 80.2% 105,374 105,631
70% 69.0% 92,202 90,873
60% 59.9% 79,030 78,866
50% 50.4% 65,858 66,334
40% 40.4% 52,687 53,155
30% 30.2% 39,515 39,831
20% 19.7% 26,343 25,932
10% 9.8% 13,172 12,901
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,201
Calibration 2     129,388
Calibration 3     129,805
ssj_ops@calibrated=129,597
100% 100.3% 129,597 129,953
90% 89.8% 116,637 116,330
80% 79.8% 103,677 103,413
70% 70.0% 90,718 90,656
60% 60.0% 77,758 77,779
50% 50.3% 64,798 65,129
40% 39.9% 51,839 51,720
30% 30.3% 38,879 39,281
20% 20.4% 25,919 26,403
10% 10.0% 12,960 12,941
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,911
Calibration 2     129,053
Calibration 3     129,486
ssj_ops@calibrated=129,269
100% 99.6% 129,269 128,773
90% 89.4% 116,342 115,579
80% 80.7% 103,415 104,319
70% 70.2% 90,488 90,702
60% 60.0% 77,562 77,615
50% 49.9% 64,635 64,517
40% 39.4% 51,708 50,950
30% 29.5% 38,781 38,114
20% 19.8% 25,854 25,548
10% 9.7% 12,927 12,497
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UTP6TLJRQ3V.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,933
Calibration 2     128,836
Calibration 3     127,312
ssj_ops@calibrated=128,074
100% 100.2% 128,074 128,382
90% 89.3% 115,267 114,368
80% 79.2% 102,459 101,492
70% 70.4% 89,652 90,123
60% 60.0% 76,844 76,813
50% 50.0% 64,037 63,983
40% 40.2% 51,230 51,468
30% 30.4% 38,422 38,927
20% 20.0% 25,615 25,584
10% 9.6% 12,807 12,237
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
