SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Lenovo Global Technology ThinkSystem SD530 V3 | SPECpower_ssj2008 = 16,635 overall ssj_ops/watt | ||||
| Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Multi Node |
| Tested By: | Lenovo Global Technology | Test Location: | Beijing, China | Test Date: | Jan 16, 2024 |
| Hardware Availability: | Mar-2024 | Software Availability: | Jan-2024 | Publication: | Feb 16, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

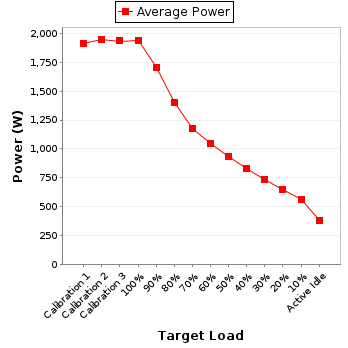

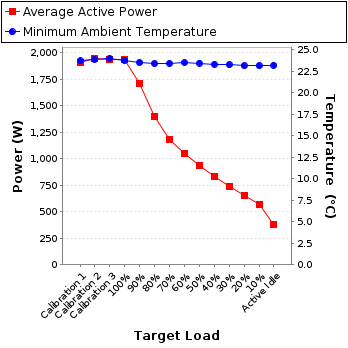

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 1,907 | 23.7 |
| Calibration 2 | 1,948 | 23.9 |
| Calibration 3 | 1,933 | 24.0 |
| 100% | 1,934 | 23.8 |
| 90% | 1,708 | 23.5 |
| 80% | 1,399 | 23.4 |
| 70% | 1,179 | 23.4 |
| 60% | 1,047 | 23.5 |
| 50% | 935 | 23.4 |
| 40% | 832 | 23.3 |
| 30% | 740 | 23.2 |
| 20% | 652 | 23.1 |
| 10% | 565 | 23.1 |
| Active Idle | 383 | 23.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT310E |
| Serial Number: | C3UG05014E |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | China National Accreditation Service for Conformity Assessment (CNAS) |
| Accredited by: | GRG METROLOGY & TEST (BEIJING) CO.,LTD. |
| Calibration Label: | J202308266858A-0005 |
| Date of Calibration: | 16-Oct-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | Connected to PSU 1 and PSU 2 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 220 | 300.0 | 8.66 | 10.0 | 0.999 | 1,907 | 0.2% |
| Calibration 2 | 220 | 300.0 | 8.85 | 10.0 | 0.999 | 1,948 | 0.2% |
| Calibration 3 | 220 | 300.0 | 8.78 | 10.0 | 0.999 | 1,933 | 0.2% |
| 100% | 220 | 300.0 | 8.79 | 10.0 | 0.999 | 1,934 | 0.2% |
| 90% | 220 | 300.0 | 7.77 | 10.0 | 0.999 | 1,708 | 0.2% |
| 80% | 220 | 300.0 | 6.36 | 10.0 | 0.999 | 1,399 | 0.2% |
| 70% | 220 | 300.0 | 5.36 | 10.0 | 0.999 | 1,179 | 0.2% |
| 60% | 220 | 300.0 | 4.76 | 5.0 | 0.999 | 1,047 | 0.2% |
| 50% | 220 | 300.0 | 4.25 | 5.0 | 0.999 | 935 | 0.2% |
| 40% | 220 | 300.0 | 3.78 | 5.0 | 0.998 | 832 | 0.2% |
| 30% | 220 | 300.0 | 3.37 | 5.0 | 0.997 | 740 | 0.2% |
| 20% | 220 | 300.0 | 2.97 | 5.0 | 0.998 | 652 | 0.2% |
| 10% | 220 | 300.0 | 2.58 | 5.0 | 0.996 | 565 | 0.3% |
| Active Idle | 220 | 300.0 | 1.76 | 5.0 | 0.985 | 383 | 0.3% |
