SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Supermicro SuperServer 741GE-TNRT | SPECpower_ssj2008 = 14,599 overall ssj_ops/watt | ||||
| Test Sponsor: | Supermicro | SPEC License #: | 1176 | Test Method: | Single Node |
| Tested By: | Supermicro | Test Location: | Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) | Test Date: | Nov 13, 2023 |
| Hardware Availability: | Dec-2023 | Software Availability: | Dec-2023 | Publication: | Jan 16, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

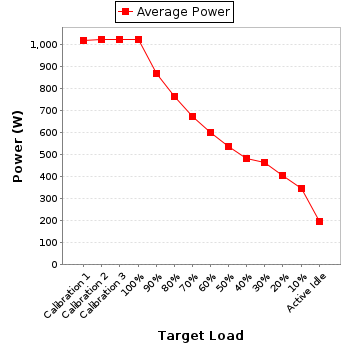

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 1,019 | 22.5 |
| Calibration 2 | 1,025 | 22.8 |
| Calibration 3 | 1,025 | 23.3 |
| 100% | 1,025 | 23.8 |
| 90% | 870 | 24.1 |
| 80% | 764 | 24.2 |
| 70% | 675 | 24.2 |
| 60% | 603 | 24.2 |
| 50% | 539 | 24.2 |
| 40% | 484 | 24.2 |
| 30% | 466 | 24.0 |
| 20% | 407 | 23.8 |
| 10% | 347 | 23.6 |
| Active Idle | 196 | 23.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation. |
| Model: | WT310 |
| Serial Number: | C3RF27027E |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory) |
| Accredited by: | Omnio Calibration Lab. Co., Ltd. |
| Calibration Label: | OCL-230203F01008 |
| Date of Calibration: | 03-Feb-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 10 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 222 | 300.0 | 4.62 | 5.0 | 0.994 | 1,019 | 0.3% |
| Calibration 2 | 223 | 300.0 | 4.62 | 5.0 | 0.994 | 1,025 | 0.3% |
| Calibration 3 | 224 | 300.0 | 4.62 | 5.0 | 0.994 | 1,025 | 0.3% |
| 100% | 224 | 300.0 | 4.61 | 5.0 | 0.994 | 1,025 | 0.3% |
| 90% | 224 | 300.0 | 3.91 | 5.0 | 0.992 | 870 | 0.3% |
| 80% | 225 | 300.0 | 3.44 | 5.0 | 0.989 | 764 | 0.3% |
| 70% | 225 | 300.0 | 3.05 | 5.0 | 0.984 | 675 | 0.4% |
| 60% | 225 | 300.0 | 2.72 | 5.0 | 0.982 | 603 | 0.4% |
| 50% | 225 | 300.0 | 2.44 | 5.0 | 0.980 | 539 | 0.4% |
| 40% | 226 | 300.0 | 2.19 | 5.0 | 0.978 | 484 | 0.5% |
| 30% | 226 | 300.0 | 2.11 | 2.0 | 0.977 | 466 | 0.3% |
| 20% | 226 | 300.0 | 1.85 | 2.0 | 0.974 | 407 | 0.3% |
| 10% | 225 | 300.0 | 1.59 | 2.0 | 0.971 | 347 | 0.3% |
| Active Idle | 223 | 300.0 | 0.945 | 2.0 | 0.930 | 196 | 0.5% |
