Lenovo Global Technology ThinkEdge SE455 ssj_ops@100% = 7,289,747
ssj_ops@100% per JVM = 227,805
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Aug 30, 2023
Hardware Availability: Nov-2023 Software Availability: Aug-2023 Publication: Sep 18, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     7,374,284
Calibration 2     7,340,481
Calibration 3     7,324,553
ssj_ops@calibrated=7,332,517
100% 99.4% 7,332,517 7,289,747
90% 88.5% 6,599,265 6,486,928
80% 80.1% 5,866,013 5,875,141
70% 69.9% 5,132,762 5,124,388
60% 60.0% 4,399,510 4,399,647
50% 50.0% 3,666,258 3,666,522
40% 40.0% 2,933,007 2,931,794
30% 30.0% 2,199,755 2,196,118
20% 20.0% 1,466,503 1,465,059
10% 10.0% 733,252 733,360
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkEdge SE455
Form Factor: 2U
CPU Name: AMD EPYC 8534P
CPU Characteristics: 64-Core, 2.30GHz, 128 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 64 cores, 1 chip, 64 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 128 MB I+D on chip per chip, 16 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 6 x 32 GB
Memory Details: 6 x 32GB 2Rx8 PC5-4800B-R; slots 1, 2, 3, 4, 5,and 6 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A78358
Disk Drive: 1 x 480GB M.2 SSD P/N:4XB7A82636 M.2 Module P/N:4Y37A79663
Disk Controller: Integrated NVMe controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem Broadcom 1GbE RJ45 4-port OCP P/N:4XC7A08235
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2(OS Build 20348.1906)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.1+12-LTS-39, mixed mode)
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: start /NODE [0-7] /AFFINITY [0xF, 0xF0, 0xF00, 0xF000]
JVM Instances: 32
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: MBE103E
Management Firmware Version: MBX303A
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5029250
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
win-SE455.001 225,970
win-SE455.002 207,322
win-SE455.003 233,929
win-SE455.004 229,473
win-SE455.005 226,621
win-SE455.006 218,582
win-SE455.007 230,230
win-SE455.008 232,233
win-SE455.009 231,011
win-SE455.010 231,234
win-SE455.011 217,017
win-SE455.012 231,243
win-SE455.013 231,550
win-SE455.014 236,854
win-SE455.015 219,875
win-SE455.016 228,520
win-SE455.017 217,651
win-SE455.018 231,066
win-SE455.019 228,923
win-SE455.020 228,462
win-SE455.021 236,785
win-SE455.022 225,107
win-SE455.023 222,521
win-SE455.024 228,196
win-SE455.025 232,051
win-SE455.026 229,119
win-SE455.027 232,096
win-SE455.028 231,750
win-SE455.029 235,925
win-SE455.030 231,703
win-SE455.031 218,570
win-SE455.032 228,156
ssj_ops@100% 7,289,747
ssj_ops@100% per JVM 227,805

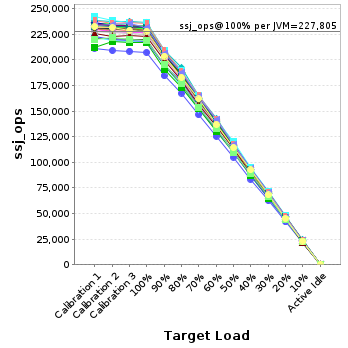

Graph of per-instance results
JVM 'win-SE455.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     230,712
Calibration 2     227,952
Calibration 3     228,388
ssj_ops@calibrated=228,170
100% 99.0% 228,170 225,970
90% 88.9% 205,353 202,859
80% 79.6% 182,536 181,630
70% 69.9% 159,719 159,590
60% 60.4% 136,902 137,757
50% 50.3% 114,085 114,757
40% 40.0% 91,268 91,160
30% 30.0% 68,451 68,557
20% 19.6% 45,634 44,749
10% 10.0% 22,817 22,724
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

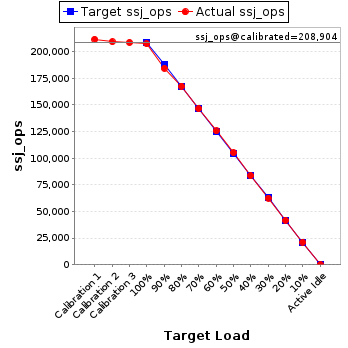

JVM 'win-SE455.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     211,617
Calibration 2     209,191
Calibration 3     208,618
ssj_ops@calibrated=208,904
100% 99.2% 208,904 207,322
90% 88.3% 188,014 184,406
80% 80.3% 167,123 167,650
70% 70.1% 146,233 146,545
60% 60.1% 125,342 125,481
50% 50.3% 104,452 105,117
40% 39.9% 83,562 83,393
30% 30.0% 62,671 62,570
20% 20.0% 41,781 41,741
10% 10.2% 20,890 21,232
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

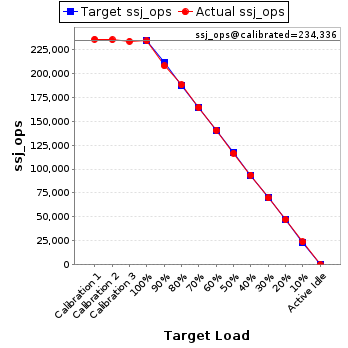

JVM 'win-SE455.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     235,684
Calibration 2     235,123
Calibration 3     233,550
ssj_ops@calibrated=234,336
100% 99.8% 234,336 233,929
90% 88.7% 210,903 207,801
80% 80.2% 187,469 187,947
70% 70.1% 164,035 164,357
60% 59.9% 140,602 140,447
50% 49.7% 117,168 116,558
40% 40.0% 93,735 93,682
30% 29.8% 70,301 69,733
20% 20.1% 46,867 47,174
10% 10.1% 23,434 23,699
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     232,625
Calibration 2     230,976
Calibration 3     230,674
ssj_ops@calibrated=230,825
100% 99.4% 230,825 229,473
90% 88.8% 207,743 204,972
80% 80.8% 184,660 186,409
70% 70.0% 161,578 161,486
60% 60.0% 138,495 138,562
50% 49.8% 115,413 114,928
40% 39.8% 92,330 91,806
30% 29.9% 69,248 69,117
20% 20.0% 46,165 46,153
10% 10.1% 23,083 23,232
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     229,617
Calibration 2     227,956
Calibration 3     226,853
ssj_ops@calibrated=227,404
100% 99.7% 227,404 226,621
90% 88.9% 204,664 202,085
80% 79.5% 181,923 180,824
70% 70.2% 159,183 159,682
60% 59.9% 136,443 136,304
50% 49.9% 113,702 113,419
40% 39.7% 90,962 90,344
30% 30.1% 68,221 68,441
20% 20.1% 45,481 45,677
10% 9.9% 22,740 22,520
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     221,724
Calibration 2     219,090
Calibration 3     218,377
ssj_ops@calibrated=218,734
100% 99.9% 218,734 218,582
90% 89.1% 196,860 194,960
80% 79.5% 174,987 173,813
70% 69.3% 153,114 151,561
60% 60.2% 131,240 131,570
50% 50.5% 109,367 110,383
40% 40.1% 87,493 87,785
30% 29.9% 65,620 65,447
20% 20.0% 43,747 43,812
10% 10.0% 21,873 21,886
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     232,263
Calibration 2     232,674
Calibration 3     232,003
ssj_ops@calibrated=232,339
100% 99.1% 232,339 230,230
90% 88.6% 209,105 205,771
80% 80.1% 185,871 186,113
70% 69.7% 162,637 161,942
60% 59.9% 139,403 139,082
50% 50.0% 116,169 116,163
40% 40.1% 92,935 93,181
30% 30.5% 69,702 70,869
20% 19.7% 46,468 45,824
10% 10.0% 23,234 23,177
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     234,361
Calibration 2     231,842
Calibration 3     233,437
ssj_ops@calibrated=232,639
100% 99.8% 232,639 232,233
90% 89.1% 209,375 207,333
80% 80.6% 186,111 187,442
70% 70.0% 162,847 162,746
60% 59.4% 139,584 138,088
50% 50.1% 116,320 116,589
40% 39.9% 93,056 92,814
30% 30.0% 69,792 69,764
20% 20.3% 46,528 47,184
10% 9.9% 23,264 23,041
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     235,510
Calibration 2     233,648
Calibration 3     232,340
ssj_ops@calibrated=232,994
100% 99.1% 232,994 231,011
90% 88.9% 209,695 207,074
80% 80.1% 186,395 186,578
70% 70.0% 163,096 163,113
60% 60.2% 139,797 140,185
50% 50.2% 116,497 117,028
40% 39.9% 93,198 93,019
30% 29.6% 69,898 68,900
20% 20.3% 46,599 47,387
10% 10.0% 23,299 23,333
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     236,509
Calibration 2     233,326
Calibration 3     231,901
ssj_ops@calibrated=232,613
100% 99.4% 232,613 231,234
90% 88.5% 209,352 205,928
80% 79.6% 186,091 185,051
70% 69.9% 162,829 162,582
60% 59.9% 139,568 139,424
50% 50.0% 116,307 116,398
40% 39.3% 93,045 91,404
30% 30.0% 69,784 69,783
20% 19.8% 46,523 45,950
10% 10.0% 23,261 23,353
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

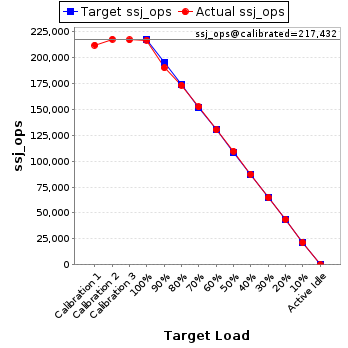

JVM 'win-SE455.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     212,163
Calibration 2     217,795
Calibration 3     217,069
ssj_ops@calibrated=217,432
100% 99.8% 217,432 217,017
90% 87.5% 195,689 190,202
80% 79.7% 173,946 173,281
70% 70.1% 152,202 152,459
60% 59.9% 130,459 130,253
50% 50.4% 108,716 109,629
40% 40.1% 86,973 87,283
30% 29.8% 65,230 64,875
20% 20.1% 43,486 43,695
10% 9.9% 21,743 21,536
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     232,979
Calibration 2     233,614
Calibration 3     233,770
ssj_ops@calibrated=233,692
100% 99.0% 233,692 231,243
90% 87.7% 210,323 205,017
80% 80.0% 186,954 187,035
70% 69.6% 163,584 162,652
60% 59.8% 140,215 139,712
50% 50.2% 116,846 117,266
40% 40.0% 93,477 93,422
30% 29.5% 70,108 68,828
20% 19.7% 46,738 46,149
10% 10.0% 23,369 23,299
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

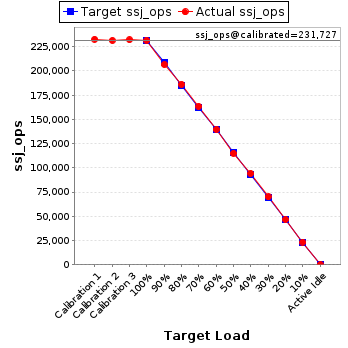

JVM 'win-SE455.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     232,677
Calibration 2     231,420
Calibration 3     232,033
ssj_ops@calibrated=231,727
100% 99.9% 231,727 231,550
90% 89.1% 208,554 206,553
80% 80.4% 185,381 186,231
70% 70.6% 162,209 163,497
60% 60.3% 139,036 139,621
50% 49.6% 115,863 114,914
40% 40.7% 92,691 94,262
30% 30.2% 69,518 69,941
20% 20.1% 46,345 46,565
10% 10.1% 23,173 23,383
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     238,122
Calibration 2     237,200
Calibration 3     237,937
ssj_ops@calibrated=237,569
100% 99.7% 237,569 236,854
90% 88.3% 213,812 209,674
80% 81.0% 190,055 192,358
70% 69.7% 166,298 165,535
60% 60.0% 142,541 142,437
50% 50.0% 118,784 118,815
40% 39.7% 95,027 94,312
30% 29.7% 71,271 70,500
20% 19.8% 47,514 47,034
10% 10.3% 23,757 24,407
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     221,192
Calibration 2     221,392
Calibration 3     220,261
ssj_ops@calibrated=220,827
100% 99.6% 220,827 219,875
90% 87.9% 198,744 194,065
80% 79.9% 176,661 176,460
70% 69.3% 154,579 153,076
60% 59.9% 132,496 132,266
50% 49.9% 110,413 110,153
40% 40.0% 88,331 88,369
30% 30.3% 66,248 66,906
20% 20.2% 44,165 44,699
10% 10.0% 22,083 21,979
Active Idle   0 0

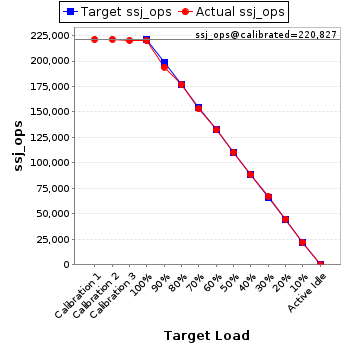

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     232,526
Calibration 2     231,237
Calibration 3     231,049
ssj_ops@calibrated=231,143
100% 98.9% 231,143 228,520
90% 88.0% 208,029 203,413
80% 79.8% 184,914 184,361
70% 69.5% 161,800 160,635
60% 59.9% 138,686 138,523
50% 49.6% 115,572 114,758
40% 39.7% 92,457 91,746
30% 29.7% 69,343 68,611
20% 20.3% 46,229 46,828
10% 10.1% 23,114 23,324
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,265
Calibration 2     219,973
Calibration 3     219,302
ssj_ops@calibrated=219,637
100% 99.1% 219,637 217,651
90% 88.7% 197,674 194,769
80% 81.4% 175,710 178,715
70% 70.3% 153,746 154,430
60% 60.2% 131,782 132,233
50% 49.9% 109,819 109,529
40% 40.1% 87,855 88,145
30% 29.5% 65,891 64,860
20% 20.1% 43,927 44,249
10% 10.0% 21,964 22,032
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     232,783
Calibration 2     232,877
Calibration 3     230,529
ssj_ops@calibrated=231,703
100% 99.7% 231,703 231,066
90% 88.0% 208,533 203,876
80% 80.0% 185,362 185,374
70% 70.0% 162,192 162,146
60% 60.0% 139,022 138,960
50% 49.8% 115,851 115,419
40% 39.9% 92,681 92,335
30% 30.3% 69,511 70,166
20% 19.9% 46,341 46,223
10% 10.0% 23,170 23,145
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     232,137
Calibration 2     230,981
Calibration 3     229,918
ssj_ops@calibrated=230,449
100% 99.3% 230,449 228,923
90% 88.5% 207,405 203,849
80% 80.1% 184,360 184,530
70% 70.0% 161,315 161,293
60% 60.7% 138,270 139,823
50% 50.1% 115,225 115,553
40% 40.0% 92,180 92,281
30% 29.4% 69,135 67,648
20% 19.9% 46,090 45,819
10% 9.8% 23,045 22,691
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     231,898
Calibration 2     229,892
Calibration 3     230,334
ssj_ops@calibrated=230,113
100% 99.3% 230,113 228,462
90% 88.2% 207,101 203,059
80% 80.6% 184,090 185,555
70% 70.0% 161,079 161,016
60% 60.3% 138,068 138,750
50% 49.7% 115,056 114,432
40% 40.5% 92,045 93,172
30% 30.0% 69,034 69,020
20% 20.1% 46,023 46,183
10% 10.0% 23,011 23,062
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     242,499
Calibration 2     238,083
Calibration 3     236,796
ssj_ops@calibrated=237,439
100% 99.7% 237,439 236,785
90% 88.1% 213,695 209,177
80% 80.0% 189,951 190,057
70% 69.7% 166,207 165,407
60% 59.3% 142,463 140,838
50% 50.6% 118,720 120,214
40% 40.2% 94,976 95,368
30% 29.9% 71,232 71,059
20% 20.2% 47,488 47,940
10% 9.9% 23,744 23,608
Active Idle   0 0

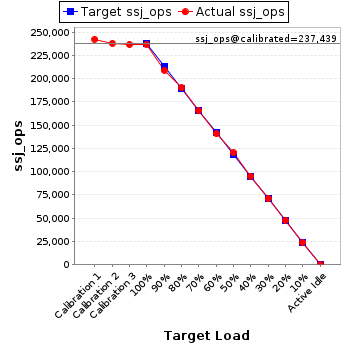

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,448
Calibration 2     226,974
Calibration 3     225,627
ssj_ops@calibrated=226,301
100% 99.5% 226,301 225,107
90% 89.5% 203,671 202,471
80% 80.2% 181,040 181,519
70% 70.0% 158,410 158,480
60% 60.2% 135,780 136,166
50% 49.9% 113,150 112,963
40% 39.7% 90,520 89,944
30% 30.2% 67,890 68,257
20% 19.8% 45,260 44,770
10% 10.0% 22,630 22,528
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,864
Calibration 2     223,213
Calibration 3     223,748
ssj_ops@calibrated=223,481
100% 99.6% 223,481 222,521
90% 89.2% 201,133 199,440
80% 80.3% 178,784 179,429
70% 70.1% 156,436 156,571
60% 60.3% 134,088 134,660
50% 50.6% 111,740 113,032
40% 39.7% 89,392 88,786
30% 30.1% 67,044 67,309
20% 20.0% 44,696 44,615
10% 9.7% 22,348 21,586
Active Idle   0 0

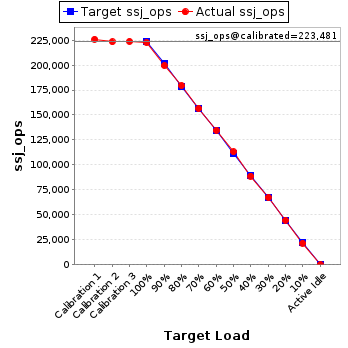

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     230,440
Calibration 2     230,530
Calibration 3     229,473
ssj_ops@calibrated=230,001
100% 99.2% 230,001 228,196
90% 88.9% 207,001 204,581
80% 80.3% 184,001 184,790
70% 69.7% 161,001 160,365
60% 60.0% 138,001 137,895
50% 50.4% 115,001 115,816
40% 40.5% 92,001 93,153
30% 30.3% 69,000 69,640
20% 19.8% 46,000 45,652
10% 9.9% 23,000 22,878
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     234,346
Calibration 2     233,838
Calibration 3     232,676
ssj_ops@calibrated=233,257
100% 99.5% 233,257 232,051
90% 88.1% 209,932 205,430
80% 79.6% 186,606 185,558
70% 69.6% 163,280 162,442
60% 59.7% 139,954 139,336
50% 49.6% 116,629 115,791
40% 39.8% 93,303 92,857
30% 30.3% 69,977 70,778
20% 19.8% 46,651 46,293
10% 10.1% 23,326 23,474
Active Idle   0 0

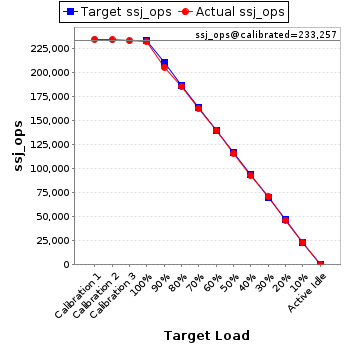

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     231,003
Calibration 2     229,669
Calibration 3     230,304
ssj_ops@calibrated=229,987
100% 99.6% 229,987 229,119
90% 88.0% 206,988 202,403
80% 80.3% 183,989 184,728
70% 69.6% 160,991 160,160
60% 59.8% 137,992 137,587
50% 49.6% 114,993 114,059
40% 39.9% 91,995 91,735
30% 29.8% 68,996 68,632
20% 20.1% 45,997 46,340
10% 10.1% 22,999 23,316
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     234,482
Calibration 2     233,797
Calibration 3     233,445
ssj_ops@calibrated=233,621
100% 99.3% 233,621 232,096
90% 87.8% 210,259 205,214
80% 80.4% 186,897 187,886
70% 69.6% 163,535 162,587
60% 60.5% 140,172 141,313
50% 50.4% 116,810 117,805
40% 40.3% 93,448 94,137
30% 30.1% 70,086 70,250
20% 20.1% 46,724 46,882
10% 9.9% 23,362 23,178
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     232,937
Calibration 2     232,369
Calibration 3     232,849
ssj_ops@calibrated=232,609
100% 99.6% 232,609 231,750
90% 88.6% 209,348 206,162
80% 80.5% 186,087 187,313
70% 70.0% 162,827 162,751
60% 59.9% 139,566 139,367
50% 50.1% 116,305 116,504
40% 40.1% 93,044 93,210
30% 29.9% 69,783 69,527
20% 20.1% 46,522 46,769
10% 10.0% 23,261 23,280
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     238,908
Calibration 2     235,832
Calibration 3     236,727
ssj_ops@calibrated=236,279
100% 99.9% 236,279 235,925
90% 88.4% 212,651 208,767
80% 79.9% 189,023 188,823
70% 70.1% 165,395 165,576
60% 59.8% 141,768 141,363
50% 49.7% 118,140 117,428
40% 39.3% 94,512 92,798
30% 29.9% 70,884 70,708
20% 19.9% 47,256 47,016
10% 9.9% 23,628 23,390
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     233,724
Calibration 2     234,354
Calibration 3     235,606
ssj_ops@calibrated=234,980
100% 98.6% 234,980 231,703
90% 87.9% 211,482 206,556
80% 79.8% 187,984 187,584
70% 69.9% 164,486 164,174
60% 60.2% 140,988 141,420
50% 49.8% 117,490 117,017
40% 39.9% 93,992 93,674
30% 30.0% 70,494 70,523
20% 19.6% 46,996 46,099
10% 10.2% 23,498 23,869
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     219,741
Calibration 2     222,263
Calibration 3     220,101
ssj_ops@calibrated=221,182
100% 98.8% 221,182 218,570
90% 88.3% 199,064 195,260
80% 80.1% 176,945 177,251
70% 69.4% 154,827 153,589
60% 60.2% 132,709 133,232
50% 49.6% 110,591 109,627
40% 40.5% 88,473 89,541
30% 30.2% 66,355 66,711
20% 20.1% 44,236 44,457
10% 10.0% 22,118 22,187
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'win-SE455.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     232,528
Calibration 2     231,403
Calibration 3     228,857
ssj_ops@calibrated=230,130
100% 99.1% 230,130 228,156
90% 88.6% 207,117 203,801
80% 79.5% 184,104 182,845
70% 70.4% 161,091 161,946
60% 59.5% 138,078 136,991
50% 49.7% 115,065 114,455
40% 40.3% 92,052 92,675
30% 29.6% 69,039 68,191
20% 19.6% 46,026 45,128
10% 10.0% 23,013 23,008
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
