Dell Inc. PowerEdge R7615 (AMD EPYC 9654P, 2.40 GHz) ssj_ops@100% = 11,229,635
ssj_ops@100% per JVM = 233,951
Test Sponsor: Dell Inc. SPEC License #: 6573 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 26, 2023
Hardware Availability: Feb-2023 Software Availability: Jan-2023 Publication: Sep 18, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,455,545
Calibration 2     11,310,615
Calibration 3     11,291,913
ssj_ops@calibrated=11,301,264
100% 99.4% 11,301,264 11,229,635
90% 90.1% 10,171,137 10,178,832
80% 80.0% 9,041,011 9,038,784
70% 70.0% 7,910,885 7,911,815
60% 60.0% 6,780,758 6,778,233
50% 50.0% 5,650,632 5,646,900
40% 40.0% 4,520,505 4,521,566
30% 29.9% 3,390,379 3,383,074
20% 20.0% 2,260,253 2,258,199
10% 10.0% 1,130,126 1,127,693
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: PowerEdge R7615
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R7615 (AMD EPYC 9654P, 2.40 GHz)
Form Factor: 2U
CPU Name: AMD EPYC 9654P 2.40 GHz
CPU Characteristics: 96core, 2.40 GHz, 384 MB L3 Cache, Max Boost Clock up to 3.55 GHz
CPU Frequency (MHz): 2400
CPU(s) Enabled: 96 cores, 1 chip, 96 cores/chip
Hardware Threads: 192 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 384 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 1Rx8 PC4-4800-R running at 3600. Slots A1-12 populated.
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: 1100W Titanium Efficiency (DPN FR0KX)
Disk Drive: 1 x 960GB NVMe SSD DPN [400-BMTJ]
Disk Controller: n/a
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Broadcom 5720
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced power plan in OS (see SUT notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: 21H2 Build 20348.1487
Filesystem: NTFS
JVM Vendor: Oracle
JVM Version: Open JDK 64-Bit Server VM Microsoft-30338(build 17.0.2+8-LTS, mixed mode, sharing)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: start /NODE[0-11] /AFFINITY [0xF - 0xF000]
JVM Instances: 48
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 1.4.5
Management Firmware Version: 6.10.30.00 A00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: n/a
Boot Firmware Settings
Management Firmware Settings
Minimum Power (Performance per Watt Optimized)
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-5QPKQ797D4A.001 232,824
WIN-5QPKQ797D4A.002 232,210
WIN-5QPKQ797D4A.003 228,052
WIN-5QPKQ797D4A.004 237,524
WIN-5QPKQ797D4A.005 235,982
WIN-5QPKQ797D4A.006 227,768
WIN-5QPKQ797D4A.007 232,688
WIN-5QPKQ797D4A.008 235,480
WIN-5QPKQ797D4A.009 234,178
WIN-5QPKQ797D4A.010 236,877
WIN-5QPKQ797D4A.011 231,072
WIN-5QPKQ797D4A.012 233,229
WIN-5QPKQ797D4A.013 233,993
WIN-5QPKQ797D4A.014 236,318
WIN-5QPKQ797D4A.015 238,003
WIN-5QPKQ797D4A.016 231,622
WIN-5QPKQ797D4A.017 237,396
WIN-5QPKQ797D4A.018 233,087
WIN-5QPKQ797D4A.019 234,977
WIN-5QPKQ797D4A.020 237,932
WIN-5QPKQ797D4A.021 229,845
WIN-5QPKQ797D4A.022 234,746
WIN-5QPKQ797D4A.023 234,387
WIN-5QPKQ797D4A.024 235,836
WIN-5QPKQ797D4A.025 236,815
WIN-5QPKQ797D4A.026 230,281
WIN-5QPKQ797D4A.027 232,772
WIN-5QPKQ797D4A.028 235,726
WIN-5QPKQ797D4A.029 234,506
WIN-5QPKQ797D4A.030 236,804
WIN-5QPKQ797D4A.031 234,391
WIN-5QPKQ797D4A.032 231,454
WIN-5QPKQ797D4A.033 235,243
WIN-5QPKQ797D4A.034 236,478
WIN-5QPKQ797D4A.035 232,054
WIN-5QPKQ797D4A.036 231,020
WIN-5QPKQ797D4A.037 234,926
WIN-5QPKQ797D4A.038 230,692
WIN-5QPKQ797D4A.039 231,080
WIN-5QPKQ797D4A.040 234,012
WIN-5QPKQ797D4A.041 234,929
WIN-5QPKQ797D4A.042 238,539
WIN-5QPKQ797D4A.043 229,331
WIN-5QPKQ797D4A.044 234,335
WIN-5QPKQ797D4A.045 229,694
WIN-5QPKQ797D4A.046 236,570
WIN-5QPKQ797D4A.047 234,985
WIN-5QPKQ797D4A.048 236,969
ssj_ops@100% 11,229,635
ssj_ops@100% per JVM 233,951

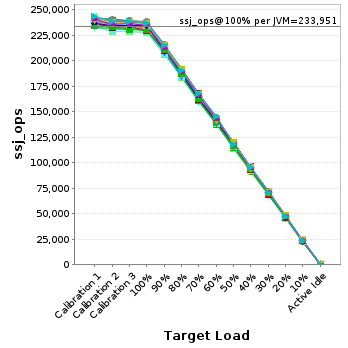

Graph of per-instance results
JVM 'WIN-5QPKQ797D4A.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     239,379
Calibration 2     233,723
Calibration 3     232,794
ssj_ops@calibrated=233,258
100% 99.8% 233,258 232,824
90% 90.3% 209,933 210,556
80% 80.8% 186,607 188,423
70% 70.0% 163,281 163,315
60% 59.7% 139,955 139,269
50% 50.1% 116,629 116,885
40% 39.8% 93,303 92,901
30% 30.2% 69,978 70,329
20% 19.9% 46,652 46,320
10% 9.8% 23,326 22,754
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     237,024
Calibration 2     232,578
Calibration 3     235,868
ssj_ops@calibrated=234,223
100% 99.1% 234,223 232,210
90% 90.2% 210,801 211,252
80% 79.6% 187,379 186,553
70% 70.4% 163,956 164,891
60% 60.5% 140,534 141,636
50% 50.1% 117,112 117,444
40% 39.9% 93,689 93,538
30% 29.9% 70,267 70,074
20% 20.1% 46,845 46,989
10% 10.3% 23,422 24,050
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     234,611
Calibration 2     228,603
Calibration 3     228,701
ssj_ops@calibrated=228,652
100% 99.7% 228,652 228,052
90% 90.0% 205,787 205,898
80% 80.2% 182,922 183,393
70% 70.5% 160,056 161,280
60% 60.4% 137,191 138,195
50% 50.0% 114,326 114,274
40% 40.1% 91,461 91,684
30% 29.9% 68,596 68,387
20% 20.3% 45,730 46,388
10% 10.2% 22,865 23,277
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     240,687
Calibration 2     240,316
Calibration 3     239,045
ssj_ops@calibrated=239,681
100% 99.1% 239,681 237,524
90% 90.2% 215,712 216,277
80% 80.2% 191,744 192,212
70% 69.7% 167,776 167,000
60% 60.0% 143,808 143,909
50% 50.0% 119,840 119,862
40% 39.9% 95,872 95,727
30% 30.0% 71,904 71,823
20% 20.3% 47,936 48,595
10% 9.9% 23,968 23,842
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     243,402
Calibration 2     239,253
Calibration 3     239,058
ssj_ops@calibrated=239,155
100% 98.7% 239,155 235,982
90% 90.0% 215,240 215,246
80% 80.0% 191,324 191,375
70% 70.1% 167,409 167,575
60% 60.1% 143,493 143,778
50% 50.1% 119,578 119,755
40% 40.0% 95,662 95,605
30% 30.0% 71,747 71,709
20% 20.2% 47,831 48,199
10% 9.9% 23,916 23,665
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

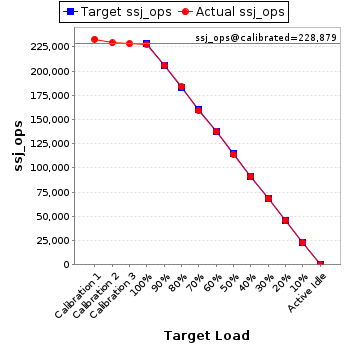

JVM 'WIN-5QPKQ797D4A.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     232,979
Calibration 2     229,276
Calibration 3     228,483
ssj_ops@calibrated=228,879
100% 99.5% 228,879 227,768
90% 90.0% 205,992 206,019
80% 80.2% 183,104 183,623
70% 69.4% 160,216 158,922
60% 60.2% 137,328 137,854
50% 49.9% 114,440 114,262
40% 39.9% 91,552 91,370
30% 29.8% 68,664 68,242
20% 19.8% 45,776 45,408
10% 9.9% 22,888 22,633
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     239,535
Calibration 2     232,913
Calibration 3     234,660
ssj_ops@calibrated=233,787
100% 99.5% 233,787 232,688
90% 89.5% 210,408 209,355
80% 80.3% 187,030 187,738
70% 69.4% 163,651 162,160
60% 59.8% 140,272 139,810
50% 50.0% 116,893 116,937
40% 40.1% 93,515 93,791
30% 30.1% 70,136 70,295
20% 19.9% 46,757 46,602
10% 10.1% 23,379 23,691
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     238,203
Calibration 2     235,697
Calibration 3     236,292
ssj_ops@calibrated=235,995
100% 99.8% 235,995 235,480
90% 90.1% 212,395 212,603
80% 80.1% 188,796 189,080
70% 69.8% 165,196 164,703
60% 59.7% 141,597 140,777
50% 50.0% 117,997 117,986
40% 39.9% 94,398 94,049
30% 30.2% 70,798 71,335
20% 20.3% 47,199 48,016
10% 10.1% 23,599 23,857
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     238,123
Calibration 2     236,964
Calibration 3     237,176
ssj_ops@calibrated=237,070
100% 98.8% 237,070 234,178
90% 90.2% 213,363 213,776
80% 80.3% 189,656 190,371
70% 71.0% 165,949 168,306
60% 60.7% 142,242 143,787
50% 50.4% 118,535 119,547
40% 40.0% 94,828 94,864
30% 29.5% 71,121 69,885
20% 20.1% 47,414 47,617
10% 10.3% 23,707 24,437
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     238,644
Calibration 2     238,232
Calibration 3     237,786
ssj_ops@calibrated=238,009
100% 99.5% 238,009 236,877
90% 90.4% 214,208 215,131
80% 79.9% 190,407 190,111
70% 70.6% 166,606 168,131
60% 59.6% 142,806 141,827
50% 50.2% 119,005 119,428
40% 40.5% 95,204 96,324
30% 29.7% 71,403 70,576
20% 19.9% 47,602 47,331
10% 9.8% 23,801 23,415
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

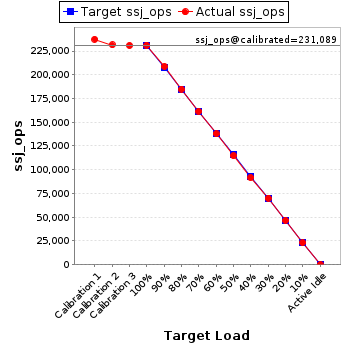

JVM 'WIN-5QPKQ797D4A.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     237,396
Calibration 2     231,330
Calibration 3     230,848
ssj_ops@calibrated=231,089
100% 100.0% 231,089 231,072
90% 90.4% 207,980 208,802
80% 80.0% 184,871 184,932
70% 69.9% 161,762 161,523
60% 59.6% 138,653 137,809
50% 49.6% 115,545 114,622
40% 39.7% 92,436 91,667
30% 30.4% 69,327 70,158
20% 20.2% 46,218 46,722
10% 10.0% 23,109 23,129
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     240,257
Calibration 2     233,769
Calibration 3     233,719
ssj_ops@calibrated=233,744
100% 99.8% 233,744 233,229
90% 90.9% 210,369 212,552
80% 80.0% 186,995 187,049
70% 70.0% 163,621 163,573
60% 60.1% 140,246 140,395
50% 50.1% 116,872 117,105
40% 40.2% 93,498 94,019
30% 30.2% 70,123 70,606
20% 20.0% 46,749 46,811
10% 10.0% 23,374 23,474
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     236,033
Calibration 2     234,609
Calibration 3     235,174
ssj_ops@calibrated=234,891
100% 99.6% 234,891 233,993
90% 89.9% 211,402 211,097
80% 79.8% 187,913 187,454
70% 69.9% 164,424 164,297
60% 60.0% 140,935 141,004
50% 50.8% 117,446 119,294
40% 40.2% 93,957 94,392
30% 29.9% 70,467 70,137
20% 19.8% 46,978 46,554
10% 10.0% 23,489 23,474
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

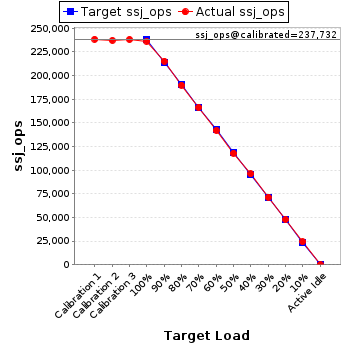

JVM 'WIN-5QPKQ797D4A.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     238,467
Calibration 2     237,235
Calibration 3     238,229
ssj_ops@calibrated=237,732
100% 99.4% 237,732 236,318
90% 90.6% 213,959 215,304
80% 79.9% 190,186 189,922
70% 70.0% 166,413 166,370
60% 59.7% 142,639 141,962
50% 49.6% 118,866 117,984
40% 40.4% 95,093 95,957
30% 30.0% 71,320 71,375
20% 20.1% 47,546 47,817
10% 10.2% 23,773 24,140
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     240,746
Calibration 2     241,561
Calibration 3     238,455
ssj_ops@calibrated=240,008
100% 99.2% 240,008 238,003
90% 89.6% 216,007 215,108
80% 80.2% 192,006 192,463
70% 69.8% 168,005 167,588
60% 59.8% 144,005 143,446
50% 49.6% 120,004 119,075
40% 39.7% 96,003 95,401
30% 30.0% 72,002 71,987
20% 19.9% 48,002 47,720
10% 9.7% 24,001 23,263
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     236,742
Calibration 2     233,448
Calibration 3     233,302
ssj_ops@calibrated=233,375
100% 99.2% 233,375 231,622
90% 90.1% 210,037 210,278
80% 79.4% 186,700 185,367
70% 70.3% 163,362 164,135
60% 59.4% 140,025 138,590
50% 50.1% 116,687 116,878
40% 40.9% 93,350 95,392
30% 30.2% 70,012 70,533
20% 20.2% 46,675 47,099
10% 10.0% 23,337 23,403
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     240,235
Calibration 2     238,829
Calibration 3     237,793
ssj_ops@calibrated=238,311
100% 99.6% 238,311 237,396
90% 89.6% 214,480 213,477
80% 79.8% 190,649 190,211
70% 69.9% 166,818 166,547
60% 59.6% 142,987 141,973
50% 50.4% 119,155 120,055
40% 39.8% 95,324 94,869
30% 29.9% 71,493 71,157
20% 20.0% 47,662 47,682
10% 10.0% 23,831 23,745
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     239,067
Calibration 2     235,296
Calibration 3     236,549
ssj_ops@calibrated=235,922
100% 98.8% 235,922 233,087
90% 90.8% 212,330 214,326
80% 79.7% 188,738 187,983
70% 70.7% 165,145 166,806
60% 60.3% 141,553 142,265
50% 50.0% 117,961 118,071
40% 39.9% 94,369 94,245
30% 30.0% 70,777 70,724
20% 20.1% 47,184 47,390
10% 10.0% 23,592 23,520
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     238,364
Calibration 2     236,300
Calibration 3     235,373
ssj_ops@calibrated=235,836
100% 99.6% 235,836 234,977
90% 90.3% 212,253 213,067
80% 79.4% 188,669 187,183
70% 70.3% 165,086 165,746
60% 60.2% 141,502 141,999
50% 49.6% 117,918 116,880
40% 40.1% 94,335 94,506
30% 29.8% 70,751 70,245
20% 20.2% 47,167 47,656
10% 10.0% 23,584 23,696
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     239,733
Calibration 2     238,372
Calibration 3     238,049
ssj_ops@calibrated=238,211
100% 99.9% 238,211 237,932
90% 89.8% 214,390 213,858
80% 79.9% 190,569 190,223
70% 70.6% 166,747 168,295
60% 59.4% 142,926 141,443
50% 49.8% 119,105 118,686
40% 40.0% 95,284 95,300
30% 29.8% 71,463 71,074
20% 20.0% 47,642 47,720
10% 9.9% 23,821 23,649
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     237,583
Calibration 2     230,607
Calibration 3     232,045
ssj_ops@calibrated=231,326
100% 99.4% 231,326 229,845
90% 89.7% 208,193 207,495
80% 79.8% 185,061 184,578
70% 70.0% 161,928 161,990
60% 59.9% 138,796 138,607
50% 50.2% 115,663 116,060
40% 40.0% 92,530 92,609
30% 29.8% 69,398 68,845
20% 19.8% 46,265 45,744
10% 10.0% 23,133 23,062
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     238,149
Calibration 2     237,268
Calibration 3     235,953
ssj_ops@calibrated=236,611
100% 99.2% 236,611 234,746
90% 89.8% 212,950 212,399
80% 80.3% 189,289 189,999
70% 70.4% 165,628 166,571
60% 60.2% 141,966 142,523
50% 50.0% 118,305 118,242
40% 40.0% 94,644 94,752
30% 29.8% 70,983 70,627
20% 20.1% 47,322 47,486
10% 9.7% 23,661 22,909
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     239,376
Calibration 2     235,871
Calibration 3     235,052
ssj_ops@calibrated=235,462
100% 99.5% 235,462 234,387
90% 90.3% 211,915 212,616
80% 80.4% 188,369 189,217
70% 70.2% 164,823 165,277
60% 60.0% 141,277 141,207
50% 49.8% 117,731 117,323
40% 40.3% 94,185 94,928
30% 30.0% 70,638 70,610
20% 20.1% 47,092 47,411
10% 10.0% 23,546 23,487
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     241,438
Calibration 2     237,280
Calibration 3     237,061
ssj_ops@calibrated=237,171
100% 99.4% 237,171 235,836
90% 90.4% 213,454 214,327
80% 79.9% 189,736 189,408
70% 70.1% 166,019 166,221
60% 60.5% 142,302 143,538
50% 50.1% 118,585 118,717
40% 39.9% 94,868 94,602
30% 29.6% 71,151 70,261
20% 19.9% 47,434 47,236
10% 10.0% 23,717 23,815
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     240,328
Calibration 2     239,125
Calibration 3     237,411
ssj_ops@calibrated=238,268
100% 99.4% 238,268 236,815
90% 90.3% 214,441 215,064
80% 79.8% 190,615 190,241
70% 69.7% 166,788 166,158
60% 59.9% 142,961 142,800
50% 50.1% 119,134 119,466
40% 40.0% 95,307 95,265
30% 29.9% 71,480 71,179
20% 20.0% 47,654 47,582
10% 9.9% 23,827 23,633
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     234,829
Calibration 2     233,151
Calibration 3     231,351
ssj_ops@calibrated=232,251
100% 99.2% 232,251 230,281
90% 90.1% 209,026 209,246
80% 80.6% 185,801 187,262
70% 69.9% 162,575 162,266
60% 59.6% 139,350 138,510
50% 50.0% 116,125 116,136
40% 40.0% 92,900 92,843
30% 30.3% 69,675 70,386
20% 19.8% 46,450 45,899
10% 9.9% 23,225 22,900
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     238,878
Calibration 2     232,953
Calibration 3     234,465
ssj_ops@calibrated=233,709
100% 99.6% 233,709 232,772
90% 89.9% 210,338 210,153
80% 80.2% 186,967 187,401
70% 70.0% 163,596 163,696
60% 59.8% 140,225 139,847
50% 49.8% 116,854 116,298
40% 40.1% 93,483 93,756
30% 30.3% 70,113 70,732
20% 19.8% 46,742 46,161
10% 10.1% 23,371 23,529
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     238,426
Calibration 2     236,678
Calibration 3     237,542
ssj_ops@calibrated=237,110
100% 99.4% 237,110 235,726
90% 90.6% 213,399 214,900
80% 80.1% 189,688 189,844
70% 69.7% 165,977 165,154
60% 59.0% 142,266 139,891
50% 50.4% 118,555 119,607
40% 40.4% 94,844 95,806
30% 29.8% 71,133 70,711
20% 19.8% 47,422 46,936
10% 10.0% 23,711 23,812
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     239,032
Calibration 2     236,257
Calibration 3     235,428
ssj_ops@calibrated=235,842
100% 99.4% 235,842 234,506
90% 89.8% 212,258 211,765
80% 80.1% 188,674 188,823
70% 70.0% 165,090 165,091
60% 60.1% 141,505 141,743
50% 50.2% 117,921 118,335
40% 39.8% 94,337 93,780
30% 30.0% 70,753 70,860
20% 20.2% 47,168 47,708
10% 10.0% 23,584 23,665
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

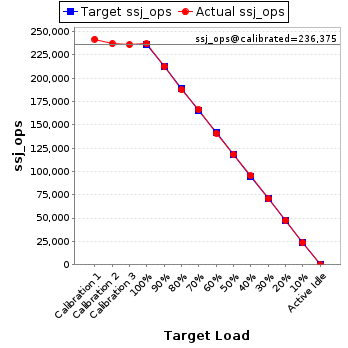

JVM 'WIN-5QPKQ797D4A.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     241,713
Calibration 2     236,916
Calibration 3     235,835
ssj_ops@calibrated=236,375
100% 100.2% 236,375 236,804
90% 89.9% 212,738 212,494
80% 79.3% 189,100 187,483
70% 70.4% 165,463 166,420
60% 59.6% 141,825 140,790
50% 50.0% 118,188 118,274
40% 40.3% 94,550 95,192
30% 29.9% 70,913 70,622
20% 20.1% 47,275 47,420
10% 9.9% 23,638 23,433
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     243,607
Calibration 2     235,811
Calibration 3     234,903
ssj_ops@calibrated=235,357
100% 99.6% 235,357 234,391
90% 89.6% 211,821 210,794
80% 80.1% 188,285 188,428
70% 69.8% 164,750 164,207
60% 60.2% 141,214 141,641
50% 50.0% 117,678 117,589
40% 39.5% 94,143 92,914
30% 29.9% 70,607 70,280
20% 19.8% 47,071 46,533
10% 10.0% 23,536 23,475
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     235,838
Calibration 2     235,426
Calibration 3     234,088
ssj_ops@calibrated=234,757
100% 98.6% 234,757 231,454
90% 90.0% 211,281 211,343
80% 79.9% 187,806 187,480
70% 69.4% 164,330 162,955
60% 60.2% 140,854 141,292
50% 49.7% 117,379 116,642
40% 39.9% 93,903 93,774
30% 29.5% 70,427 69,289
20% 19.7% 46,951 46,261
10% 10.0% 23,476 23,541
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     239,012
Calibration 2     237,435
Calibration 3     237,045
ssj_ops@calibrated=237,240
100% 99.2% 237,240 235,243
90% 90.3% 213,516 214,117
80% 79.2% 189,792 187,837
70% 70.2% 166,068 166,511
60% 59.8% 142,344 141,977
50% 49.6% 118,620 117,628
40% 40.5% 94,896 95,964
30% 29.8% 71,172 70,663
20% 19.9% 47,448 47,100
10% 10.2% 23,724 24,218
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     243,624
Calibration 2     238,650
Calibration 3     236,758
ssj_ops@calibrated=237,704
100% 99.5% 237,704 236,478
90% 89.2% 213,934 211,952
80% 80.0% 190,163 190,111
70% 69.6% 166,393 165,511
60% 59.5% 142,622 141,352
50% 49.8% 118,852 118,344
40% 39.6% 95,082 94,071
30% 29.9% 71,311 71,143
20% 20.0% 47,541 47,541
10% 9.9% 23,770 23,604
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     234,985
Calibration 2     234,887
Calibration 3     234,250
ssj_ops@calibrated=234,568
100% 98.9% 234,568 232,054
90% 90.0% 211,111 211,193
80% 79.9% 187,655 187,512
70% 70.1% 164,198 164,336
60% 60.6% 140,741 142,163
50% 49.8% 117,284 116,698
40% 39.8% 93,827 93,246
30% 30.0% 70,370 70,274
20% 20.0% 46,914 46,827
10% 9.8% 23,457 22,983
Active Idle   0 0

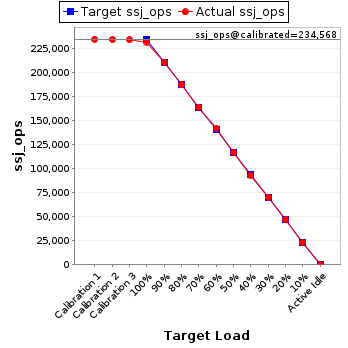

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     237,030
Calibration 2     233,538
Calibration 3     231,903
ssj_ops@calibrated=232,720
100% 99.3% 232,720 231,020
90% 89.6% 209,448 208,476
80% 79.4% 186,176 184,777
70% 69.7% 162,904 162,317
60% 59.9% 139,632 139,472
50% 50.2% 116,360 116,783
40% 40.4% 93,088 94,068
30% 30.5% 69,816 70,937
20% 19.9% 46,544 46,333
10% 9.7% 23,272 22,495
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     243,193
Calibration 2     237,636
Calibration 3     236,483
ssj_ops@calibrated=237,059
100% 99.1% 237,059 234,926
90% 90.0% 213,353 213,319
80% 80.6% 189,647 191,188
70% 69.7% 165,941 165,305
60% 60.3% 142,235 142,928
50% 49.8% 118,530 118,121
40% 39.7% 94,824 94,061
30% 29.7% 71,118 70,413
20% 19.7% 47,412 46,748
10% 10.2% 23,706 24,083
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     235,842
Calibration 2     232,877
Calibration 3     232,364
ssj_ops@calibrated=232,621
100% 99.2% 232,621 230,692
90% 90.4% 209,358 210,316
80% 80.3% 186,096 186,779
70% 70.0% 162,834 162,900
60% 60.3% 139,572 140,231
50% 49.8% 116,310 115,825
40% 39.4% 93,048 91,669
30% 30.1% 69,786 70,015
20% 20.0% 46,524 46,603
10% 9.8% 23,262 22,749
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     234,436
Calibration 2     234,082
Calibration 3     232,473
ssj_ops@calibrated=233,278
100% 99.1% 233,278 231,080
90% 90.1% 209,950 210,265
80% 79.8% 186,622 186,186
70% 69.8% 163,294 162,893
60% 60.2% 139,967 140,425
50% 49.9% 116,639 116,438
40% 40.0% 93,311 93,194
30% 30.1% 69,983 70,233
20% 19.8% 46,656 46,107
10% 9.9% 23,328 23,062
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     237,051
Calibration 2     235,463
Calibration 3     235,317
ssj_ops@calibrated=235,390
100% 99.4% 235,390 234,012
90% 89.7% 211,851 211,078
80% 79.3% 188,312 186,694
70% 70.1% 164,773 164,922
60% 59.4% 141,234 139,723
50% 49.7% 117,695 117,053
40% 39.7% 94,156 93,395
30% 29.7% 70,617 69,896
20% 19.7% 47,078 46,365
10% 9.8% 23,539 23,132
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     239,766
Calibration 2     238,135
Calibration 3     236,387
ssj_ops@calibrated=237,261
100% 99.0% 237,261 234,929
90% 89.3% 213,535 211,853
80% 80.3% 189,809 190,577
70% 70.3% 166,083 166,765
60% 60.2% 142,357 142,797
50% 49.4% 118,630 117,099
40% 40.0% 94,904 94,909
30% 29.9% 71,178 70,850
20% 19.9% 47,452 47,306
10% 10.2% 23,726 24,295
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     241,310
Calibration 2     240,369
Calibration 3     239,871
ssj_ops@calibrated=240,120
100% 99.3% 240,120 238,539
90% 90.1% 216,108 216,335
80% 79.2% 192,096 190,222
70% 69.2% 168,084 166,159
60% 60.0% 144,072 143,957
50% 49.9% 120,060 119,773
40% 39.9% 96,048 95,800
30% 30.0% 72,036 72,021
20% 20.0% 48,024 48,020
10% 10.0% 24,012 23,915
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     237,149
Calibration 2     232,654
Calibration 3     233,248
ssj_ops@calibrated=232,951
100% 98.4% 232,951 229,331
90% 90.1% 209,656 210,005
80% 80.4% 186,361 187,376
70% 69.5% 163,066 161,908
60% 60.4% 139,771 140,687
50% 50.1% 116,475 116,675
40% 40.2% 93,180 93,703
30% 29.6% 69,885 68,902
20% 19.7% 46,590 46,007
10% 10.0% 23,295 23,320
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     236,850
Calibration 2     234,988
Calibration 3     234,339
ssj_ops@calibrated=234,664
100% 99.9% 234,664 234,335
90% 89.5% 211,197 209,946
80% 79.9% 187,731 187,468
70% 69.5% 164,265 163,065
60% 59.9% 140,798 140,541
50% 50.1% 117,332 117,609
40% 40.0% 93,865 93,978
30% 30.2% 70,399 70,859
20% 20.0% 46,933 46,912
10% 9.7% 23,466 22,654
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     233,103
Calibration 2     231,771
Calibration 3     230,570
ssj_ops@calibrated=231,170
100% 99.4% 231,170 229,694
90% 90.9% 208,053 210,090
80% 80.5% 184,936 186,028
70% 69.7% 161,819 161,150
60% 60.0% 138,702 138,786
50% 49.9% 115,585 115,289
40% 40.2% 92,468 92,851
30% 29.9% 69,351 69,057
20% 20.1% 46,234 46,470
10% 10.1% 23,117 23,283
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     239,427
Calibration 2     237,805
Calibration 3     237,813
ssj_ops@calibrated=237,809
100% 99.5% 237,809 236,570
90% 90.6% 214,028 215,435
80% 80.4% 190,247 191,167
70% 70.2% 166,466 166,923
60% 59.4% 142,685 141,319
50% 50.4% 118,904 119,752
40% 39.8% 95,124 94,713
30% 29.8% 71,343 70,981
20% 20.1% 47,562 47,847
10% 10.0% 23,781 23,804
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     240,699
Calibration 2     235,851
Calibration 3     236,380
ssj_ops@calibrated=236,115
100% 99.5% 236,115 234,985
90% 89.9% 212,504 212,339
80% 79.9% 188,892 188,760
70% 70.4% 165,281 166,145
60% 60.4% 141,669 142,507
50% 49.9% 118,058 117,863
40% 40.1% 94,446 94,565
30% 30.1% 70,835 71,183
20% 20.1% 47,223 47,564
10% 10.1% 23,612 23,791
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5QPKQ797D4A.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     243,245
Calibration 2     238,829
Calibration 3     238,227
ssj_ops@calibrated=238,528
100% 99.3% 238,528 236,969
90% 90.4% 214,675 215,537
80% 79.8% 190,822 190,270
70% 70.4% 166,969 167,837
60% 60.9% 143,117 145,252
50% 49.6% 119,264 118,237
40% 40.1% 95,411 95,561
30% 29.6% 71,558 70,593
20% 19.9% 47,706 47,436
10% 10.0% 23,853 23,929
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
