Supermicro AS-1115SV-WTNRT SPECpower_ssj2008 = 20,100 overall ssj_ops/watt
Test Sponsor: Supermicro SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Test Location: San Jose, CA, USA Test Date: Aug 23, 2023
Hardware Availability: Sep-2023 Software Availability: Apr-2023 Publication: Sep 19, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 208 27.9
Calibration 2 212 27.9
Calibration 3 211 27.9
100% 211 27.9
90% 201 27.8
80% 191 27.8
70% 180 27.8
60% 158 27.8
50% 147 27.7
40% 137 27.7
30% 127 27.7
20% 115 27.7
10% 104 27.7
Active Idle 72.2 27.8

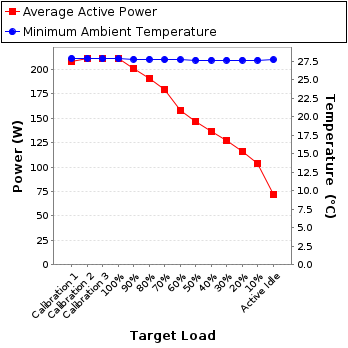

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C2XM03068V
Connectivity: USB2
Input Connection: Default
Metrology Institute: TESCOM
Accredited by: 12-May-2023
Calibration Label: T114528
Date of Calibration: 12-May-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: iButtonLink, Inc.
Model: LinkUSBi + T-Probe
Driver Version: FTDI USB Serial Device 1.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 1.08 1.0 0.913 208 0.3%
Calibration 2 212 300.0 1.09 1.0 0.916 212 0.3%
Calibration 3 212 300.0 1.09 1.0 0.915 211 0.3%
100% 212 300.0 1.09 1.0 0.915 211 0.3%
90% 212 300.0 1.04 1.0 0.908 201 0.3%
80% 212 300.0 1.00 1.0 0.900 191 0.3%
70% 212 300.0 0.950 1.0 0.891 180 0.3%
60% 212 300.0 0.851 1.0 0.872 158 0.3%
50% 213 300.0 0.803 1.0 0.859 147 0.3%
40% 213 300.0 0.762 1.0 0.845 137 0.3%
30% 213 300.0 0.722 1.0 0.827 127 0.3%
20% 213 300.0 0.673 1.0 0.807 115 0.4%
10% 213 300.0 0.622 0.5 0.785 104 0.3%
Active Idle 213 300.0 0.495 0.5 0.685 72.2 0.4%

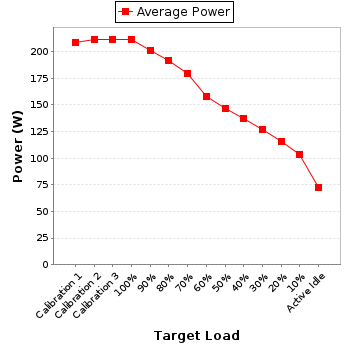

Power details for pwr1
