Quanta Cloud Technology QuantaGrid S44NL-1U ssj_ops@100% = 11,842,430
ssj_ops@100% per JVM = 246,717
Test Sponsor: Quanta Computer Inc. SPEC License #: 9050 Test Method: Single Node
Tested By: Quanta Computer Inc. Test Location: Taoyuan, TW, R.O.C Test Date: Aug 11, 2023
Hardware Availability: Aug-2023 Software Availability: Jul-2023 Publication: Sep 13, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     12,110,624
Calibration 2     11,935,017
Calibration 3     11,894,112
ssj_ops@calibrated=11,914,565
100% 99.4% 11,914,565 11,842,430
90% 90.1% 10,723,108 10,732,135
80% 79.9% 9,531,652 9,520,683
70% 70.0% 8,340,195 8,344,251
60% 60.0% 7,148,739 7,149,550
50% 50.1% 5,957,282 5,965,899
40% 40.0% 4,765,826 4,765,096
30% 30.0% 3,574,369 3,569,335
20% 20.0% 2,382,913 2,381,562
10% 10.0% 1,191,456 1,193,615
Active Idle   0 0
Graph of results
System Under Test
Set: 'S6NL'
Set Identifier: S6NL
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Quanta Cloud Technology
Model: QuantaGrid S44NL-1U
Form Factor: 1U
CPU Name: AMD EPYC 9654 2.40GHz
CPU Characteristics: 96 core, 2.4GHz, 384MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 96 cores, 1 chip, 96 cores/chip
Hardware Threads: 192 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 384 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 16GB 1Rx8 PC5-4800-R; slots A1, B1, C1, D1, E1, F1, G1 ,H1, I1, J1, K1, L1 populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: AcBel R1CA2801H-T930
Disk Drive: 1 x 256GB M.2 Daughter card Quanta P/N : ABS0256G512
Disk Controller: PCI-e controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel X710-AT2, 2-port
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced power plan in OS
Operating System (OS): Microsoft Windows Server 2022 Datacenter Evaluation
OS Version: Version 22H2 (OS Build 20348.1607)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.8+9-LTS-211, mixed mode, sharing)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: start /NODE [0-11] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances: 48
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 48
Boot Firmware Version: 3A08
Management Firmware Version: 3.12
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows (KB5023705)
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WINDOWS-UPDN2LJ.001 243,533
WINDOWS-UPDN2LJ.002 249,257
WINDOWS-UPDN2LJ.003 249,589
WINDOWS-UPDN2LJ.004 249,459
WINDOWS-UPDN2LJ.005 247,526
WINDOWS-UPDN2LJ.006 245,229
WINDOWS-UPDN2LJ.007 247,196
WINDOWS-UPDN2LJ.008 245,519
WINDOWS-UPDN2LJ.009 250,406
WINDOWS-UPDN2LJ.010 248,929
WINDOWS-UPDN2LJ.011 244,917
WINDOWS-UPDN2LJ.012 247,811
WINDOWS-UPDN2LJ.013 248,299
WINDOWS-UPDN2LJ.014 245,024
WINDOWS-UPDN2LJ.015 240,764
WINDOWS-UPDN2LJ.016 247,528
WINDOWS-UPDN2LJ.017 248,380
WINDOWS-UPDN2LJ.018 251,888
WINDOWS-UPDN2LJ.019 247,113
WINDOWS-UPDN2LJ.020 245,045
WINDOWS-UPDN2LJ.021 250,003
WINDOWS-UPDN2LJ.022 252,140
WINDOWS-UPDN2LJ.023 246,338
WINDOWS-UPDN2LJ.024 250,367
WINDOWS-UPDN2LJ.025 253,858
WINDOWS-UPDN2LJ.026 248,324
WINDOWS-UPDN2LJ.027 248,058
WINDOWS-UPDN2LJ.028 240,266
WINDOWS-UPDN2LJ.029 250,947
WINDOWS-UPDN2LJ.030 251,048
WINDOWS-UPDN2LJ.031 247,271
WINDOWS-UPDN2LJ.032 248,376
WINDOWS-UPDN2LJ.033 251,376
WINDOWS-UPDN2LJ.034 245,875
WINDOWS-UPDN2LJ.035 241,894
WINDOWS-UPDN2LJ.036 245,493
WINDOWS-UPDN2LJ.037 249,826
WINDOWS-UPDN2LJ.038 241,135
WINDOWS-UPDN2LJ.039 241,702
WINDOWS-UPDN2LJ.040 241,564
WINDOWS-UPDN2LJ.041 246,734
WINDOWS-UPDN2LJ.042 247,306
WINDOWS-UPDN2LJ.043 241,657
WINDOWS-UPDN2LJ.044 232,845
WINDOWS-UPDN2LJ.045 249,310
WINDOWS-UPDN2LJ.046 241,979
WINDOWS-UPDN2LJ.047 243,119
WINDOWS-UPDN2LJ.048 250,208
ssj_ops@100% 11,842,430
ssj_ops@100% per JVM 246,717

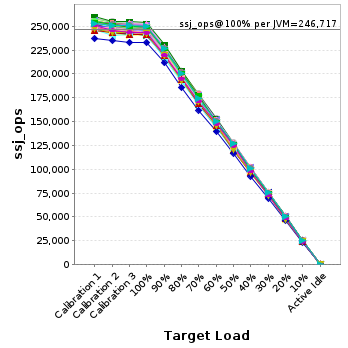

Graph of per-instance results
JVM 'WINDOWS-UPDN2LJ.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     249,237
Calibration 2     245,372
Calibration 3     244,907
ssj_ops@calibrated=245,139
100% 99.3% 245,139 243,533
90% 90.2% 220,625 221,212
80% 79.8% 196,112 195,683
70% 70.0% 171,598 171,521
60% 60.3% 147,084 147,914
50% 49.8% 122,570 122,036
40% 39.8% 98,056 97,525
30% 30.1% 73,542 73,726
20% 20.1% 49,028 49,363
10% 10.0% 24,514 24,613
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     254,725
Calibration 2     251,772
Calibration 3     251,655
ssj_ops@calibrated=251,714
100% 99.0% 251,714 249,257
90% 90.3% 226,542 227,385
80% 80.3% 201,371 202,074
70% 69.9% 176,199 176,043
60% 60.1% 151,028 151,296
50% 50.3% 125,857 126,609
40% 40.1% 100,685 101,039
30% 30.2% 75,514 75,951
20% 20.0% 50,343 50,327
10% 10.2% 25,171 25,708
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     256,043
Calibration 2     252,250
Calibration 3     252,164
ssj_ops@calibrated=252,207
100% 99.0% 252,207 249,589
90% 90.1% 226,986 227,359
80% 80.2% 201,766 202,205
70% 69.6% 176,545 175,417
60% 60.1% 151,324 151,490
50% 49.9% 126,104 125,804
40% 39.7% 100,883 100,141
30% 29.5% 75,662 74,429
20% 19.8% 50,441 49,969
10% 10.1% 25,221 25,374
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     257,595
Calibration 2     252,230
Calibration 3     249,725
ssj_ops@calibrated=250,977
100% 99.4% 250,977 249,459
90% 89.9% 225,879 225,650
80% 80.0% 200,782 200,855
70% 69.9% 175,684 175,364
60% 60.6% 150,586 152,178
50% 50.4% 125,489 126,480
40% 39.9% 100,391 100,143
30% 29.8% 75,293 74,819
20% 20.2% 50,195 50,773
10% 10.2% 25,098 25,522
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     253,629
Calibration 2     250,489
Calibration 3     248,966
ssj_ops@calibrated=249,727
100% 99.1% 249,727 247,526
90% 90.7% 224,755 226,415
80% 79.8% 199,782 199,371
70% 70.5% 174,809 176,027
60% 59.6% 149,836 148,852
50% 50.2% 124,864 125,298
40% 39.4% 99,891 98,363
30% 29.6% 74,918 74,043
20% 19.8% 49,945 49,341
10% 9.9% 24,973 24,682
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     251,725
Calibration 2     247,560
Calibration 3     246,581
ssj_ops@calibrated=247,071
100% 99.3% 247,071 245,229
90% 90.5% 222,363 223,707
80% 79.9% 197,656 197,488
70% 69.7% 172,949 172,329
60% 60.1% 148,242 148,373
50% 49.9% 123,535 123,379
40% 40.6% 98,828 100,249
30% 29.9% 74,121 73,990
20% 20.1% 49,414 49,552
10% 9.9% 24,707 24,416
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     253,123
Calibration 2     248,736
Calibration 3     247,541
ssj_ops@calibrated=248,139
100% 99.6% 248,139 247,196
90% 89.5% 223,325 221,986
80% 79.5% 198,511 197,243
70% 70.2% 173,697 174,220
60% 60.3% 148,883 149,643
50% 49.9% 124,069 123,718
40% 40.4% 99,255 100,347
30% 29.7% 74,442 73,597
20% 20.1% 49,628 49,820
10% 10.2% 24,814 25,352
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     252,169
Calibration 2     247,314
Calibration 3     245,660
ssj_ops@calibrated=246,487
100% 99.6% 246,487 245,519
90% 90.2% 221,839 222,356
80% 79.2% 197,190 195,271
70% 69.7% 172,541 171,901
60% 60.2% 147,892 148,412
50% 49.8% 123,244 122,837
40% 39.5% 98,595 97,259
30% 29.8% 73,946 73,565
20% 20.0% 49,297 49,321
10% 10.1% 24,649 24,962
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     255,325
Calibration 2     253,053
Calibration 3     247,489
ssj_ops@calibrated=250,271
100% 100.1% 250,271 250,406
90% 90.2% 225,244 225,657
80% 79.8% 200,217 199,725
70% 69.8% 175,190 174,773
60% 59.9% 150,163 149,791
50% 50.4% 125,135 126,029
40% 39.8% 100,108 99,489
30% 29.8% 75,081 74,690
20% 19.9% 50,054 49,903
10% 10.2% 25,027 25,406
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

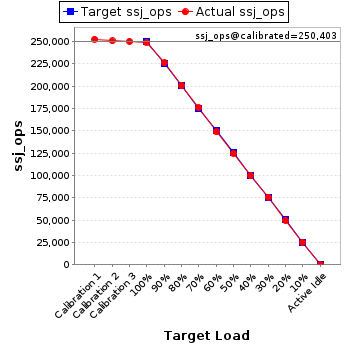

JVM 'WINDOWS-UPDN2LJ.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     252,620
Calibration 2     250,717
Calibration 3     250,088
ssj_ops@calibrated=250,403
100% 99.4% 250,403 248,929
90% 90.3% 225,363 226,088
80% 80.1% 200,322 200,589
70% 70.2% 175,282 175,688
60% 59.5% 150,242 148,914
50% 49.9% 125,201 124,952
40% 39.8% 100,161 99,716
30% 30.3% 75,121 75,791
20% 19.8% 50,081 49,608
10% 10.1% 25,040 25,351
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     252,750
Calibration 2     247,259
Calibration 3     247,720
ssj_ops@calibrated=247,490
100% 99.0% 247,490 244,917
90% 89.9% 222,741 222,407
80% 80.7% 197,992 199,778
70% 70.1% 173,243 173,450
60% 60.2% 148,494 148,915
50% 50.7% 123,745 125,403
40% 40.4% 98,996 99,978
30% 29.7% 74,247 73,589
20% 19.9% 49,498 49,139
10% 10.0% 24,749 24,691
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     252,497
Calibration 2     250,919
Calibration 3     250,594
ssj_ops@calibrated=250,757
100% 98.8% 250,757 247,811
90% 90.0% 225,681 225,558
80% 80.2% 200,605 200,993
70% 70.2% 175,530 176,078
60% 60.3% 150,454 151,303
50% 49.8% 125,378 124,950
40% 39.5% 100,303 99,148
30% 30.3% 75,227 76,069
20% 19.9% 50,151 49,791
10% 10.1% 25,076 25,374
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     252,466
Calibration 2     247,879
Calibration 3     250,132
ssj_ops@calibrated=249,006
100% 99.7% 249,006 248,299
90% 90.0% 224,105 224,052
80% 79.9% 199,205 199,077
70% 70.3% 174,304 175,109
60% 60.1% 149,403 149,581
50% 49.9% 124,503 124,376
40% 39.9% 99,602 99,363
30% 30.1% 74,702 74,954
20% 20.1% 49,801 50,076
10% 10.3% 24,901 25,533
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     250,274
Calibration 2     247,931
Calibration 3     247,246
ssj_ops@calibrated=247,588
100% 99.0% 247,588 245,024
90% 89.7% 222,830 222,201
80% 79.2% 198,071 195,999
70% 70.1% 173,312 173,475
60% 60.2% 148,553 149,080
50% 50.1% 123,794 124,014
40% 39.5% 99,035 97,880
30% 30.2% 74,277 74,697
20% 20.1% 49,518 49,765
10% 9.8% 24,759 24,320
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     248,191
Calibration 2     243,931
Calibration 3     242,527
ssj_ops@calibrated=243,229
100% 99.0% 243,229 240,764
90% 90.7% 218,906 220,637
80% 80.0% 194,583 194,704
70% 69.9% 170,260 169,962
60% 60.3% 145,937 146,594
50% 50.6% 121,614 122,978
40% 39.7% 97,292 96,572
30% 30.0% 72,969 73,013
20% 20.4% 48,646 49,498
10% 9.9% 24,323 24,190
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     255,214
Calibration 2     248,962
Calibration 3     247,073
ssj_ops@calibrated=248,017
100% 99.8% 248,017 247,528
90% 90.2% 223,216 223,747
80% 79.6% 198,414 197,425
70% 70.4% 173,612 174,612
60% 59.7% 148,810 147,985
50% 49.9% 124,009 123,735
40% 40.0% 99,207 99,113
30% 29.5% 74,405 73,142
20% 20.1% 49,603 49,739
10% 9.9% 24,802 24,541
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     252,770
Calibration 2     250,607
Calibration 3     249,683
ssj_ops@calibrated=250,145
100% 99.3% 250,145 248,380
90% 89.7% 225,130 224,368
80% 79.5% 200,116 198,928
70% 70.2% 175,101 175,512
60% 60.1% 150,087 150,245
50% 49.8% 125,072 124,619
40% 40.4% 100,058 100,969
30% 29.9% 75,043 74,774
20% 20.4% 50,029 51,096
10% 10.0% 25,014 25,062
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     257,953
Calibration 2     254,153
Calibration 3     253,158
ssj_ops@calibrated=253,656
100% 99.3% 253,656 251,888
90% 89.9% 228,290 228,056
80% 80.0% 202,924 202,959
70% 70.5% 177,559 178,773
60% 60.2% 152,193 152,666
50% 50.3% 126,828 127,547
40% 40.1% 101,462 101,620
30% 29.8% 76,097 75,501
20% 20.0% 50,731 50,788
10% 10.1% 25,366 25,745
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     253,916
Calibration 2     248,031
Calibration 3     247,035
ssj_ops@calibrated=247,533
100% 99.8% 247,533 247,113
90% 89.8% 222,780 222,306
80% 79.5% 198,026 196,891
70% 70.3% 173,273 174,123
60% 59.2% 148,520 146,582
50% 50.3% 123,766 124,472
40% 40.1% 99,013 99,336
30% 29.8% 74,260 73,676
20% 19.9% 49,507 49,140
10% 10.0% 24,753 24,678
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     249,767
Calibration 2     246,751
Calibration 3     246,493
ssj_ops@calibrated=246,622
100% 99.4% 246,622 245,045
90% 89.7% 221,960 221,288
80% 79.7% 197,298 196,627
70% 70.0% 172,635 172,559
60% 59.6% 147,973 146,957
50% 50.0% 123,311 123,410
40% 40.4% 98,649 99,542
30% 30.0% 73,987 73,930
20% 20.2% 49,324 49,805
10% 10.0% 24,662 24,774
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     254,284
Calibration 2     251,992
Calibration 3     250,743
ssj_ops@calibrated=251,367
100% 99.5% 251,367 250,003
90% 89.5% 226,231 225,070
80% 80.5% 201,094 202,238
70% 70.0% 175,957 175,928
60% 60.6% 150,820 152,253
50% 50.2% 125,684 126,078
40% 40.0% 100,547 100,541
30% 29.9% 75,410 75,082
20% 20.2% 50,273 50,828
10% 9.9% 25,137 24,987
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

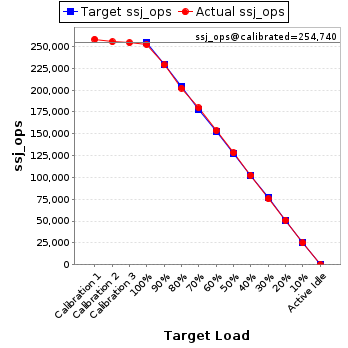

JVM 'WINDOWS-UPDN2LJ.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     258,279
Calibration 2     255,279
Calibration 3     254,202
ssj_ops@calibrated=254,740
100% 99.0% 254,740 252,140
90% 89.8% 229,266 228,803
80% 79.4% 203,792 202,356
70% 70.5% 178,318 179,537
60% 60.2% 152,844 153,465
50% 50.3% 127,370 128,022
40% 40.1% 101,896 102,219
30% 29.6% 76,422 75,457
20% 20.0% 50,948 50,997
10% 9.8% 25,474 25,000
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

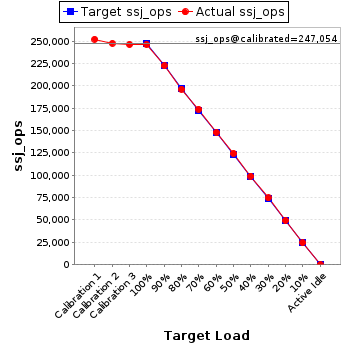

JVM 'WINDOWS-UPDN2LJ.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     252,226
Calibration 2     247,666
Calibration 3     246,442
ssj_ops@calibrated=247,054
100% 99.7% 247,054 246,338
90% 90.1% 222,349 222,496
80% 79.5% 197,643 196,427
70% 70.4% 172,938 173,971
60% 60.0% 148,232 148,141
50% 50.4% 123,527 124,521
40% 40.1% 98,822 99,116
30% 30.2% 74,116 74,608
20% 20.1% 49,411 49,553
10% 9.9% 24,705 24,574
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     254,256
Calibration 2     252,898
Calibration 3     252,143
ssj_ops@calibrated=252,521
100% 99.1% 252,521 250,367
90% 89.5% 227,269 225,894
80% 80.1% 202,017 202,211
70% 70.4% 176,764 177,668
60% 60.4% 151,512 152,397
50% 49.7% 126,260 125,569
40% 39.9% 101,008 100,733
30% 30.0% 75,756 75,698
20% 19.9% 50,504 50,281
10% 10.0% 25,252 25,308
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     260,378
Calibration 2     255,163
Calibration 3     255,146
ssj_ops@calibrated=255,155
100% 99.5% 255,155 253,858
90% 90.6% 229,639 231,062
80% 79.9% 204,124 203,946
70% 70.0% 178,608 178,671
60% 60.2% 153,093 153,476
50% 49.7% 127,577 126,833
40% 39.8% 102,062 101,557
30% 29.8% 76,546 76,104
20% 20.1% 51,031 51,182
10% 9.8% 25,515 24,948
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     253,677
Calibration 2     249,993
Calibration 3     250,022
ssj_ops@calibrated=250,008
100% 99.3% 250,008 248,324
90% 89.6% 225,007 224,012
80% 80.1% 200,006 200,131
70% 69.6% 175,005 174,086
60% 60.3% 150,005 150,809
50% 49.9% 125,004 124,777
40% 39.6% 100,003 99,055
30% 29.9% 75,002 74,636
20% 20.2% 50,002 50,619
10% 9.9% 25,001 24,850
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     252,220
Calibration 2     249,703
Calibration 3     248,713
ssj_ops@calibrated=249,208
100% 99.5% 249,208 248,058
90% 90.7% 224,287 226,013
80% 80.0% 199,366 199,244
70% 70.1% 174,445 174,600
60% 60.0% 149,525 149,439
50% 50.5% 124,604 125,804
40% 40.4% 99,683 100,662
30% 29.8% 74,762 74,286
20% 20.0% 49,842 49,761
10% 9.8% 24,921 24,541
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     247,605
Calibration 2     242,415
Calibration 3     242,241
ssj_ops@calibrated=242,328
100% 99.1% 242,328 240,266
90% 90.0% 218,095 218,072
80% 80.0% 193,862 193,835
70% 69.5% 169,629 168,429
60% 59.6% 145,397 144,308
50% 49.7% 121,164 120,374
40% 39.8% 96,931 96,457
30% 30.3% 72,698 73,325
20% 19.9% 48,466 48,307
10% 10.0% 24,233 24,120
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     254,072
Calibration 2     253,071
Calibration 3     251,982
ssj_ops@calibrated=252,526
100% 99.4% 252,526 250,947
90% 89.7% 227,274 226,496
80% 79.8% 202,021 201,629
70% 70.8% 176,768 178,797
60% 59.9% 151,516 151,228
50% 50.4% 126,263 127,318
40% 40.3% 101,011 101,679
30% 30.1% 75,758 76,020
20% 20.0% 50,505 50,424
10% 10.2% 25,253 25,678
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     256,260
Calibration 2     251,944
Calibration 3     251,483
ssj_ops@calibrated=251,713
100% 99.7% 251,713 251,048
90% 89.6% 226,542 225,459
80% 79.8% 201,371 200,894
70% 70.6% 176,199 177,791
60% 60.3% 151,028 151,763
50% 49.8% 125,857 125,241
40% 40.4% 100,685 101,753
30% 29.8% 75,514 74,950
20% 19.9% 50,343 50,119
10% 10.2% 25,171 25,607
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     254,492
Calibration 2     248,096
Calibration 3     248,336
ssj_ops@calibrated=248,216
100% 99.6% 248,216 247,271
90% 90.1% 223,394 223,634
80% 80.3% 198,573 199,200
70% 69.3% 173,751 172,013
60% 59.9% 148,929 148,782
50% 50.0% 124,108 124,213
40% 40.3% 99,286 99,910
30% 30.0% 74,465 74,516
20% 19.8% 49,643 49,177
10% 9.9% 24,822 24,582
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     253,589
Calibration 2     250,454
Calibration 3     250,716
ssj_ops@calibrated=250,585
100% 99.1% 250,585 248,376
90% 89.8% 225,527 224,971
80% 79.9% 200,468 200,110
70% 69.9% 175,410 175,057
60% 59.8% 150,351 149,959
50% 49.6% 125,293 124,203
40% 39.6% 100,234 99,330
30% 30.2% 75,176 75,725
20% 19.8% 50,117 49,534
10% 10.2% 25,059 25,549
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     254,396
Calibration 2     251,123
Calibration 3     253,049
ssj_ops@calibrated=252,086
100% 99.7% 252,086 251,376
90% 90.4% 226,877 227,807
80% 80.0% 201,669 201,631
70% 70.2% 176,460 176,850
60% 59.9% 151,251 151,064
50% 50.3% 126,043 126,802
40% 40.3% 100,834 101,611
30% 30.1% 75,626 75,919
20% 20.0% 50,417 50,468
10% 10.0% 25,209 25,181
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     254,392
Calibration 2     248,728
Calibration 3     247,118
ssj_ops@calibrated=247,923
100% 99.2% 247,923 245,875
90% 89.9% 223,131 222,776
80% 80.2% 198,338 198,776
70% 70.1% 173,546 173,756
60% 59.6% 148,754 147,766
50% 50.1% 123,961 124,135
40% 40.5% 99,169 100,444
30% 30.1% 74,377 74,504
20% 19.9% 49,585 49,430
10% 10.0% 24,792 24,674
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     248,300
Calibration 2     244,356
Calibration 3     244,469
ssj_ops@calibrated=244,412
100% 99.0% 244,412 241,894
90% 89.8% 219,971 219,415
80% 80.2% 195,530 195,976
70% 69.8% 171,089 170,584
60% 60.6% 146,647 148,039
50% 49.9% 122,206 121,894
40% 39.8% 97,765 97,170
30% 30.2% 73,324 73,764
20% 19.9% 48,882 48,736
10% 9.9% 24,441 24,187
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     251,338
Calibration 2     248,652
Calibration 3     247,318
ssj_ops@calibrated=247,985
100% 99.0% 247,985 245,493
90% 90.5% 223,186 224,309
80% 80.2% 198,388 198,856
70% 70.1% 173,589 173,745
60% 59.9% 148,791 148,660
50% 50.3% 123,992 124,798
40% 39.7% 99,194 98,385
30% 29.5% 74,395 73,253
20% 20.1% 49,597 49,749
10% 10.1% 24,798 25,094
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

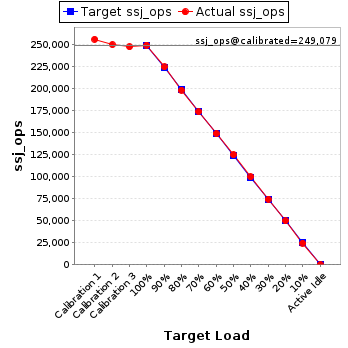

JVM 'WINDOWS-UPDN2LJ.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     256,550
Calibration 2     250,327
Calibration 3     247,831
ssj_ops@calibrated=249,079
100% 100.3% 249,079 249,826
90% 90.3% 224,171 224,972
80% 79.8% 199,263 198,689
70% 69.9% 174,355 174,039
60% 59.9% 149,447 149,148
50% 50.2% 124,539 125,068
40% 40.1% 99,632 99,885
30% 29.9% 74,724 74,526
20% 20.0% 49,816 49,781
10% 9.9% 24,908 24,624
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     245,435
Calibration 2     242,853
Calibration 3     240,600
ssj_ops@calibrated=241,726
100% 99.8% 241,726 241,135
90% 90.6% 217,554 219,033
80% 80.0% 193,381 193,346
70% 70.0% 169,209 169,165
60% 59.6% 145,036 143,969
50% 50.2% 120,863 121,431
40% 39.5% 96,691 95,576
30% 30.3% 72,518 73,175
20% 19.5% 48,345 47,216
10% 9.8% 24,173 23,808
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     248,895
Calibration 2     243,727
Calibration 3     243,462
ssj_ops@calibrated=243,594
100% 99.2% 243,594 241,702
90% 91.1% 219,235 222,030
80% 80.3% 194,876 195,548
70% 70.0% 170,516 170,469
60% 60.0% 146,157 146,248
50% 50.0% 121,797 121,765
40% 40.1% 97,438 97,604
30% 30.5% 73,078 74,355
20% 20.1% 48,719 48,890
10% 10.2% 24,359 24,731
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

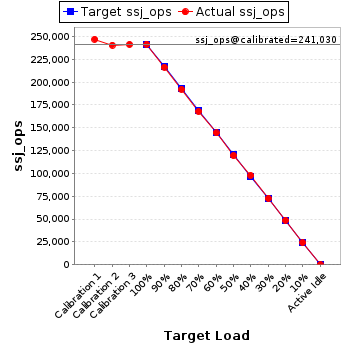

JVM 'WINDOWS-UPDN2LJ.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     247,013
Calibration 2     240,650
Calibration 3     241,410
ssj_ops@calibrated=241,030
100% 100.2% 241,030 241,564
90% 89.8% 216,927 216,433
80% 79.7% 192,824 192,176
70% 69.7% 168,721 167,935
60% 59.9% 144,618 144,346
50% 49.6% 120,515 119,436
40% 40.6% 96,412 97,859
30% 30.2% 72,309 72,710
20% 20.2% 48,206 48,782
10% 10.1% 24,103 24,279
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     248,675
Calibration 2     248,430
Calibration 3     247,062
ssj_ops@calibrated=247,746
100% 99.6% 247,746 246,734
90% 89.9% 222,971 222,696
80% 79.8% 198,197 197,740
70% 70.0% 173,422 173,360
60% 60.1% 148,648 148,874
50% 50.0% 123,873 123,853
40% 40.2% 99,098 99,587
30% 30.2% 74,324 74,768
20% 19.7% 49,549 48,880
10% 10.1% 24,775 25,053
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

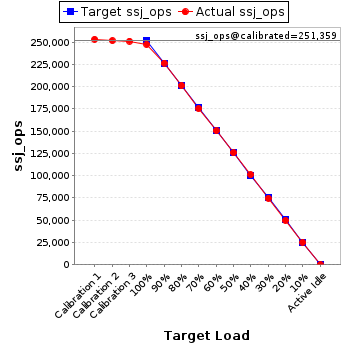

JVM 'WINDOWS-UPDN2LJ.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     253,149
Calibration 2     251,562
Calibration 3     251,156
ssj_ops@calibrated=251,359
100% 98.4% 251,359 247,306
90% 90.1% 226,223 226,426
80% 80.0% 201,087 201,104
70% 69.8% 175,951 175,443
60% 59.8% 150,815 150,385
50% 50.0% 125,679 125,688
40% 40.2% 100,544 101,117
30% 29.7% 75,408 74,605
20% 19.8% 50,272 49,730
10% 10.1% 25,136 25,274
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     245,777
Calibration 2     243,041
Calibration 3     241,018
ssj_ops@calibrated=242,030
100% 99.8% 242,030 241,657
90% 90.5% 217,827 218,964
80% 80.2% 193,624 194,191
70% 69.6% 169,421 168,566
60% 60.4% 145,218 146,089
50% 49.7% 121,015 120,232
40% 39.9% 96,812 96,494
30% 30.5% 72,609 73,881
20% 20.2% 48,406 48,777
10% 9.9% 24,203 24,028
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     237,100
Calibration 2     235,039
Calibration 3     233,225
ssj_ops@calibrated=234,132
100% 99.5% 234,132 232,845
90% 90.4% 210,718 211,593
80% 79.3% 187,305 185,649
70% 69.2% 163,892 162,017
60% 59.7% 140,479 139,866
50% 50.0% 117,066 117,056
40% 39.7% 93,653 92,852
30% 29.8% 70,239 69,750
20% 19.8% 46,826 46,355
10% 10.1% 23,413 23,712
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     254,930
Calibration 2     251,698
Calibration 3     249,653
ssj_ops@calibrated=250,676
100% 99.5% 250,676 249,310
90% 90.1% 225,608 225,746
80% 80.4% 200,541 201,494
70% 70.8% 175,473 177,452
60% 59.5% 150,406 149,238
50% 50.3% 125,338 126,165
40% 39.8% 100,270 99,761
30% 29.9% 75,203 75,073
20% 20.0% 50,135 50,070
10% 9.9% 25,068 24,933
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     247,783
Calibration 2     243,704
Calibration 3     243,183
ssj_ops@calibrated=243,443
100% 99.4% 243,443 241,979
90% 90.0% 219,099 218,987
80% 79.4% 194,755 193,309
70% 70.5% 170,410 171,607
60% 59.8% 146,066 145,481
50% 49.6% 121,722 120,645
40% 39.9% 97,377 97,186
30% 29.7% 73,033 72,297
20% 19.6% 48,689 47,662
10% 10.1% 24,344 24,483
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     250,851
Calibration 2     245,671
Calibration 3     243,692
ssj_ops@calibrated=244,682
100% 99.4% 244,682 243,119
90% 89.9% 220,214 219,900
80% 79.8% 195,745 195,230
70% 70.1% 171,277 171,404
60% 60.3% 146,809 147,547
50% 50.9% 122,341 124,530
40% 40.0% 97,873 97,762
30% 29.7% 73,405 72,559
20% 20.0% 48,936 48,906
10% 9.9% 24,468 24,119
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-UPDN2LJ.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     252,711
Calibration 2     250,866
Calibration 3     251,263
ssj_ops@calibrated=251,064
100% 99.7% 251,064 250,208
90% 90.3% 225,958 226,628
80% 80.0% 200,851 200,861
70% 69.5% 175,745 174,377
60% 59.8% 150,639 150,041
50% 50.5% 125,532 126,802
40% 40.2% 100,426 101,002
30% 30.2% 75,319 75,840
20% 20.1% 50,213 50,533
10% 10.1% 25,106 25,398
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
