SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R7615 (AMD EPYC 9754, 2.25 GHz) | SPECpower_ssj2008 = 29,782 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 6573 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Jul 13, 2023 |
| Hardware Availability: | Jul-2023 | Software Availability: | Feb-2023 | Publication: | Aug 2, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

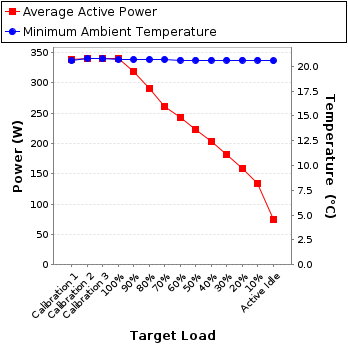

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 338 | 20.6 |
| Calibration 2 | 341 | 20.8 |
| Calibration 3 | 341 | 20.8 |
| 100% | 341 | 20.7 |
| 90% | 319 | 20.7 |
| 80% | 290 | 20.7 |
| 70% | 262 | 20.7 |
| 60% | 242 | 20.6 |
| 50% | 223 | 20.6 |
| 40% | 203 | 20.6 |
| 30% | 181 | 20.6 |
| 20% | 158 | 20.6 |
| 10% | 134 | 20.6 |
| Active Idle | 74.0 | 20.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91J936840 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TesCom |
| Calibration Label: | T76419 |
| Date of Calibration: | 25-Oct-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 209 | 300.0 | 1.63 | 2.0 | 0.993 | 338 | 0.4% |
| Calibration 2 | 209 | 300.0 | 1.64 | 2.0 | 0.993 | 341 | 0.4% |
| Calibration 3 | 209 | 300.0 | 1.64 | 2.0 | 0.993 | 341 | 0.4% |
| 100% | 209 | 300.0 | 1.64 | 2.0 | 0.993 | 341 | 0.4% |
| 90% | 209 | 300.0 | 1.54 | 2.0 | 0.992 | 319 | 0.4% |
| 80% | 209 | 300.0 | 1.40 | 2.0 | 0.994 | 290 | 0.4% |
| 70% | 209 | 300.0 | 1.26 | 2.0 | 0.994 | 262 | 0.4% |
| 60% | 209 | 300.0 | 1.17 | 2.0 | 0.993 | 242 | 0.4% |
| 50% | 209 | 300.0 | 1.08 | 2.0 | 0.991 | 223 | 0.4% |
| 40% | 209 | 300.0 | 0.983 | 2.0 | 0.989 | 203 | 0.5% |
| 30% | 209 | 300.0 | 0.880 | 1.0 | 0.987 | 181 | 0.3% |
| 20% | 209 | 300.0 | 0.770 | 1.0 | 0.982 | 158 | 0.4% |
| 10% | 209 | 300.0 | 0.659 | 1.0 | 0.975 | 134 | 0.4% |
| Active Idle | 209 | 300.0 | 0.383 | 0.5 | 0.923 | 74.0 | 0.4% |
