Lenovo Global Technology Think System SR645 V3 ssj_ops@100% = 184,501
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 23, 2023
Hardware Availability: Aug-2023 Software Availability: Jun-2022 Publication: Jul 7, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     187,376
Calibration 2     185,571
Calibration 3     185,658
ssj_ops@calibrated=185,615
100% 99.4% 185,615 184,501
90% 89.6% 167,053 166,310
80% 79.7% 148,492 147,907
70% 69.7% 129,930 129,354
60% 60.4% 111,369 112,084
50% 49.3% 92,807 91,475
40% 40.2% 74,246 74,596
30% 30.2% 55,684 56,019
20% 20.1% 37,123 37,337
10% 10.0% 18,561 18,558
Active Idle   0 0

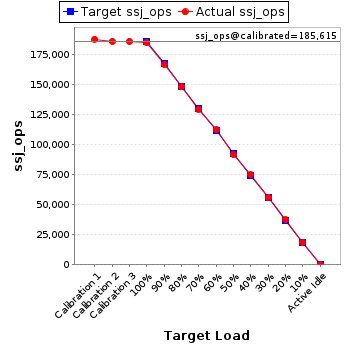

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR645 V3
Form Factor: 1U
CPU Name: AMD EPYC 9754 2.25GHz
CPU Characteristics: 128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 256 cores, 2 chips, 128 cores/chip
Hardware Threads: 512 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A72666
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08295
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 256, physicalCoreId + 257 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: KAE111F
Management Firmware Version: KAX317D
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 13,629,270 2,038
Payment 13,629,265
Order Status 1,362,928
Delivery 1,362,928
Stock Level 1,362,924
Customer Report 13,629,267
Calibration 2 New Order 13,496,091 2,038
Payment 13,496,087
Order Status 1,349,609
Delivery 1,349,607
Stock Level 1,349,610
Customer Report 13,496,082
Calibration 3 New Order 13,502,452 2,038
Payment 13,502,452
Order Status 1,350,245
Delivery 1,350,243
Stock Level 1,350,245
Customer Report 13,502,447
100% 99.4% New Order 13,418,247 2,038
Payment 13,418,246
Order Status 1,341,826
Delivery 1,341,823
Stock Level 1,341,825
Customer Report 13,418,246
90% 89.6% New Order 12,095,321 2,038
Payment 12,095,312
Order Status 1,209,534
Delivery 1,209,532
Stock Level 1,209,531
Customer Report 12,095,323
80% 79.7% New Order 10,756,901 2,038
Payment 10,756,895
Order Status 1,075,691
Delivery 1,075,692
Stock Level 1,075,688
Customer Report 10,756,901
70% 69.7% New Order 9,407,575 2,038
Payment 9,407,581
Order Status 940,757
Delivery 940,757
Stock Level 940,758
Customer Report 9,407,580
60% 60.4% New Order 8,151,766 2,038
Payment 8,151,764
Order Status 815,179
Delivery 815,175
Stock Level 815,176
Customer Report 8,151,764
50% 49.3% New Order 6,652,699 2,038
Payment 6,652,699
Order Status 665,270
Delivery 665,269
Stock Level 665,270
Customer Report 6,652,704
40% 40.2% New Order 5,425,253 2,038
Payment 5,425,251
Order Status 542,523
Delivery 542,526
Stock Level 542,524
Customer Report 5,425,247
30% 30.2% New Order 4,074,128 2,038
Payment 4,074,122
Order Status 407,412
Delivery 407,413
Stock Level 407,409
Customer Report 4,074,125
20% 20.1% New Order 2,715,449 2,038
Payment 2,715,461
Order Status 271,542
Delivery 271,547
Stock Level 271,546
Customer Report 2,715,455
10% 10.0% New Order 1,349,697 2,038
Payment 1,349,697
Order Status 134,970
Delivery 134,969
Stock Level 134,970
Customer Report 1,349,697
Active Idle New Order 0 2,038
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
