Lenovo Global Technology Think System SR645 V3 ssj_ops@100% = 173,079
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 23, 2023
Hardware Availability: Aug-2023 Software Availability: Jun-2022 Publication: Jul 7, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     175,707
Calibration 2     173,470
Calibration 3     173,883
ssj_ops@calibrated=173,677
100% 99.7% 173,677 173,079
90% 90.1% 156,309 156,528
80% 80.0% 138,941 139,014
70% 69.7% 121,574 120,968
60% 60.1% 104,206 104,429
50% 49.6% 86,838 86,088
40% 40.4% 69,471 70,086
30% 29.9% 52,103 51,951
20% 20.1% 34,735 34,945
10% 9.8% 17,368 17,080
Active Idle   0 0

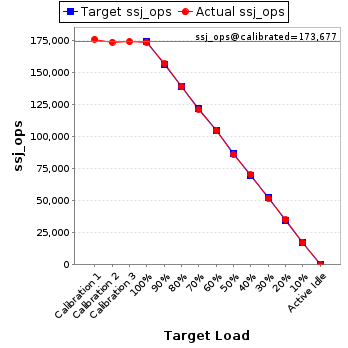

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR645 V3
Form Factor: 1U
CPU Name: AMD EPYC 9754 2.25GHz
CPU Characteristics: 128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 256 cores, 2 chips, 128 cores/chip
Hardware Threads: 512 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A72666
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08295
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 256, physicalCoreId + 257 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: KAE111F
Management Firmware Version: KAX317D
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 12,779,595 2,038
Payment 12,779,596
Order Status 1,277,960
Delivery 1,277,958
Stock Level 1,277,958
Customer Report 12,779,595
Calibration 2 New Order 12,616,499 2,038
Payment 12,616,499
Order Status 1,261,650
Delivery 1,261,650
Stock Level 1,261,650
Customer Report 12,616,498
Calibration 3 New Order 12,646,078 2,038
Payment 12,646,068
Order Status 1,264,609
Delivery 1,264,606
Stock Level 1,264,607
Customer Report 12,646,071
100% 99.7% New Order 12,587,576 2,038
Payment 12,587,578
Order Status 1,258,757
Delivery 1,258,758
Stock Level 1,258,760
Customer Report 12,587,579
90% 90.1% New Order 11,383,896 2,038
Payment 11,383,902
Order Status 1,138,388
Delivery 1,138,391
Stock Level 1,138,390
Customer Report 11,383,894
80% 80.0% New Order 10,110,396 2,038
Payment 10,110,393
Order Status 1,011,041
Delivery 1,011,038
Stock Level 1,011,039
Customer Report 10,110,403
70% 69.7% New Order 8,797,671 2,038
Payment 8,797,660
Order Status 879,767
Delivery 879,766
Stock Level 879,767
Customer Report 8,797,667
60% 60.1% New Order 7,594,844 2,038
Payment 7,594,848
Order Status 759,484
Delivery 759,485
Stock Level 759,487
Customer Report 7,594,838
50% 49.6% New Order 6,260,972 2,038
Payment 6,260,973
Order Status 626,098
Delivery 626,096
Stock Level 626,096
Customer Report 6,260,961
40% 40.4% New Order 5,097,176 2,038
Payment 5,097,168
Order Status 509,719
Delivery 509,715
Stock Level 509,716
Customer Report 5,097,174
30% 29.9% New Order 3,778,286 2,038
Payment 3,778,284
Order Status 377,830
Delivery 377,827
Stock Level 377,827
Customer Report 3,778,284
20% 20.1% New Order 2,541,443 2,038
Payment 2,541,434
Order Status 254,144
Delivery 254,143
Stock Level 254,143
Customer Report 2,541,441
10% 9.8% New Order 1,242,197 2,038
Payment 1,242,202
Order Status 124,221
Delivery 124,220
Stock Level 124,220
Customer Report 1,242,194
Active Idle New Order 0 2,038
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
