Lenovo Global Technology Think System SR645 V3 ssj_ops@100% = 181,734
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 23, 2023
Hardware Availability: Aug-2023 Software Availability: Jun-2022 Publication: Jul 7, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,312
Calibration 2     181,777
Calibration 3     180,216
ssj_ops@calibrated=180,997
100% 100.4% 180,997 181,734
90% 90.9% 162,897 164,562
80% 80.4% 144,797 145,496
70% 70.1% 126,698 126,802
60% 60.3% 108,598 109,193
50% 49.6% 90,498 89,859
40% 40.0% 72,399 72,394
30% 29.8% 54,299 53,964
20% 20.0% 36,199 36,143
10% 9.9% 18,100 17,919
Active Idle   0 0

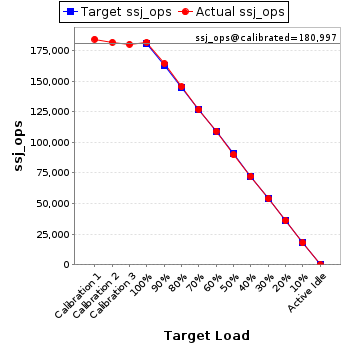

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR645 V3
Form Factor: 1U
CPU Name: AMD EPYC 9754 2.25GHz
CPU Characteristics: 128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 256 cores, 2 chips, 128 cores/chip
Hardware Threads: 512 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A72666
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08295
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 256, physicalCoreId + 257 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: KAE111F
Management Firmware Version: KAX317D
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 13,406,042 2,038
Payment 13,406,048
Order Status 1,340,605
Delivery 1,340,603
Stock Level 1,340,605
Customer Report 13,406,043
Calibration 2 New Order 13,220,197 2,038
Payment 13,220,199
Order Status 1,322,019
Delivery 1,322,018
Stock Level 1,322,020
Customer Report 13,220,202
Calibration 3 New Order 13,107,180 2,038
Payment 13,107,173
Order Status 1,310,718
Delivery 1,310,715
Stock Level 1,310,718
Customer Report 13,107,170
100% 100.4% New Order 13,217,053 2,038
Payment 13,217,056
Order Status 1,321,703
Delivery 1,321,705
Stock Level 1,321,705
Customer Report 13,217,056
90% 90.9% New Order 11,968,181 2,038
Payment 11,968,179
Order Status 1,196,817
Delivery 1,196,818
Stock Level 1,196,819
Customer Report 11,968,186
80% 80.4% New Order 10,582,136 2,038
Payment 10,582,136
Order Status 1,058,214
Delivery 1,058,215
Stock Level 1,058,215
Customer Report 10,582,142
70% 70.1% New Order 9,221,938 2,038
Payment 9,221,952
Order Status 922,192
Delivery 922,194
Stock Level 922,193
Customer Report 9,221,943
60% 60.3% New Order 7,941,519 2,038
Payment 7,941,526
Order Status 794,154
Delivery 794,153
Stock Level 794,154
Customer Report 7,941,526
50% 49.6% New Order 6,535,235 2,038
Payment 6,535,236
Order Status 653,525
Delivery 653,523
Stock Level 653,523
Customer Report 6,535,235
40% 40.0% New Order 5,265,065 2,038
Payment 5,265,060
Order Status 526,505
Delivery 526,503
Stock Level 526,506
Customer Report 5,265,063
30% 29.8% New Order 3,924,624 2,038
Payment 3,924,630
Order Status 392,463
Delivery 392,463
Stock Level 392,463
Customer Report 3,924,625
20% 20.0% New Order 2,628,616 2,038
Payment 2,628,615
Order Status 262,861
Delivery 262,864
Stock Level 262,861
Customer Report 2,628,612
10% 9.9% New Order 1,303,168 2,038
Payment 1,303,161
Order Status 130,318
Delivery 130,317
Stock Level 130,315
Customer Report 1,303,170
Active Idle New Order 0 2,038
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
