Lenovo Global Technology Think System SR645 V3 ssj_ops@100% = 183,515
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 23, 2023
Hardware Availability: Aug-2023 Software Availability: Jun-2022 Publication: Jul 7, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,444
Calibration 2     184,210
Calibration 3     184,318
ssj_ops@calibrated=184,264
100% 99.6% 184,264 183,515
90% 89.9% 165,838 165,711
80% 80.4% 147,411 148,142
70% 70.9% 128,985 130,651
60% 60.6% 110,559 111,714
50% 49.4% 92,132 91,061
40% 39.8% 73,706 73,371
30% 30.1% 55,279 55,528
20% 20.0% 36,853 36,875
10% 10.0% 18,426 18,392
Active Idle   0 0

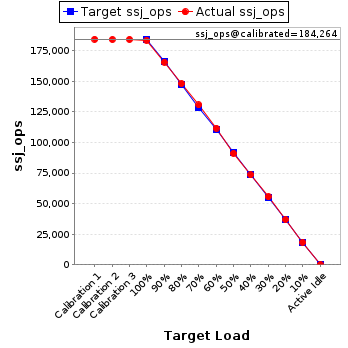

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR645 V3
Form Factor: 1U
CPU Name: AMD EPYC 9754 2.25GHz
CPU Characteristics: 128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 256 cores, 2 chips, 128 cores/chip
Hardware Threads: 512 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A72666
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08295
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 256, physicalCoreId + 257 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: KAE111F
Management Firmware Version: KAX317D
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 13,414,266 2,038
Payment 13,414,266
Order Status 1,341,427
Delivery 1,341,427
Stock Level 1,341,425
Customer Report 13,414,260
Calibration 2 New Order 13,397,126 2,038
Payment 13,397,134
Order Status 1,339,712
Delivery 1,339,712
Stock Level 1,339,715
Customer Report 13,397,120
Calibration 3 New Order 13,404,983 2,038
Payment 13,404,989
Order Status 1,340,498
Delivery 1,340,502
Stock Level 1,340,498
Customer Report 13,404,986
100% 99.6% New Order 13,346,558 2,038
Payment 13,346,564
Order Status 1,334,655
Delivery 1,334,654
Stock Level 1,334,657
Customer Report 13,346,560
90% 89.9% New Order 12,053,669 2,038
Payment 12,053,672
Order Status 1,205,366
Delivery 1,205,366
Stock Level 1,205,368
Customer Report 12,053,663
80% 80.4% New Order 10,774,343 2,038
Payment 10,774,346
Order Status 1,077,436
Delivery 1,077,434
Stock Level 1,077,435
Customer Report 10,774,341
70% 70.9% New Order 9,501,869 2,038
Payment 9,501,869
Order Status 950,188
Delivery 950,187
Stock Level 950,188
Customer Report 9,501,869
60% 60.6% New Order 8,125,040 2,038
Payment 8,125,046
Order Status 812,506
Delivery 812,505
Stock Level 812,506
Customer Report 8,125,054
50% 49.4% New Order 6,622,635 2,038
Payment 6,622,643
Order Status 662,262
Delivery 662,263
Stock Level 662,266
Customer Report 6,622,637
40% 39.8% New Order 5,336,103 2,038
Payment 5,336,102
Order Status 533,609
Delivery 533,611
Stock Level 533,611
Customer Report 5,336,092
30% 30.1% New Order 4,038,410 2,038
Payment 4,038,414
Order Status 403,839
Delivery 403,839
Stock Level 403,840
Customer Report 4,038,414
20% 20.0% New Order 2,681,820 2,038
Payment 2,681,818
Order Status 268,181
Delivery 268,182
Stock Level 268,181
Customer Report 2,681,818
10% 10.0% New Order 1,337,588 2,038
Payment 1,337,594
Order Status 133,760
Delivery 133,761
Stock Level 133,760
Customer Report 1,337,595
Active Idle New Order 0 2,038
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
