Lenovo Global Technology Think System SR645 V3 ssj_ops@100% = 184,126
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 23, 2023
Hardware Availability: Aug-2023 Software Availability: Jun-2022 Publication: Jul 7, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     185,709
Calibration 2     184,015
Calibration 3     183,575
ssj_ops@calibrated=183,795
100% 100.2% 183,795 184,126
90% 89.7% 165,415 164,780
80% 79.8% 147,036 146,659
70% 69.3% 128,656 127,458
60% 60.3% 110,277 110,737
50% 50.1% 91,897 92,057
40% 39.8% 73,518 73,211
30% 29.6% 55,138 54,346
20% 20.1% 36,759 36,864
10% 10.1% 18,379 18,625
Active Idle   0 0

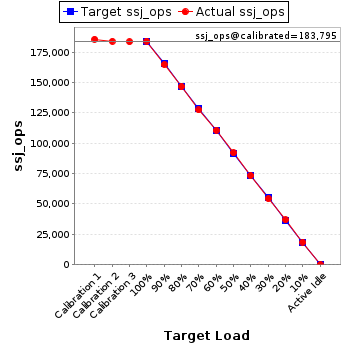

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR645 V3
Form Factor: 1U
CPU Name: AMD EPYC 9754 2.25GHz
CPU Characteristics: 128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 256 cores, 2 chips, 128 cores/chip
Hardware Threads: 512 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A72666
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08295
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 256, physicalCoreId + 257 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: KAE111F
Management Firmware Version: KAX317D
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 13,506,313 2,038
Payment 13,506,307
Order Status 1,350,633
Delivery 1,350,632
Stock Level 1,350,630
Customer Report 13,506,309
Calibration 2 New Order 13,383,403 2,038
Payment 13,383,405
Order Status 1,338,340
Delivery 1,338,340
Stock Level 1,338,341
Customer Report 13,383,412
Calibration 3 New Order 13,350,934 2,038
Payment 13,350,930
Order Status 1,335,093
Delivery 1,335,093
Stock Level 1,335,093
Customer Report 13,350,935
100% 100.2% New Order 13,390,994 2,038
Payment 13,390,998
Order Status 1,339,099
Delivery 1,339,100
Stock Level 1,339,100
Customer Report 13,390,995
90% 89.7% New Order 11,984,003 2,038
Payment 11,984,002
Order Status 1,198,401
Delivery 1,198,400
Stock Level 1,198,399
Customer Report 11,983,998
80% 79.8% New Order 10,666,099 2,038
Payment 10,666,104
Order Status 1,066,611
Delivery 1,066,609
Stock Level 1,066,609
Customer Report 10,666,104
70% 69.3% New Order 9,269,667 2,038
Payment 9,269,672
Order Status 926,967
Delivery 926,969
Stock Level 926,967
Customer Report 9,269,668
60% 60.3% New Order 8,053,856 2,038
Payment 8,053,856
Order Status 805,385
Delivery 805,387
Stock Level 805,386
Customer Report 8,053,850
50% 50.1% New Order 6,695,057 2,038
Payment 6,695,058
Order Status 669,507
Delivery 669,506
Stock Level 669,507
Customer Report 6,695,059
40% 39.8% New Order 5,324,442 2,038
Payment 5,324,437
Order Status 532,444
Delivery 532,444
Stock Level 532,446
Customer Report 5,324,434
30% 29.6% New Order 3,952,404 2,038
Payment 3,952,406
Order Status 395,241
Delivery 395,240
Stock Level 395,242
Customer Report 3,952,409
20% 20.1% New Order 2,681,017 2,038
Payment 2,681,009
Order Status 268,100
Delivery 268,100
Stock Level 268,101
Customer Report 2,681,010
10% 10.1% New Order 1,354,572 2,038
Payment 1,354,570
Order Status 135,457
Delivery 135,458
Stock Level 135,457
Customer Report 1,354,571
Active Idle New Order 0 2,038
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
