Lenovo Global Technology Think System SR645 V3 ssj_ops@100% = 187,108
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 23, 2023
Hardware Availability: Aug-2023 Software Availability: Jun-2022 Publication: Jul 7, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,812
Calibration 2     187,172
Calibration 3     188,251
ssj_ops@calibrated=187,712
100% 99.7% 187,712 187,108
90% 88.9% 168,940 166,823
80% 80.3% 150,169 150,705
70% 70.3% 131,398 131,945
60% 59.4% 112,627 111,558
50% 49.9% 93,856 93,754
40% 40.3% 75,085 75,732
30% 29.8% 56,313 55,877
20% 20.1% 37,542 37,685
10% 9.9% 18,771 18,592
Active Idle   0 0

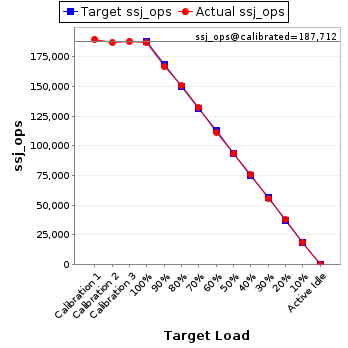

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR645 V3
Form Factor: 1U
CPU Name: AMD EPYC 9754 2.25GHz
CPU Characteristics: 128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 256 cores, 2 chips, 128 cores/chip
Hardware Threads: 512 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A72666
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08295
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 256, physicalCoreId + 257 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: KAE111F
Management Firmware Version: KAX317D
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 13,804,704 2,038
Payment 13,804,703
Order Status 1,380,470
Delivery 1,380,471
Stock Level 1,380,470
Customer Report 13,804,703
Calibration 2 New Order 13,612,547 2,038
Payment 13,612,549
Order Status 1,361,255
Delivery 1,361,254
Stock Level 1,361,255
Customer Report 13,612,545
Calibration 3 New Order 13,691,068 2,038
Payment 13,691,061
Order Status 1,369,107
Delivery 1,369,107
Stock Level 1,369,107
Customer Report 13,691,062
100% 99.7% New Order 13,607,881 2,038
Payment 13,607,877
Order Status 1,360,787
Delivery 1,360,788
Stock Level 1,360,786
Customer Report 13,607,879
90% 88.9% New Order 12,134,544 2,038
Payment 12,134,548
Order Status 1,213,455
Delivery 1,213,455
Stock Level 1,213,454
Customer Report 12,134,546
80% 80.3% New Order 10,960,367 2,038
Payment 10,960,368
Order Status 1,096,036
Delivery 1,096,036
Stock Level 1,096,036
Customer Report 10,960,362
70% 70.3% New Order 9,596,003 2,038
Payment 9,596,009
Order Status 959,603
Delivery 959,601
Stock Level 959,602
Customer Report 9,596,005
60% 59.4% New Order 8,113,330 2,038
Payment 8,113,329
Order Status 811,332
Delivery 811,332
Stock Level 811,333
Customer Report 8,113,334
50% 49.9% New Order 6,818,475 2,038
Payment 6,818,470
Order Status 681,847
Delivery 681,846
Stock Level 681,846
Customer Report 6,818,477
40% 40.3% New Order 5,507,817 2,038
Payment 5,507,814
Order Status 550,783
Delivery 550,781
Stock Level 550,780
Customer Report 5,507,816
30% 29.8% New Order 4,063,785 2,038
Payment 4,063,787
Order Status 406,378
Delivery 406,381
Stock Level 406,378
Customer Report 4,063,785
20% 20.1% New Order 2,740,731 2,038
Payment 2,740,728
Order Status 274,073
Delivery 274,073
Stock Level 274,073
Customer Report 2,740,729
10% 9.9% New Order 1,352,116 2,038
Payment 1,352,121
Order Status 135,214
Delivery 135,212
Stock Level 135,212
Customer Report 1,352,125
Active Idle New Order 0 2,038
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
