Lenovo Global Technology Think System SR645 V3 ssj_ops@100% = 186,264
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 23, 2023
Hardware Availability: Aug-2023 Software Availability: Jun-2022 Publication: Jul 7, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     186,338
Calibration 2     186,423
Calibration 3     186,955
ssj_ops@calibrated=186,689
100% 99.8% 186,689 186,264
90% 90.2% 168,020 168,362
80% 79.5% 149,351 148,478
70% 69.6% 130,682 129,945
60% 59.6% 112,013 111,211
50% 49.9% 93,344 93,141
40% 39.3% 74,676 73,430
30% 30.3% 56,007 56,476
20% 19.9% 37,338 37,170
10% 9.9% 18,669 18,546
Active Idle   0 0

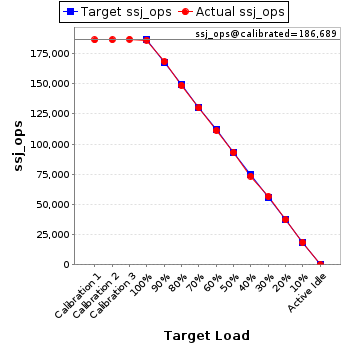

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR645 V3
Form Factor: 1U
CPU Name: AMD EPYC 9754 2.25GHz
CPU Characteristics: 128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 256 cores, 2 chips, 128 cores/chip
Hardware Threads: 512 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A72666
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08295
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 256, physicalCoreId + 257 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: KAE111F
Management Firmware Version: KAX317D
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 13,554,956 2,038
Payment 13,554,958
Order Status 1,355,497
Delivery 1,355,495
Stock Level 1,355,495
Customer Report 13,554,953
Calibration 2 New Order 13,558,037 2,038
Payment 13,558,038
Order Status 1,355,804
Delivery 1,355,804
Stock Level 1,355,803
Customer Report 13,558,036
Calibration 3 New Order 13,596,759 2,038
Payment 13,596,750
Order Status 1,359,676
Delivery 1,359,675
Stock Level 1,359,676
Customer Report 13,596,753
100% 99.8% New Order 13,546,546 2,038
Payment 13,546,545
Order Status 1,354,656
Delivery 1,354,653
Stock Level 1,354,654
Customer Report 13,546,545
90% 90.2% New Order 12,244,548 2,038
Payment 12,244,550
Order Status 1,224,454
Delivery 1,224,455
Stock Level 1,224,454
Customer Report 12,244,548
80% 79.5% New Order 10,798,392 2,038
Payment 10,798,383
Order Status 1,079,840
Delivery 1,079,840
Stock Level 1,079,837
Customer Report 10,798,388
70% 69.6% New Order 9,450,560 2,038
Payment 9,450,560
Order Status 945,055
Delivery 945,058
Stock Level 945,056
Customer Report 9,450,565
60% 59.6% New Order 8,088,080 2,038
Payment 8,088,078
Order Status 808,806
Delivery 808,806
Stock Level 808,808
Customer Report 8,088,075
50% 49.9% New Order 6,773,934 2,038
Payment 6,773,936
Order Status 677,392
Delivery 677,395
Stock Level 677,394
Customer Report 6,773,931
40% 39.3% New Order 5,340,411 2,038
Payment 5,340,411
Order Status 534,039
Delivery 534,041
Stock Level 534,041
Customer Report 5,340,412
30% 30.3% New Order 4,107,320 2,038
Payment 4,107,320
Order Status 410,730
Delivery 410,732
Stock Level 410,731
Customer Report 4,107,316
20% 19.9% New Order 2,703,269 2,038
Payment 2,703,273
Order Status 270,326
Delivery 270,326
Stock Level 270,328
Customer Report 2,703,272
10% 9.9% New Order 1,348,789 2,038
Payment 1,348,790
Order Status 134,880
Delivery 134,878
Stock Level 134,878
Customer Report 1,348,785
Active Idle New Order 0 2,038
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
