Supermicro Server AS-1015CS-TNR SPECpower_ssj2008 = 29,021 overall ssj_ops/watt
Test Sponsor: Supermicro SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Test Location: Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) Test Date: May 27, 2023
Hardware Availability: Nov-2022 Software Availability: May-2023 Publication: Jun 21, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 378 29.9
Calibration 2 392 30.0
Calibration 3 394 30.5
100% 394 30.6
90% 341 30.2
80% 299 30.3
70% 278 30.8
60% 258 30.8
50% 237 30.2
40% 217 30.2
30% 191 30.6
20% 168 30.8
10% 147 30.4
Active Idle 79.6 30.3
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation.
Model: WT310
Serial Number: C3RF27027E
Connectivity: GPIB
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory)
Accredited by: Omnio Calibration Lab. Co., Ltd.
Calibration Label: OCL-230203F01008
Date of Calibration: 03-Feb-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10 mm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 216 300.0 1.77 2.0 0.985 378 0.3%
Calibration 2 216 300.0 1.84 2.0 0.985 392 0.3%
Calibration 3 216 300.0 1.85 2.0 0.986 394 0.3%
100% 216 300.0 1.86 2.0 0.986 394 0.3%
90% 216 300.0 1.60 2.0 0.983 341 0.3%
80% 217 300.0 1.41 2.0 0.980 299 0.3%
70% 217 300.0 1.31 2.0 0.978 278 0.4%
60% 217 300.0 1.22 2.0 0.976 258 0.4%
50% 217 300.0 1.12 2.0 0.973 237 0.4%
40% 217 300.0 1.03 1.0 0.970 217 0.3%
30% 217 300.0 0.914 1.0 0.965 191 0.3%
20% 217 300.0 0.809 1.0 0.958 168 0.3%
10% 217 300.0 0.713 1.0 0.951 147 0.4%
Active Idle 217 300.0 0.409 1.0 0.899 79.6 0.5%

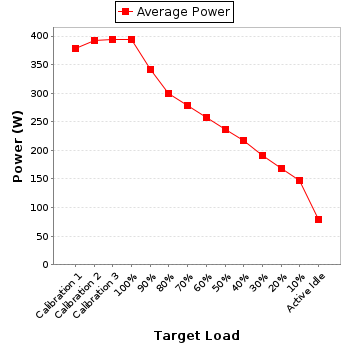

Power details for pwr1
