SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Fujitsu FUJITSU Server PRIMERGY RX4770 M7 | SPECpower_ssj2008 = 13,261 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | May 24, 2023 |
| Hardware Availability: | May-2023 | Software Availability: | Aug-2022 | Publication: | Jun 7, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

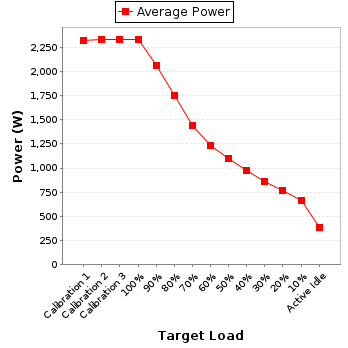

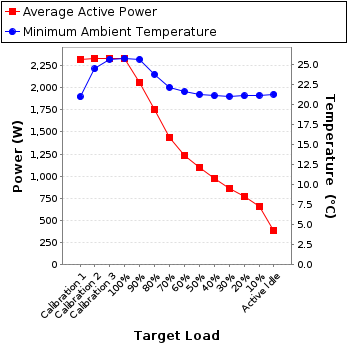

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 2,322 | 20.9 |
| Calibration 2 | 2,329 | 24.4 |
| Calibration 3 | 2,333 | 25.6 |
| 100% | 2,328 | 25.8 |
| 90% | 2,061 | 25.6 |
| 80% | 1,755 | 23.8 |
| 70% | 1,437 | 22.1 |
| 60% | 1,228 | 21.6 |
| 50% | 1,097 | 21.2 |
| 40% | 973 | 21.1 |
| 30% | 865 | 21.0 |
| 20% | 767 | 21.1 |
| 10% | 662 | 21.1 |
| Active Idle | 386 | 21.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | PW3336 |
| Serial Number: | 170134584 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | AIST (National Institute of Advanced Science and Technology) |
| Accredited by: | Kyosai Technos Co.,Ltd. |
| Calibration Label: | RY233002865 |
| Date of Calibration: | 15-Mar-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 202 | 300.0 | 11.5 | 10.0 | 0.998 | 2,322 | 0.2% |
| Calibration 2 | 202 | 300.0 | 11.5 | 10.0 | 0.998 | 2,329 | 0.2% |
| Calibration 3 | 202 | 300.0 | 11.6 | 10.0 | 0.998 | 2,333 | 0.2% |
| 100% | 202 | 300.0 | 11.6 | 10.0 | 0.998 | 2,328 | 0.2% |
| 90% | 202 | 300.0 | 10.2 | 10.0 | 0.998 | 2,061 | 0.2% |
| 80% | 202 | 300.0 | 8.71 | 10.0 | 0.997 | 1,755 | 0.2% |
| 70% | 202 | 300.0 | 7.13 | 10.0 | 0.997 | 1,437 | 0.2% |
| 60% | 203 | 300.0 | 6.08 | 10.0 | 0.996 | 1,228 | 0.2% |
| 50% | 203 | 300.0 | 5.43 | 10.0 | 0.996 | 1,097 | 0.2% |
| 40% | 203 | 300.0 | 4.82 | 10.0 | 0.996 | 973 | 0.3% |
| 30% | 203 | 300.0 | 4.27 | 5.0 | 0.997 | 865 | 0.2% |
| 20% | 203 | 300.0 | 3.79 | 5.0 | 0.994 | 767 | 0.2% |
| 10% | 203 | 300.0 | 3.28 | 5.0 | 0.993 | 662 | 0.2% |
| Active Idle | 203 | 300.0 | 1.93 | 5.0 | 0.982 | 386 | 0.3% |
