Lenovo Global Technology Think System SR665 V3 ssj_ops@100% = 172,104
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 23, 2023
Hardware Availability: Aug-2023 Software Availability: Jun-2022 Publication: Jun 13, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,694
Calibration 2     171,817
Calibration 3     171,885
ssj_ops@calibrated=171,851
100% 100.1% 171,851 172,104
90% 89.7% 154,666 154,212
80% 80.4% 137,481 138,151
70% 70.2% 120,296 120,594
60% 59.9% 103,111 102,908
50% 49.7% 85,926 85,376
40% 39.9% 68,740 68,507
30% 30.0% 51,555 51,635
20% 20.1% 34,370 34,484
10% 10.1% 17,185 17,387
Active Idle   0 0

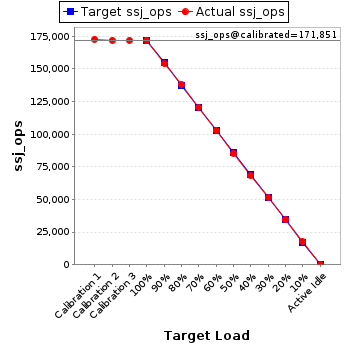

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR665 V3
Form Factor: 2U
CPU Name: AMD EPYC 9754 2.25GHz
CPU Characteristics: 128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 256 cores, 2 chips, 128 cores/chip
Hardware Threads: 512 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A72666
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 256, physicalCoreId + 257 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: KAE111F
Management Firmware Version: KAX317D
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 12,559,764 2,038
Payment 12,559,754
Order Status 1,255,976
Delivery 1,255,976
Stock Level 1,255,976
Customer Report 12,559,755
Calibration 2 New Order 12,495,774 2,038
Payment 12,495,771
Order Status 1,249,576
Delivery 1,249,576
Stock Level 1,249,577
Customer Report 12,495,768
Calibration 3 New Order 12,500,776 2,038
Payment 12,500,785
Order Status 1,250,078
Delivery 1,250,077
Stock Level 1,250,079
Customer Report 12,500,785
100% 100.1% New Order 12,516,652 2,038
Payment 12,516,650
Order Status 1,251,666
Delivery 1,251,666
Stock Level 1,251,665
Customer Report 12,516,653
90% 89.7% New Order 11,215,427 2,038
Payment 11,215,430
Order Status 1,121,542
Delivery 1,121,543
Stock Level 1,121,542
Customer Report 11,215,434
80% 80.4% New Order 10,047,704 2,038
Payment 10,047,708
Order Status 1,004,769
Delivery 1,004,771
Stock Level 1,004,773
Customer Report 10,047,706
70% 70.2% New Order 8,770,474 2,038
Payment 8,770,477
Order Status 877,048
Delivery 877,048
Stock Level 877,047
Customer Report 8,770,481
60% 59.9% New Order 7,484,256 2,038
Payment 7,484,263
Order Status 748,426
Delivery 748,426
Stock Level 748,426
Customer Report 7,484,258
50% 49.7% New Order 6,209,204 2,038
Payment 6,209,201
Order Status 620,921
Delivery 620,920
Stock Level 620,920
Customer Report 6,209,208
40% 39.9% New Order 4,982,327 2,038
Payment 4,982,333
Order Status 498,234
Delivery 498,231
Stock Level 498,232
Customer Report 4,982,326
30% 30.0% New Order 3,755,263 2,038
Payment 3,755,271
Order Status 375,528
Delivery 375,526
Stock Level 375,528
Customer Report 3,755,271
20% 20.1% New Order 2,507,938 2,038
Payment 2,507,939
Order Status 250,794
Delivery 250,794
Stock Level 250,793
Customer Report 2,507,939
10% 10.1% New Order 1,264,548 2,038
Payment 1,264,546
Order Status 126,455
Delivery 126,455
Stock Level 126,454
Customer Report 1,264,542
Active Idle New Order 0 2,038
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
