Lenovo Global Technology Think System SR665 V3 ssj_ops@100% = 181,449
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 23, 2023
Hardware Availability: Aug-2023 Software Availability: Jun-2022 Publication: Jun 13, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     183,015
Calibration 2     182,595
Calibration 3     183,632
ssj_ops@calibrated=183,114
100% 99.1% 183,114 181,449
90% 89.6% 164,803 164,011
80% 79.8% 146,491 146,095
70% 69.6% 128,180 127,436
60% 60.3% 109,868 110,456
50% 50.2% 91,557 91,926
40% 40.3% 73,246 73,841
30% 30.0% 54,934 54,933
20% 20.3% 36,623 37,146
10% 10.1% 18,311 18,521
Active Idle   0 0

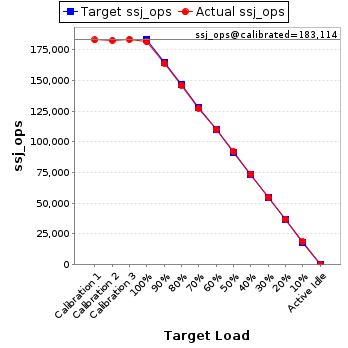

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR665 V3
Form Factor: 2U
CPU Name: AMD EPYC 9754 2.25GHz
CPU Characteristics: 128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 256 cores, 2 chips, 128 cores/chip
Hardware Threads: 512 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A72666
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 256, physicalCoreId + 257 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: KAE111F
Management Firmware Version: KAX317D
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 13,311,820 2,038
Payment 13,311,819
Order Status 1,331,182
Delivery 1,331,183
Stock Level 1,331,183
Customer Report 13,311,817
Calibration 2 New Order 13,279,777 2,038
Payment 13,279,770
Order Status 1,327,978
Delivery 1,327,978
Stock Level 1,327,979
Customer Report 13,279,773
Calibration 3 New Order 13,355,115 2,038
Payment 13,355,116
Order Status 1,335,510
Delivery 1,335,512
Stock Level 1,335,511
Customer Report 13,355,111
100% 99.1% New Order 13,196,284 2,038
Payment 13,196,282
Order Status 1,319,627
Delivery 1,319,627
Stock Level 1,319,628
Customer Report 13,196,284
90% 89.6% New Order 11,928,132 2,038
Payment 11,928,128
Order Status 1,192,814
Delivery 1,192,812
Stock Level 1,192,813
Customer Report 11,928,131
80% 79.8% New Order 10,625,606 2,038
Payment 10,625,604
Order Status 1,062,561
Delivery 1,062,561
Stock Level 1,062,560
Customer Report 10,625,600
70% 69.6% New Order 9,268,119 2,038
Payment 9,268,119
Order Status 926,811
Delivery 926,813
Stock Level 926,812
Customer Report 9,268,116
60% 60.3% New Order 8,033,154 2,038
Payment 8,033,151
Order Status 803,315
Delivery 803,317
Stock Level 803,315
Customer Report 8,033,161
50% 50.2% New Order 6,685,520 2,038
Payment 6,685,513
Order Status 668,552
Delivery 668,553
Stock Level 668,551
Customer Report 6,685,519
40% 40.3% New Order 5,370,235 2,038
Payment 5,370,239
Order Status 537,023
Delivery 537,024
Stock Level 537,025
Customer Report 5,370,236
30% 30.0% New Order 3,995,150 2,038
Payment 3,995,155
Order Status 399,514
Delivery 399,514
Stock Level 399,517
Customer Report 3,995,154
20% 20.3% New Order 2,701,509 2,038
Payment 2,701,518
Order Status 270,151
Delivery 270,153
Stock Level 270,151
Customer Report 2,701,518
10% 10.1% New Order 1,346,974 2,038
Payment 1,346,963
Order Status 134,697
Delivery 134,697
Stock Level 134,697
Customer Report 1,346,972
Active Idle New Order 0 2,038
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
