Lenovo Global Technology Think System SR665 V3 ssj_ops@100% = 190,398
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 23, 2023
Hardware Availability: Aug-2023 Software Availability: Jun-2022 Publication: Jun 13, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,969
Calibration 2     190,278
Calibration 3     191,418
ssj_ops@calibrated=190,848
100% 99.8% 190,848 190,398
90% 89.7% 171,763 171,213
80% 80.4% 152,678 153,446
70% 69.8% 133,593 133,187
60% 59.6% 114,509 113,709
50% 49.9% 95,424 95,236
40% 39.7% 76,339 75,734
30% 30.5% 57,254 58,158
20% 19.8% 38,170 37,804
10% 9.8% 19,085 18,628
Active Idle   0 0

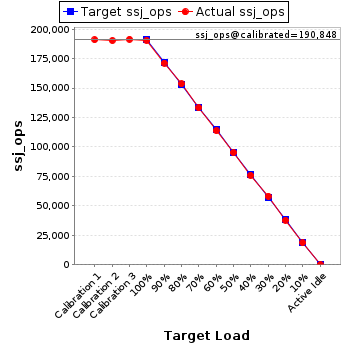

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR665 V3
Form Factor: 2U
CPU Name: AMD EPYC 9754 2.25GHz
CPU Characteristics: 128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 256 cores, 2 chips, 128 cores/chip
Hardware Threads: 512 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A72666
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 256, physicalCoreId + 257 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: KAE111F
Management Firmware Version: KAX317D
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 13,890,815 2,038
Payment 13,890,823
Order Status 1,389,079
Delivery 1,389,082
Stock Level 1,389,085
Customer Report 13,890,815
Calibration 2 New Order 13,838,399 2,038
Payment 13,838,397
Order Status 1,383,839
Delivery 1,383,838
Stock Level 1,383,840
Customer Report 13,838,396
Calibration 3 New Order 13,921,325 2,038
Payment 13,921,322
Order Status 1,392,134
Delivery 1,392,132
Stock Level 1,392,133
Customer Report 13,921,326
100% 99.8% New Order 13,847,140 2,038
Payment 13,847,138
Order Status 1,384,715
Delivery 1,384,714
Stock Level 1,384,716
Customer Report 13,847,133
90% 89.7% New Order 12,451,893 2,038
Payment 12,451,898
Order Status 1,245,189
Delivery 1,245,191
Stock Level 1,245,191
Customer Report 12,451,894
80% 80.4% New Order 11,160,131 2,038
Payment 11,160,133
Order Status 1,116,014
Delivery 1,116,013
Stock Level 1,116,015
Customer Report 11,160,130
70% 69.8% New Order 9,686,311 2,038
Payment 9,686,313
Order Status 968,630
Delivery 968,630
Stock Level 968,630
Customer Report 9,686,313
60% 59.6% New Order 8,269,776 2,038
Payment 8,269,774
Order Status 826,975
Delivery 826,975
Stock Level 826,979
Customer Report 8,269,775
50% 49.9% New Order 6,926,224 2,038
Payment 6,926,226
Order Status 692,622
Delivery 692,623
Stock Level 692,623
Customer Report 6,926,234
40% 39.7% New Order 5,507,977 2,038
Payment 5,507,970
Order Status 550,797
Delivery 550,799
Stock Level 550,797
Customer Report 5,507,973
30% 30.5% New Order 4,229,649 2,038
Payment 4,229,651
Order Status 422,965
Delivery 422,964
Stock Level 422,965
Customer Report 4,229,656
20% 19.8% New Order 2,749,408 2,038
Payment 2,749,416
Order Status 274,943
Delivery 274,942
Stock Level 274,941
Customer Report 2,749,410
10% 9.8% New Order 1,354,742 2,038
Payment 1,354,726
Order Status 135,472
Delivery 135,474
Stock Level 135,473
Customer Report 1,354,735
Active Idle New Order 0 2,038
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
