Lenovo Global Technology Think System SR665 V3 ssj_ops@100% = 186,950
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 23, 2023
Hardware Availability: Aug-2023 Software Availability: Jun-2022 Publication: Jun 13, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,114
Calibration 2     186,968
Calibration 3     187,420
ssj_ops@calibrated=187,194
100% 99.9% 187,194 186,950
90% 89.5% 168,474 167,522
80% 79.4% 149,755 148,661
70% 70.0% 131,035 131,024
60% 59.7% 112,316 111,775
50% 50.0% 93,597 93,653
40% 39.8% 74,877 74,411
30% 29.6% 56,158 55,397
20% 20.2% 37,439 37,736
10% 10.1% 18,719 18,949
Active Idle   0 0

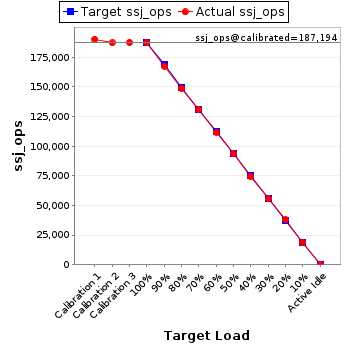

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR665 V3
Form Factor: 2U
CPU Name: AMD EPYC 9754 2.25GHz
CPU Characteristics: 128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 256 cores, 2 chips, 128 cores/chip
Hardware Threads: 512 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A72666
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 256, physicalCoreId + 257 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: KAE111F
Management Firmware Version: KAX317D
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 13,826,679 2,038
Payment 13,826,677
Order Status 1,382,667
Delivery 1,382,668
Stock Level 1,382,666
Customer Report 13,826,669
Calibration 2 New Order 13,598,163 2,038
Payment 13,598,159
Order Status 1,359,816
Delivery 1,359,816
Stock Level 1,359,817
Customer Report 13,598,169
Calibration 3 New Order 13,631,308 2,038
Payment 13,631,311
Order Status 1,363,130
Delivery 1,363,129
Stock Level 1,363,131
Customer Report 13,631,308
100% 99.9% New Order 13,596,391 2,038
Payment 13,596,393
Order Status 1,359,639
Delivery 1,359,640
Stock Level 1,359,638
Customer Report 13,596,385
90% 89.5% New Order 12,183,476 2,038
Payment 12,183,473
Order Status 1,218,348
Delivery 1,218,348
Stock Level 1,218,348
Customer Report 12,183,479
80% 79.4% New Order 10,811,691 2,038
Payment 10,811,706
Order Status 1,081,171
Delivery 1,081,171
Stock Level 1,081,169
Customer Report 10,811,701
70% 70.0% New Order 9,529,488 2,038
Payment 9,529,485
Order Status 952,947
Delivery 952,947
Stock Level 952,949
Customer Report 9,529,490
60% 59.7% New Order 8,129,128 2,038
Payment 8,129,128
Order Status 812,913
Delivery 812,914
Stock Level 812,913
Customer Report 8,129,123
50% 50.0% New Order 6,811,114 2,038
Payment 6,811,111
Order Status 681,111
Delivery 681,110
Stock Level 681,112
Customer Report 6,811,116
40% 39.8% New Order 5,411,720 2,038
Payment 5,411,722
Order Status 541,173
Delivery 541,170
Stock Level 541,173
Customer Report 5,411,721
30% 29.6% New Order 4,028,873 2,038
Payment 4,028,868
Order Status 402,886
Delivery 402,889
Stock Level 402,887
Customer Report 4,028,870
20% 20.2% New Order 2,744,447 2,038
Payment 2,744,447
Order Status 274,445
Delivery 274,443
Stock Level 274,445
Customer Report 2,744,446
10% 10.1% New Order 1,378,148 2,038
Payment 1,378,142
Order Status 137,817
Delivery 137,816
Stock Level 137,814
Customer Report 1,378,147
Active Idle New Order 0 2,038
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
