Lenovo Global Technology Think System SR665 V3 ssj_ops@100% = 191,337
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 23, 2023
Hardware Availability: Aug-2023 Software Availability: Jun-2022 Publication: Jun 13, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,275
Calibration 2     192,281
Calibration 3     190,828
ssj_ops@calibrated=191,555
100% 99.9% 191,555 191,337
90% 90.2% 172,399 172,794
80% 79.5% 153,244 152,202
70% 70.0% 134,088 134,113
60% 59.7% 114,933 114,421
50% 49.7% 95,777 95,227
40% 39.9% 76,622 76,425
30% 29.5% 57,466 56,598
20% 19.9% 38,311 38,208
10% 9.9% 19,155 18,935
Active Idle   0 0

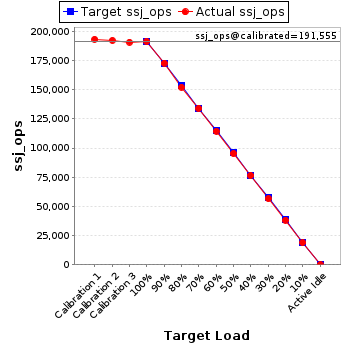

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR665 V3
Form Factor: 2U
CPU Name: AMD EPYC 9754 2.25GHz
CPU Characteristics: 128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 256 cores, 2 chips, 128 cores/chip
Hardware Threads: 512 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A72666
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 256, physicalCoreId + 257 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: KAE111F
Management Firmware Version: KAX317D
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 14,060,096 2,038
Payment 14,060,089
Order Status 1,406,008
Delivery 1,406,008
Stock Level 1,406,011
Customer Report 14,060,091
Calibration 2 New Order 13,984,085 2,038
Payment 13,984,081
Order Status 1,398,410
Delivery 1,398,409
Stock Level 1,398,409
Customer Report 13,984,086
Calibration 3 New Order 13,878,435 2,038
Payment 13,878,445
Order Status 1,387,843
Delivery 1,387,845
Stock Level 1,387,843
Customer Report 13,878,449
100% 99.9% New Order 13,915,443 2,038
Payment 13,915,434
Order Status 1,391,543
Delivery 1,391,545
Stock Level 1,391,542
Customer Report 13,915,432
90% 90.2% New Order 12,566,886 2,038
Payment 12,566,885
Order Status 1,256,689
Delivery 1,256,687
Stock Level 1,256,689
Customer Report 12,566,884
80% 79.5% New Order 11,069,271 2,038
Payment 11,069,277
Order Status 1,106,928
Delivery 1,106,924
Stock Level 1,106,926
Customer Report 11,069,277
70% 70.0% New Order 9,753,695 2,038
Payment 9,753,693
Order Status 975,370
Delivery 975,370
Stock Level 975,370
Customer Report 9,753,695
60% 59.7% New Order 8,321,555 2,038
Payment 8,321,547
Order Status 832,158
Delivery 832,153
Stock Level 832,155
Customer Report 8,321,552
50% 49.7% New Order 6,925,595 2,038
Payment 6,925,589
Order Status 692,561
Delivery 692,560
Stock Level 692,560
Customer Report 6,925,593
40% 39.9% New Order 5,558,248 2,038
Payment 5,558,252
Order Status 555,825
Delivery 555,823
Stock Level 555,824
Customer Report 5,558,252
30% 29.5% New Order 4,116,244 2,038
Payment 4,116,240
Order Status 411,623
Delivery 411,624
Stock Level 411,623
Customer Report 4,116,251
20% 19.9% New Order 2,778,789 2,038
Payment 2,778,782
Order Status 277,880
Delivery 277,878
Stock Level 277,879
Customer Report 2,778,792
10% 9.9% New Order 1,377,081 2,038
Payment 1,377,084
Order Status 137,706
Delivery 137,708
Stock Level 137,707
Customer Report 1,377,077
Active Idle New Order 0 2,038
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
