Lenovo Global Technology Think System SR665 V3 ssj_ops@100% = 175,878
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 23, 2023
Hardware Availability: Aug-2023 Software Availability: Jun-2022 Publication: Jun 13, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     175,768
Calibration 2     175,718
Calibration 3     175,565
ssj_ops@calibrated=175,642
100% 100.1% 175,642 175,878
90% 89.5% 158,078 157,286
80% 80.1% 140,513 140,663
70% 69.6% 122,949 122,231
60% 59.7% 105,385 104,853
50% 49.6% 87,821 87,057
40% 39.6% 70,257 69,536
30% 30.3% 52,693 53,256
20% 20.5% 35,128 35,927
10% 10.0% 17,564 17,613
Active Idle   0 0

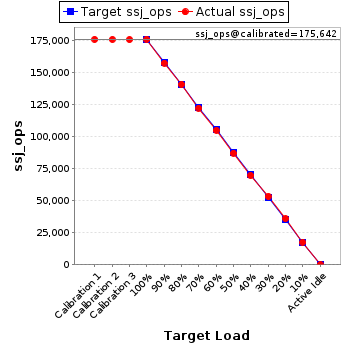

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR665 V3
Form Factor: 2U
CPU Name: AMD EPYC 9754 2.25GHz
CPU Characteristics: 128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 256 cores, 2 chips, 128 cores/chip
Hardware Threads: 512 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A72666
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 256, physicalCoreId + 257 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: KAE111F
Management Firmware Version: KAX317D
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 12,785,621 2,038
Payment 12,785,616
Order Status 1,278,561
Delivery 1,278,561
Stock Level 1,278,560
Customer Report 12,785,630
Calibration 2 New Order 12,779,584 2,038
Payment 12,779,580
Order Status 1,277,957
Delivery 1,277,958
Stock Level 1,277,958
Customer Report 12,779,582
Calibration 3 New Order 12,768,410 2,038
Payment 12,768,410
Order Status 1,276,841
Delivery 1,276,839
Stock Level 1,276,842
Customer Report 12,768,407
100% 100.1% New Order 12,791,153 2,038
Payment 12,791,156
Order Status 1,279,115
Delivery 1,279,114
Stock Level 1,279,117
Customer Report 12,791,157
90% 89.5% New Order 11,440,154 2,038
Payment 11,440,156
Order Status 1,144,015
Delivery 1,144,017
Stock Level 1,144,016
Customer Report 11,440,157
80% 80.1% New Order 10,230,048 2,038
Payment 10,230,047
Order Status 1,023,005
Delivery 1,023,005
Stock Level 1,023,008
Customer Report 10,230,049
70% 69.6% New Order 8,889,521 2,038
Payment 8,889,514
Order Status 888,952
Delivery 888,951
Stock Level 888,951
Customer Report 8,889,513
60% 59.7% New Order 7,625,716 2,038
Payment 7,625,715
Order Status 762,569
Delivery 762,572
Stock Level 762,570
Customer Report 7,625,720
50% 49.6% New Order 6,331,457 2,038
Payment 6,331,456
Order Status 633,145
Delivery 633,144
Stock Level 633,146
Customer Report 6,331,461
40% 39.6% New Order 5,057,161 2,038
Payment 5,057,163
Order Status 505,717
Delivery 505,716
Stock Level 505,715
Customer Report 5,057,157
30% 30.3% New Order 3,873,182 2,038
Payment 3,873,183
Order Status 387,319
Delivery 387,318
Stock Level 387,318
Customer Report 3,873,175
20% 20.5% New Order 2,612,859 2,038
Payment 2,612,862
Order Status 261,286
Delivery 261,286
Stock Level 261,285
Customer Report 2,612,853
10% 10.0% New Order 1,280,915 2,038
Payment 1,280,912
Order Status 128,092
Delivery 128,092
Stock Level 128,091
Customer Report 1,280,909
Active Idle New Order 0 2,038
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
