Lenovo Global Technology Think System SR665 V3 ssj_ops@100% = 186,117
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 23, 2023
Hardware Availability: Aug-2023 Software Availability: Jun-2022 Publication: Jun 13, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     186,902
Calibration 2     185,610
Calibration 3     186,858
ssj_ops@calibrated=186,234
100% 99.9% 186,234 186,117
90% 90.3% 167,611 168,234
80% 79.8% 148,987 148,667
70% 69.8% 130,364 129,976
60% 60.6% 111,740 112,828
50% 49.8% 93,117 92,715
40% 40.2% 74,494 74,899
30% 29.9% 55,870 55,701
20% 20.3% 37,247 37,797
10% 10.0% 18,623 18,709
Active Idle   0 0

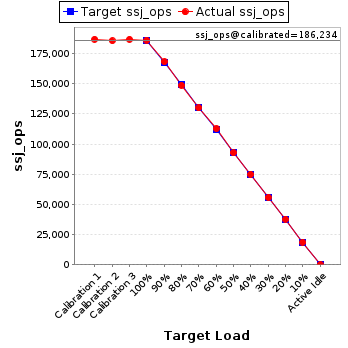

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR665 V3
Form Factor: 2U
CPU Name: AMD EPYC 9754 2.25GHz
CPU Characteristics: 128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 256 cores, 2 chips, 128 cores/chip
Hardware Threads: 512 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A72666
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 256, physicalCoreId + 257 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: KAE111F
Management Firmware Version: KAX317D
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 13,596,268 2,038
Payment 13,596,270
Order Status 1,359,628
Delivery 1,359,627
Stock Level 1,359,626
Customer Report 13,596,264
Calibration 2 New Order 13,498,935 2,038
Payment 13,498,927
Order Status 1,349,891
Delivery 1,349,893
Stock Level 1,349,892
Customer Report 13,498,935
Calibration 3 New Order 13,590,278 2,038
Payment 13,590,288
Order Status 1,359,030
Delivery 1,359,029
Stock Level 1,359,027
Customer Report 13,590,281
100% 99.9% New Order 13,535,798 2,038
Payment 13,535,803
Order Status 1,353,578
Delivery 1,353,579
Stock Level 1,353,580
Customer Report 13,535,797
90% 90.3% New Order 12,236,124 2,038
Payment 12,236,123
Order Status 1,223,612
Delivery 1,223,612
Stock Level 1,223,610
Customer Report 12,236,121
80% 79.8% New Order 10,812,172 2,038
Payment 10,812,171
Order Status 1,081,217
Delivery 1,081,216
Stock Level 1,081,216
Customer Report 10,812,170
70% 69.8% New Order 9,452,793 2,038
Payment 9,452,804
Order Status 945,282
Delivery 945,279
Stock Level 945,280
Customer Report 9,452,803
60% 60.6% New Order 8,205,698 2,038
Payment 8,205,696
Order Status 820,569
Delivery 820,572
Stock Level 820,570
Customer Report 8,205,703
50% 49.8% New Order 6,742,948 2,038
Payment 6,742,946
Order Status 674,293
Delivery 674,294
Stock Level 674,294
Customer Report 6,742,940
40% 40.2% New Order 5,447,212 2,038
Payment 5,447,215
Order Status 544,723
Delivery 544,721
Stock Level 544,720
Customer Report 5,447,214
30% 29.9% New Order 4,051,011 2,038
Payment 4,051,013
Order Status 405,101
Delivery 405,103
Stock Level 405,101
Customer Report 4,051,017
20% 20.3% New Order 2,748,897 2,038
Payment 2,748,908
Order Status 274,891
Delivery 274,889
Stock Level 274,888
Customer Report 2,748,902
10% 10.0% New Order 1,360,659 2,038
Payment 1,360,662
Order Status 136,064
Delivery 136,066
Stock Level 136,066
Customer Report 1,360,665
Active Idle New Order 0 2,038
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
