Lenovo Global Technology Think System SR665 V3 ssj_ops@100% = 184,382
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 23, 2023
Hardware Availability: Aug-2023 Software Availability: Jun-2022 Publication: Jun 13, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     186,753
Calibration 2     186,279
Calibration 3     185,387
ssj_ops@calibrated=185,833
100% 99.2% 185,833 184,382
90% 90.2% 167,250 167,568
80% 80.1% 148,666 148,825
70% 69.1% 130,083 128,348
60% 59.8% 111,500 111,169
50% 50.2% 92,917 93,353
40% 40.5% 74,333 75,174
30% 30.1% 55,750 55,856
20% 19.8% 37,167 36,758
10% 10.1% 18,583 18,836
Active Idle   0 0

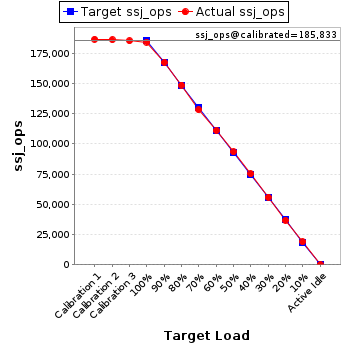

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR665 V3
Form Factor: 2U
CPU Name: AMD EPYC 9754 2.25GHz
CPU Characteristics: 128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 256 cores, 2 chips, 128 cores/chip
Hardware Threads: 512 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A72666
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 256, physicalCoreId + 257 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: KAE111F
Management Firmware Version: KAX317D
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 13,584,232 2,038
Payment 13,584,230
Order Status 1,358,424
Delivery 1,358,425
Stock Level 1,358,424
Customer Report 13,584,229
Calibration 2 New Order 13,547,559 2,038
Payment 13,547,568
Order Status 1,354,756
Delivery 1,354,758
Stock Level 1,354,756
Customer Report 13,547,575
Calibration 3 New Order 13,482,739 2,038
Payment 13,482,734
Order Status 1,348,271
Delivery 1,348,274
Stock Level 1,348,273
Customer Report 13,482,742
100% 99.2% New Order 13,409,650 2,038
Payment 13,409,656
Order Status 1,340,965
Delivery 1,340,963
Stock Level 1,340,966
Customer Report 13,409,654
90% 90.2% New Order 12,186,818 2,038
Payment 12,186,822
Order Status 1,218,681
Delivery 1,218,684
Stock Level 1,218,680
Customer Report 12,186,825
80% 80.1% New Order 10,823,661 2,038
Payment 10,823,651
Order Status 1,082,364
Delivery 1,082,365
Stock Level 1,082,365
Customer Report 10,823,653
70% 69.1% New Order 9,334,407 2,038
Payment 9,334,416
Order Status 933,441
Delivery 933,442
Stock Level 933,442
Customer Report 9,334,414
60% 59.8% New Order 8,085,020 2,038
Payment 8,085,027
Order Status 808,502
Delivery 808,503
Stock Level 808,502
Customer Report 8,085,012
50% 50.2% New Order 6,789,288 2,038
Payment 6,789,282
Order Status 678,927
Delivery 678,928
Stock Level 678,929
Customer Report 6,789,283
40% 40.5% New Order 5,467,215 2,038
Payment 5,467,226
Order Status 546,721
Delivery 546,720
Stock Level 546,723
Customer Report 5,467,222
30% 30.1% New Order 4,062,236 2,038
Payment 4,062,235
Order Status 406,223
Delivery 406,223
Stock Level 406,223
Customer Report 4,062,241
20% 19.8% New Order 2,673,335 2,038
Payment 2,673,334
Order Status 267,333
Delivery 267,333
Stock Level 267,335
Customer Report 2,673,330
10% 10.1% New Order 1,369,879 2,038
Payment 1,369,879
Order Status 136,986
Delivery 136,987
Stock Level 136,987
Customer Report 1,369,880
Active Idle New Order 0 2,038
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
