Lenovo Global Technology Think System SR665 V3 SPECpower_ssj2008 = 33,012 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 23, 2023
Hardware Availability: Aug-2023 Software Availability: Jun-2022 Publication: Jun 13, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 589 21.9
Calibration 2 592 21.9
Calibration 3 592 22.0
100% 591 21.9
90% 514 21.4
80% 461 21.4
70% 426 21.8
60% 393 22.0
50% 361 21.8
40% 329 21.7
30% 292 21.7
20% 253 21.7
10% 212 21.8
Active Idle 107 21.9
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3UD17023E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: GRG METROLOGY & TEST (BEIJING) CO.,LTD.
Calibration Label: J202210116758A-0002
Date of Calibration: 19-Oct-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 220 300.0 2.70 5.0 0.992 589 0.4%
Calibration 2 220 300.0 2.71 5.0 0.992 592 0.4%
Calibration 3 220 300.0 2.71 5.0 0.992 592 0.4%
100% 220 300.0 2.70 5.0 0.992 591 0.4%
90% 220 300.0 2.36 5.0 0.989 514 0.4%
80% 221 300.0 2.12 5.0 0.987 461 0.5%
70% 221 300.0 1.96 5.0 0.985 426 0.5%
60% 221 300.0 1.81 5.0 0.983 393 0.5%
50% 221 300.0 1.67 5.0 0.980 361 0.6%
40% 221 300.0 1.53 2.5 0.976 329 0.4%
30% 221 300.0 1.36 2.5 0.971 292 0.4%
20% 221 300.0 1.18 2.5 0.968 253 0.4%
10% 221 300.0 1.00 2.5 0.956 212 0.5%
Active Idle 221 300.0 0.572 1.0 0.855 107 0.5%

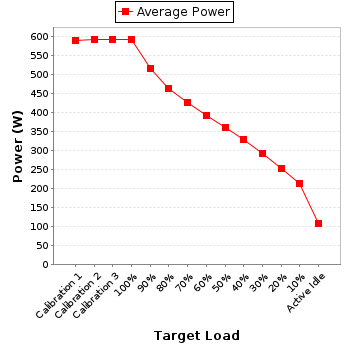

Power details for pwr1
