FOXCONN (FII) Mt. Collins ssj_ops@100% = 6,923,816
ssj_ops@100% per JVM = 108,185
Test Sponsor: Infobell IT Solutions Pvt. Ltd. SPEC License #: 6723 Test Method: Single Node
Tested By: Infobell IT Solutions Pvt. Ltd. Test Location: San Jose, CA, USA Test Date: May 22, 2023
Hardware Availability: Feb-2023 Software Availability: Jan-2022 Publication: Jun 9, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,905,935
Calibration 2     6,952,267
Calibration 3     6,934,549
ssj_ops@calibrated=6,943,408
100% 99.7% 6,943,408 6,923,816
90% 90.0% 6,249,067 6,246,530
80% 80.1% 5,554,726 5,560,355
70% 70.0% 4,860,385 4,860,478
60% 60.0% 4,166,045 4,167,603
50% 49.9% 3,471,704 3,466,401
40% 40.0% 2,777,363 2,776,700
30% 30.0% 2,083,022 2,082,427
20% 20.0% 1,388,682 1,391,241
10% 10.0% 694,341 694,455
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: sut
Hardware
Hardware Vendor: FOXCONN (FII)
Model: Mt. Collins
Form Factor: 2U
CPU Name: Ampere Altra Max 64-Bit Multi-Core Processor M128-30
CPU Characteristics: 128 Core, 3.0GHz
CPU Frequency (MHz): 3000
CPU(s) Enabled: 256 cores, 2 chips, 128 cores/chip
Hardware Threads: 256 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: None
Other Cache: 16 MB I+D on chip per chip (SLC)
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16 x 16GB 2Rx8 PC4-3200; slots 0, 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30 slots populated
Power Supply Quantity and Rating (W): 1 x 650
Power Supply Details: 3Y Power Technology P/N: YM-2651YA10R
Disk Drive: 1 x 960GB M.2 NVMe SSD (SAMSUNG MZ1LB960HAJQ-00007)
Disk Controller: Non-Volatile Memory Host Controller Interface
# and type of Network Interface Cards (NICs) Installed: 1 x 1Gbps with Intel Corporation I350 Gigabit Network Connection
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Ubuntu 20.04
OS Version: Kernel 5.4.0-148-generic
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: OpenJDK 64-Bit Server VM (build 17.0.2+8-86, mixed mode, sharing)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:NewRatio=2 -XX:+UseParallelGC -XX:TargetSurvivorRatio=90 -XX:FreqInlineSize=2000 -XX:InitialTenuringThreshold=12 -XX:MaxInlineSize=35 -XX:SurvivorRatio=30 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=4 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseTransparentHugePages -XX:+UseBiasedLocking -XX:InlineSmallCode=1000 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: for each i=1-64 {numactl --physcpubind=$(i-1)*4,$(i-1)*4+1,$(i-1)*4+2,$(i-1)*4+3 --localalloc }
JVM Instances: 64
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 0ACOD013 (SCP: 2.10.20221028)
Management Firmware Version: 0.43.4
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
amd.001 127,732
amd.002 104,577
amd.003 102,591
amd.004 102,753
amd.005 103,303
amd.006 106,164
amd.007 127,938
amd.008 104,775
amd.009 97,196
amd.010 101,287
amd.011 102,415
amd.012 103,309
amd.013 100,783
amd.014 100,064
amd.015 100,378
amd.016 122,054
amd.017 109,911
amd.018 106,106
amd.019 108,505
amd.020 105,008
amd.021 120,325
amd.022 105,557
amd.023 102,872
amd.024 107,875
amd.025 115,484
amd.026 126,030
amd.027 104,578
amd.028 105,826
amd.029 102,574
amd.030 101,388
amd.031 98,694
amd.032 99,391
amd.033 107,556
amd.034 105,427
amd.035 103,455
amd.036 102,681
amd.037 105,588
amd.038 107,142
amd.039 107,387
amd.040 102,367
amd.041 103,612
amd.042 103,853
amd.043 120,628
amd.044 123,053
amd.045 120,025
amd.046 119,208
amd.047 121,103
amd.048 96,964
amd.049 100,994
amd.050 106,718
amd.051 126,119
amd.052 105,511
amd.053 106,124
amd.054 105,908
amd.055 101,839
amd.056 123,732
amd.057 102,128
amd.058 99,756
amd.059 102,692
amd.060 101,462
amd.061 122,335
amd.062 100,645
amd.063 120,732
amd.064 119,628
ssj_ops@100% 6,923,816
ssj_ops@100% per JVM 108,185
Graph of per-instance results
JVM 'amd.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     128,868
Calibration 2     128,206
Calibration 3     127,587
ssj_ops@calibrated=127,896
100% 99.9% 127,896 127,732
90% 89.5% 115,106 114,512
80% 79.9% 102,317 102,154
70% 69.4% 89,527 88,756
60% 60.0% 76,738 76,724
50% 50.3% 63,948 64,317
40% 39.8% 51,158 50,959
30% 30.6% 38,369 39,113
20% 19.9% 25,579 25,497
10% 9.8% 12,790 12,575
Active Idle   0 0
Graph of results
JVM 'amd.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,652
Calibration 2     105,097
Calibration 3     104,849
ssj_ops@calibrated=104,973
100% 99.6% 104,973 104,577
90% 91.0% 94,476 95,523
80% 80.2% 83,979 84,163
70% 69.8% 73,481 73,274
60% 60.4% 62,984 63,379
50% 49.6% 52,487 52,066
40% 41.0% 41,989 43,017
30% 29.9% 31,492 31,424
20% 20.0% 20,995 21,034
10% 10.2% 10,497 10,683
Active Idle   0 0
Graph of results
JVM 'amd.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,530
Calibration 2     103,325
Calibration 3     103,157
ssj_ops@calibrated=103,241
100% 99.4% 103,241 102,591
90% 90.5% 92,917 93,430
80% 79.6% 82,593 82,166
70% 70.1% 72,269 72,409
60% 60.6% 61,945 62,577
50% 49.7% 51,620 51,298
40% 39.8% 41,296 41,137
30% 29.8% 30,972 30,776
20% 19.7% 20,648 20,378
10% 10.3% 10,324 10,592
Active Idle   0 0
Graph of results
JVM 'amd.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,779
Calibration 2     104,342
Calibration 3     103,525
ssj_ops@calibrated=103,934
100% 98.9% 103,934 102,753
90% 89.9% 93,540 93,436
80% 80.1% 83,147 83,279
70% 69.5% 72,753 72,239
60% 59.7% 62,360 62,047
50% 49.7% 51,967 51,656
40% 39.6% 41,573 41,206
30% 30.2% 31,180 31,390
20% 19.9% 20,787 20,650
10% 10.1% 10,393 10,537
Active Idle   0 0
Graph of results
JVM 'amd.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,553
Calibration 2     103,820
Calibration 3     103,745
ssj_ops@calibrated=103,782
100% 99.5% 103,782 103,303
90% 90.5% 93,404 93,951
80% 79.9% 83,026 82,974
70% 70.9% 72,648 73,554
60% 59.9% 62,269 62,198
50% 49.8% 51,891 51,656
40% 39.3% 41,513 40,746
30% 29.9% 31,135 31,015
20% 19.7% 20,756 20,475
10% 9.9% 10,378 10,296
Active Idle   0 0
Graph of results
JVM 'amd.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,546
Calibration 2     107,290
Calibration 3     106,982
ssj_ops@calibrated=107,136
100% 99.1% 107,136 106,164
90% 90.0% 96,423 96,474
80% 79.9% 85,709 85,559
70% 69.8% 74,995 74,835
60% 59.4% 64,282 63,591
50% 50.1% 53,568 53,654
40% 40.1% 42,855 42,945
30% 30.0% 32,141 32,118
20% 19.9% 21,427 21,337
10% 10.1% 10,714 10,840
Active Idle   0 0
Graph of results
JVM 'amd.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,388
Calibration 2     127,981
Calibration 3     128,596
ssj_ops@calibrated=128,289
100% 99.7% 128,289 127,938
90% 90.4% 115,460 115,930
80% 80.0% 102,631 102,695
70% 70.1% 89,802 89,887
60% 59.2% 76,973 75,989
50% 50.5% 64,144 64,821
40% 40.2% 51,315 51,525
30% 30.1% 38,487 38,560
20% 19.7% 25,658 25,264
10% 9.9% 12,829 12,762
Active Idle   0 0
Graph of results
JVM 'amd.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,329
Calibration 2     105,278
Calibration 3     104,168
ssj_ops@calibrated=104,723
100% 100.0% 104,723 104,775
90% 90.2% 94,251 94,492
80% 81.0% 83,778 84,786
70% 71.0% 73,306 74,354
60% 60.1% 62,834 62,891
50% 50.1% 52,362 52,477
40% 40.0% 41,889 41,862
30% 30.1% 31,417 31,516
20% 20.1% 20,945 21,087
10% 9.9% 10,472 10,379
Active Idle   0 0
Graph of results

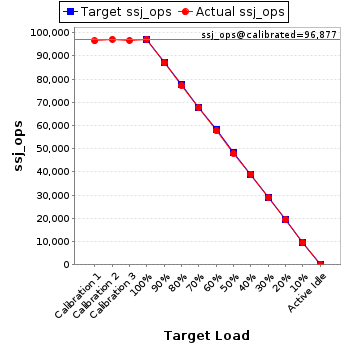

JVM 'amd.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,445
Calibration 2     97,128
Calibration 3     96,626
ssj_ops@calibrated=96,877
100% 100.3% 96,877 97,196
90% 89.8% 87,189 87,001
80% 79.6% 77,502 77,103
70% 69.9% 67,814 67,739
60% 59.6% 58,126 57,726
50% 49.5% 48,439 47,954
40% 40.4% 38,751 39,091
30% 29.9% 29,063 28,929
20% 20.0% 19,375 19,387
10% 9.9% 9,688 9,550
Active Idle   0 0
Graph of results

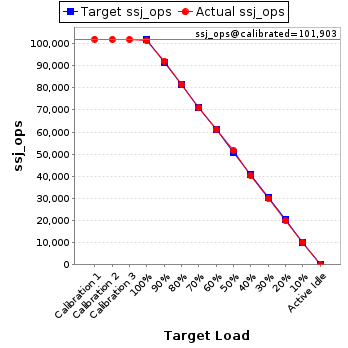

JVM 'amd.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,017
Calibration 2     101,896
Calibration 3     101,910
ssj_ops@calibrated=101,903
100% 99.4% 101,903 101,287
90% 90.4% 91,713 92,097
80% 80.1% 81,523 81,666
70% 69.6% 71,332 70,902
60% 60.1% 61,142 61,196
50% 50.7% 50,952 51,670
40% 39.6% 40,761 40,375
30% 29.6% 30,571 30,122
20% 19.5% 20,381 19,892
10% 10.1% 10,190 10,250
Active Idle   0 0
Graph of results
JVM 'amd.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,407
Calibration 2     102,421
Calibration 3     102,291
ssj_ops@calibrated=102,356
100% 100.1% 102,356 102,415
90% 90.5% 92,121 92,669
80% 79.5% 81,885 81,330
70% 70.3% 71,649 71,990
60% 60.7% 61,414 62,150
50% 49.8% 51,178 50,929
40% 40.1% 40,943 41,017
30% 30.5% 30,707 31,171
20% 19.9% 20,471 20,379
10% 9.5% 10,236 9,771
Active Idle   0 0
Graph of results
JVM 'amd.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,732
Calibration 2     103,662
Calibration 3     103,727
ssj_ops@calibrated=103,695
100% 99.6% 103,695 103,309
90% 90.2% 93,325 93,558
80% 78.9% 82,956 81,775
70% 70.8% 72,586 73,456
60% 59.9% 62,217 62,150
50% 49.7% 51,847 51,572
40% 39.2% 41,478 40,614
30% 30.4% 31,108 31,574
20% 20.3% 20,739 21,013
10% 9.8% 10,369 10,150
Active Idle   0 0
Graph of results

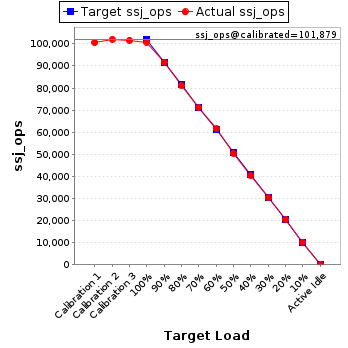

JVM 'amd.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,582
Calibration 2     102,104
Calibration 3     101,654
ssj_ops@calibrated=101,879
100% 98.9% 101,879 100,783
90% 90.1% 91,691 91,743
80% 79.7% 81,503 81,188
70% 69.9% 71,315 71,214
60% 60.4% 61,127 61,574
50% 49.5% 50,939 50,409
40% 39.6% 40,752 40,354
30% 29.7% 30,564 30,291
20% 20.2% 20,376 20,542
10% 9.9% 10,188 10,113
Active Idle   0 0
Graph of results
JVM 'amd.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,250
Calibration 2     100,278
Calibration 3     99,755
ssj_ops@calibrated=100,017
100% 100.0% 100,017 100,064
90% 89.4% 90,015 89,422
80% 80.6% 80,013 80,573
70% 69.8% 70,012 69,808
60% 60.5% 60,010 60,552
50% 50.2% 50,008 50,203
40% 39.2% 40,007 39,242
30% 29.6% 30,005 29,636
20% 20.2% 20,003 20,162
10% 10.0% 10,002 10,042
Active Idle   0 0
Graph of results
JVM 'amd.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,284
Calibration 2     101,318
Calibration 3     99,188
ssj_ops@calibrated=100,253
100% 100.1% 100,253 100,378
90% 89.9% 90,228 90,115
80% 80.9% 80,202 81,095
70% 69.6% 70,177 69,733
60% 59.7% 60,152 59,852
50% 49.6% 50,127 49,765
40% 39.6% 40,101 39,747
30% 30.1% 30,076 30,129
20% 20.1% 20,051 20,175
10% 9.8% 10,025 9,857
Active Idle   0 0
Graph of results
JVM 'amd.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,738
Calibration 2     122,010
Calibration 3     122,057
ssj_ops@calibrated=122,034
100% 100.0% 122,034 122,054
90% 90.0% 109,830 109,795
80% 79.8% 97,627 97,383
70% 69.9% 85,424 85,299
60% 60.0% 73,220 73,203
50% 49.2% 61,017 60,069
40% 40.1% 48,813 48,949
30% 29.6% 36,610 36,067
20% 20.0% 24,407 24,365
10% 10.2% 12,203 12,463
Active Idle   0 0
Graph of results
JVM 'amd.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,547
Calibration 2     109,734
Calibration 3     109,936
ssj_ops@calibrated=109,835
100% 100.1% 109,835 109,911
90% 89.8% 98,852 98,648
80% 80.9% 87,868 88,821
70% 69.9% 76,885 76,787
60% 60.1% 65,901 65,975
50% 49.7% 54,918 54,608
40% 39.7% 43,934 43,567
30% 30.0% 32,951 32,906
20% 20.1% 21,967 22,075
10% 9.9% 10,984 10,875
Active Idle   0 0
Graph of results
JVM 'amd.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,077
Calibration 2     106,039
Calibration 3     106,025
ssj_ops@calibrated=106,032
100% 100.1% 106,032 106,106
90% 89.3% 95,429 94,682
80% 80.9% 84,826 85,780
70% 69.1% 74,223 73,292
60% 59.7% 63,619 63,327
50% 50.1% 53,016 53,117
40% 39.5% 42,413 41,927
30% 30.0% 31,810 31,765
20% 20.1% 21,206 21,275
10% 10.0% 10,603 10,654
Active Idle   0 0
Graph of results
JVM 'amd.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,546
Calibration 2     108,674
Calibration 3     108,632
ssj_ops@calibrated=108,653
100% 99.9% 108,653 108,505
90% 90.2% 97,787 97,975
80% 81.2% 86,922 88,198
70% 70.4% 76,057 76,542
60% 59.6% 65,192 64,790
50% 49.7% 54,326 54,027
40% 39.2% 43,461 42,581
30% 30.2% 32,596 32,807
20% 20.6% 21,731 22,355
10% 10.5% 10,865 11,362
Active Idle   0 0
Graph of results
JVM 'amd.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,263
Calibration 2     105,752
Calibration 3     105,177
ssj_ops@calibrated=105,465
100% 99.6% 105,465 105,008
90% 90.0% 94,918 94,890
80% 80.8% 84,372 85,238
70% 70.2% 73,825 74,059
60% 60.4% 63,279 63,705
50% 51.1% 52,732 53,871
40% 39.4% 42,186 41,504
30% 30.3% 31,639 31,919
20% 20.5% 21,093 21,592
10% 10.2% 10,546 10,771
Active Idle   0 0
Graph of results
JVM 'amd.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,061
Calibration 2     121,681
Calibration 3     121,229
ssj_ops@calibrated=121,455
100% 99.1% 121,455 120,325
90% 90.7% 109,310 110,106
80% 79.9% 97,164 97,048
70% 70.3% 85,019 85,355
60% 59.8% 72,873 72,677
50% 49.8% 60,728 60,525
40% 40.4% 48,582 49,086
30% 30.2% 36,437 36,724
20% 20.3% 24,291 24,608
10% 9.8% 12,146 11,938
Active Idle   0 0
Graph of results
JVM 'amd.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,213
Calibration 2     105,232
Calibration 3     105,477
ssj_ops@calibrated=105,354
100% 100.2% 105,354 105,557
90% 89.4% 94,819 94,152
80% 79.0% 84,283 83,194
70% 69.8% 73,748 73,509
60% 59.8% 63,213 62,988
50% 50.3% 52,677 52,944
40% 40.4% 42,142 42,540
30% 29.8% 31,606 31,349
20% 20.2% 21,071 21,237
10% 9.9% 10,535 10,379
Active Idle   0 0
Graph of results
JVM 'amd.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,742
Calibration 2     103,692
Calibration 3     104,343
ssj_ops@calibrated=104,018
100% 98.9% 104,018 102,872
90% 89.4% 93,616 92,964
80% 80.1% 83,214 83,332
70% 68.8% 72,812 71,523
60% 60.4% 62,411 62,806
50% 49.8% 52,009 51,808
40% 40.2% 41,607 41,842
30% 30.3% 31,205 31,512
20% 20.0% 20,804 20,767
10% 10.2% 10,402 10,590
Active Idle   0 0
Graph of results
JVM 'amd.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,404
Calibration 2     107,278
Calibration 3     107,288
ssj_ops@calibrated=107,283
100% 100.6% 107,283 107,875
90% 89.6% 96,555 96,099
80% 79.7% 85,826 85,510
70% 70.2% 75,098 75,322
60% 59.3% 64,370 63,666
50% 50.1% 53,641 53,725
40% 39.7% 42,913 42,574
30% 30.0% 32,185 32,210
20% 20.0% 21,457 21,473
10% 9.9% 10,728 10,641
Active Idle   0 0
Graph of results
JVM 'amd.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     114,990
Calibration 2     116,018
Calibration 3     115,677
ssj_ops@calibrated=115,848
100% 99.7% 115,848 115,484
90% 90.1% 104,263 104,359
80% 80.6% 92,678 93,368
70% 68.8% 81,093 79,750
60% 59.8% 69,509 69,322
50% 49.9% 57,924 57,820
40% 39.8% 46,339 46,144
30% 29.6% 34,754 34,348
20% 19.8% 23,170 22,967
10% 9.8% 11,585 11,342
Active Idle   0 0
Graph of results
JVM 'amd.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,732
Calibration 2     127,468
Calibration 3     126,994
ssj_ops@calibrated=127,231
100% 99.1% 127,231 126,030
90% 90.0% 114,508 114,488
80% 80.5% 101,785 102,369
70% 70.8% 89,062 90,074
60% 59.8% 76,339 76,026
50% 49.5% 63,615 62,989
40% 40.2% 50,892 51,162
30% 30.5% 38,169 38,803
20% 20.2% 25,446 25,708
10% 9.8% 12,723 12,417
Active Idle   0 0
Graph of results
JVM 'amd.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,231
Calibration 2     104,662
Calibration 3     104,564
ssj_ops@calibrated=104,613
100% 100.0% 104,613 104,578
90% 89.5% 94,152 93,613
80% 79.8% 83,691 83,478
70% 70.5% 73,229 73,746
60% 61.2% 62,768 64,019
50% 49.6% 52,307 51,917
40% 40.8% 41,845 42,687
30% 29.9% 31,384 31,290
20% 19.7% 20,923 20,592
10% 10.0% 10,461 10,492
Active Idle   0 0
Graph of results
JVM 'amd.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,177
Calibration 2     105,404
Calibration 3     105,278
ssj_ops@calibrated=105,341
100% 100.5% 105,341 105,826
90% 89.9% 94,807 94,746
80% 78.6% 84,273 82,802
70% 70.9% 73,739 74,682
60% 59.5% 63,204 62,651
50% 49.5% 52,670 52,126
40% 40.0% 42,136 42,185
30% 30.0% 31,602 31,573
20% 20.3% 21,068 21,346
10% 9.8% 10,534 10,367
Active Idle   0 0
Graph of results
JVM 'amd.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,491
Calibration 2     103,018
Calibration 3     102,899
ssj_ops@calibrated=102,959
100% 99.6% 102,959 102,574
90% 91.3% 92,663 94,046
80% 79.5% 82,367 81,873
70% 70.9% 72,071 72,989
60% 59.8% 61,775 61,570
50% 49.5% 51,479 50,923
40% 39.7% 41,183 40,879
30% 29.4% 30,888 30,319
20% 20.1% 20,592 20,667
10% 9.5% 10,296 9,767
Active Idle   0 0
Graph of results
JVM 'amd.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,820
Calibration 2     102,406
Calibration 3     102,329
ssj_ops@calibrated=102,367
100% 99.0% 102,367 101,388
90% 90.1% 92,130 92,185
80% 81.1% 81,894 83,068
70% 69.7% 71,657 71,357
60% 59.8% 61,420 61,252
50% 50.3% 51,184 51,527
40% 40.1% 40,947 41,042
30% 29.9% 30,710 30,644
20% 19.7% 20,473 20,193
10% 10.4% 10,237 10,666
Active Idle   0 0
Graph of results
JVM 'amd.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,395
Calibration 2     98,615
Calibration 3     99,287
ssj_ops@calibrated=98,951
100% 99.7% 98,951 98,694
90% 90.6% 89,056 89,609
80% 79.9% 79,161 79,046
70% 70.3% 69,266 69,585
60% 59.4% 59,371 58,825
50% 49.7% 49,475 49,175
40% 40.3% 39,580 39,921
30% 29.8% 29,685 29,490
20% 20.0% 19,790 19,792
10% 10.1% 9,895 10,002
Active Idle   0 0
Graph of results
JVM 'amd.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,807
Calibration 2     99,695
Calibration 3     99,616
ssj_ops@calibrated=99,655
100% 99.7% 99,655 99,391
90% 90.8% 89,690 90,498
80% 80.4% 79,724 80,075
70% 70.5% 69,759 70,305
60% 60.0% 59,793 59,758
50% 49.4% 49,828 49,248
40% 39.8% 39,862 39,625
30% 30.1% 29,897 29,995
20% 20.4% 19,931 20,312
10% 10.2% 9,966 10,122
Active Idle   0 0
Graph of results
JVM 'amd.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,664
Calibration 2     105,431
Calibration 3     106,119
ssj_ops@calibrated=105,775
100% 101.7% 105,775 107,556
90% 89.6% 95,198 94,749
80% 79.1% 84,620 83,653
70% 70.0% 74,043 74,055
60% 60.2% 63,465 63,643
50% 49.5% 52,888 52,392
40% 39.7% 42,310 42,032
30% 30.4% 31,733 32,121
20% 19.5% 21,155 20,633
10% 10.2% 10,578 10,817
Active Idle   0 0

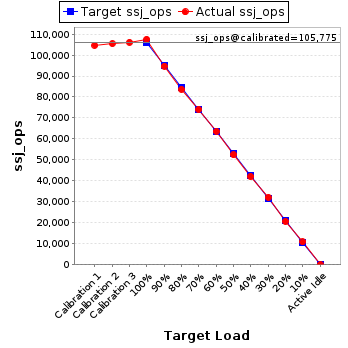

Graph of results
JVM 'amd.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,256
Calibration 2     104,875
Calibration 3     106,258
ssj_ops@calibrated=105,567
100% 99.9% 105,567 105,427
90% 89.7% 95,010 94,664
80% 81.4% 84,453 85,889
70% 70.3% 73,897 74,196
60% 60.2% 63,340 63,554
50% 49.5% 52,783 52,272
40% 40.0% 42,227 42,222
30% 29.7% 31,670 31,391
20% 20.1% 21,113 21,184
10% 10.0% 10,557 10,575
Active Idle   0 0
Graph of results
JVM 'amd.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,502
Calibration 2     104,893
Calibration 3     103,489
ssj_ops@calibrated=104,191
100% 99.3% 104,191 103,455
90% 90.2% 93,772 93,931
80% 80.0% 83,353 83,325
70% 69.0% 72,934 71,886
60% 60.5% 62,515 63,037
50% 50.5% 52,095 52,593
40% 39.6% 41,676 41,293
30% 30.3% 31,257 31,571
20% 19.9% 20,838 20,697
10% 10.0% 10,419 10,417
Active Idle   0 0
Graph of results
JVM 'amd.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,717
Calibration 2     104,069
Calibration 3     102,815
ssj_ops@calibrated=103,442
100% 99.3% 103,442 102,681
90% 89.0% 93,098 92,095
80% 80.0% 82,753 82,706
70% 69.3% 72,409 71,687
60% 59.8% 62,065 61,834
50% 50.2% 51,721 51,888
40% 40.0% 41,377 41,349
30% 29.9% 31,033 30,952
20% 20.1% 20,688 20,792
10% 9.9% 10,344 10,287
Active Idle   0 0
Graph of results
JVM 'amd.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,370
Calibration 2     106,397
Calibration 3     105,836
ssj_ops@calibrated=106,116
100% 99.5% 106,116 105,588
90% 90.2% 95,505 95,698
80% 80.4% 84,893 85,346
70% 70.3% 74,281 74,605
60% 60.3% 63,670 63,952
50% 49.8% 53,058 52,837
40% 39.4% 42,447 41,844
30% 29.4% 31,835 31,199
20% 20.1% 21,223 21,300
10% 10.0% 10,612 10,604
Active Idle   0 0
Graph of results
JVM 'amd.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,165
Calibration 2     106,830
Calibration 3     107,361
ssj_ops@calibrated=107,096
100% 100.0% 107,096 107,142
90% 89.7% 96,386 96,085
80% 79.5% 85,677 85,139
70% 70.7% 74,967 75,706
60% 60.1% 64,257 64,362
50% 50.0% 53,548 53,581
40% 39.7% 42,838 42,529
30% 29.8% 32,129 31,899
20% 20.6% 21,419 22,029
10% 10.2% 10,710 10,887
Active Idle   0 0
Graph of results
JVM 'amd.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,316
Calibration 2     106,393
Calibration 3     106,868
ssj_ops@calibrated=106,631
100% 100.7% 106,631 107,387
90% 90.5% 95,967 96,466
80% 79.6% 85,304 84,880
70% 71.1% 74,641 75,822
60% 60.3% 63,978 64,297
50% 49.7% 53,315 53,046
40% 40.1% 42,652 42,713
30% 29.7% 31,989 31,650
20% 19.9% 21,326 21,179
10% 10.2% 10,663 10,846
Active Idle   0 0
Graph of results
JVM 'amd.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,884
Calibration 2     103,337
Calibration 3     103,046
ssj_ops@calibrated=103,191
100% 99.2% 103,191 102,367
90% 90.2% 92,872 93,059
80% 80.1% 82,553 82,672
70% 70.4% 72,234 72,614
60% 59.6% 61,915 61,531
50% 49.6% 51,596 51,226
40% 40.3% 41,276 41,574
30% 30.2% 30,957 31,175
20% 20.1% 20,638 20,783
10% 9.7% 10,319 9,977
Active Idle   0 0
Graph of results
JVM 'amd.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,636
Calibration 2     104,586
Calibration 3     103,357
ssj_ops@calibrated=103,971
100% 99.7% 103,971 103,612
90% 89.5% 93,574 93,045
80% 79.9% 83,177 83,056
70% 70.0% 72,780 72,757
60% 60.9% 62,383 63,321
50% 50.1% 51,986 52,063
40% 40.0% 41,589 41,560
30% 30.4% 31,191 31,603
20% 20.2% 20,794 21,010
10% 10.0% 10,397 10,442
Active Idle   0 0

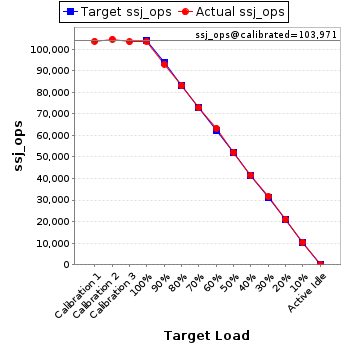

Graph of results
JVM 'amd.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,401
Calibration 2     104,214
Calibration 3     104,351
ssj_ops@calibrated=104,283
100% 99.6% 104,283 103,853
90% 89.2% 93,854 92,996
80% 79.7% 83,426 83,077
70% 70.8% 72,998 73,801
60% 59.9% 62,570 62,501
50% 50.0% 52,141 52,133
40% 40.4% 41,713 42,133
30% 30.5% 31,285 31,763
20% 20.0% 20,857 20,893
10% 10.2% 10,428 10,592
Active Idle   0 0
Graph of results
JVM 'amd.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,061
Calibration 2     122,451
Calibration 3     120,862
ssj_ops@calibrated=121,657
100% 99.2% 121,657 120,628
90% 89.2% 109,491 108,490
80% 79.4% 97,325 96,560
70% 70.2% 85,160 85,390
60% 60.5% 72,994 73,557
50% 49.4% 60,828 60,098
40% 39.7% 48,663 48,266
30% 29.7% 36,497 36,099
20% 19.8% 24,331 24,142
10% 10.2% 12,166 12,362
Active Idle   0 0
Graph of results
JVM 'amd.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,732
Calibration 2     123,503
Calibration 3     123,910
ssj_ops@calibrated=123,707
100% 99.5% 123,707 123,053
90% 89.2% 111,336 110,303
80% 80.5% 98,965 99,579
70% 69.7% 86,595 86,193
60% 60.4% 74,224 74,705
50% 50.4% 61,853 62,407
40% 40.5% 49,483 50,137
30% 29.8% 37,112 36,875
20% 19.7% 24,741 24,365
10% 10.3% 12,371 12,680
Active Idle   0 0
Graph of results
JVM 'amd.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,347
Calibration 2     119,799
Calibration 3     119,474
ssj_ops@calibrated=119,636
100% 100.3% 119,636 120,025
90% 90.9% 107,673 108,764
80% 80.1% 95,709 95,828
70% 69.6% 83,745 83,299
60% 60.4% 71,782 72,209
50% 50.2% 59,818 60,058
40% 40.3% 47,855 48,195
30% 29.9% 35,891 35,783
20% 19.9% 23,927 23,829
10% 10.2% 11,964 12,171
Active Idle   0 0
Graph of results
JVM 'amd.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     117,731
Calibration 2     118,938
Calibration 3     119,434
ssj_ops@calibrated=119,186
100% 100.0% 119,186 119,208
90% 90.2% 107,267 107,531
80% 80.9% 95,349 96,404
70% 69.7% 83,430 83,018
60% 60.1% 71,512 71,625
50% 49.2% 59,593 58,627
40% 40.1% 47,674 47,796
30% 29.6% 35,756 35,243
20% 20.4% 23,837 24,333
10% 10.3% 11,919 12,292
Active Idle   0 0
Graph of results
JVM 'amd.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,855
Calibration 2     121,350
Calibration 3     119,912
ssj_ops@calibrated=120,631
100% 100.4% 120,631 121,103
90% 90.2% 108,568 108,767
80% 79.7% 96,505 96,106
70% 69.9% 84,442 84,312
60% 60.2% 72,379 72,617
50% 50.5% 60,316 60,911
40% 40.2% 48,252 48,500
30% 29.9% 36,189 36,024
20% 19.9% 24,126 24,032
10% 9.9% 12,063 11,980
Active Idle   0 0
Graph of results
JVM 'amd.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,962
Calibration 2     97,072
Calibration 3     97,202
ssj_ops@calibrated=97,137
100% 99.8% 97,137 96,964
90% 90.1% 87,423 87,537
80% 80.2% 77,709 77,901
70% 69.9% 67,996 67,867
60% 60.8% 58,282 59,034
50% 50.0% 48,568 48,563
40% 39.7% 38,855 38,601
30% 29.6% 29,141 28,725
20% 20.1% 19,427 19,506
10% 10.0% 9,714 9,721
Active Idle   0 0
Graph of results
JVM 'amd.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,801
Calibration 2     102,404
Calibration 3     101,881
ssj_ops@calibrated=102,142
100% 98.9% 102,142 100,994
90% 89.9% 91,928 91,830
80% 80.1% 81,714 81,811
70% 69.3% 71,500 70,787
60% 60.9% 61,285 62,241
50% 50.7% 51,071 51,741
40% 40.8% 40,857 41,639
30% 30.3% 30,643 30,925
20% 20.3% 20,428 20,725
10% 10.0% 10,214 10,212
Active Idle   0 0
Graph of results
JVM 'amd.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,459
Calibration 2     106,720
Calibration 3     106,440
ssj_ops@calibrated=106,580
100% 100.1% 106,580 106,718
90% 90.5% 95,922 96,403
80% 80.3% 85,264 85,630
70% 69.9% 74,606 74,533
60% 59.8% 63,948 63,773
50% 50.1% 53,290 53,380
40% 39.7% 42,632 42,337
30% 29.6% 31,974 31,501
20% 20.1% 21,316 21,375
10% 10.3% 10,658 10,933
Active Idle   0 0
Graph of results
JVM 'amd.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,753
Calibration 2     126,585
Calibration 3     126,490
ssj_ops@calibrated=126,538
100% 99.7% 126,538 126,119
90% 89.7% 113,884 113,499
80% 80.2% 101,230 101,428
70% 69.4% 88,576 87,866
60% 59.6% 75,923 75,451
50% 49.7% 63,269 62,834
40% 39.9% 50,615 50,517
30% 30.5% 37,961 38,533
20% 20.1% 25,308 25,487
10% 10.0% 12,654 12,639
Active Idle   0 0
Graph of results
JVM 'amd.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,352
Calibration 2     106,125
Calibration 3     105,127
ssj_ops@calibrated=105,626
100% 99.9% 105,626 105,511
90% 90.2% 95,063 95,226
80% 80.0% 84,501 84,464
70% 70.0% 73,938 73,944
60% 60.4% 63,375 63,833
50% 49.8% 52,813 52,592
40% 41.2% 42,250 43,516
30% 29.7% 31,688 31,391
20% 20.2% 21,125 21,389
10% 9.8% 10,563 10,371
Active Idle   0 0
Graph of results
JVM 'amd.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,056
Calibration 2     106,979
Calibration 3     106,757
ssj_ops@calibrated=106,868
100% 99.3% 106,868 106,124
90% 90.2% 96,181 96,368
80% 78.9% 85,494 84,285
70% 69.8% 74,807 74,558
60% 59.2% 64,121 63,286
50% 49.3% 53,434 52,635
40% 40.0% 42,747 42,741
30% 29.5% 32,060 31,479
20% 20.1% 21,374 21,512
10% 10.0% 10,687 10,654
Active Idle   0 0
Graph of results
JVM 'amd.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,206
Calibration 2     107,061
Calibration 3     106,118
ssj_ops@calibrated=106,590
100% 99.4% 106,590 105,908
90% 90.1% 95,931 96,056
80% 79.8% 85,272 85,093
70% 70.2% 74,613 74,878
60% 60.5% 63,954 64,448
50% 51.3% 53,295 54,647
40% 41.1% 42,636 43,833
30% 30.4% 31,977 32,410
20% 20.3% 21,318 21,604
10% 9.7% 10,659 10,321
Active Idle   0 0
Graph of results
JVM 'amd.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,773
Calibration 2     102,556
Calibration 3     102,833
ssj_ops@calibrated=102,695
100% 99.2% 102,695 101,839
90% 89.5% 92,425 91,941
80% 80.7% 82,156 82,869
70% 69.5% 71,886 71,381
60% 60.2% 61,617 61,841
50% 49.3% 51,347 50,649
40% 39.9% 41,078 40,983
30% 30.1% 30,808 30,904
20% 20.1% 20,539 20,667
10% 9.9% 10,269 10,167
Active Idle   0 0
Graph of results
JVM 'amd.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,343
Calibration 2     124,430
Calibration 3     124,029
ssj_ops@calibrated=124,230
100% 99.6% 124,230 123,732
90% 89.5% 111,807 111,214
80% 80.3% 99,384 99,716
70% 69.9% 86,961 86,878
60% 59.9% 74,538 74,445
50% 49.9% 62,115 61,964
40% 40.4% 49,692 50,138
30% 29.9% 37,269 37,184
20% 19.6% 24,846 24,368
10% 10.1% 12,423 12,516
Active Idle   0 0
Graph of results
JVM 'amd.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,957
Calibration 2     103,688
Calibration 3     101,972
ssj_ops@calibrated=102,830
100% 99.3% 102,830 102,128
90% 89.5% 92,547 91,989
80% 80.0% 82,264 82,222
70% 69.9% 71,981 71,920
60% 59.7% 61,698 61,348
50% 49.1% 51,415 50,531
40% 40.6% 41,132 41,796
30% 30.0% 30,849 30,835
20% 20.1% 20,566 20,633
10% 10.2% 10,283 10,487
Active Idle   0 0
Graph of results
JVM 'amd.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,609
Calibration 2     99,997
Calibration 3     98,322
ssj_ops@calibrated=99,160
100% 100.6% 99,160 99,756
90% 89.4% 89,244 88,697
80% 79.6% 79,328 78,944
70% 70.3% 69,412 69,743
60% 59.3% 59,496 58,822
50% 49.7% 49,580 49,260
40% 40.1% 39,664 39,765
30% 30.2% 29,748 29,910
20% 20.1% 19,832 19,933
10% 9.5% 9,916 9,409
Active Idle   0 0
Graph of results
JVM 'amd.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,922
Calibration 2     102,599
Calibration 3     102,957
ssj_ops@calibrated=102,778
100% 99.9% 102,778 102,692
90% 90.7% 92,500 93,238
80% 81.1% 82,222 83,322
70% 69.9% 71,945 71,859
60% 60.5% 61,667 62,187
50% 50.7% 51,389 52,129
40% 40.0% 41,111 41,091
30% 30.3% 30,833 31,179
20% 20.3% 20,556 20,900
10% 10.0% 10,278 10,242
Active Idle   0 0
Graph of results
JVM 'amd.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,109
Calibration 2     101,738
Calibration 3     102,291
ssj_ops@calibrated=102,014
100% 99.5% 102,014 101,462
90% 89.7% 91,813 91,522
80% 80.3% 81,611 81,958
70% 69.2% 71,410 70,586
60% 59.4% 61,209 60,559
50% 49.7% 51,007 50,715
40% 39.6% 40,806 40,372
30% 30.0% 30,604 30,615
20% 20.1% 20,403 20,546
10% 9.8% 10,201 10,004
Active Idle   0 0
Graph of results
JVM 'amd.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,025
Calibration 2     122,931
Calibration 3     122,229
ssj_ops@calibrated=122,580
100% 99.8% 122,580 122,335
90% 89.5% 110,322 109,762
80% 80.2% 98,064 98,316
70% 70.2% 85,806 86,010
60% 60.1% 73,548 73,709
50% 49.7% 61,290 60,896
40% 40.0% 49,032 49,045
30% 30.7% 36,774 37,583
20% 19.6% 24,516 24,023
10% 9.7% 12,258 11,937
Active Idle   0 0
Graph of results
JVM 'amd.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,034
Calibration 2     101,067
Calibration 3     100,782
ssj_ops@calibrated=100,925
100% 99.7% 100,925 100,645
90% 89.8% 90,832 90,636
80% 80.3% 80,740 81,018
70% 70.7% 70,647 71,389
60% 59.4% 60,555 59,974
50% 50.4% 50,462 50,836
40% 39.3% 40,370 39,704
30% 29.9% 30,277 30,166
20% 20.1% 20,185 20,308
10% 10.2% 10,092 10,266
Active Idle   0 0
Graph of results
JVM 'amd.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,333
Calibration 2     121,524
Calibration 3     120,762
ssj_ops@calibrated=121,143
100% 99.7% 121,143 120,732
90% 90.1% 109,029 109,152
80% 81.1% 96,915 98,224
70% 69.7% 84,800 84,471
60% 60.1% 72,686 72,805
50% 50.9% 60,572 61,721
40% 39.6% 48,457 47,942
30% 29.9% 36,343 36,175
20% 20.1% 24,229 24,375
10% 10.3% 12,114 12,483
Active Idle   0 0

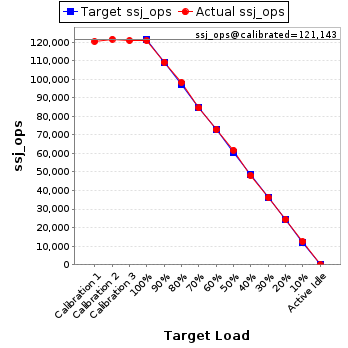

Graph of results
JVM 'amd.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,006
Calibration 2     120,200
Calibration 3     120,694
ssj_ops@calibrated=120,447
100% 99.3% 120,447 119,628
90% 89.3% 108,402 107,607
80% 79.6% 96,358 95,843
70% 69.9% 84,313 84,139
60% 59.7% 72,268 71,944
50% 50.1% 60,224 60,313
40% 40.3% 48,179 48,486
30% 30.0% 36,134 36,081
20% 20.0% 24,089 24,094
10% 9.9% 12,045 11,917
Active Idle   0 0

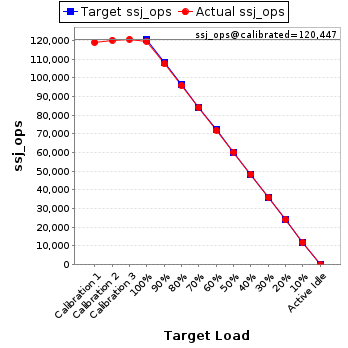

Graph of results
