Supermicro SuperServer SYS-F521E3-RTB ssj_ops@100% = 7,246,521
ssj_ops@100% per JVM = 129,402
Test Sponsor: Supermicro SPEC License #: 1176 Test Method: Multi Node
Tested By: Supermicro Test Location: Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) Test Date: May 1, 2023
Hardware Availability: Jan-2023 Software Availability: Apr-2023 Publication: May 24, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     7,218,300
Calibration 2     7,234,330
Calibration 3     7,246,473
ssj_ops@calibrated=7,240,401
100% 100.1% 7,240,401 7,246,521
90% 89.3% 6,516,361 6,468,221
80% 79.5% 5,792,321 5,758,087
70% 68.3% 5,068,281 4,944,367
60% 60.0% 4,344,241 4,346,479
50% 49.9% 3,620,201 3,612,585
40% 39.9% 2,896,161 2,890,332
30% 29.9% 2,172,120 2,167,674
20% 20.0% 1,448,080 1,448,303
10% 10.0% 724,040 721,490
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: None
Hardware
Hardware Vendor: Supermicro
Model: SuperServer SYS-F521E3-RTB
Form Factor: Blade
CPU Name: Intel(R) Xeon(R) 8480+,2.00GHz
CPU Characteristics: 56 Core, 2.0GHz, 105 MB cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 56 cores, 1 chip, 56 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 105 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 8 x 32 GB
Memory Details: 32GB 2Rx4 DDR5-4800; CPU1 A1,B1,C1,D1,E1,F1,G1,H1 populated.
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1x480GB M.2 NVMe GEN4 Micron,MTFDKBA480TFR-1BC1ZABYY
Disk Controller: onboard SCU controller
# and type of Network Interface Cards (NICs) Installed: 1 x Quad Intel I350 Gigabit Ethernet controller, AOC-AG-i4M
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2019 Datacenter
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.4+10-LTS, mixed mode)
JVM Command-line Options: -server-Xms1995m -Xmx1995m -Xmn1825m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:BiasedLockingStartupDelay=30000 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE [0,1] /AFFINITY [0x3, 0xc, 0x30, 0xc0, 0x300, 0xc00, 0x3000, 0xc000, 0x3000, 0xc0000, 0x30000, 0xc00000, 0x300000, 0xc000000]
JVM Instances: 56
JVM Initial Heap (MB): 1995
JVM Maximum Heap (MB): 1995
JVM Address Bits: 64
Boot Firmware Version: 1.1
Management Firmware Version: 01.00.31
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5022782
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-VD0J11F81K5.001 128,434
WIN-VD0J11F81K5.002 128,982
WIN-VD0J11F81K5.003 131,148
WIN-VD0J11F81K5.004 128,166
WIN-VD0J11F81K5.005 131,363
WIN-VD0J11F81K5.006 131,286
WIN-VD0J11F81K5.007 129,692
WIN-VD0J11F81K5.008 132,246
WIN-VD0J11F81K5.009 128,074
WIN-VD0J11F81K5.010 131,101
WIN-VD0J11F81K5.011 130,232
WIN-VD0J11F81K5.012 129,329
WIN-VD0J11F81K5.013 128,832
WIN-VD0J11F81K5.014 124,019
WIN-VD0J11F81K5.015 130,129
WIN-VD0J11F81K5.016 130,846
WIN-VD0J11F81K5.017 123,634
WIN-VD0J11F81K5.018 130,465
WIN-VD0J11F81K5.019 128,757
WIN-VD0J11F81K5.020 130,389
WIN-VD0J11F81K5.021 130,474
WIN-VD0J11F81K5.022 131,259
WIN-VD0J11F81K5.023 129,333
WIN-VD0J11F81K5.024 127,032
WIN-VD0J11F81K5.025 130,086
WIN-VD0J11F81K5.026 130,615
WIN-VD0J11F81K5.027 129,447
WIN-VD0J11F81K5.028 124,514
WIN-VD0J11F81K5.029 130,827
WIN-VD0J11F81K5.030 128,807
WIN-VD0J11F81K5.031 129,046
WIN-VD0J11F81K5.032 129,509
WIN-VD0J11F81K5.033 128,867
WIN-VD0J11F81K5.034 132,146
WIN-VD0J11F81K5.035 127,193
WIN-VD0J11F81K5.036 129,416
WIN-VD0J11F81K5.037 132,067
WIN-VD0J11F81K5.038 132,155
WIN-VD0J11F81K5.039 130,735
WIN-VD0J11F81K5.040 128,008
WIN-VD0J11F81K5.041 125,311
WIN-VD0J11F81K5.042 131,576
WIN-VD0J11F81K5.043 128,727
WIN-VD0J11F81K5.044 127,843
WIN-VD0J11F81K5.045 130,591
WIN-VD0J11F81K5.046 129,660
WIN-VD0J11F81K5.047 128,356
WIN-VD0J11F81K5.048 130,382
WIN-VD0J11F81K5.049 132,391
WIN-VD0J11F81K5.050 127,588
WIN-VD0J11F81K5.051 129,356
WIN-VD0J11F81K5.052 130,597
WIN-VD0J11F81K5.053 131,895
WIN-VD0J11F81K5.054 127,649
WIN-VD0J11F81K5.055 129,074
WIN-VD0J11F81K5.056 126,865
ssj_ops@100% 7,246,521
ssj_ops@100% per JVM 129,402
Graph of per-instance results
JVM 'WIN-VD0J11F81K5.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     128,439
Calibration 2     128,188
Calibration 3     128,294
ssj_ops@calibrated=128,241
100% 100.2% 128,241 128,434
90% 88.9% 115,417 114,060
80% 79.6% 102,593 102,022
70% 68.2% 89,769 87,415
60% 60.6% 76,945 77,759
50% 50.5% 64,120 64,781
40% 39.8% 51,296 51,060
30% 30.3% 38,472 38,827
20% 20.4% 25,648 26,170
10% 10.2% 12,824 13,108
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     127,974
Calibration 2     128,648
Calibration 3     128,849
ssj_ops@calibrated=128,748
100% 100.2% 128,748 128,982
90% 88.9% 115,874 114,453
80% 79.5% 102,999 102,340
70% 68.4% 90,124 88,123
60% 59.8% 77,249 76,977
50% 49.1% 64,374 63,174
40% 39.8% 51,499 51,252
30% 29.8% 38,625 38,381
20% 20.2% 25,750 25,949
10% 10.1% 12,875 12,958
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,242
Calibration 2     130,905
Calibration 3     131,326
ssj_ops@calibrated=131,116
100% 100.0% 131,116 131,148
90% 89.5% 118,004 117,381
80% 79.7% 104,893 104,476
70% 68.1% 91,781 89,319
60% 59.5% 78,669 78,075
50% 50.0% 65,558 65,548
40% 40.2% 52,446 52,755
30% 29.3% 39,335 38,468
20% 20.3% 26,223 26,563
10% 10.3% 13,112 13,477
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     127,045
Calibration 2     127,562
Calibration 3     128,076
ssj_ops@calibrated=127,819
100% 100.3% 127,819 128,166
90% 89.4% 115,037 114,239
80% 79.3% 102,255 101,362
70% 68.3% 89,473 87,259
60% 59.9% 76,691 76,539
50% 49.7% 63,909 63,477
40% 40.7% 51,127 51,996
30% 30.1% 38,346 38,434
20% 19.7% 25,564 25,199
10% 10.0% 12,782 12,808
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,960
Calibration 2     130,793
Calibration 3     131,122
ssj_ops@calibrated=130,958
100% 100.3% 130,958 131,363
90% 89.5% 117,862 117,177
80% 79.5% 104,766 104,156
70% 68.1% 91,670 89,152
60% 60.8% 78,575 79,575
50% 50.2% 65,479 65,774
40% 40.3% 52,383 52,714
30% 30.3% 39,287 39,636
20% 19.9% 26,192 26,001
10% 9.8% 13,096 12,801
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,487
Calibration 2     131,174
Calibration 3     131,633
ssj_ops@calibrated=131,403
100% 99.9% 131,403 131,286
90% 89.5% 118,263 117,566
80% 79.7% 105,123 104,782
70% 68.3% 91,982 89,708
60% 60.2% 78,842 79,168
50% 49.3% 65,702 64,719
40% 40.5% 52,561 53,218
30% 30.1% 39,421 39,510
20% 19.9% 26,281 26,109
10% 10.1% 13,140 13,331
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     128,950
Calibration 2     129,843
Calibration 3     129,975
ssj_ops@calibrated=129,909
100% 99.8% 129,909 129,692
90% 89.4% 116,918 116,169
80% 79.6% 103,927 103,447
70% 68.5% 90,936 88,925
60% 60.0% 77,945 77,938
50% 50.2% 64,954 65,271
40% 40.1% 51,964 52,048
30% 29.7% 38,973 38,623
20% 20.0% 25,982 25,994
10% 9.9% 12,991 12,800
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,808
Calibration 2     132,029
Calibration 3     132,032
ssj_ops@calibrated=132,030
100% 100.2% 132,030 132,246
90% 89.4% 118,827 118,002
80% 79.7% 105,624 105,254
70% 68.1% 92,421 89,886
60% 60.2% 79,218 79,478
50% 51.3% 66,015 67,750
40% 39.5% 52,812 52,086
30% 29.8% 39,609 39,313
20% 19.7% 26,406 26,048
10% 9.9% 13,203 13,062
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     128,699
Calibration 2     128,342
Calibration 3     128,335
ssj_ops@calibrated=128,338
100% 99.8% 128,338 128,074
90% 89.5% 115,505 114,843
80% 79.8% 102,671 102,415
70% 68.4% 89,837 87,839
60% 60.9% 77,003 78,129
50% 49.9% 64,169 64,025
40% 39.2% 51,335 50,311
30% 29.9% 38,502 38,416
20% 20.1% 25,668 25,775
10% 9.9% 12,834 12,724
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,230
Calibration 2     130,994
Calibration 3     131,472
ssj_ops@calibrated=131,233
100% 99.9% 131,233 131,101
90% 89.1% 118,110 116,988
80% 79.5% 104,987 104,372
70% 68.1% 91,863 89,310
60% 60.3% 78,740 79,089
50% 49.4% 65,617 64,815
40% 40.2% 52,493 52,723
30% 30.2% 39,370 39,585
20% 20.2% 26,247 26,507
10% 10.2% 13,123 13,433
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,435
Calibration 2     129,800
Calibration 3     130,149
ssj_ops@calibrated=129,975
100% 100.2% 129,975 130,232
90% 89.7% 116,977 116,571
80% 79.7% 103,980 103,526
70% 68.5% 90,982 89,032
60% 60.3% 77,985 78,374
50% 50.0% 64,987 64,968
40% 39.6% 51,990 51,467
30% 30.2% 38,992 39,209
20% 19.8% 25,995 25,771
10% 9.8% 12,997 12,766
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,377
Calibration 2     129,129
Calibration 3     129,018
ssj_ops@calibrated=129,073
100% 100.2% 129,073 129,329
90% 89.1% 116,166 114,977
80% 79.3% 103,259 102,333
70% 68.4% 90,351 88,272
60% 60.2% 77,444 77,699
50% 50.1% 64,537 64,643
40% 39.4% 51,629 50,867
30% 30.3% 38,722 39,164
20% 20.5% 25,815 26,443
10% 9.6% 12,907 12,431
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     128,525
Calibration 2     128,754
Calibration 3     129,040
ssj_ops@calibrated=128,897
100% 99.9% 128,897 128,832
90% 89.2% 116,008 115,006
80% 79.6% 103,118 102,666
70% 68.2% 90,228 87,844
60% 59.8% 77,338 77,120
50% 50.3% 64,449 64,887
40% 40.5% 51,559 52,173
30% 30.1% 38,669 38,830
20% 20.0% 25,779 25,731
10% 10.3% 12,890 13,220
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,869
Calibration 2     123,743
Calibration 3     124,092
ssj_ops@calibrated=123,918
100% 100.1% 123,918 124,019
90% 89.6% 111,526 110,969
80% 79.8% 99,134 98,882
70% 68.6% 86,742 84,969
60% 59.2% 74,351 73,321
50% 51.2% 61,959 63,491
40% 39.6% 49,567 49,108
30% 29.9% 37,175 37,057
20% 20.2% 24,784 25,051
10% 9.9% 12,392 12,299
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,694
Calibration 2     129,714
Calibration 3     129,774
ssj_ops@calibrated=129,744
100% 100.3% 129,744 130,129
90% 89.3% 116,770 115,811
80% 79.5% 103,795 103,138
70% 68.0% 90,821 88,287
60% 59.3% 77,846 76,987
50% 49.3% 64,872 63,948
40% 39.8% 51,898 51,703
30% 30.0% 38,923 38,960
20% 20.3% 25,949 26,286
10% 9.6% 12,974 12,500
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,815
Calibration 2     130,256
Calibration 3     130,661
ssj_ops@calibrated=130,458
100% 100.3% 130,458 130,846
90% 89.4% 117,412 116,566
80% 79.1% 104,367 103,136
70% 68.2% 91,321 89,021
60% 60.3% 78,275 78,629
50% 50.1% 65,229 65,321
40% 39.8% 52,183 51,874
30% 29.5% 39,137 38,524
20% 20.2% 26,092 26,360
10% 10.0% 13,046 13,012
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,250
Calibration 2     123,682
Calibration 3     123,720
ssj_ops@calibrated=123,701
100% 99.9% 123,701 123,634
90% 89.4% 111,331 110,646
80% 79.7% 98,961 98,609
70% 68.4% 86,591 84,633
60% 59.6% 74,220 73,709
50% 49.5% 61,850 61,283
40% 40.1% 49,480 49,617
30% 29.4% 37,110 36,398
20% 20.1% 24,740 24,849
10% 10.2% 12,370 12,567
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,521
Calibration 2     130,173
Calibration 3     130,301
ssj_ops@calibrated=130,237
100% 100.2% 130,237 130,465
90% 89.4% 117,214 116,463
80% 79.3% 104,190 103,251
70% 68.5% 91,166 89,162
60% 60.2% 78,142 78,454
50% 50.1% 65,119 65,244
40% 40.1% 52,095 52,186
30% 29.5% 39,071 38,436
20% 20.0% 26,047 26,015
10% 9.8% 13,024 12,751
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     127,987
Calibration 2     128,680
Calibration 3     128,892
ssj_ops@calibrated=128,786
100% 100.0% 128,786 128,757
90% 89.3% 115,907 114,962
80% 79.5% 103,029 102,370
70% 67.9% 90,150 87,491
60% 60.0% 77,272 77,323
50% 50.3% 64,393 64,790
40% 40.5% 51,514 52,110
30% 29.8% 38,636 38,375
20% 19.3% 25,757 24,822
10% 10.0% 12,879 12,828
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,426
Calibration 2     130,125
Calibration 3     130,445
ssj_ops@calibrated=130,285
100% 100.1% 130,285 130,389
90% 89.3% 117,257 116,330
80% 79.8% 104,228 103,964
70% 68.3% 91,200 89,037
60% 59.8% 78,171 77,911
50% 50.3% 65,143 65,551
40% 39.3% 52,114 51,152
30% 29.6% 39,086 38,566
20% 20.0% 26,057 26,093
10% 9.9% 13,029 12,927
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,931
Calibration 2     130,212
Calibration 3     130,232
ssj_ops@calibrated=130,222
100% 100.2% 130,222 130,474
90% 88.8% 117,200 115,670
80% 79.6% 104,178 103,627
70% 68.2% 91,156 88,811
60% 60.3% 78,133 78,523
50% 49.9% 65,111 64,951
40% 39.8% 52,089 51,799
30% 29.7% 39,067 38,680
20% 20.1% 26,044 26,138
10% 10.4% 13,022 13,524
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,678
Calibration 2     131,068
Calibration 3     131,006
ssj_ops@calibrated=131,037
100% 100.2% 131,037 131,259
90% 89.3% 117,933 117,043
80% 79.5% 104,830 104,236
70% 68.2% 91,726 89,405
60% 59.9% 78,622 78,469
50% 49.1% 65,519 64,360
40% 39.1% 52,415 51,216
30% 29.7% 39,311 38,885
20% 19.5% 26,207 25,496
10% 10.2% 13,104 13,399
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     128,662
Calibration 2     129,214
Calibration 3     129,544
ssj_ops@calibrated=129,379
100% 100.0% 129,379 129,333
90% 89.2% 116,441 115,423
80% 79.5% 103,503 102,900
70% 68.6% 90,565 88,697
60% 60.5% 77,627 78,321
50% 49.6% 64,690 64,157
40% 40.0% 51,752 51,798
30% 30.0% 38,814 38,750
20% 20.1% 25,876 26,034
10% 9.8% 12,938 12,653
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     127,001
Calibration 2     127,041
Calibration 3     126,949
ssj_ops@calibrated=126,995
100% 100.0% 126,995 127,032
90% 89.4% 114,296 113,504
80% 79.7% 101,596 101,228
70% 68.5% 88,897 87,037
60% 60.3% 76,197 76,571
50% 50.1% 63,498 63,655
40% 40.0% 50,798 50,859
30% 29.7% 38,099 37,696
20% 19.2% 25,399 24,435
10% 9.9% 12,700 12,604
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,093
Calibration 2     129,928
Calibration 3     129,954
ssj_ops@calibrated=129,941
100% 100.1% 129,941 130,086
90% 89.3% 116,947 116,058
80% 79.3% 103,953 103,059
70% 68.2% 90,959 88,606
60% 59.9% 77,965 77,828
50% 49.7% 64,970 64,574
40% 39.9% 51,976 51,785
30% 29.8% 38,982 38,720
20% 20.0% 25,988 25,932
10% 10.2% 12,994 13,305
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,538
Calibration 2     130,664
Calibration 3     130,560
ssj_ops@calibrated=130,612
100% 100.0% 130,612 130,615
90% 89.3% 117,551 116,601
80% 79.4% 104,490 103,656
70% 68.2% 91,428 89,055
60% 59.1% 78,367 77,249
50% 49.9% 65,306 65,177
40% 39.6% 52,245 51,758
30% 30.3% 39,184 39,567
20% 20.2% 26,122 26,340
10% 10.0% 13,061 13,025
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     128,349
Calibration 2     129,201
Calibration 3     129,203
ssj_ops@calibrated=129,202
100% 100.2% 129,202 129,447
90% 89.5% 116,282 115,667
80% 79.7% 103,361 102,946
70% 68.0% 90,441 87,872
60% 60.3% 77,521 77,889
50% 49.4% 64,601 63,800
40% 39.8% 51,681 51,448
30% 30.1% 38,761 38,891
20% 19.4% 25,840 25,017
10% 9.9% 12,920 12,824
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,068
Calibration 2     124,259
Calibration 3     124,269
ssj_ops@calibrated=124,264
100% 100.2% 124,264 124,514
90% 89.4% 111,838 111,123
80% 79.8% 99,411 99,198
70% 68.3% 86,985 84,894
60% 59.5% 74,559 73,883
50% 49.4% 62,132 61,434
40% 40.5% 49,706 50,305
30% 29.6% 37,279 36,820
20% 20.0% 24,853 24,903
10% 10.2% 12,426 12,663
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,670
Calibration 2     131,531
Calibration 3     131,942
ssj_ops@calibrated=131,737
100% 99.3% 131,737 130,827
90% 89.1% 118,563 117,337
80% 79.6% 105,389 104,919
70% 68.3% 92,216 89,974
60% 60.0% 79,042 79,070
50% 50.0% 65,868 65,911
40% 39.8% 52,695 52,394
30% 29.8% 39,521 39,243
20% 20.3% 26,347 26,727
10% 9.7% 13,174 12,771
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     128,280
Calibration 2     128,857
Calibration 3     128,819
ssj_ops@calibrated=128,838
100% 100.0% 128,838 128,807
90% 89.4% 115,954 115,118
80% 79.4% 103,070 102,261
70% 68.2% 90,187 87,810
60% 59.3% 77,303 76,387
50% 49.3% 64,419 63,461
40% 39.8% 51,535 51,251
30% 30.2% 38,651 38,905
20% 19.9% 25,768 25,599
10% 10.2% 12,884 13,141
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     127,839
Calibration 2     128,708
Calibration 3     128,887
ssj_ops@calibrated=128,797
100% 100.2% 128,797 129,046
90% 89.6% 115,918 115,350
80% 79.1% 103,038 101,917
70% 68.5% 90,158 88,245
60% 60.3% 77,278 77,669
50% 50.2% 64,399 64,630
40% 39.3% 51,519 50,596
30% 30.0% 38,639 38,650
20% 20.3% 25,759 26,200
10% 10.3% 12,880 13,221
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,688
Calibration 2     129,042
Calibration 3     129,308
ssj_ops@calibrated=129,175
100% 100.3% 129,175 129,509
90% 89.2% 116,258 115,216
80% 79.4% 103,340 102,509
70% 68.1% 90,423 87,998
60% 59.9% 77,505 77,398
50% 50.6% 64,588 65,362
40% 40.1% 51,670 51,799
30% 30.7% 38,753 39,653
20% 19.7% 25,835 25,499
10% 10.3% 12,918 13,328
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,593
Calibration 2     128,486
Calibration 3     128,856
ssj_ops@calibrated=128,671
100% 100.2% 128,671 128,867
90% 89.6% 115,804 115,273
80% 78.4% 102,937 100,833
70% 68.6% 90,070 88,218
60% 60.2% 77,203 77,430
50% 50.1% 64,336 64,410
40% 39.9% 51,468 51,311
30% 29.6% 38,601 38,105
20% 20.2% 25,734 25,974
10% 10.0% 12,867 12,817
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,501
Calibration 2     131,557
Calibration 3     131,876
ssj_ops@calibrated=131,716
100% 100.3% 131,716 132,146
90% 89.6% 118,545 117,985
80% 79.8% 105,373 105,080
70% 68.1% 92,201 89,708
60% 59.6% 79,030 78,518
50% 50.0% 65,858 65,898
40% 40.8% 52,687 53,758
30% 30.3% 39,515 39,881
20% 20.1% 26,343 26,479
10% 10.3% 13,172 13,525
Active Idle   0 0

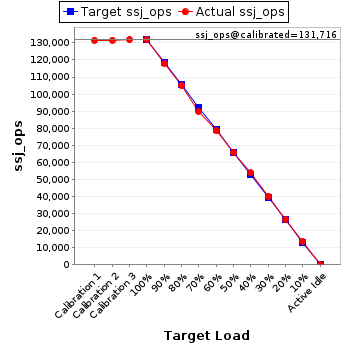

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,382
Calibration 2     126,670
Calibration 3     126,980
ssj_ops@calibrated=126,825
100% 100.3% 126,825 127,193
90% 89.6% 114,143 113,594
80% 79.9% 101,460 101,348
70% 68.5% 88,778 86,858
60% 60.6% 76,095 76,838
50% 50.3% 63,413 63,772
40% 40.5% 50,730 51,303
30% 29.8% 38,048 37,781
20% 19.5% 25,365 24,743
10% 9.7% 12,683 12,365
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,949
Calibration 2     129,220
Calibration 3     129,689
ssj_ops@calibrated=129,455
100% 100.0% 129,455 129,416
90% 89.3% 116,509 115,571
80% 79.8% 103,564 103,250
70% 68.4% 90,618 88,503
60% 58.7% 77,673 75,929
50% 49.5% 64,727 64,133
40% 40.2% 51,782 52,053
30% 30.0% 38,836 38,803
20% 20.1% 25,891 26,063
10% 10.2% 12,945 13,179
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,041
Calibration 2     132,023
Calibration 3     131,967
ssj_ops@calibrated=131,995
100% 100.1% 131,995 132,067
90% 89.3% 118,795 117,848
80% 79.6% 105,596 105,091
70% 68.1% 92,396 89,839
60% 60.1% 79,197 79,389
50% 49.1% 65,997 64,873
40% 39.9% 52,798 52,725
30% 29.9% 39,598 39,497
20% 19.9% 26,399 26,284
10% 9.9% 13,199 13,114
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,551
Calibration 2     131,705
Calibration 3     132,285
ssj_ops@calibrated=131,995
100% 100.1% 131,995 132,155
90% 89.5% 118,796 118,122
80% 79.8% 105,596 105,386
70% 68.2% 92,397 90,024
60% 60.8% 79,197 80,314
50% 50.1% 65,998 66,113
40% 40.1% 52,798 52,889
30% 30.2% 39,599 39,808
20% 20.1% 26,399 26,587
10% 9.9% 13,200 13,129
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,297
Calibration 2     131,134
Calibration 3     131,248
ssj_ops@calibrated=131,191
100% 99.7% 131,191 130,735
90% 89.1% 118,072 116,931
80% 79.7% 104,953 104,599
70% 68.1% 91,834 89,362
60% 60.3% 78,715 79,128
50% 50.1% 65,596 65,693
40% 40.4% 52,477 53,015
30% 30.1% 39,357 39,433
20% 20.2% 26,238 26,518
10% 9.8% 13,119 12,899
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     128,079
Calibration 2     127,770
Calibration 3     128,172
ssj_ops@calibrated=127,971
100% 100.0% 127,971 128,008
90% 89.4% 115,174 114,452
80% 79.2% 102,377 101,378
70% 68.3% 89,580 87,391
60% 60.6% 76,783 77,599
50% 50.1% 63,985 64,080
40% 40.3% 51,188 51,582
30% 30.2% 38,391 38,635
20% 20.2% 25,594 25,791
10% 9.7% 12,797 12,470
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,840
Calibration 2     125,248
Calibration 3     125,453
ssj_ops@calibrated=125,350
100% 100.0% 125,350 125,311
90% 89.1% 112,815 111,738
80% 79.5% 100,280 99,629
70% 68.5% 87,745 85,890
60% 59.1% 75,210 74,140
50% 50.2% 62,675 62,918
40% 39.4% 50,140 49,377
30% 29.8% 37,605 37,336
20% 19.7% 25,070 24,680
10% 9.9% 12,535 12,432
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,801
Calibration 2     131,419
Calibration 3     132,225
ssj_ops@calibrated=131,822
100% 99.8% 131,822 131,576
90% 89.3% 118,640 117,666
80% 79.6% 105,458 104,952
70% 68.3% 92,275 89,994
60% 59.7% 79,093 78,640
50% 49.5% 65,911 65,243
40% 39.7% 52,729 52,310
30% 29.9% 39,547 39,419
20% 20.3% 26,364 26,700
10% 9.8% 13,182 12,972
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     127,477
Calibration 2     128,176
Calibration 3     128,657
ssj_ops@calibrated=128,416
100% 100.2% 128,416 128,727
90% 89.3% 115,575 114,719
80% 79.1% 102,733 101,559
70% 67.9% 89,891 87,159
60% 60.6% 77,050 77,803
50% 50.2% 64,208 64,501
40% 39.6% 51,367 50,858
30% 29.6% 38,525 38,021
20% 19.9% 25,683 25,574
10% 9.9% 12,842 12,683
Active Idle   0 0

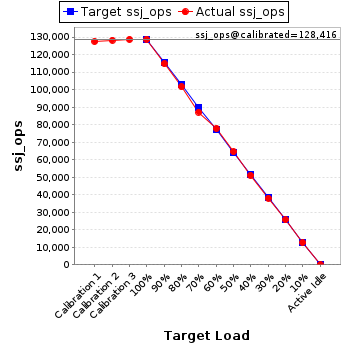

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     127,361
Calibration 2     127,228
Calibration 3     127,761
ssj_ops@calibrated=127,495
100% 100.3% 127,495 127,843
90% 89.4% 114,745 113,954
80% 79.0% 101,996 100,696
70% 68.6% 89,246 87,401
60% 59.7% 76,497 76,082
50% 50.0% 63,747 63,693
40% 39.8% 50,998 50,704
30% 29.9% 38,248 38,135
20% 19.8% 25,499 25,231
10% 9.9% 12,749 12,624
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,154
Calibration 2     130,554
Calibration 3     130,836
ssj_ops@calibrated=130,695
100% 99.9% 130,695 130,591
90% 89.1% 117,626 116,485
80% 79.4% 104,556 103,811
70% 68.0% 91,487 88,815
60% 59.9% 78,417 78,324
50% 49.5% 65,348 64,685
40% 39.7% 52,278 51,917
30% 30.3% 39,209 39,572
20% 20.1% 26,139 26,300
10% 9.7% 13,070 12,690
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,300
Calibration 2     129,350
Calibration 3     129,544
ssj_ops@calibrated=129,447
100% 100.2% 129,447 129,660
90% 89.4% 116,503 115,661
80% 79.6% 103,558 102,986
70% 68.2% 90,613 88,324
60% 59.8% 77,668 77,348
50% 49.4% 64,724 64,008
40% 40.7% 51,779 52,622
30% 30.6% 38,834 39,553
20% 20.2% 25,889 26,188
10% 9.9% 12,945 12,774
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     128,583
Calibration 2     128,357
Calibration 3     128,722
ssj_ops@calibrated=128,540
100% 99.9% 128,540 128,356
90% 89.6% 115,686 115,114
80% 79.7% 102,832 102,487
70% 68.5% 89,978 88,065
60% 60.2% 77,124 77,374
50% 49.6% 64,270 63,788
40% 39.2% 51,416 50,396
30% 30.3% 38,562 38,957
20% 19.6% 25,708 25,203
10% 9.7% 12,854 12,516
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,681
Calibration 2     130,061
Calibration 3     130,664
ssj_ops@calibrated=130,362
100% 100.0% 130,362 130,382
90% 89.5% 117,326 116,618
80% 79.7% 104,290 103,840
70% 68.3% 91,254 89,094
60% 60.6% 78,217 78,991
50% 49.4% 65,181 64,462
40% 40.3% 52,145 52,531
30% 29.9% 39,109 38,919
20% 19.9% 26,072 25,946
10% 9.7% 13,036 12,690
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,580
Calibration 2     132,097
Calibration 3     132,243
ssj_ops@calibrated=132,170
100% 100.2% 132,170 132,391
90% 89.1% 118,953 117,774
80% 79.4% 105,736 105,007
70% 68.0% 92,519 89,915
60% 60.2% 79,302 79,629
50% 50.1% 66,085 66,180
40% 39.6% 52,868 52,379
30% 29.8% 39,651 39,411
20% 20.0% 26,434 26,389
10% 9.9% 13,217 13,135
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,479
Calibration 2     127,106
Calibration 3     127,718
ssj_ops@calibrated=127,412
100% 100.1% 127,412 127,588
90% 89.4% 114,671 113,905
80% 79.3% 101,929 101,049
70% 68.6% 89,188 87,372
60% 59.5% 76,447 75,855
50% 50.0% 63,706 63,756
40% 39.6% 50,965 50,418
30% 29.6% 38,224 37,701
20% 19.9% 25,482 25,312
10% 10.2% 12,741 12,982
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,159
Calibration 2     128,874
Calibration 3     129,151
ssj_ops@calibrated=129,012
100% 100.3% 129,012 129,356
90% 89.2% 116,111 115,066
80% 79.7% 103,210 102,790
70% 68.1% 90,309 87,920
60% 59.9% 77,407 77,327
50% 50.1% 64,506 64,613
40% 39.8% 51,605 51,369
30% 29.6% 38,704 38,223
20% 20.4% 25,802 26,255
10% 9.8% 12,901 12,608
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,825
Calibration 2     130,337
Calibration 3     130,629
ssj_ops@calibrated=130,483
100% 100.1% 130,483 130,597
90% 89.2% 117,435 116,379
80% 79.2% 104,387 103,310
70% 68.1% 91,338 88,872
60% 60.6% 78,290 79,120
50% 49.0% 65,242 63,937
40% 39.9% 52,193 52,081
30% 30.4% 39,145 39,654
20% 20.1% 26,097 26,246
10% 9.8% 13,048 12,737
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,015
Calibration 2     131,457
Calibration 3     131,956
ssj_ops@calibrated=131,706
100% 100.1% 131,706 131,895
90% 89.4% 118,536 117,774
80% 79.4% 105,365 104,624
70% 68.2% 92,195 89,786
60% 60.2% 79,024 79,276
50% 50.1% 65,853 65,966
40% 39.6% 52,683 52,132
30% 30.1% 39,512 39,591
20% 20.6% 26,341 27,089
10% 10.1% 13,171 13,314
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     127,440
Calibration 2     127,756
Calibration 3     127,615
ssj_ops@calibrated=127,685
100% 100.0% 127,685 127,649
90% 89.3% 114,917 114,033
80% 79.8% 102,148 101,851
70% 68.4% 89,380 87,281
60% 60.2% 76,611 76,862
50% 49.6% 63,843 63,316
40% 39.8% 51,074 50,783
30% 29.9% 38,306 38,132
20% 20.0% 25,537 25,580
10% 10.1% 12,769 12,868
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,730
Calibration 2     128,951
Calibration 3     127,526
ssj_ops@calibrated=128,238
100% 100.7% 128,238 129,074
90% 89.8% 115,415 115,167
80% 80.2% 102,591 102,862
70% 69.4% 89,767 88,946
60% 60.0% 76,943 76,974
50% 50.0% 64,119 64,059
40% 40.2% 51,295 51,533
30% 30.0% 38,472 38,534
20% 20.2% 25,648 25,961
10% 9.6% 12,824 12,271
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0J11F81K5.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,951
Calibration 2     126,532
Calibration 3     126,820
ssj_ops@calibrated=126,676
100% 100.1% 126,676 126,865
90% 89.3% 114,008 113,104
80% 79.5% 101,341 100,711
70% 68.3% 88,673 86,539
60% 60.1% 76,006 76,078
50% 50.2% 63,338 63,556
40% 40.1% 50,670 50,856
30% 29.5% 38,003 37,401
20% 19.9% 25,335 25,154
10% 9.8% 12,668 12,433
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
