Supermicro SuperServer SYS-F521E3-RTB SPECpower_ssj2008 = 13,205 overall ssj_ops/watt
Test Sponsor: Supermicro SPEC License #: 1176 Test Method: Multi Node
Tested By: Supermicro Test Location: Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) Test Date: May 1, 2023
Hardware Availability: Jan-2023 Software Availability: Apr-2023 Publication: May 24, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 100.1% 14,364,942 976 14,722
90% 89.8% 12,886,456 820 15,718
80% 79.8% 11,456,181 710 16,124
70% 69.1% 9,923,745 616 16,099
60% 60.0% 8,614,621 573 15,046
50% 50.0% 7,176,761 514 13,967
40% 40.0% 5,740,539 458 12,543
30% 29.9% 4,299,236 413 10,403
20% 20.0% 2,872,845 370 7,768
10% 10.0% 1,431,916 324 4,414
Active Idle 0 191 0
∑ssj_ops / ∑power = 13,205

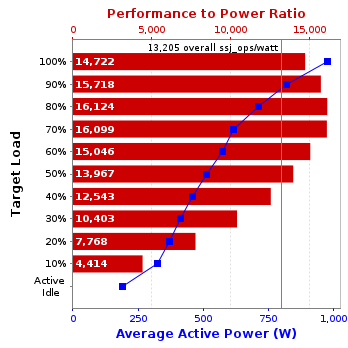

Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
2 2 112 224 512 2 112
System Under Test
Shared Hardware
Shared Hardware
Enclosure: CSE-F424AS4-R2K08BP
Form Factor: 4U
Power Supply Quantity and Rating (W): 1 x 2000
Power Supply Details: SUPERMICRO,PWS-2K08A-1R
Network Switch: NETGEAR GS324 Gigabit Switch
Network Switch Details: 24 Port 1Gb Ethernet Switch
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: None
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: None
Hardware per Node
Hardware Vendor: Supermicro
Model: SuperServer SYS-F521E3-RTB
Form Factor: Blade
CPU Name: Intel(R) Xeon(R) 8480+,2.00GHz
CPU Characteristics: 56 Core, 2.0GHz, 105 MB cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 56 cores, 1 chip, 56 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 105 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 8 x 32 GB
Memory Details: 32GB 2Rx4 DDR5-4800; CPU1 A1,B1,C1,D1,E1,F1,G1,H1 populated.
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1x480GB M.2 NVMe GEN4 Micron,MTFDKBA480TFR-1BC1ZABYY
Disk Controller: onboard SCU controller
# and type of Network Interface Cards (NICs) Installed: 1 x Quad Intel I350 Gigabit Ethernet controller, AOC-AG-i4M
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power Saver (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2019 Datacenter
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.4+10-LTS, mixed mode)
JVM Command-line Options: -server-Xms1995m -Xmx1995m -Xmn1825m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:BiasedLockingStartupDelay=30000 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE [0,1] /AFFINITY [0x3, 0xc, 0x30, 0xc0, 0x300, 0xc00, 0x3000, 0xc000, 0x3000, 0xc0000, 0x30000, 0xc00000, 0x300000, 0xc000000]
JVM Instances: 56
JVM Initial Heap (MB): 1995
JVM Maximum Heap (MB): 1995
JVM Address Bits: 64
Boot Firmware Version: 1.1
Management Firmware Version: 01.00.31
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5022782
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Supermicro
Model: X11DPG
CPU Description: Intel(R) Xeon(R) Gold 6142 2.60G
Memory amount (GB): 96
Software
Operating System (OS): Microsoft Windows Server 2019 Datacenter
JVM Vendor: Oracle Corporation
JVM Version: Jave(TM) SE Runtime Environment (build 1.7.0_80-b15) Java HotSpot(TM) 64-Bit Server VM(build 24.80-b11)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation.
Model: WT310
Serial Number: C3RF27027E
Connectivity: GPIB
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory)
Accredited by: Omnio Calibration Lab. Co., Ltd.
Calibration Label: OCL-230203F01008
Date of Calibration: 03-Feb-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10 mm in front of SUT main air intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 976 26.0
90% 820 26.2
80% 710 26.2
70% 616 25.1
60% 573 24.9
50% 514 25.0
40% 458 25.2
30% 413 25.2
20% 370 25.2
10% 324 25.2
Active Idle 191 25.1
Line Standard Minimum Temperature (°C) Elevation (m)
230V / 50 Hz / 1 phase / 2 wires 24.9 10
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     14,312,804
Calibration 2     14,346,638
Calibration 3     14,367,615
ssj_ops@calibrated=14,357,127
100% 100.1% 14,357,127 14,364,942
90% 89.8% 12,921,414 12,886,456
80% 79.8% 11,485,701 11,456,181
70% 69.1% 10,049,989 9,923,745
60% 60.0% 8,614,276 8,614,621
50% 50.0% 7,178,563 7,176,761
40% 40.0% 5,742,851 5,740,539
30% 29.9% 4,307,138 4,299,236
20% 20.0% 2,871,425 2,872,845
10% 10.0% 1,435,713 1,431,916
Active Idle   0 0
Graph of results
