SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| New H3C Technologies Co., Ltd. H3C UniServer R4900 G6 | SPECpower_ssj2008 = 16,902 overall ssj_ops/watt | ||||
| Test Sponsor: | New H3C Technologies Co., Ltd. | SPEC License #: | 9066 | Test Method: | Single Node |
| Tested By: | New H3C Technologies Co., Ltd. | Test Location: | Hangzhou, Zhejiang, China | Test Date: | Apr 24, 2023 |
| Hardware Availability: | Mar-2023 | Software Availability: | Jan-2023 | Publication: | May 24, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

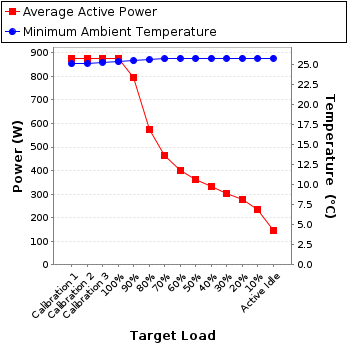

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 877 | 25.1 |
| Calibration 2 | 877 | 25.2 |
| Calibration 3 | 877 | 25.3 |
| 100% | 877 | 25.4 |
| 90% | 796 | 25.5 |
| 80% | 574 | 25.6 |
| 70% | 463 | 25.8 |
| 60% | 401 | 25.8 |
| 50% | 363 | 25.8 |
| 40% | 331 | 25.8 |
| 30% | 303 | 25.8 |
| 20% | 275 | 25.8 |
| 10% | 235 | 25.8 |
| Active Idle | 145 | 25.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | CHROMA |
| Model: | 66203 |
| Serial Number: | 662030000500 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Metrology Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
| Accredited by: | CEPREI Calibration and Testing Center |
| Calibration Label: | B210202003 |
| Date of Calibration: | 23-Nov-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to PSU |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | DIGI. |
| Model: | Watchport/H |
| Driver Version: | 6.2.1.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Placed in front the main airflow inlet of the SUT less than 50mm |

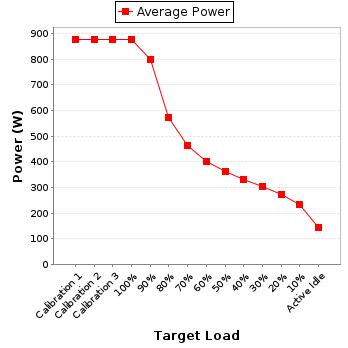

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 233 | 300.0 | 3.78 | 5.0 | 0.997 | 877 | 0.3% |
| Calibration 2 | 233 | 300.0 | 3.78 | 5.0 | 0.997 | 877 | 0.3% |
| Calibration 3 | 232 | 300.0 | 3.79 | 5.0 | 0.997 | 877 | 0.3% |
| 100% | 232 | 300.0 | 3.80 | 5.0 | 0.997 | 877 | 0.3% |
| 90% | 232 | 300.0 | 3.45 | 5.0 | 0.996 | 796 | 0.3% |
| 80% | 232 | 300.0 | 2.51 | 5.0 | 0.994 | 574 | 0.4% |
| 70% | 232 | 300.0 | 2.01 | 5.0 | 0.993 | 463 | 0.4% |
| 60% | 233 | 300.0 | 1.73 | 2.0 | 0.992 | 401 | 0.2% |
| 50% | 233 | 300.0 | 1.57 | 2.0 | 0.990 | 363 | 0.3% |
| 40% | 234 | 300.0 | 1.43 | 2.0 | 0.989 | 331 | 0.3% |
| 30% | 235 | 300.0 | 1.31 | 2.0 | 0.988 | 303 | 0.3% |
| 20% | 235 | 300.0 | 1.19 | 2.0 | 0.986 | 275 | 0.3% |
| 10% | 236 | 300.0 | 1.02 | 2.0 | 0.980 | 235 | 0.4% |
| Active Idle | 236 | 300.0 | 0.646 | 2.0 | 0.953 | 145 | 0.5% |
