Fujitsu FUJITSU Server PRIMERGY CX2560 M7 ssj_ops@100% = 8,305,550
ssj_ops@100% per JVM = 129,774
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Multi Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Apr 12, 2023
Hardware Availability: May-2023 Software Availability: Aug-2022 Publication: Apr 27, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     8,309,494
Calibration 2     8,305,439
Calibration 3     8,315,036
ssj_ops@calibrated=8,310,238
100% 99.9% 8,310,238 8,305,550
90% 90.1% 7,479,214 7,485,060
80% 80.1% 6,648,190 6,654,290
70% 69.9% 5,817,167 5,810,714
60% 60.1% 4,986,143 4,992,708
50% 50.0% 4,155,119 4,157,504
40% 40.0% 3,324,095 3,321,201
30% 30.0% 2,493,071 2,493,415
20% 20.0% 1,662,048 1,665,889
10% 10.0% 831,024 830,391
Active Idle   0 0
Graph of results
System Under Test
Set: 'CX2560M7'
Set Identifier: CX2560M7
Set Description: System Under Test
# of Identical Nodes: 4
Comment: Multi Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY CX2560 M7
Form Factor: Blade
CPU Name: Intel Xeon Gold 6428N
CPU Characteristics: 32-Core, 1.8GHz, 60MB L3 Cache
CPU Frequency (MHz): 1800
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16 GB 1Rx8 PC5-4800B; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M, 1N, 1P, 1Q, 1R populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x SSD M.2 240GB, S26361-F5787-E240
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel I210 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver
Operating System (OS): Windows Server 2022 Standard
OS Version: Version 21H2, OS build 20348.169
Filesystem: ntfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.16.1+1-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1500m -Xms1625m -Xmx1625m -XX:+UseLargePages -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:-UseAdaptiveSizePolicy -XX:+UseParallelOldGC -XX:FreqInlineSize=2500 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:-ThreadLocalHandshakes -XX:UseAVX=0
JVM Affinity: start /NODE [0,1,2,3] /AFFINTY 0x3,0xC,0x30,0xC0,0xC000,0x30000,0xC0000,0x30000000,0xC0000000
JVM Instances: 64
JVM Initial Heap (MB): 1625
JVM Maximum Heap (MB): 1625
JVM Address Bits: 64
Boot Firmware Version: R1.10.0
Management Firmware Version: 2.21S
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
CX2560M7-Node2.001 131,263
CX2560M7-Node2.002 129,102
CX2560M7-Node2.003 128,858
CX2560M7-Node2.004 130,001
CX2560M7-Node2.005 128,493
CX2560M7-Node2.006 129,847
CX2560M7-Node2.007 131,356
CX2560M7-Node2.008 130,425
CX2560M7-Node2.009 130,510
CX2560M7-Node2.010 129,596
CX2560M7-Node2.011 130,023
CX2560M7-Node2.012 129,755
CX2560M7-Node2.013 130,888
CX2560M7-Node2.014 130,733
CX2560M7-Node2.015 128,964
CX2560M7-Node2.016 129,330
CX2560M7-Node2.017 127,969
CX2560M7-Node2.018 128,461
CX2560M7-Node2.019 130,615
CX2560M7-Node2.020 130,245
CX2560M7-Node2.021 128,329
CX2560M7-Node2.022 129,883
CX2560M7-Node2.023 131,697
CX2560M7-Node2.024 132,780
CX2560M7-Node2.025 131,549
CX2560M7-Node2.026 129,646
CX2560M7-Node2.027 129,984
CX2560M7-Node2.028 131,049
CX2560M7-Node2.029 129,621
CX2560M7-Node2.030 131,190
CX2560M7-Node2.031 129,270
CX2560M7-Node2.032 130,297
CX2560M7-Node2.033 129,274
CX2560M7-Node2.034 128,585
CX2560M7-Node2.035 129,309
CX2560M7-Node2.036 128,992
CX2560M7-Node2.037 130,918
CX2560M7-Node2.038 129,949
CX2560M7-Node2.039 130,562
CX2560M7-Node2.040 129,570
CX2560M7-Node2.041 128,864
CX2560M7-Node2.042 123,845
CX2560M7-Node2.043 130,640
CX2560M7-Node2.044 130,506
CX2560M7-Node2.045 129,351
CX2560M7-Node2.046 129,521
CX2560M7-Node2.047 131,432
CX2560M7-Node2.048 128,772
CX2560M7-Node2.049 128,682
CX2560M7-Node2.050 126,129
CX2560M7-Node2.051 129,037
CX2560M7-Node2.052 129,216
CX2560M7-Node2.053 128,709
CX2560M7-Node2.054 130,446
CX2560M7-Node2.055 130,340
CX2560M7-Node2.056 129,946
CX2560M7-Node2.057 132,124
CX2560M7-Node2.058 130,030
CX2560M7-Node2.059 131,051
CX2560M7-Node2.060 129,893
CX2560M7-Node2.061 129,050
CX2560M7-Node2.062 129,427
CX2560M7-Node2.063 130,809
CX2560M7-Node2.064 128,841
ssj_ops@100% 8,305,550
ssj_ops@100% per JVM 129,774

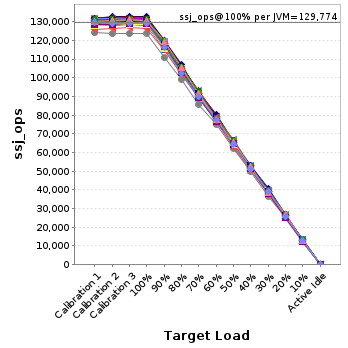

Graph of per-instance results
JVM 'CX2560M7-Node2.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,490
Calibration 2     131,249
Calibration 3     131,583
ssj_ops@calibrated=131,416
100% 99.9% 131,416 131,263
90% 90.1% 118,274 118,377
80% 78.9% 105,133 103,647
70% 69.8% 91,991 91,694
60% 60.2% 78,850 79,085
50% 50.2% 65,708 65,981
40% 39.6% 52,566 51,988
30% 30.0% 39,425 39,394
20% 19.8% 26,283 26,069
10% 10.2% 13,142 13,431
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     128,639
Calibration 2     128,984
Calibration 3     128,894
ssj_ops@calibrated=128,939
100% 100.1% 128,939 129,102
90% 89.7% 116,045 115,614
80% 79.8% 103,151 102,950
70% 70.2% 90,257 90,499
60% 58.8% 77,363 75,800
50% 49.8% 64,470 64,191
40% 39.4% 51,576 50,767
30% 30.6% 38,682 39,486
20% 20.1% 25,788 25,978
10% 10.1% 12,894 13,082
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,641
Calibration 2     128,374
Calibration 3     128,817
ssj_ops@calibrated=128,596
100% 100.2% 128,596 128,858
90% 89.7% 115,736 115,345
80% 80.5% 102,876 103,560
70% 69.2% 90,017 88,966
60% 60.2% 77,157 77,396
50% 49.4% 64,298 63,564
40% 40.1% 51,438 51,546
30% 29.7% 38,579 38,228
20% 20.2% 25,719 26,040
10% 9.9% 12,860 12,695
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,563
Calibration 2     130,184
Calibration 3     130,096
ssj_ops@calibrated=130,140
100% 99.9% 130,140 130,001
90% 89.5% 117,126 116,535
80% 79.8% 104,112 103,850
70% 70.4% 91,098 91,583
60% 60.7% 78,084 79,016
50% 49.9% 65,070 64,973
40% 39.8% 52,056 51,786
30% 30.0% 39,042 39,040
20% 20.4% 26,028 26,535
10% 10.2% 13,014 13,221
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,145
Calibration 2     128,607
Calibration 3     128,601
ssj_ops@calibrated=128,604
100% 99.9% 128,604 128,493
90% 89.8% 115,743 115,475
80% 80.1% 102,883 102,959
70% 69.8% 90,023 89,711
60% 60.1% 77,162 77,280
50% 49.1% 64,302 63,173
40% 40.0% 51,442 51,426
30% 30.2% 38,581 38,799
20% 19.9% 25,721 25,648
10% 9.9% 12,860 12,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

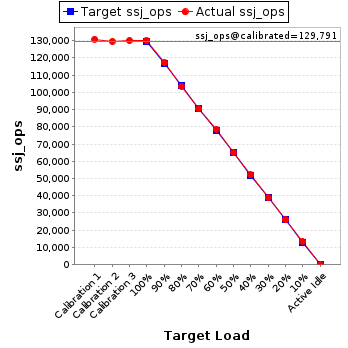

JVM 'CX2560M7-Node2.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,822
Calibration 2     129,566
Calibration 3     130,017
ssj_ops@calibrated=129,791
100% 100.0% 129,791 129,847
90% 90.4% 116,812 117,267
80% 79.8% 103,833 103,571
70% 69.7% 90,854 90,415
60% 60.6% 77,875 78,645
50% 50.0% 64,896 64,944
40% 40.1% 51,916 52,059
30% 29.8% 38,937 38,730
20% 20.0% 25,958 25,927
10% 10.4% 12,979 13,452
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,310
Calibration 2     132,256
Calibration 3     132,225
ssj_ops@calibrated=132,241
100% 99.3% 132,241 131,356
90% 89.9% 119,017 118,832
80% 80.0% 105,793 105,779
70% 70.0% 92,568 92,598
60% 59.5% 79,344 78,623
50% 50.0% 66,120 66,105
40% 39.6% 52,896 52,369
30% 30.0% 39,672 39,657
20% 19.8% 26,448 26,175
10% 10.5% 13,224 13,857
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,845
Calibration 2     130,780
Calibration 3     130,889
ssj_ops@calibrated=130,835
100% 99.7% 130,835 130,425
90% 90.6% 117,751 118,475
80% 80.8% 104,668 105,654
70% 69.8% 91,584 91,324
60% 59.6% 78,501 77,929
50% 50.1% 65,417 65,500
40% 40.1% 52,334 52,413
30% 29.9% 39,250 39,100
20% 19.9% 26,167 26,074
10% 10.3% 13,083 13,428
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,715
Calibration 2     130,465
Calibration 3     130,412
ssj_ops@calibrated=130,438
100% 100.1% 130,438 130,510
90% 90.0% 117,395 117,367
80% 79.1% 104,351 103,199
70% 69.8% 91,307 91,010
60% 59.7% 78,263 77,889
50% 49.8% 65,219 65,012
40% 40.1% 52,175 52,264
30% 29.9% 39,132 39,010
20% 19.7% 26,088 25,750
10% 10.0% 13,044 13,050
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,395
Calibration 2     129,441
Calibration 3     129,668
ssj_ops@calibrated=129,555
100% 100.0% 129,555 129,596
90% 89.8% 116,599 116,284
80% 80.1% 103,644 103,717
70% 69.9% 90,688 90,562
60% 59.8% 77,733 77,526
50% 50.4% 64,777 65,240
40% 39.7% 51,822 51,494
30% 30.4% 38,866 39,426
20% 20.0% 25,911 25,962
10% 9.9% 12,955 12,828
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,167
Calibration 2     130,205
Calibration 3     130,167
ssj_ops@calibrated=130,186
100% 99.9% 130,186 130,023
90% 90.9% 117,167 118,338
80% 79.6% 104,149 103,611
70% 69.8% 91,130 90,823
60% 59.7% 78,111 77,714
50% 50.6% 65,093 65,865
40% 39.5% 52,074 51,371
30% 29.5% 39,056 38,414
20% 20.3% 26,037 26,373
10% 9.8% 13,019 12,725
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,962
Calibration 2     129,835
Calibration 3     129,737
ssj_ops@calibrated=129,786
100% 100.0% 129,786 129,755
90% 90.2% 116,808 117,106
80% 80.1% 103,829 103,998
70% 69.3% 90,850 89,995
60% 60.2% 77,872 78,073
50% 49.4% 64,893 64,104
40% 40.8% 51,914 52,970
30% 30.6% 38,936 39,747
20% 20.2% 25,957 26,239
10% 10.1% 12,979 13,120
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

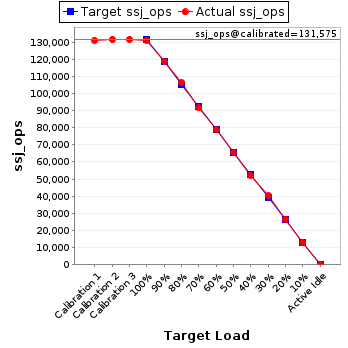

JVM 'CX2560M7-Node2.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,982
Calibration 2     131,510
Calibration 3     131,640
ssj_ops@calibrated=131,575
100% 99.5% 131,575 130,888
90% 90.2% 118,417 118,651
80% 80.7% 105,260 106,217
70% 69.5% 92,102 91,496
60% 59.8% 78,945 78,671
50% 49.7% 65,787 65,437
40% 39.7% 52,630 52,182
30% 30.6% 39,472 40,198
20% 20.1% 26,315 26,483
10% 9.9% 13,157 13,038
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,118
Calibration 2     130,679
Calibration 3     130,788
ssj_ops@calibrated=130,734
100% 100.0% 130,734 130,733
90% 89.6% 117,660 117,202
80% 80.5% 104,587 105,274
70% 69.5% 91,514 90,817
60% 60.5% 78,440 79,117
50% 49.9% 65,367 65,199
40% 40.0% 52,293 52,359
30% 29.9% 39,220 39,071
20% 20.4% 26,147 26,616
10% 10.0% 13,073 13,008
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,786
Calibration 2     128,848
Calibration 3     128,984
ssj_ops@calibrated=128,916
100% 100.0% 128,916 128,964
90% 89.7% 116,024 115,675
80% 78.9% 103,132 101,726
70% 69.9% 90,241 90,078
60% 60.1% 77,349 77,528
50% 49.3% 64,458 63,513
40% 39.5% 51,566 50,924
30% 29.6% 38,675 38,214
20% 20.1% 25,783 25,957
10% 10.1% 12,892 12,968
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     128,767
Calibration 2     129,458
Calibration 3     129,696
ssj_ops@calibrated=129,577
100% 99.8% 129,577 129,330
90% 90.1% 116,619 116,692
80% 79.9% 103,662 103,578
70% 70.2% 90,704 90,932
60% 60.5% 77,746 78,410
50% 50.1% 64,789 64,916
40% 40.5% 51,831 52,475
30% 29.1% 38,873 37,718
20% 20.0% 25,915 25,972
10% 9.9% 12,958 12,837
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     128,632
Calibration 2     128,050
Calibration 3     128,246
ssj_ops@calibrated=128,148
100% 99.9% 128,148 127,969
90% 90.0% 115,333 115,364
80% 79.9% 102,518 102,397
70% 69.8% 89,704 89,456
60% 59.9% 76,889 76,806
50% 49.9% 64,074 63,898
40% 39.6% 51,259 50,799
30% 29.9% 38,444 38,304
20% 20.2% 25,630 25,909
10% 10.1% 12,815 12,884
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     128,696
Calibration 2     128,263
Calibration 3     128,308
ssj_ops@calibrated=128,285
100% 100.1% 128,285 128,461
90% 90.5% 115,457 116,080
80% 80.2% 102,628 102,905
70% 69.9% 89,800 89,621
60% 60.3% 76,971 77,321
50% 50.2% 64,143 64,425
40% 40.2% 51,314 51,586
30% 29.6% 38,486 37,977
20% 20.3% 25,657 26,055
10% 9.9% 12,829 12,641
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,361
Calibration 2     130,590
Calibration 3     130,610
ssj_ops@calibrated=130,600
100% 100.0% 130,600 130,615
90% 90.4% 117,540 118,040
80% 80.7% 104,480 105,414
70% 69.3% 91,420 90,504
60% 60.4% 78,360 78,822
50% 49.8% 65,300 65,017
40% 40.1% 52,240 52,398
30% 30.1% 39,180 39,297
20% 20.1% 26,120 26,222
10% 9.9% 13,060 12,908
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,553
Calibration 2     130,186
Calibration 3     130,398
ssj_ops@calibrated=130,292
100% 100.0% 130,292 130,245
90% 90.0% 117,263 117,314
80% 79.4% 104,234 103,493
70% 70.0% 91,204 91,267
60% 59.6% 78,175 77,616
50% 49.6% 65,146 64,636
40% 39.9% 52,117 51,936
30% 30.0% 39,088 39,039
20% 20.1% 26,058 26,227
10% 10.0% 13,029 12,969
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     127,826
Calibration 2     128,447
Calibration 3     128,646
ssj_ops@calibrated=128,546
100% 99.8% 128,546 128,329
90% 90.6% 115,692 116,454
80% 81.3% 102,837 104,551
70% 70.3% 89,982 90,412
60% 60.0% 77,128 77,175
50% 49.9% 64,273 64,081
40% 39.2% 51,419 50,441
30% 31.0% 38,564 39,896
20% 19.6% 25,709 25,185
10% 10.0% 12,855 12,883
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,894
Calibration 2     129,689
Calibration 3     130,168
ssj_ops@calibrated=129,929
100% 100.0% 129,929 129,883
90% 90.3% 116,936 117,356
80% 80.8% 103,943 104,930
70% 70.6% 90,950 91,681
60% 60.7% 77,957 78,825
50% 49.6% 64,964 64,411
40% 40.3% 51,971 52,406
30% 29.9% 38,979 38,818
20% 20.0% 25,986 25,976
10% 10.2% 12,993 13,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,372
Calibration 2     131,839
Calibration 3     132,002
ssj_ops@calibrated=131,920
100% 99.8% 131,920 131,697
90% 90.8% 118,728 119,811
80% 80.5% 105,536 106,184
70% 70.7% 92,344 93,214
60% 60.4% 79,152 79,644
50% 49.5% 65,960 65,245
40% 39.4% 52,768 51,972
30% 29.7% 39,576 39,120
20% 20.2% 26,384 26,615
10% 9.8% 13,192 12,900
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,743
Calibration 2     132,631
Calibration 3     132,714
ssj_ops@calibrated=132,673
100% 100.1% 132,673 132,780
90% 90.3% 119,405 119,826
80% 80.7% 106,138 107,065
70% 69.5% 92,871 92,174
60% 60.6% 79,604 80,338
50% 49.7% 66,336 65,911
40% 40.0% 53,069 53,092
30% 30.7% 39,802 40,771
20% 20.1% 26,535 26,691
10% 10.1% 13,267 13,448
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,518
Calibration 2     131,538
Calibration 3     131,718
ssj_ops@calibrated=131,628
100% 99.9% 131,628 131,549
90% 90.8% 118,465 119,569
80% 79.5% 105,302 104,645
70% 70.3% 92,140 92,557
60% 60.0% 78,977 79,040
50% 49.8% 65,814 65,591
40% 40.3% 52,651 53,107
30% 29.5% 39,488 38,823
20% 19.9% 26,326 26,251
10% 10.0% 13,163 13,195
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,229
Calibration 2     129,379
Calibration 3     129,702
ssj_ops@calibrated=129,540
100% 100.1% 129,540 129,646
90% 89.4% 116,586 115,778
80% 79.8% 103,632 103,428
70% 69.6% 90,678 90,182
60% 60.0% 77,724 77,783
50% 49.9% 64,770 64,684
40% 39.8% 51,816 51,612
30% 30.0% 38,862 38,853
20% 19.9% 25,908 25,842
10% 9.6% 12,954 12,469
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,976
Calibration 2     130,043
Calibration 3     130,057
ssj_ops@calibrated=130,050
100% 99.9% 130,050 129,984
90% 90.3% 117,045 117,468
80% 80.0% 104,040 103,978
70% 70.9% 91,035 92,166
60% 59.9% 78,030 77,840
50% 50.0% 65,025 64,988
40% 39.9% 52,020 51,831
30% 29.6% 39,015 38,511
20% 19.7% 26,010 25,664
10% 10.1% 13,005 13,175
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,211
Calibration 2     130,941
Calibration 3     130,962
ssj_ops@calibrated=130,952
100% 100.1% 130,952 131,049
90% 90.4% 117,857 118,402
80% 80.1% 104,761 104,869
70% 69.7% 91,666 91,233
60% 60.0% 78,571 78,539
50% 50.1% 65,476 65,558
40% 40.5% 52,381 53,001
30% 29.9% 39,286 39,175
20% 19.8% 26,190 25,891
10% 9.9% 13,095 12,995
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,462
Calibration 2     129,974
Calibration 3     129,930
ssj_ops@calibrated=129,952
100% 99.7% 129,952 129,621
90% 90.2% 116,956 117,171
80% 80.4% 103,961 104,530
70% 70.5% 90,966 91,647
60% 60.1% 77,971 78,148
50% 50.3% 64,976 65,371
40% 40.4% 51,981 52,492
30% 30.1% 38,985 39,105
20% 19.7% 25,990 25,627
10% 9.8% 12,995 12,720
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,822
Calibration 2     131,472
Calibration 3     131,838
ssj_ops@calibrated=131,655
100% 99.6% 131,655 131,190
90% 90.6% 118,490 119,310
80% 79.4% 105,324 104,552
70% 70.7% 92,159 93,118
60% 59.9% 78,993 78,825
50% 50.7% 65,828 66,804
40% 40.4% 52,662 53,133
30% 30.1% 39,497 39,635
20% 20.2% 26,331 26,607
10% 9.8% 13,166 12,953
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,787
Calibration 2     129,373
Calibration 3     129,520
ssj_ops@calibrated=129,446
100% 99.9% 129,446 129,270
90% 89.6% 116,502 115,947
80% 80.0% 103,557 103,547
70% 70.4% 90,612 91,066
60% 60.1% 77,668 77,773
50% 50.1% 64,723 64,806
40% 39.9% 51,778 51,613
30% 29.6% 38,834 38,368
20% 20.3% 25,889 26,275
10% 10.0% 12,945 12,949
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,829
Calibration 2     130,088
Calibration 3     130,424
ssj_ops@calibrated=130,256
100% 100.0% 130,256 130,297
90% 89.2% 117,230 116,218
80% 80.0% 104,205 104,220
70% 69.6% 91,179 90,697
60% 59.9% 78,154 78,078
50% 50.5% 65,128 65,800
40% 40.3% 52,102 52,515
30% 30.0% 39,077 39,098
20% 20.2% 26,051 26,273
10% 10.0% 13,026 13,041
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,774
Calibration 2     129,448
Calibration 3     129,384
ssj_ops@calibrated=129,416
100% 99.9% 129,416 129,274
90% 90.0% 116,474 116,533
80% 79.5% 103,533 102,928
70% 70.1% 90,591 90,692
60% 60.2% 77,649 77,948
50% 49.6% 64,708 64,208
40% 40.4% 51,766 52,348
30% 29.5% 38,825 38,237
20% 20.2% 25,883 26,191
10% 9.9% 12,942 12,837
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     128,805
Calibration 2     128,278
Calibration 3     128,552
ssj_ops@calibrated=128,415
100% 100.1% 128,415 128,585
90% 90.5% 115,573 116,199
80% 79.6% 102,732 102,239
70% 69.2% 89,890 88,848
60% 60.5% 77,049 77,666
50% 49.6% 64,207 63,709
40% 40.3% 51,366 51,803
30% 29.9% 38,524 38,345
20% 20.1% 25,683 25,866
10% 9.9% 12,841 12,748
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,994
Calibration 2     129,660
Calibration 3     129,453
ssj_ops@calibrated=129,556
100% 99.8% 129,556 129,309
90% 90.2% 116,601 116,883
80% 79.1% 103,645 102,434
70% 70.2% 90,690 90,961
60% 59.7% 77,734 77,300
50% 51.4% 64,778 66,579
40% 39.8% 51,823 51,525
30% 29.8% 38,867 38,622
20% 19.6% 25,911 25,422
10% 10.1% 12,956 13,028
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,530
Calibration 2     129,192
Calibration 3     129,373
ssj_ops@calibrated=129,283
100% 99.8% 129,283 128,992
90% 90.2% 116,354 116,674
80% 80.0% 103,426 103,397
70% 69.7% 90,498 90,086
60% 59.7% 77,570 77,162
50% 50.1% 64,641 64,791
40% 39.4% 51,713 50,968
30% 30.3% 38,785 39,161
20% 19.8% 25,857 25,650
10% 10.1% 12,928 13,016
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,344
Calibration 2     131,049
Calibration 3     131,419
ssj_ops@calibrated=131,234
100% 99.8% 131,234 130,918
90% 89.2% 118,111 117,107
80% 80.6% 104,987 105,805
70% 70.1% 91,864 91,995
60% 59.9% 78,741 78,574
50% 50.7% 65,617 66,585
40% 39.9% 52,494 52,399
30% 30.4% 39,370 39,922
20% 20.4% 26,247 26,794
10% 9.9% 13,123 13,054
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,744
Calibration 2     130,011
Calibration 3     129,993
ssj_ops@calibrated=130,002
100% 100.0% 130,002 129,949
90% 89.9% 117,002 116,908
80% 80.4% 104,001 104,555
70% 69.6% 91,001 90,453
60% 60.5% 78,001 78,663
50% 49.7% 65,001 64,620
40% 39.4% 52,001 51,205
30% 30.4% 39,001 39,531
20% 19.9% 26,000 25,820
10% 9.7% 13,000 12,570
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,188
Calibration 2     130,741
Calibration 3     130,929
ssj_ops@calibrated=130,835
100% 99.8% 130,835 130,562
90% 90.9% 117,752 118,932
80% 80.1% 104,668 104,789
70% 69.2% 91,585 90,504
60% 60.1% 78,501 78,592
50% 50.2% 65,418 65,622
40% 40.3% 52,334 52,688
30% 30.1% 39,251 39,435
20% 20.1% 26,167 26,318
10% 10.1% 13,084 13,187
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     128,962
Calibration 2     129,061
Calibration 3     129,495
ssj_ops@calibrated=129,278
100% 100.2% 129,278 129,570
90% 89.5% 116,350 115,755
80% 80.0% 103,423 103,403
70% 70.1% 90,495 90,601
60% 60.5% 77,567 78,272
50% 50.5% 64,639 65,292
40% 40.2% 51,711 51,913
30% 30.0% 38,783 38,742
20% 19.9% 25,856 25,765
10% 10.0% 12,928 12,958
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,184
Calibration 2     128,498
Calibration 3     128,755
ssj_ops@calibrated=128,627
100% 100.2% 128,627 128,864
90% 89.9% 115,764 115,678
80% 80.9% 102,901 104,114
70% 69.3% 90,039 89,197
60% 60.1% 77,176 77,253
50% 50.0% 64,313 64,292
40% 39.7% 51,451 51,010
30% 29.5% 38,588 37,963
20% 20.0% 25,725 25,787
10% 10.0% 12,863 12,908
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,001
Calibration 2     123,539
Calibration 3     123,583
ssj_ops@calibrated=123,561
100% 100.2% 123,561 123,845
90% 89.6% 111,205 110,732
80% 80.3% 98,849 99,219
70% 69.4% 86,493 85,808
60% 60.9% 74,137 75,190
50% 50.5% 61,781 62,348
40% 40.4% 49,424 49,942
30% 29.7% 37,068 36,661
20% 20.3% 24,712 25,032
10% 10.0% 12,356 12,350
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,941
Calibration 2     130,886
Calibration 3     130,968
ssj_ops@calibrated=130,927
100% 99.8% 130,927 130,640
90% 90.2% 117,835 118,097
80% 80.4% 104,742 105,324
70% 69.8% 91,649 91,324
60% 60.2% 78,556 78,766
50% 50.3% 65,464 65,833
40% 39.4% 52,371 51,536
30% 30.2% 39,278 39,491
20% 19.8% 26,185 25,940
10% 10.0% 13,093 13,066
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,762
Calibration 2     130,452
Calibration 3     130,743
ssj_ops@calibrated=130,598
100% 99.9% 130,598 130,506
90% 89.4% 117,538 116,732
80% 80.8% 104,478 105,458
70% 69.1% 91,418 90,306
60% 59.8% 78,359 78,051
50% 50.1% 65,299 65,477
40% 40.5% 52,239 52,941
30% 30.5% 39,179 39,782
20% 20.3% 26,120 26,508
10% 10.0% 13,060 13,070
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,848
Calibration 2     129,290
Calibration 3     129,126
ssj_ops@calibrated=129,208
100% 100.1% 129,208 129,351
90% 89.7% 116,287 115,844
80% 80.5% 103,366 104,036
70% 70.0% 90,446 90,476
60% 59.8% 77,525 77,297
50% 50.1% 64,604 64,710
40% 40.3% 51,683 52,125
30% 30.1% 38,762 38,916
20% 19.8% 25,842 25,545
10% 10.1% 12,921 12,988
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,158
Calibration 2     129,345
Calibration 3     129,386
ssj_ops@calibrated=129,366
100% 100.1% 129,366 129,521
90% 89.9% 116,429 116,297
80% 79.3% 103,492 102,581
70% 70.3% 90,556 90,955
60% 60.0% 77,619 77,605
50% 50.3% 64,683 65,045
40% 39.9% 51,746 51,658
30% 30.1% 38,810 38,927
20% 20.0% 25,873 25,815
10% 10.2% 12,937 13,208
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,608
Calibration 2     131,325
Calibration 3     131,675
ssj_ops@calibrated=131,500
100% 99.9% 131,500 131,432
90% 89.3% 118,350 117,382
80% 80.0% 105,200 105,217
70% 70.1% 92,050 92,145
60% 60.5% 78,900 79,576
50% 50.0% 65,750 65,815
40% 39.4% 52,600 51,752
30% 30.1% 39,450 39,562
20% 20.1% 26,300 26,445
10% 9.6% 13,150 12,608
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     128,162
Calibration 2     128,561
Calibration 3     128,856
ssj_ops@calibrated=128,708
100% 100.0% 128,708 128,772
90% 89.3% 115,837 114,946
80% 80.4% 102,967 103,440
70% 69.6% 90,096 89,543
60% 59.6% 77,225 76,774
50% 50.5% 64,354 64,982
40% 40.2% 51,483 51,697
30% 29.7% 38,612 38,270
20% 20.3% 25,742 26,137
10% 10.1% 12,871 12,941
Active Idle   0 0

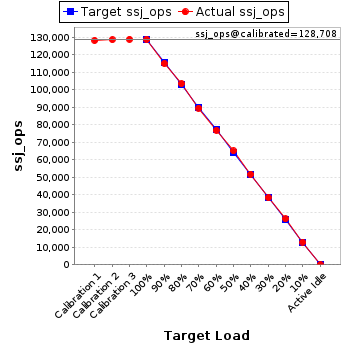

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     128,059
Calibration 2     128,401
Calibration 3     128,537
ssj_ops@calibrated=128,469
100% 100.2% 128,469 128,682
90% 89.4% 115,622 114,841
80% 80.3% 102,775 103,218
70% 69.7% 89,928 89,517
60% 60.7% 77,081 78,021
50% 49.4% 64,234 63,499
40% 40.0% 51,387 51,395
30% 29.7% 38,541 38,127
20% 20.0% 25,694 25,665
10% 9.8% 12,847 12,616
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,996
Calibration 2     126,520
Calibration 3     126,688
ssj_ops@calibrated=126,604
100% 99.6% 126,604 126,129
90% 90.6% 113,944 114,721
80% 80.5% 101,284 101,939
70% 70.5% 88,623 89,314
60% 60.6% 75,963 76,756
50% 49.7% 63,302 62,883
40% 40.1% 50,642 50,812
30% 30.1% 37,981 38,051
20% 19.6% 25,321 24,815
10% 9.9% 12,660 12,545
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,168
Calibration 2     128,827
Calibration 3     129,027
ssj_ops@calibrated=128,927
100% 100.1% 128,927 129,037
90% 90.0% 116,035 115,986
80% 80.0% 103,142 103,095
70% 70.3% 90,249 90,678
60% 60.5% 77,356 77,949
50% 50.2% 64,464 64,750
40% 40.6% 51,571 52,405
30% 30.1% 38,678 38,753
20% 20.0% 25,785 25,746
10% 9.8% 12,893 12,625
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     128,427
Calibration 2     129,136
Calibration 3     129,236
ssj_ops@calibrated=129,186
100% 100.0% 129,186 129,216
90% 89.6% 116,267 115,750
80% 80.9% 103,349 104,562
70% 70.8% 90,430 91,453
60% 59.7% 77,512 77,067
50% 49.6% 64,593 64,093
40% 39.7% 51,674 51,284
30% 30.3% 38,756 39,140
20% 20.0% 25,837 25,883
10% 9.9% 12,919 12,837
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     127,956
Calibration 2     128,642
Calibration 3     128,483
ssj_ops@calibrated=128,563
100% 100.1% 128,563 128,709
90% 89.9% 115,707 115,634
80% 79.9% 102,850 102,710
70% 69.7% 89,994 89,579
60% 60.5% 77,138 77,784
50% 49.8% 64,281 64,037
40% 40.3% 51,425 51,856
30% 30.2% 38,569 38,786
20% 20.0% 25,713 25,676
10% 9.6% 12,856 12,367
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,116
Calibration 2     130,141
Calibration 3     130,470
ssj_ops@calibrated=130,306
100% 100.1% 130,306 130,446
90% 89.8% 117,275 117,060
80% 79.7% 104,244 103,907
70% 70.1% 91,214 91,351
60% 60.2% 78,183 78,434
50% 50.9% 65,153 66,334
40% 39.8% 52,122 51,799
30% 30.0% 39,092 39,072
20% 20.4% 26,061 26,604
10% 10.1% 13,031 13,145
Active Idle   0 0

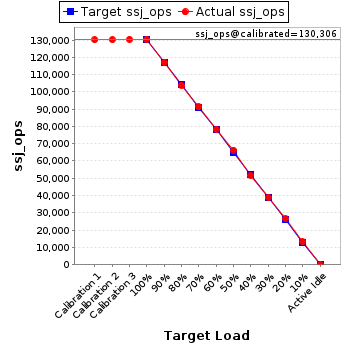

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,773
Calibration 2     130,406
Calibration 3     130,394
ssj_ops@calibrated=130,400
100% 100.0% 130,400 130,340
90% 90.5% 117,360 118,016
80% 80.5% 104,320 104,993
70% 70.2% 91,280 91,491
60% 59.8% 78,240 77,967
50% 49.9% 65,200 65,134
40% 39.5% 52,160 51,475
30% 30.3% 39,120 39,452
20% 19.7% 26,080 25,720
10% 10.4% 13,040 13,615
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,083
Calibration 2     129,943
Calibration 3     130,289
ssj_ops@calibrated=130,116
100% 99.9% 130,116 129,946
90% 89.3% 117,105 116,202
80% 79.7% 104,093 103,701
70% 70.1% 91,081 91,223
60% 60.2% 78,070 78,348
50% 50.4% 65,058 65,638
40% 39.8% 52,047 51,815
30% 30.3% 39,035 39,393
20% 20.2% 26,023 26,283
10% 9.8% 13,012 12,692
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,117
Calibration 2     132,265
Calibration 3     132,594
ssj_ops@calibrated=132,430
100% 99.8% 132,430 132,124
90% 89.7% 119,187 118,741
80% 79.7% 105,944 105,591
70% 69.5% 92,701 92,028
60% 59.6% 79,458 78,983
50% 49.5% 66,215 65,564
40% 39.4% 52,972 52,234
30% 30.0% 39,729 39,739
20% 19.9% 26,486 26,386
10% 10.2% 13,243 13,550
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,777
Calibration 2     129,885
Calibration 3     129,904
ssj_ops@calibrated=129,895
100% 100.1% 129,895 130,030
90% 90.7% 116,905 117,838
80% 79.8% 103,916 103,618
70% 70.5% 90,926 91,584
60% 61.0% 77,937 79,179
50% 49.6% 64,947 64,468
40% 40.6% 51,958 52,795
30% 30.1% 38,968 39,073
20% 20.3% 25,979 26,328
10% 10.2% 12,989 13,249
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,156
Calibration 2     131,063
Calibration 3     131,195
ssj_ops@calibrated=131,129
100% 99.9% 131,129 131,051
90% 91.2% 118,016 119,606
80% 80.5% 104,903 105,577
70% 70.6% 91,790 92,606
60% 59.6% 78,677 78,200
50% 50.8% 65,564 66,640
40% 40.1% 52,452 52,570
30% 30.1% 39,339 39,421
20% 20.3% 26,226 26,587
10% 9.8% 13,113 12,895
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,030
Calibration 2     130,151
Calibration 3     130,478
ssj_ops@calibrated=130,314
100% 99.7% 130,314 129,893
90% 90.2% 117,283 117,603
80% 80.0% 104,252 104,267
70% 70.4% 91,220 91,687
60% 60.4% 78,189 78,663
50% 50.9% 65,157 66,305
40% 40.1% 52,126 52,230
30% 29.9% 39,094 38,929
20% 20.2% 26,063 26,333
10% 10.2% 13,031 13,258
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     128,661
Calibration 2     128,634
Calibration 3     129,041
ssj_ops@calibrated=128,837
100% 100.2% 128,837 129,050
90% 90.6% 115,954 116,713
80% 79.9% 103,070 102,912
70% 69.4% 90,186 89,444
60% 59.6% 77,302 76,771
50% 50.3% 64,419 64,759
40% 39.9% 51,535 51,464
30% 29.7% 38,651 38,234
20% 19.7% 25,767 25,394
10% 9.8% 12,884 12,583
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,516
Calibration 2     129,591
Calibration 3     129,529
ssj_ops@calibrated=129,560
100% 99.9% 129,560 129,427
90% 90.2% 116,604 116,880
80% 79.8% 103,648 103,444
70% 69.5% 90,692 90,109
60% 59.7% 77,736 77,349
50% 49.9% 64,780 64,597
40% 39.9% 51,824 51,732
30% 30.0% 38,868 38,893
20% 19.9% 25,912 25,740
10% 10.3% 12,956 13,396
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,866
Calibration 2     130,820
Calibration 3     131,053
ssj_ops@calibrated=130,936
100% 99.9% 130,936 130,809
90% 91.0% 117,843 119,144
80% 80.6% 104,749 105,544
70% 69.9% 91,655 91,578
60% 59.4% 78,562 77,778
50% 50.1% 65,468 65,562
40% 40.2% 52,375 52,687
30% 29.3% 39,281 38,416
20% 20.4% 26,187 26,659
10% 9.8% 13,094 12,895
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'CX2560M7-Node2.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,530
Calibration 2     128,733
Calibration 3     128,971
ssj_ops@calibrated=128,852
100% 100.0% 128,852 128,841
90% 90.2% 115,966 116,282
80% 79.4% 103,081 102,278
70% 69.6% 90,196 89,680
60% 60.1% 77,311 77,491
50% 50.0% 64,426 64,396
40% 39.4% 51,541 50,809
30% 30.5% 38,655 39,345
20% 20.1% 25,770 25,928
10% 9.9% 12,885 12,696
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
