Hewlett Packard Enterprise ProLiant ML110 Gen11 SPECpower_ssj2008 = 9,457 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 28, 2023
Hardware Availability: Mar-2023 Software Availability: Jan-2023 Publication: May 3, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 348 28.5
Calibration 2 342 28.3
Calibration 3 343 28.2
100% 343 28.1
90% 321 28.1
80% 285 28.4
70% 252 28.4
60% 232 28.6
50% 216 28.7
40% 202 28.7
30% 190 28.8
20% 176 28.9
10% 162 28.9
Active Idle 90.5 29.1

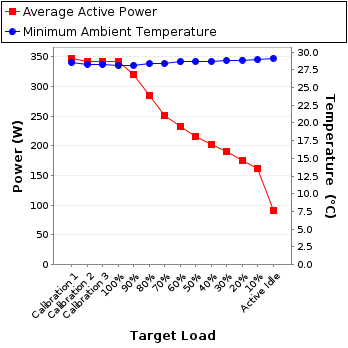

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB45372
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-GR9ET-100-1
Date of Calibration: 17-May-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 209 300.0 1.71 2.0 0.972 348 0.4%
Calibration 2 209 300.0 1.69 2.0 0.971 342 0.4%
Calibration 3 209 300.0 1.69 2.0 0.971 343 0.4%
100% 209 300.0 1.69 2.0 0.971 343 0.4%
90% 209 300.0 1.59 2.0 0.968 321 0.4%
80% 209 300.0 1.42 2.0 0.960 285 0.4%
70% 209 300.0 1.27 2.0 0.951 252 0.5%
60% 209 300.0 1.18 2.0 0.947 232 0.5%
50% 209 300.0 1.10 2.0 0.940 216 0.5%
40% 209 300.0 1.04 2.0 0.932 202 0.5%
30% 209 300.0 0.984 2.0 0.926 190 0.5%
20% 209 300.0 0.921 1.0 0.916 176 0.4%
10% 209 300.0 0.863 1.0 0.901 162 0.4%
Active Idle 209 300.0 0.570 1.0 0.764 90.5 0.7%
Power details for pwr1
