SPECpower_ssj2008 Host 'node2' Performance Report

SPECpower_ssj2008

Host 'node2' Performance Report

Dell Inc. PowerEdge XR4510c (Intel Xeon D-2776NT, 2.10 GHz)			ssj_ops@100% = 1,480,206 ssj_ops@100% per JVM = 1,480,206
Test Sponsor:	Dell Inc.	SPEC License #:	6573	Test Method:	Multi Node
Tested By:	Dell Inc.	Test Location:	Round Rock, TX, USA	Test Date:	Feb 18, 2023
Hardware Availability:	Nov-2022	Software Availability:	Nov-2022	Publication:	Mar 29, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Dell Inc.
Model:	PowerEdge XR4510c (Intel Xeon D-2776NT, 2.10 GHz)
Form Factor:	2U
CPU Name:	Intel Xeon-D 2776NT
CPU Characteristics:	16-Core, 2.10GHz, 25MB L3 Cache
CPU Frequency (MHz):	2100
CPU(s) Enabled:	16 cores, 1 chip, 16 cores/chip
Hardware Threads:	32 (2 / core)
CPU(s) Orderable:	1 chips
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	25 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	64
# and size of DIMM:	4 x 16 GB
Memory Details:	16GB 1Rx8 PC4-3200AA-ED2. Slots A1-4,populated.
Power Supply Quantity and Rating (W):	1 x 1800
Power Supply Details:	1800W Platinum, Dell p/n 5222N
Disk Drive:	1 x 480 GB NVMe M.2 stick, Dell p/n 08M01
Disk Controller:	BOSS controller card, Dell p/n M88HH
# and type of Network Interface Cards (NICs) Installed:	Onboard 1 x Quad Port 10G Intel E800
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Power saver power plan enabled in OS
Operating System (OS):	Microsoft Windows Server 2022 Standard 21H2
OS Version:	20348.1487
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.17+10-LTS-269, mixed mode)
JVM Command-line Options:	-server -Xmn26g -Xms29g -Xmx29g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=32 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity:	start /NODE 0
JVM Instances:	1
JVM Initial Heap (MB):	29696
JVM Maximum Heap (MB):	29696
JVM Address Bits:	64
Boot Firmware Version:	1.0.1
Management Firmware Version:	6.00.19.00
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

iDRAC Thermal set to Min Power and Fan Offset to 14% PWM

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Run initiated via Windows Remote Desktop Connection
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version
Power Plan Minimum processor state set to 0%
Power Plan Maximum processor state set to 100%
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains Intel microcode version 0000000010000211 for the Intel Xeon-D 2776NT processor

None

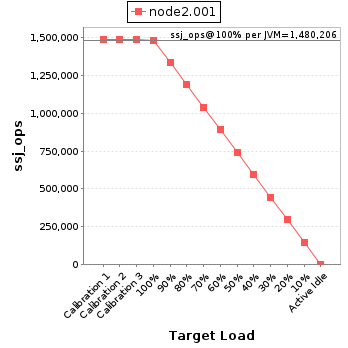

JVM 'node2.001' Scores:

See the JVM Instance Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
