Lenovo Global Technology Think System SR635 V3 SPECpower_ssj2008 = 26,278 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Feb 28, 2023
Hardware Availability: Apr-2023 Software Availability: Jan-2023 Publication: Mar 15, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 363 21.9
Calibration 2 368 21.8
Calibration 3 369 21.8
100% 369 21.9
90% 318 22.0
80% 286 22.1
70% 265 22.2
60% 243 22.2
50% 222 22.2
40% 204 22.2
30% 179 22.2
20% 157 22.2
10% 133 22.1
Active Idle 67.5 22.1
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3SH31009E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: GRG METROLOGY & TEST (BEIJING) CO.,LTD.
Calibration Label: J202210116758A-0004
Date of Calibration: 19-Oct-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 221 300.0 1.69 2.0 0.977 363 0.2%
Calibration 2 221 300.0 1.71 2.0 0.978 368 0.2%
Calibration 3 221 300.0 1.71 2.0 0.977 369 0.2%
100% 221 300.0 1.71 2.0 0.977 369 0.2%
90% 221 300.0 1.48 2.0 0.972 318 0.2%
80% 221 300.0 1.34 2.0 0.969 286 0.3%
70% 221 300.0 1.24 2.0 0.965 265 0.3%
60% 221 300.0 1.15 2.0 0.959 243 0.3%
50% 221 300.0 1.05 2.0 0.952 222 0.3%
40% 221 300.0 0.974 2.0 0.945 204 0.3%
30% 221 300.0 0.870 1.0 0.932 179 0.3%
20% 221 300.0 0.764 1.0 0.927 157 0.3%
10% 221 300.0 0.665 1.0 0.902 133 0.3%
Active Idle 221 300.0 0.401 1.0 0.763 67.5 0.4%

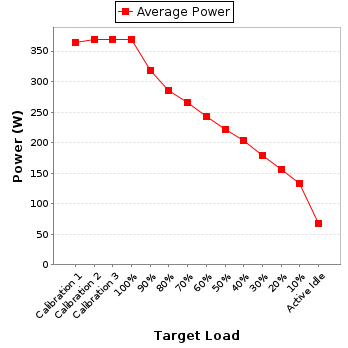

Power details for pwr1
