Hewlett Packard Enterprise ProLiant ML350 Gen11 ssj_ops@100% = 10,631,584
ssj_ops@100% per JVM = 94,925
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Dec 1, 2022
Hardware Availability: Jan-2023 Software Availability: Jan-2023 Publication: Jan 10, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     10,601,804
Calibration 2     10,653,681
Calibration 3     10,659,525
ssj_ops@calibrated=10,656,603
100% 99.8% 10,656,603 10,631,584
90% 89.9% 9,590,943 9,585,103
80% 80.1% 8,525,283 8,534,541
70% 70.0% 7,459,622 7,462,409
60% 60.0% 6,393,962 6,395,384
50% 50.0% 5,328,302 5,331,630
40% 40.1% 4,262,641 4,270,546
30% 30.0% 3,196,981 3,193,278
20% 20.0% 2,131,321 2,126,797
10% 10.0% 1,065,660 1,067,449
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant ML350 Gen11
Form Factor: Tower
CPU Name: Intel Xeon Platinum 8480+ 2.0 GHz
CPU Characteristics: 112-Core, 2.0 GHz, 105 MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 112 cores, 2 chips, 56 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 105 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16GB 1Rx8 PC5-4800B-R; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): 1 x 1000
Power Supply Details: HPE 1000W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (P03178-B21)
Disk Drive: 1 x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD (P40497-B21)
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x HPE 1GbE 4p BASE-T I350-T4 OCP3 Adapter
NICs Enabled in Firmware / OS / Connected: 4/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2 (Build 20348.1129)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.16.1+1-LTS-1, mixed mode)
JVM Command-line Options: -server -Xmn1650m -Xms1800m -Xmx1800m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE [0-7] /AFFINITY [0x3, 0xC, 0x30, 0xC0, 0x300, 0xC00, 0x3000, 0xC000, 0x30000, 0xC0000, 0x300000, 0xC00000, 0x3000000, 0xC000000]
JVM Instances: 112
JVM Initial Heap (MB): 1800
JVM Maximum Heap (MB): 1800
JVM Address Bits: 64
Boot Firmware Version: U54 v1.20 (11/24/2022)
Management Firmware Version: 1.10 Nov 17 2022
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5018421, HPE ProLiant Agentless Management Service for Windows X64
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SM51FM04ECU.001 94,987
WIN-SM51FM04ECU.002 95,283
WIN-SM51FM04ECU.003 94,014
WIN-SM51FM04ECU.004 94,857
WIN-SM51FM04ECU.005 94,982
WIN-SM51FM04ECU.006 93,940
WIN-SM51FM04ECU.007 93,968
WIN-SM51FM04ECU.008 96,774
WIN-SM51FM04ECU.009 96,780
WIN-SM51FM04ECU.010 95,313
WIN-SM51FM04ECU.011 96,018
WIN-SM51FM04ECU.012 93,924
WIN-SM51FM04ECU.013 94,642
WIN-SM51FM04ECU.014 95,454
WIN-SM51FM04ECU.015 95,159
WIN-SM51FM04ECU.016 95,564
WIN-SM51FM04ECU.017 94,728
WIN-SM51FM04ECU.018 94,012
WIN-SM51FM04ECU.019 94,811
WIN-SM51FM04ECU.020 94,716
WIN-SM51FM04ECU.021 94,708
WIN-SM51FM04ECU.022 95,991
WIN-SM51FM04ECU.023 94,337
WIN-SM51FM04ECU.024 94,242
WIN-SM51FM04ECU.025 95,526
WIN-SM51FM04ECU.026 95,121
WIN-SM51FM04ECU.027 93,971
WIN-SM51FM04ECU.028 93,944
WIN-SM51FM04ECU.029 95,391
WIN-SM51FM04ECU.030 95,666
WIN-SM51FM04ECU.031 96,092
WIN-SM51FM04ECU.032 95,869
WIN-SM51FM04ECU.033 96,178
WIN-SM51FM04ECU.034 94,047
WIN-SM51FM04ECU.035 96,398
WIN-SM51FM04ECU.036 94,406
WIN-SM51FM04ECU.037 96,122
WIN-SM51FM04ECU.038 95,309
WIN-SM51FM04ECU.039 96,598
WIN-SM51FM04ECU.040 94,655
WIN-SM51FM04ECU.041 94,912
WIN-SM51FM04ECU.042 94,167
WIN-SM51FM04ECU.043 92,964
WIN-SM51FM04ECU.044 96,328
WIN-SM51FM04ECU.045 95,631
WIN-SM51FM04ECU.046 94,844
WIN-SM51FM04ECU.047 95,018
WIN-SM51FM04ECU.048 94,797
WIN-SM51FM04ECU.049 95,164
WIN-SM51FM04ECU.050 94,701
WIN-SM51FM04ECU.051 95,422
WIN-SM51FM04ECU.052 96,669
WIN-SM51FM04ECU.053 93,624
WIN-SM51FM04ECU.054 93,975
WIN-SM51FM04ECU.055 95,320
WIN-SM51FM04ECU.056 94,596
WIN-SM51FM04ECU.057 94,671
WIN-SM51FM04ECU.058 94,232
WIN-SM51FM04ECU.059 95,276
WIN-SM51FM04ECU.060 94,906
WIN-SM51FM04ECU.061 95,375
WIN-SM51FM04ECU.062 95,619
WIN-SM51FM04ECU.063 94,465
WIN-SM51FM04ECU.064 95,567
WIN-SM51FM04ECU.065 95,226
WIN-SM51FM04ECU.066 92,195
WIN-SM51FM04ECU.067 95,374
WIN-SM51FM04ECU.068 96,210
WIN-SM51FM04ECU.069 93,299
WIN-SM51FM04ECU.070 93,651
WIN-SM51FM04ECU.071 93,827
WIN-SM51FM04ECU.072 95,188
WIN-SM51FM04ECU.073 95,747
WIN-SM51FM04ECU.074 94,933
WIN-SM51FM04ECU.075 94,829
WIN-SM51FM04ECU.076 95,510
WIN-SM51FM04ECU.077 95,431
WIN-SM51FM04ECU.078 94,612
WIN-SM51FM04ECU.079 96,651
WIN-SM51FM04ECU.080 94,401
WIN-SM51FM04ECU.081 94,947
WIN-SM51FM04ECU.082 96,143
WIN-SM51FM04ECU.083 94,741
WIN-SM51FM04ECU.084 93,794
WIN-SM51FM04ECU.085 94,645
WIN-SM51FM04ECU.086 94,549
WIN-SM51FM04ECU.087 93,981
WIN-SM51FM04ECU.088 95,134
WIN-SM51FM04ECU.089 95,640
WIN-SM51FM04ECU.090 94,096
WIN-SM51FM04ECU.091 94,465
WIN-SM51FM04ECU.092 94,343
WIN-SM51FM04ECU.093 94,647
WIN-SM51FM04ECU.094 95,130
WIN-SM51FM04ECU.095 95,777
WIN-SM51FM04ECU.096 93,820
WIN-SM51FM04ECU.097 94,136
WIN-SM51FM04ECU.098 94,941
WIN-SM51FM04ECU.099 94,877
WIN-SM51FM04ECU.100 93,658
WIN-SM51FM04ECU.101 94,489
WIN-SM51FM04ECU.102 95,117
WIN-SM51FM04ECU.103 92,879
WIN-SM51FM04ECU.104 95,944
WIN-SM51FM04ECU.105 96,973
WIN-SM51FM04ECU.106 94,794
WIN-SM51FM04ECU.107 95,380
WIN-SM51FM04ECU.108 95,554
WIN-SM51FM04ECU.109 95,705
WIN-SM51FM04ECU.110 94,649
WIN-SM51FM04ECU.111 95,052
WIN-SM51FM04ECU.112 91,758
ssj_ops@100% 10,631,584
ssj_ops@100% per JVM 94,925
Graph of per-instance results
JVM 'WIN-SM51FM04ECU.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,563
Calibration 2     96,211
Calibration 3     96,286
ssj_ops@calibrated=96,248
100% 98.7% 96,248 94,987
90% 90.0% 86,623 86,619
80% 80.5% 76,999 77,458
70% 69.0% 67,374 66,424
60% 60.5% 57,749 58,228
50% 50.5% 48,124 48,612
40% 40.1% 38,499 38,556
30% 30.4% 28,874 29,301
20% 20.8% 19,250 19,991
10% 10.1% 9,625 9,683
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,245
Calibration 2     95,129
Calibration 3     94,999
ssj_ops@calibrated=95,064
100% 100.2% 95,064 95,283
90% 89.4% 85,558 85,013
80% 79.6% 76,051 75,635
70% 70.5% 66,545 67,058
60% 60.7% 57,038 57,706
50% 49.7% 47,532 47,247
40% 39.7% 38,026 37,745
30% 30.0% 28,519 28,566
20% 20.4% 19,013 19,360
10% 10.3% 9,506 9,798
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,625
Calibration 2     94,323
Calibration 3     94,469
ssj_ops@calibrated=94,396
100% 99.6% 94,396 94,014
90% 89.7% 84,957 84,681
80% 80.8% 75,517 76,309
70% 70.1% 66,077 66,164
60% 59.6% 56,638 56,261
50% 49.3% 47,198 46,551
40% 40.7% 37,758 38,384
30% 29.7% 28,319 28,050
20% 20.2% 18,879 19,082
10% 10.0% 9,440 9,475
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,164
Calibration 2     95,212
Calibration 3     95,320
ssj_ops@calibrated=95,266
100% 99.6% 95,266 94,857
90% 90.1% 85,740 85,832
80% 79.5% 76,213 75,783
70% 69.1% 66,686 65,871
60% 60.1% 57,160 57,252
50% 49.6% 47,633 47,290
40% 40.9% 38,107 39,008
30% 30.4% 28,580 28,922
20% 19.6% 19,053 18,718
10% 9.8% 9,527 9,304
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,095
Calibration 2     95,031
Calibration 3     94,981
ssj_ops@calibrated=95,006
100% 100.0% 95,006 94,982
90% 90.3% 85,505 85,821
80% 79.8% 76,005 75,850
70% 69.9% 66,504 66,362
60% 60.1% 57,004 57,084
50% 50.5% 47,503 48,013
40% 40.5% 38,002 38,442
30% 29.7% 28,502 28,184
20% 20.4% 19,001 19,354
10% 9.7% 9,501 9,200
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,642
Calibration 2     95,191
Calibration 3     95,126
ssj_ops@calibrated=95,158
100% 98.7% 95,158 93,940
90% 90.5% 85,642 86,073
80% 79.9% 76,127 76,001
70% 69.8% 66,611 66,434
60% 60.5% 57,095 57,526
50% 49.4% 47,579 46,988
40% 39.9% 38,063 37,946
30% 30.3% 28,547 28,864
20% 19.7% 19,032 18,704
10% 9.8% 9,516 9,329
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,100
Calibration 2     94,277
Calibration 3     94,547
ssj_ops@calibrated=94,412
100% 99.5% 94,412 93,968
90% 90.3% 84,970 85,235
80% 80.6% 75,529 76,091
70% 69.8% 66,088 65,923
60% 59.5% 56,647 56,218
50% 51.5% 47,206 48,625
40% 40.1% 37,765 37,855
30% 29.5% 28,323 27,875
20% 19.6% 18,882 18,538
10% 10.1% 9,441 9,564
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,918
Calibration 2     96,757
Calibration 3     96,767
ssj_ops@calibrated=96,762
100% 100.0% 96,762 96,774
90% 90.7% 87,086 87,771
80% 80.2% 77,410 77,602
70% 69.8% 67,733 67,548
60% 60.3% 58,057 58,343
50% 51.2% 48,381 49,543
40% 39.7% 38,705 38,441
30% 29.8% 29,029 28,866
20% 20.2% 19,352 19,500
10% 10.3% 9,676 9,929
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,789
Calibration 2     97,048
Calibration 3     96,805
ssj_ops@calibrated=96,927
100% 99.8% 96,927 96,780
90% 89.9% 87,234 87,132
80% 79.7% 77,541 77,209
70% 70.0% 67,849 67,834
60% 61.0% 58,156 59,122
50% 50.4% 48,463 48,865
40% 39.9% 38,771 38,668
30% 29.7% 29,078 28,754
20% 20.3% 19,385 19,679
10% 10.4% 9,693 10,046
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,214
Calibration 2     95,825
Calibration 3     95,954
ssj_ops@calibrated=95,890
100% 99.4% 95,890 95,313
90% 88.9% 86,301 85,262
80% 80.3% 76,712 76,957
70% 70.1% 67,123 67,200
60% 59.3% 57,534 56,872
50% 49.7% 47,945 47,626
40% 40.2% 38,356 38,546
30% 30.3% 28,767 29,036
20% 20.1% 19,178 19,247
10% 9.9% 9,589 9,452
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,083
Calibration 2     95,940
Calibration 3     95,801
ssj_ops@calibrated=95,871
100% 100.2% 95,871 96,018
90% 90.0% 86,284 86,329
80% 80.7% 76,696 77,365
70% 69.7% 67,109 66,774
60% 60.5% 57,522 58,018
50% 49.0% 47,935 46,947
40% 40.2% 38,348 38,535
30% 29.1% 28,761 27,911
20% 19.7% 19,174 18,847
10% 10.2% 9,587 9,783
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,341
Calibration 2     94,079
Calibration 3     94,202
ssj_ops@calibrated=94,140
100% 99.8% 94,140 93,924
90% 90.3% 84,726 85,042
80% 80.1% 75,312 75,447
70% 69.2% 65,898 65,182
60% 59.5% 56,484 56,012
50% 50.9% 47,070 47,930
40% 39.6% 37,656 37,306
30% 29.7% 28,242 27,955
20% 19.8% 18,828 18,629
10% 9.9% 9,414 9,296
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,674
Calibration 2     95,056
Calibration 3     94,918
ssj_ops@calibrated=94,987
100% 99.6% 94,987 94,642
90% 90.0% 85,489 85,450
80% 79.3% 75,990 75,339
70% 69.3% 66,491 65,783
60% 59.1% 56,992 56,096
50% 49.4% 47,494 46,918
40% 39.9% 37,995 37,922
30% 30.2% 28,496 28,683
20% 19.7% 18,997 18,757
10% 9.8% 9,499 9,345
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,975
Calibration 2     95,794
Calibration 3     95,836
ssj_ops@calibrated=95,815
100% 99.6% 95,815 95,454
90% 90.4% 86,234 86,604
80% 79.6% 76,652 76,235
70% 70.3% 67,071 67,365
60% 60.7% 57,489 58,123
50% 49.9% 47,908 47,797
40% 40.2% 38,326 38,528
30% 30.0% 28,745 28,755
20% 19.6% 19,163 18,739
10% 9.8% 9,582 9,417
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,069
Calibration 2     95,239
Calibration 3     94,809
ssj_ops@calibrated=95,024
100% 100.1% 95,024 95,159
90% 91.5% 85,521 86,964
80% 80.4% 76,019 76,423
70% 70.0% 66,516 66,555
60% 60.3% 57,014 57,280
50% 50.4% 47,512 47,898
40% 40.5% 38,009 38,456
30% 30.2% 28,507 28,661
20% 20.2% 19,005 19,153
10% 10.0% 9,502 9,525
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,042
Calibration 2     95,308
Calibration 3     95,252
ssj_ops@calibrated=95,280
100% 100.3% 95,280 95,564
90% 90.4% 85,752 86,149
80% 79.9% 76,224 76,148
70% 70.1% 66,696 66,826
60% 60.1% 57,168 57,226
50% 49.8% 47,640 47,495
40% 39.8% 38,112 37,927
30% 29.8% 28,584 28,411
20% 19.8% 19,056 18,891
10% 9.8% 9,528 9,333
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,990
Calibration 2     95,304
Calibration 3     95,738
ssj_ops@calibrated=95,521
100% 99.2% 95,521 94,728
90% 91.1% 85,969 87,044
80% 79.6% 76,417 76,016
70% 69.2% 66,865 66,069
60% 59.8% 57,312 57,101
50% 50.3% 47,760 48,056
40% 40.0% 38,208 38,249
30% 29.7% 28,656 28,336
20% 19.9% 19,104 19,050
10% 10.0% 9,552 9,600
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,700
Calibration 2     94,316
Calibration 3     94,459
ssj_ops@calibrated=94,388
100% 99.6% 94,388 94,012
90% 88.7% 84,949 83,706
80% 78.9% 75,510 74,440
70% 71.0% 66,071 66,976
60% 59.5% 56,633 56,124
50% 50.5% 47,194 47,710
40% 40.0% 37,755 37,719
30% 29.8% 28,316 28,098
20% 19.4% 18,878 18,350
10% 10.0% 9,439 9,402
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,726
Calibration 2     94,050
Calibration 3     95,109
ssj_ops@calibrated=94,579
100% 100.2% 94,579 94,811
90% 89.5% 85,121 84,609
80% 79.8% 75,664 75,440
70% 69.4% 66,206 65,679
60% 60.3% 56,748 57,042
50% 50.3% 47,290 47,568
40% 40.1% 37,832 37,912
30% 30.1% 28,374 28,494
20% 20.2% 18,916 19,061
10% 9.9% 9,458 9,383
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,690
Calibration 2     94,501
Calibration 3     94,586
ssj_ops@calibrated=94,543
100% 100.2% 94,543 94,716
90% 90.5% 85,089 85,560
80% 80.0% 75,635 75,601
70% 70.3% 66,180 66,454
60% 59.3% 56,726 56,097
50% 50.5% 47,272 47,762
40% 39.3% 37,817 37,170
30% 30.1% 28,363 28,474
20% 19.6% 18,909 18,554
10% 10.0% 9,454 9,499
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,587
Calibration 2     94,390
Calibration 3     94,668
ssj_ops@calibrated=94,529
100% 100.2% 94,529 94,708
90% 90.0% 85,076 85,097
80% 79.9% 75,623 75,506
70% 69.3% 66,170 65,487
60% 61.0% 56,717 57,682
50% 49.5% 47,264 46,817
40% 39.9% 37,812 37,749
30% 30.2% 28,359 28,563
20% 20.3% 18,906 19,166
10% 10.0% 9,453 9,462
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,100
Calibration 2     96,377
Calibration 3     96,311
ssj_ops@calibrated=96,344
100% 99.6% 96,344 95,991
90% 90.5% 86,709 87,188
80% 79.6% 77,075 76,713
70% 69.7% 67,441 67,118
60% 59.1% 57,806 56,965
50% 49.8% 48,172 47,982
40% 40.0% 38,538 38,539
30% 29.8% 28,903 28,663
20% 20.7% 19,269 19,941
10% 10.1% 9,634 9,687
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,391
Calibration 2     95,003
Calibration 3     94,977
ssj_ops@calibrated=94,990
100% 99.3% 94,990 94,337
90% 89.1% 85,491 84,655
80% 79.8% 75,992 75,793
70% 70.5% 66,493 66,939
60% 60.2% 56,994 57,215
50% 49.4% 47,495 46,915
40% 39.9% 37,996 37,900
30% 30.4% 28,497 28,872
20% 20.3% 18,998 19,310
10% 10.3% 9,499 9,741
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,690
Calibration 2     94,670
Calibration 3     94,582
ssj_ops@calibrated=94,626
100% 99.6% 94,626 94,242
90% 90.2% 85,163 85,351
80% 79.7% 75,701 75,462
70% 71.0% 66,238 67,176
60% 59.4% 56,776 56,189
50% 50.4% 47,313 47,708
40% 39.5% 37,850 37,384
30% 29.9% 28,388 28,284
20% 20.3% 18,925 19,219
10% 10.4% 9,463 9,866
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,463
Calibration 2     95,242
Calibration 3     95,399
ssj_ops@calibrated=95,321
100% 100.2% 95,321 95,526
90% 91.3% 85,789 87,009
80% 80.9% 76,256 77,154
70% 69.5% 66,724 66,270
60% 59.8% 57,192 57,002
50% 50.6% 47,660 48,279
40% 39.8% 38,128 37,912
30% 30.2% 28,596 28,797
20% 19.8% 19,064 18,850
10% 9.8% 9,532 9,316
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,781
Calibration 2     95,759
Calibration 3     95,853
ssj_ops@calibrated=95,806
100% 99.3% 95,806 95,121
90% 90.3% 86,225 86,552
80% 79.5% 76,645 76,194
70% 70.0% 67,064 67,019
60% 59.9% 57,484 57,362
50% 50.2% 47,903 48,098
40% 40.0% 38,322 38,292
30% 30.1% 28,742 28,791
20% 19.9% 19,161 19,050
10% 9.8% 9,581 9,351
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,418
Calibration 2     94,399
Calibration 3     94,602
ssj_ops@calibrated=94,501
100% 99.4% 94,501 93,971
90% 89.3% 85,050 84,363
80% 79.4% 75,600 75,056
70% 69.8% 66,150 65,966
60% 60.8% 56,700 57,447
50% 50.2% 47,250 47,404
40% 40.0% 37,800 37,845
30% 29.3% 28,350 27,707
20% 20.2% 18,900 19,077
10% 9.5% 9,450 9,021
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,395
Calibration 2     93,987
Calibration 3     94,112
ssj_ops@calibrated=94,049
100% 99.9% 94,049 93,944
90% 88.8% 84,644 83,472
80% 79.8% 75,239 75,027
70% 69.7% 65,834 65,571
60% 59.8% 56,430 56,195
50% 50.6% 47,025 47,623
40% 40.7% 37,620 38,247
30% 29.8% 28,215 28,031
20% 19.9% 18,810 18,760
10% 10.0% 9,405 9,391
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,489
Calibration 2     95,198
Calibration 3     95,158
ssj_ops@calibrated=95,178
100% 100.2% 95,178 95,391
90% 90.1% 85,660 85,747
80% 79.7% 76,143 75,848
70% 70.3% 66,625 66,881
60% 60.0% 57,107 57,081
50% 50.0% 47,589 47,583
40% 40.4% 38,071 38,483
30% 29.4% 28,553 27,965
20% 19.5% 19,036 18,520
10% 9.9% 9,518 9,466
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,714
Calibration 2     95,738
Calibration 3     95,354
ssj_ops@calibrated=95,546
100% 100.1% 95,546 95,666
90% 90.4% 85,991 86,354
80% 79.8% 76,437 76,270
70% 69.6% 66,882 66,486
60% 59.9% 57,327 57,197
50% 49.1% 47,773 46,900
40% 40.3% 38,218 38,552
30% 30.2% 28,664 28,865
20% 20.0% 19,109 19,149
10% 9.9% 9,555 9,429
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,636
Calibration 2     96,122
Calibration 3     96,113
ssj_ops@calibrated=96,117
100% 100.0% 96,117 96,092
90% 90.1% 86,506 86,607
80% 80.2% 76,894 77,046
70% 70.3% 67,282 67,578
60% 60.5% 57,670 58,163
50% 49.5% 48,059 47,600
40% 40.5% 38,447 38,903
30% 30.1% 28,835 28,895
20% 20.2% 19,223 19,372
10% 10.0% 9,612 9,608
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,982
Calibration 2     95,778
Calibration 3     95,936
ssj_ops@calibrated=95,857
100% 100.0% 95,857 95,869
90% 91.2% 86,271 87,436
80% 80.7% 76,686 77,328
70% 70.0% 67,100 67,071
60% 60.3% 57,514 57,793
50% 50.2% 47,928 48,086
40% 39.9% 38,343 38,249
30% 30.2% 28,757 28,947
20% 19.6% 19,171 18,790
10% 10.1% 9,586 9,654
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,720
Calibration 2     96,095
Calibration 3     96,162
ssj_ops@calibrated=96,129
100% 100.1% 96,129 96,178
90% 90.0% 86,516 86,554
80% 80.3% 76,903 77,201
70% 70.4% 67,290 67,634
60% 59.9% 57,677 57,597
50% 50.2% 48,064 48,275
40% 40.1% 38,451 38,531
30% 30.0% 28,839 28,815
20% 20.2% 19,226 19,398
10% 9.5% 9,613 9,129
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,588
Calibration 2     95,420
Calibration 3     95,813
ssj_ops@calibrated=95,616
100% 98.4% 95,616 94,047
90% 90.3% 86,055 86,297
80% 79.7% 76,493 76,249
70% 70.1% 66,931 67,023
60% 58.8% 57,370 56,189
50% 50.0% 47,808 47,762
40% 40.2% 38,246 38,455
30% 29.8% 28,685 28,533
20% 20.2% 19,123 19,315
10% 9.9% 9,562 9,475
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,159
Calibration 2     97,180
Calibration 3     97,205
ssj_ops@calibrated=97,193
100% 99.2% 97,193 96,398
90% 88.6% 87,473 86,139
80% 79.7% 77,754 77,461
70% 70.2% 68,035 68,224
60% 59.9% 58,316 58,187
50% 50.4% 48,596 48,966
40% 39.9% 38,877 38,749
30% 30.3% 29,158 29,424
20% 19.8% 19,439 19,199
10% 9.9% 9,719 9,625
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,904
Calibration 2     94,739
Calibration 3     94,886
ssj_ops@calibrated=94,812
100% 99.6% 94,812 94,406
90% 89.9% 85,331 85,281
80% 78.5% 75,850 74,434
70% 69.7% 66,369 66,087
60% 60.3% 56,887 57,195
50% 49.7% 47,406 47,110
40% 39.0% 37,925 37,016
30% 29.9% 28,444 28,332
20% 19.6% 18,962 18,619
10% 9.9% 9,481 9,425
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,566
Calibration 2     95,809
Calibration 3     96,013
ssj_ops@calibrated=95,911
100% 100.2% 95,911 96,122
90% 89.1% 86,320 85,446
80% 80.3% 76,729 77,031
70% 70.2% 67,138 67,355
60% 60.5% 57,546 57,999
50% 50.2% 47,955 48,180
40% 40.5% 38,364 38,859
30% 30.2% 28,773 28,983
20% 20.0% 19,182 19,149
10% 9.9% 9,591 9,541
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,190
Calibration 2     96,011
Calibration 3     96,104
ssj_ops@calibrated=96,058
100% 99.2% 96,058 95,309
90% 89.5% 86,452 86,005
80% 81.1% 76,846 77,902
70% 69.9% 67,240 67,139
60% 60.2% 57,635 57,827
50% 50.0% 48,029 48,070
40% 40.0% 38,423 38,406
30% 30.2% 28,817 28,965
20% 19.9% 19,212 19,088
10% 9.5% 9,606 9,162
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,900
Calibration 2     96,487
Calibration 3     96,454
ssj_ops@calibrated=96,470
100% 100.1% 96,470 96,598
90% 89.5% 86,823 86,308
80% 79.4% 77,176 76,642
70% 69.4% 67,529 66,965
60% 60.9% 57,882 58,767
50% 49.9% 48,235 48,104
40% 39.9% 38,588 38,447
30% 29.8% 28,941 28,765
20% 19.7% 19,294 18,999
10% 10.1% 9,647 9,744
Active Idle   0 0
Graph of results

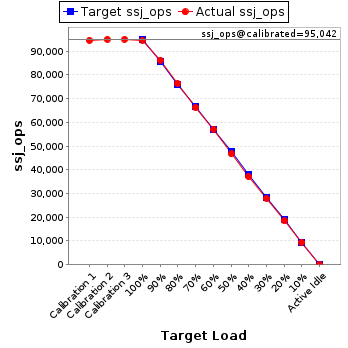

JVM 'WIN-SM51FM04ECU.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,609
Calibration 2     95,018
Calibration 3     95,065
ssj_ops@calibrated=95,042
100% 99.6% 95,042 94,655
90% 90.8% 85,538 86,299
80% 80.4% 76,033 76,386
70% 69.8% 66,529 66,379
60% 60.1% 57,025 57,147
50% 49.1% 47,521 46,699
40% 39.0% 38,017 37,060
30% 29.4% 28,513 27,961
20% 19.4% 19,008 18,454
10% 9.9% 9,504 9,392
Active Idle   0 0
Graph of results

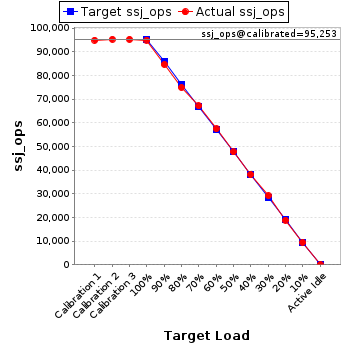

JVM 'WIN-SM51FM04ECU.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,886
Calibration 2     95,262
Calibration 3     95,245
ssj_ops@calibrated=95,253
100% 99.6% 95,253 94,912
90% 88.8% 85,728 84,611
80% 78.6% 76,203 74,866
70% 70.4% 66,677 67,068
60% 60.3% 57,152 57,400
50% 50.0% 47,627 47,612
40% 39.9% 38,101 38,051
30% 30.6% 28,576 29,178
20% 19.8% 19,051 18,832
10% 9.9% 9,525 9,466
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,093
Calibration 2     93,855
Calibration 3     94,032
ssj_ops@calibrated=93,943
100% 100.2% 93,943 94,167
90% 89.4% 84,549 83,940
80% 81.0% 75,155 76,131
70% 71.6% 65,760 67,218
60% 60.3% 56,366 56,668
50% 50.3% 46,972 47,226
40% 40.6% 37,577 38,186
30% 30.0% 28,183 28,172
20% 19.8% 18,789 18,626
10% 9.7% 9,394 9,120
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,372
Calibration 2     93,568
Calibration 3     93,597
ssj_ops@calibrated=93,583
100% 99.3% 93,583 92,964
90% 89.6% 84,224 83,857
80% 80.5% 74,866 75,363
70% 70.4% 65,508 65,908
60% 59.9% 56,150 56,066
50% 50.2% 46,791 46,939
40% 39.4% 37,433 36,854
30% 30.6% 28,075 28,633
20% 19.9% 18,717 18,665
10% 9.9% 9,358 9,235
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,093
Calibration 2     96,009
Calibration 3     96,219
ssj_ops@calibrated=96,114
100% 100.2% 96,114 96,328
90% 90.5% 86,503 87,028
80% 80.2% 76,891 77,113
70% 70.7% 67,280 67,956
60% 60.4% 57,669 58,076
50% 50.0% 48,057 48,066
40% 40.7% 38,446 39,075
30% 29.5% 28,834 28,318
20% 20.0% 19,223 19,270
10% 9.9% 9,611 9,508
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,937
Calibration 2     95,615
Calibration 3     95,652
ssj_ops@calibrated=95,634
100% 100.0% 95,634 95,631
90% 90.5% 86,070 86,585
80% 80.2% 76,507 76,738
70% 70.5% 66,943 67,375
60% 60.7% 57,380 58,072
50% 49.8% 47,817 47,617
40% 39.4% 38,253 37,666
30% 30.2% 28,690 28,924
20% 20.1% 19,127 19,231
10% 10.1% 9,563 9,670
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,128
Calibration 2     95,116
Calibration 3     95,396
ssj_ops@calibrated=95,256
100% 99.6% 95,256 94,844
90% 88.2% 85,731 84,009
80% 80.8% 76,205 76,983
70% 70.5% 66,679 67,131
60% 59.7% 57,154 56,892
50% 50.5% 47,628 48,106
40% 39.2% 38,102 37,357
30% 29.9% 28,577 28,467
20% 19.6% 19,051 18,645
10% 9.9% 9,526 9,441
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,261
Calibration 2     94,694
Calibration 3     94,946
ssj_ops@calibrated=94,820
100% 100.2% 94,820 95,018
90% 90.5% 85,338 85,767
80% 80.8% 75,856 76,647
70% 70.0% 66,374 66,363
60% 59.9% 56,892 56,784
50% 49.1% 47,410 46,583
40% 40.3% 37,928 38,241
30% 29.9% 28,446 28,368
20% 19.9% 18,964 18,878
10% 10.0% 9,482 9,454
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,625
Calibration 2     95,144
Calibration 3     95,140
ssj_ops@calibrated=95,142
100% 99.6% 95,142 94,797
90% 89.2% 85,628 84,895
80% 79.0% 76,114 75,171
70% 69.0% 66,599 65,639
60% 59.5% 57,085 56,645
50% 50.5% 47,571 48,042
40% 40.2% 38,057 38,241
30% 30.1% 28,543 28,620
20% 19.6% 19,028 18,603
10% 10.1% 9,514 9,649
Active Idle   0 0

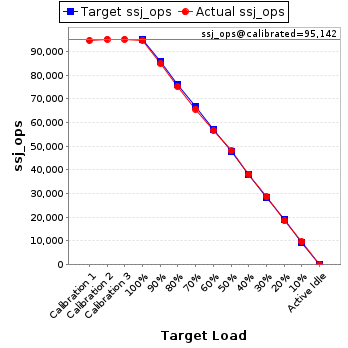

Graph of results
JVM 'WIN-SM51FM04ECU.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,005
Calibration 2     95,160
Calibration 3     95,117
ssj_ops@calibrated=95,138
100% 100.0% 95,138 95,164
90% 90.0% 85,625 85,620
80% 79.7% 76,111 75,841
70% 70.3% 66,597 66,836
60% 60.0% 57,083 57,040
50% 50.1% 47,569 47,705
40% 40.3% 38,055 38,331
30% 30.0% 28,542 28,508
20% 19.8% 19,028 18,825
10% 10.0% 9,514 9,554
Active Idle   0 0
Graph of results

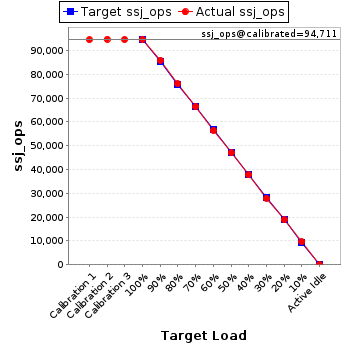

JVM 'WIN-SM51FM04ECU.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,519
Calibration 2     94,758
Calibration 3     94,663
ssj_ops@calibrated=94,711
100% 100.0% 94,711 94,701
90% 90.8% 85,239 85,978
80% 80.3% 75,768 76,017
70% 70.0% 66,297 66,336
60% 59.5% 56,826 56,382
50% 49.6% 47,355 46,997
40% 39.9% 37,884 37,753
30% 29.5% 28,413 27,978
20% 19.9% 18,942 18,810
10% 10.1% 9,471 9,583
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,385
Calibration 2     95,332
Calibration 3     95,427
ssj_ops@calibrated=95,379
100% 100.0% 95,379 95,422
90% 89.2% 85,841 85,062
80% 79.0% 76,304 75,373
70% 69.7% 66,766 66,499
60% 59.6% 57,228 56,857
50% 50.2% 47,690 47,874
40% 40.0% 38,152 38,184
30% 30.0% 28,614 28,581
20% 20.1% 19,076 19,168
10% 10.2% 9,538 9,712
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,247
Calibration 2     96,756
Calibration 3     96,755
ssj_ops@calibrated=96,755
100% 99.9% 96,755 96,669
90% 89.8% 87,080 86,903
80% 79.6% 77,404 77,058
70% 70.2% 67,729 67,896
60% 60.9% 58,053 58,876
50% 50.2% 48,378 48,553
40% 40.1% 38,702 38,766
30% 30.5% 29,027 29,490
20% 19.9% 19,351 19,214
10% 10.1% 9,676 9,733
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,571
Calibration 2     94,404
Calibration 3     94,508
ssj_ops@calibrated=94,456
100% 99.1% 94,456 93,624
90% 90.4% 85,010 85,427
80% 79.8% 75,564 75,332
70% 70.3% 66,119 66,363
60% 60.5% 56,673 57,117
50% 49.7% 47,228 46,945
40% 40.4% 37,782 38,166
30% 30.1% 28,337 28,451
20% 19.7% 18,891 18,616
10% 10.1% 9,446 9,523
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,525
Calibration 2     94,682
Calibration 3     94,562
ssj_ops@calibrated=94,622
100% 99.3% 94,622 93,975
90% 89.8% 85,160 84,996
80% 79.7% 75,698 75,379
70% 69.8% 66,235 66,049
60% 59.9% 56,773 56,704
50% 50.1% 47,311 47,451
40% 40.7% 37,849 38,474
30% 30.5% 28,387 28,841
20% 19.9% 18,924 18,829
10% 10.1% 9,462 9,573
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,807
Calibration 2     95,430
Calibration 3     95,440
ssj_ops@calibrated=95,435
100% 99.9% 95,435 95,320
90% 89.3% 85,892 85,256
80% 79.4% 76,348 75,738
70% 69.3% 66,805 66,136
60% 59.8% 57,261 57,109
50% 49.5% 47,718 47,254
40% 40.1% 38,174 38,243
30% 30.2% 28,631 28,829
20% 20.0% 19,087 19,048
10% 10.2% 9,544 9,771
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,775
Calibration 2     94,361
Calibration 3     94,621
ssj_ops@calibrated=94,491
100% 100.1% 94,491 94,596
90% 90.2% 85,042 85,185
80% 79.5% 75,593 75,147
70% 68.9% 66,144 65,100
60% 60.7% 56,695 57,399
50% 50.2% 47,245 47,434
40% 39.8% 37,796 37,569
30% 30.1% 28,347 28,415
20% 19.8% 18,898 18,686
10% 9.7% 9,449 9,208
Active Idle   0 0
Graph of results

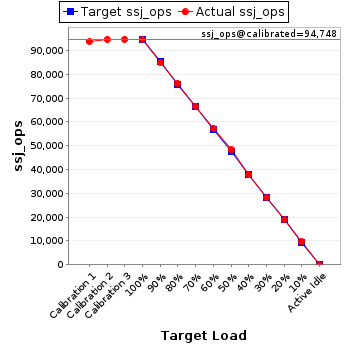

JVM 'WIN-SM51FM04ECU.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,928
Calibration 2     94,713
Calibration 3     94,783
ssj_ops@calibrated=94,748
100% 99.9% 94,748 94,671
90% 89.9% 85,273 85,151
80% 80.4% 75,798 76,139
70% 70.3% 66,324 66,612
60% 60.3% 56,849 57,156
50% 51.0% 47,374 48,291
40% 40.1% 37,899 37,949
30% 29.8% 28,424 28,267
20% 19.9% 18,950 18,816
10% 10.2% 9,475 9,632
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,792
Calibration 2     94,494
Calibration 3     94,516
ssj_ops@calibrated=94,505
100% 99.7% 94,505 94,232
90% 89.6% 85,055 84,632
80% 80.9% 75,604 76,432
70% 69.7% 66,154 65,907
60% 59.1% 56,703 55,828
50% 49.9% 47,253 47,158
40% 40.4% 37,802 38,155
30% 30.1% 28,352 28,478
20% 19.2% 18,901 18,179
10% 10.2% 9,451 9,637
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,741
Calibration 2     95,561
Calibration 3     95,817
ssj_ops@calibrated=95,689
100% 99.6% 95,689 95,276
90% 90.1% 86,120 86,211
80% 80.5% 76,551 77,005
70% 70.0% 66,982 67,005
60% 59.5% 57,413 56,926
50% 50.4% 47,844 48,243
40% 39.4% 38,276 37,714
30% 30.0% 28,707 28,686
20% 19.5% 19,138 18,640
10% 10.0% 9,569 9,604
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,469
Calibration 2     95,248
Calibration 3     95,196
ssj_ops@calibrated=95,222
100% 99.7% 95,222 94,906
90% 91.0% 85,700 86,636
80% 80.6% 76,177 76,704
70% 69.4% 66,655 66,092
60% 60.3% 57,133 57,372
50% 50.6% 47,611 48,171
40% 40.3% 38,089 38,409
30% 30.0% 28,567 28,556
20% 20.3% 19,044 19,356
10% 10.3% 9,522 9,829
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,814
Calibration 2     95,454
Calibration 3     95,548
ssj_ops@calibrated=95,501
100% 99.9% 95,501 95,375
90% 89.4% 85,951 85,383
80% 79.8% 76,401 76,177
70% 69.9% 66,850 66,776
60% 60.3% 57,300 57,580
50% 49.9% 47,750 47,698
40% 39.8% 38,200 37,984
30% 29.9% 28,650 28,512
20% 20.1% 19,100 19,174
10% 10.2% 9,550 9,716
Active Idle   0 0
Graph of results

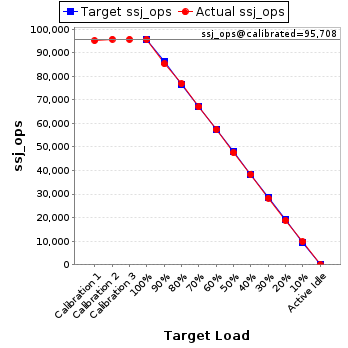

JVM 'WIN-SM51FM04ECU.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,133
Calibration 2     95,725
Calibration 3     95,691
ssj_ops@calibrated=95,708
100% 99.9% 95,708 95,619
90% 89.1% 86,137 85,280
80% 80.3% 76,567 76,850
70% 70.0% 66,996 67,000
60% 60.0% 57,425 57,410
50% 49.7% 47,854 47,540
40% 40.0% 38,283 38,271
30% 29.6% 28,712 28,299
20% 19.6% 19,142 18,759
10% 10.2% 9,571 9,745
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,953
Calibration 2     95,021
Calibration 3     94,667
ssj_ops@calibrated=94,844
100% 99.6% 94,844 94,465
90% 88.5% 85,360 83,927
80% 80.2% 75,875 76,026
70% 70.3% 66,391 66,718
60% 58.6% 56,907 55,570
50% 50.4% 47,422 47,784
40% 40.5% 37,938 38,402
30% 29.6% 28,453 28,118
20% 19.9% 18,969 18,900
10% 10.4% 9,484 9,854
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,368
Calibration 2     95,778
Calibration 3     95,635
ssj_ops@calibrated=95,707
100% 99.9% 95,707 95,567
90% 89.7% 86,136 85,812
80% 79.4% 76,566 75,946
70% 70.6% 66,995 67,615
60% 59.2% 57,424 56,682
50% 51.0% 47,853 48,837
40% 40.1% 38,283 38,402
30% 30.0% 28,712 28,716
20% 19.6% 19,141 18,787
10% 9.9% 9,571 9,433
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,679
Calibration 2     95,336
Calibration 3     95,394
ssj_ops@calibrated=95,365
100% 99.9% 95,365 95,226
90% 90.0% 85,829 85,802
80% 80.3% 76,292 76,563
70% 69.2% 66,756 65,997
60% 60.0% 57,219 57,186
50% 49.8% 47,683 47,447
40% 40.8% 38,146 38,889
30% 30.3% 28,610 28,903
20% 20.8% 19,073 19,803
10% 9.9% 9,537 9,479
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,165
Calibration 2     92,663
Calibration 3     92,603
ssj_ops@calibrated=92,633
100% 99.5% 92,633 92,195
90% 89.7% 83,370 83,129
80% 80.4% 74,106 74,433
70% 70.8% 64,843 65,570
60% 59.7% 55,580 55,299
50% 50.5% 46,316 46,777
40% 40.5% 37,053 37,488
30% 29.9% 27,790 27,654
20% 20.2% 18,527 18,672
10% 9.9% 9,263 9,127
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,605
Calibration 2     95,564
Calibration 3     95,680
ssj_ops@calibrated=95,622
100% 99.7% 95,622 95,374
90% 88.9% 86,060 84,987
80% 80.4% 76,498 76,833
70% 69.9% 66,935 66,877
60% 59.9% 57,373 57,265
50% 49.9% 47,811 47,679
40% 40.0% 38,249 38,272
30% 29.9% 28,687 28,581
20% 20.4% 19,124 19,508
10% 10.1% 9,562 9,612
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,045
Calibration 2     95,635
Calibration 3     96,279
ssj_ops@calibrated=95,957
100% 100.3% 95,957 96,210
90% 90.0% 86,362 86,401
80% 80.5% 76,766 77,247
70% 70.0% 67,170 67,166
60% 59.8% 57,574 57,358
50% 49.9% 47,979 47,904
40% 39.9% 38,383 38,249
30% 29.9% 28,787 28,700
20% 19.9% 19,191 19,097
10% 9.9% 9,596 9,471
Active Idle   0 0
Graph of results

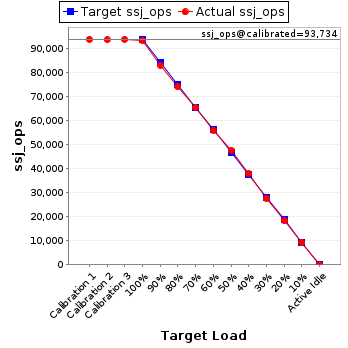

JVM 'WIN-SM51FM04ECU.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,861
Calibration 2     93,607
Calibration 3     93,861
ssj_ops@calibrated=93,734
100% 99.5% 93,734 93,299
90% 88.6% 84,361 83,088
80% 79.1% 74,987 74,099
70% 69.9% 65,614 65,559
60% 59.8% 56,240 56,051
50% 50.8% 46,867 47,662
40% 40.5% 37,494 37,926
30% 29.4% 28,120 27,604
20% 19.4% 18,747 18,225
10% 9.9% 9,373 9,316
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,379
Calibration 2     93,588
Calibration 3     93,679
ssj_ops@calibrated=93,634
100% 100.0% 93,634 93,651
90% 89.2% 84,270 83,540
80% 80.1% 74,907 75,046
70% 70.6% 65,544 66,095
60% 60.0% 56,180 56,172
50% 50.1% 46,817 46,955
40% 40.1% 37,454 37,522
30% 30.6% 28,090 28,661
20% 20.0% 18,727 18,770
10% 9.9% 9,363 9,315
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,927
Calibration 2     94,668
Calibration 3     94,739
ssj_ops@calibrated=94,704
100% 99.1% 94,704 93,827
90% 89.9% 85,233 85,110
80% 80.4% 75,763 76,137
70% 70.0% 66,293 66,291
60% 59.7% 56,822 56,541
50% 49.2% 47,352 46,604
40% 39.9% 37,881 37,815
30% 29.8% 28,411 28,233
20% 20.0% 18,941 18,943
10% 10.2% 9,470 9,670
Active Idle   0 0
Graph of results

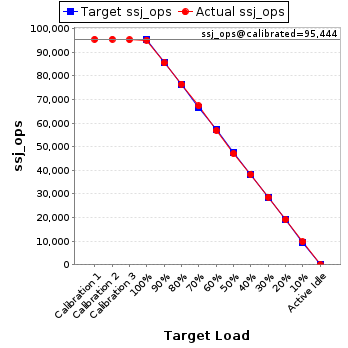

JVM 'WIN-SM51FM04ECU.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,544
Calibration 2     95,571
Calibration 3     95,316
ssj_ops@calibrated=95,444
100% 99.7% 95,444 95,188
90% 89.6% 85,899 85,503
80% 80.2% 76,355 76,575
70% 70.5% 66,810 67,294
60% 59.6% 57,266 56,865
50% 49.3% 47,722 47,076
40% 40.0% 38,177 38,193
30% 30.0% 28,633 28,636
20% 20.0% 19,089 19,094
10% 10.1% 9,544 9,671
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,479
Calibration 2     95,536
Calibration 3     95,684
ssj_ops@calibrated=95,610
100% 100.1% 95,610 95,747
90% 90.1% 86,049 86,161
80% 80.6% 76,488 77,046
70% 69.6% 66,927 66,577
60% 60.2% 57,366 57,550
50% 50.2% 47,805 48,017
40% 40.5% 38,244 38,695
30% 30.4% 28,683 29,070
20% 20.2% 19,122 19,278
10% 10.3% 9,561 9,879
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,201
Calibration 2     95,175
Calibration 3     94,939
ssj_ops@calibrated=95,057
100% 99.9% 95,057 94,933
90% 90.2% 85,551 85,699
80% 80.0% 76,046 76,015
70% 71.0% 66,540 67,502
60% 59.3% 57,034 56,384
50% 50.2% 47,528 47,673
40% 39.9% 38,023 37,962
30% 30.2% 28,517 28,733
20% 19.5% 19,011 18,571
10% 9.9% 9,506 9,374
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,270
Calibration 2     94,998
Calibration 3     95,322
ssj_ops@calibrated=95,160
100% 99.7% 95,160 94,829
90% 90.1% 85,644 85,741
80% 81.5% 76,128 77,545
70% 69.9% 66,612 66,480
60% 60.5% 57,096 57,602
50% 49.9% 47,580 47,489
40% 40.2% 38,064 38,296
30% 30.2% 28,548 28,726
20% 20.1% 19,032 19,120
10% 10.0% 9,516 9,502
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,695
Calibration 2     95,767
Calibration 3     95,792
ssj_ops@calibrated=95,780
100% 99.7% 95,780 95,510
90% 90.8% 86,202 86,986
80% 80.4% 76,624 76,990
70% 70.6% 67,046 67,598
60% 60.0% 57,468 57,497
50% 49.8% 47,890 47,731
40% 39.5% 38,312 37,802
30% 30.1% 28,734 28,836
20% 19.9% 19,156 19,073
10% 9.8% 9,578 9,427
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,934
Calibration 2     95,231
Calibration 3     95,278
ssj_ops@calibrated=95,254
100% 100.2% 95,254 95,431
90% 89.6% 85,729 85,316
80% 80.1% 76,204 76,323
70% 70.0% 66,678 66,704
60% 60.1% 57,153 57,220
50% 50.4% 47,627 48,025
40% 40.0% 38,102 38,132
30% 30.2% 28,576 28,782
20% 20.2% 19,051 19,241
10% 10.2% 9,525 9,733
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,967
Calibration 2     94,292
Calibration 3     94,669
ssj_ops@calibrated=94,480
100% 100.1% 94,480 94,612
90% 90.4% 85,032 85,452
80% 80.3% 75,584 75,822
70% 70.5% 66,136 66,621
60% 60.6% 56,688 57,224
50% 49.5% 47,240 46,724
40% 39.9% 37,792 37,706
30% 29.7% 28,344 28,041
20% 19.7% 18,896 18,602
10% 9.8% 9,448 9,225
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,546
Calibration 2     96,323
Calibration 3     96,522
ssj_ops@calibrated=96,423
100% 100.2% 96,423 96,651
90% 90.8% 86,780 87,568
80% 80.4% 77,138 77,479
70% 70.6% 67,496 68,070
60% 59.0% 57,854 56,926
50% 49.9% 48,211 48,077
40% 40.4% 38,569 38,949
30% 29.8% 28,927 28,776
20% 20.3% 19,285 19,558
10% 10.2% 9,642 9,859
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,965
Calibration 2     95,344
Calibration 3     95,278
ssj_ops@calibrated=95,311
100% 99.0% 95,311 94,401
90% 89.6% 85,780 85,385
80% 80.2% 76,249 76,469
70% 70.6% 66,718 67,298
60% 59.6% 57,187 56,795
50% 49.6% 47,656 47,309
40% 40.2% 38,124 38,305
30% 30.7% 28,593 29,245
20% 19.8% 19,062 18,903
10% 10.3% 9,531 9,787
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.081' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,842
Calibration 2     94,857
Calibration 3     94,849
ssj_ops@calibrated=94,853
100% 100.1% 94,853 94,947
90% 89.9% 85,367 85,301
80% 81.2% 75,882 77,001
70% 70.1% 66,397 66,452
60% 60.6% 56,912 57,451
50% 50.4% 47,426 47,848
40% 40.4% 37,941 38,343
30% 29.8% 28,456 28,271
20% 19.8% 18,971 18,758
10% 9.8% 9,485 9,260
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.082' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,584
Calibration 2     95,966
Calibration 3     96,097
ssj_ops@calibrated=96,031
100% 100.1% 96,031 96,143
90% 89.6% 86,428 86,013
80% 79.7% 76,825 76,491
70% 69.2% 67,222 66,487
60% 59.5% 57,619 57,107
50% 49.5% 48,016 47,532
40% 40.3% 38,412 38,717
30% 29.6% 28,809 28,390
20% 20.0% 19,206 19,187
10% 9.7% 9,603 9,330
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.083' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,902
Calibration 2     94,593
Calibration 3     94,743
ssj_ops@calibrated=94,668
100% 100.1% 94,668 94,741
90% 90.0% 85,201 85,243
80% 79.7% 75,734 75,440
70% 70.1% 66,268 66,318
60% 59.6% 56,801 56,408
50% 50.0% 47,334 47,376
40% 40.9% 37,867 38,728
30% 29.7% 28,400 28,128
20% 20.2% 18,934 19,145
10% 9.9% 9,467 9,398
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.084' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,336
Calibration 2     95,156
Calibration 3     95,298
ssj_ops@calibrated=95,227
100% 98.5% 95,227 93,794
90% 89.6% 85,704 85,368
80% 80.9% 76,182 76,998
70% 69.8% 66,659 66,492
60% 60.1% 57,136 57,187
50% 50.1% 47,614 47,728
40% 39.9% 38,091 38,006
30% 30.5% 28,568 29,070
20% 19.9% 19,045 18,950
10% 10.0% 9,523 9,519
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.085' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,570
Calibration 2     94,623
Calibration 3     94,877
ssj_ops@calibrated=94,750
100% 99.9% 94,750 94,645
90% 90.0% 85,275 85,287
80% 80.3% 75,800 76,059
70% 69.7% 66,325 66,018
60% 60.3% 56,850 57,090
50% 50.2% 47,375 47,573
40% 40.0% 37,900 37,911
30% 29.8% 28,425 28,190
20% 19.8% 18,950 18,757
10% 10.2% 9,475 9,704
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.086' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,988
Calibration 2     95,011
Calibration 3     95,016
ssj_ops@calibrated=95,014
100% 99.5% 95,014 94,549
90% 90.3% 85,512 85,751
80% 80.1% 76,011 76,101
70% 70.0% 66,510 66,474
60% 60.7% 57,008 57,720
50% 50.4% 47,507 47,849
40% 40.1% 38,006 38,099
30% 29.4% 28,504 27,952
20% 19.9% 19,003 18,933
10% 10.1% 9,501 9,614
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.087' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,275
Calibration 2     93,789
Calibration 3     94,043
ssj_ops@calibrated=93,916
100% 100.1% 93,916 93,981
90% 89.0% 84,524 83,623
80% 79.9% 75,133 75,049
70% 70.0% 65,741 65,698
60% 59.7% 56,349 56,075
50% 50.6% 46,958 47,539
40% 40.0% 37,566 37,533
30% 29.9% 28,175 28,114
20% 20.0% 18,783 18,757
10% 9.8% 9,392 9,204
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.088' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,386
Calibration 2     95,165
Calibration 3     95,484
ssj_ops@calibrated=95,324
100% 99.8% 95,324 95,134
90% 89.9% 85,792 85,656
80% 81.3% 76,259 77,495
70% 69.7% 66,727 66,467
60% 59.7% 57,195 56,941
50% 49.5% 47,662 47,224
40% 39.9% 38,130 38,017
30% 29.9% 28,597 28,506
20% 19.9% 19,065 18,995
10% 9.6% 9,532 9,146
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.089' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,408
Calibration 2     95,746
Calibration 3     95,857
ssj_ops@calibrated=95,802
100% 99.8% 95,802 95,640
90% 89.9% 86,221 86,106
80% 79.5% 76,641 76,205
70% 69.6% 67,061 66,709
60% 59.7% 57,481 57,190
50% 49.4% 47,901 47,346
40% 40.4% 38,321 38,712
30% 30.3% 28,740 28,990
20% 20.0% 19,160 19,172
10% 10.0% 9,580 9,596
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.090' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,115
Calibration 2     93,808
Calibration 3     94,108
ssj_ops@calibrated=93,958
100% 100.1% 93,958 94,096
90% 90.0% 84,562 84,549
80% 79.7% 75,166 74,870
70% 70.2% 65,770 66,004
60% 60.2% 56,375 56,528
50% 49.5% 46,979 46,536
40% 40.0% 37,583 37,564
30% 29.6% 28,187 27,790
20% 20.3% 18,792 19,069
10% 10.2% 9,396 9,555
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.091' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,398
Calibration 2     94,469
Calibration 3     94,393
ssj_ops@calibrated=94,431
100% 100.0% 94,431 94,465
90% 90.4% 84,988 85,371
80% 80.4% 75,545 75,921
70% 70.2% 66,102 66,326
60% 60.0% 56,659 56,618
50% 49.4% 47,216 46,676
40% 40.5% 37,773 38,218
30% 30.0% 28,329 28,318
20% 20.1% 18,886 19,004
10% 9.8% 9,443 9,296
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.092' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,895
Calibration 2     94,685
Calibration 3     94,747
ssj_ops@calibrated=94,716
100% 99.6% 94,716 94,343
90% 89.6% 85,244 84,818
80% 80.0% 75,773 75,749
70% 71.2% 66,301 67,410
60% 59.8% 56,829 56,652
50% 49.9% 47,358 47,248
40% 40.5% 37,886 38,378
30% 30.3% 28,415 28,700
20% 19.9% 18,943 18,857
10% 10.2% 9,472 9,668
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.093' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,582
Calibration 2     95,263
Calibration 3     95,293
ssj_ops@calibrated=95,278
100% 99.3% 95,278 94,647
90% 89.6% 85,750 85,335
80% 81.6% 76,222 77,717
70% 69.7% 66,695 66,437
60% 59.6% 57,167 56,833
50% 49.5% 47,639 47,139
40% 40.1% 38,111 38,229
30% 29.7% 28,583 28,267
20% 19.2% 19,056 18,292
10% 10.1% 9,528 9,590
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.094' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,683
Calibration 2     95,107
Calibration 3     95,248
ssj_ops@calibrated=95,177
100% 100.0% 95,177 95,130
90% 89.6% 85,660 85,315
80% 79.3% 76,142 75,498
70% 69.9% 66,624 66,571
60% 60.8% 57,106 57,848
50% 49.6% 47,589 47,230
40% 39.8% 38,071 37,902
30% 29.2% 28,553 27,798
20% 19.7% 19,035 18,777
10% 10.2% 9,518 9,721
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.095' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,299
Calibration 2     95,737
Calibration 3     95,803
ssj_ops@calibrated=95,770
100% 100.0% 95,770 95,777
90% 89.8% 86,193 86,029
80% 79.9% 76,616 76,487
70% 70.8% 67,039 67,801
60% 59.7% 57,462 57,211
50% 49.6% 47,885 47,455
40% 40.3% 38,308 38,552
30% 30.1% 28,731 28,837
20% 20.0% 19,154 19,195
10% 10.0% 9,577 9,564
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.096' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,703
Calibration 2     94,050
Calibration 3     94,269
ssj_ops@calibrated=94,160
100% 99.6% 94,160 93,820
90% 90.7% 84,744 85,387
80% 79.7% 75,328 75,087
70% 70.8% 65,912 66,680
60% 60.4% 56,496 56,853
50% 49.7% 47,080 46,818
40% 39.5% 37,664 37,187
30% 30.1% 28,248 28,317
20% 19.9% 18,832 18,702
10% 10.2% 9,416 9,637
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.097' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,991
Calibration 2     95,066
Calibration 3     95,115
ssj_ops@calibrated=95,090
100% 99.0% 95,090 94,136
90% 90.0% 85,581 85,603
80% 80.1% 76,072 76,169
70% 70.4% 66,563 66,935
60% 60.1% 57,054 57,158
50% 49.9% 47,545 47,467
40% 40.1% 38,036 38,110
30% 29.2% 28,527 27,804
20% 19.8% 19,018 18,841
10% 10.0% 9,509 9,520
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.098' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,167
Calibration 2     95,030
Calibration 3     95,082
ssj_ops@calibrated=95,056
100% 99.9% 95,056 94,941
90% 91.0% 85,550 86,480
80% 80.2% 76,045 76,222
70% 70.0% 66,539 66,493
60% 60.7% 57,033 57,702
50% 49.5% 47,528 47,039
40% 40.6% 38,022 38,553
30% 30.4% 28,517 28,896
20% 20.2% 19,011 19,200
10% 10.0% 9,506 9,487
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.099' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,924
Calibration 2     94,956
Calibration 3     95,193
ssj_ops@calibrated=95,075
100% 99.8% 95,075 94,877
90% 91.8% 85,567 87,308
80% 79.3% 76,060 75,412
70% 69.9% 66,552 66,466
60% 60.1% 57,045 57,156
50% 50.7% 47,537 48,188
40% 39.8% 38,030 37,867
30% 29.8% 28,522 28,355
20% 20.8% 19,015 19,786
10% 9.8% 9,507 9,358
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.100' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,186
Calibration 2     93,719
Calibration 3     93,847
ssj_ops@calibrated=93,783
100% 99.9% 93,783 93,658
90% 89.6% 84,405 83,987
80% 80.7% 75,027 75,700
70% 70.2% 65,648 65,843
60% 59.3% 56,270 55,612
50% 51.6% 46,892 48,401
40% 39.8% 37,513 37,319
30% 29.3% 28,135 27,504
20% 20.1% 18,757 18,816
10% 10.5% 9,378 9,816
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.101' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,805
Calibration 2     94,786
Calibration 3     94,903
ssj_ops@calibrated=94,844
100% 99.6% 94,844 94,489
90% 90.0% 85,360 85,380
80% 81.4% 75,875 77,161
70% 70.1% 66,391 66,505
60% 60.8% 56,906 57,658
50% 50.1% 47,422 47,548
40% 39.6% 37,938 37,542
30% 29.8% 28,453 28,253
20% 20.4% 18,969 19,347
10% 10.1% 9,484 9,625
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.102' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,878
Calibration 2     95,138
Calibration 3     95,217
ssj_ops@calibrated=95,177
100% 99.9% 95,177 95,117
90% 90.4% 85,660 86,058
80% 80.3% 76,142 76,445
70% 69.8% 66,624 66,481
60% 59.9% 57,106 56,965
50% 49.8% 47,589 47,438
40% 40.8% 38,071 38,787
30% 29.4% 28,553 27,951
20% 20.2% 19,035 19,233
10% 10.0% 9,518 9,521
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.103' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,537
Calibration 2     93,490
Calibration 3     93,630
ssj_ops@calibrated=93,560
100% 99.3% 93,560 92,879
90% 89.5% 84,204 83,768
80% 81.0% 74,848 75,807
70% 69.8% 65,492 65,335
60% 60.3% 56,136 56,450
50% 50.4% 46,780 47,155
40% 39.1% 37,424 36,616
30% 30.2% 28,068 28,218
20% 20.1% 18,712 18,804
10% 10.3% 9,356 9,598
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.104' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,053
Calibration 2     96,149
Calibration 3     96,583
ssj_ops@calibrated=96,366
100% 99.6% 96,366 95,944
90% 89.5% 86,729 86,267
80% 79.9% 77,093 76,953
70% 70.1% 67,456 67,532
60% 60.0% 57,819 57,818
50% 50.9% 48,183 49,096
40% 40.7% 38,546 39,183
30% 30.5% 28,910 29,351
20% 19.5% 19,273 18,766
10% 10.4% 9,637 9,985
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.105' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,243
Calibration 2     97,264
Calibration 3     97,099
ssj_ops@calibrated=97,182
100% 99.8% 97,182 96,973
90% 90.3% 87,464 87,743
80% 80.7% 77,745 78,471
70% 69.9% 68,027 67,959
60% 60.5% 58,309 58,757
50% 50.3% 48,591 48,893
40% 40.0% 38,873 38,882
30% 29.8% 29,155 28,920
20% 19.9% 19,436 19,345
10% 10.4% 9,718 10,106
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.106' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,352
Calibration 2     94,639
Calibration 3     94,701
ssj_ops@calibrated=94,670
100% 100.1% 94,670 94,794
90% 90.0% 85,203 85,175
80% 80.2% 75,736 75,941
70% 70.2% 66,269 66,483
60% 61.1% 56,802 57,884
50% 50.6% 47,335 47,944
40% 40.3% 37,868 38,122
30% 30.2% 28,401 28,619
20% 20.4% 18,934 19,274
10% 10.1% 9,467 9,538
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.107' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,162
Calibration 2     95,253
Calibration 3     95,327
ssj_ops@calibrated=95,290
100% 100.1% 95,290 95,380
90% 90.3% 85,761 86,047
80% 80.2% 76,232 76,457
70% 69.2% 66,703 65,981
60% 60.1% 57,174 57,254
50% 49.7% 47,645 47,381
40% 39.5% 38,116 37,624
30% 30.3% 28,587 28,866
20% 20.3% 19,058 19,341
10% 10.3% 9,529 9,841
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.108' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,357
Calibration 2     95,024
Calibration 3     95,309
ssj_ops@calibrated=95,167
100% 100.4% 95,167 95,554
90% 91.0% 85,650 86,640
80% 79.7% 76,133 75,892
70% 70.2% 66,617 66,853
60% 60.4% 57,100 57,515
50% 49.9% 47,583 47,502
40% 40.6% 38,067 38,658
30% 30.0% 28,550 28,578
20% 20.4% 19,033 19,400
10% 9.7% 9,517 9,273
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.109' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,674
Calibration 2     95,616
Calibration 3     95,587
ssj_ops@calibrated=95,601
100% 100.1% 95,601 95,705
90% 89.8% 86,041 85,891
80% 80.4% 76,481 76,876
70% 70.2% 66,921 67,065
60% 59.9% 57,361 57,258
50% 49.7% 47,801 47,519
40% 40.3% 38,240 38,483
30% 29.7% 28,680 28,420
20% 20.1% 19,120 19,249
10% 9.9% 9,560 9,456
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.110' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,570
Calibration 2     94,918
Calibration 3     94,888
ssj_ops@calibrated=94,903
100% 99.7% 94,903 94,649
90% 90.1% 85,413 85,487
80% 80.2% 75,922 76,102
70% 70.3% 66,432 66,758
60% 59.3% 56,942 56,237
50% 50.0% 47,451 47,422
40% 40.3% 37,961 38,288
30% 30.2% 28,471 28,669
20% 19.9% 18,981 18,921
10% 10.1% 9,490 9,599
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.111' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,622
Calibration 2     95,560
Calibration 3     95,595
ssj_ops@calibrated=95,577
100% 99.5% 95,577 95,052
90% 90.3% 86,020 86,298
80% 79.7% 76,462 76,156
70% 70.7% 66,904 67,542
60% 60.7% 57,346 58,053
50% 49.2% 47,789 46,978
40% 40.1% 38,231 38,310
30% 29.5% 28,673 28,207
20% 19.7% 19,115 18,825
10% 10.1% 9,558 9,637
Active Idle   0 0
Graph of results
JVM 'WIN-SM51FM04ECU.112' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,702
Calibration 2     93,600
Calibration 3     90,385
ssj_ops@calibrated=91,992
100% 99.7% 91,992 91,758
90% 89.9% 82,793 82,741
80% 80.2% 73,594 73,766
70% 69.2% 64,395 63,690
60% 59.5% 55,195 54,714
50% 49.6% 45,996 45,663
40% 39.8% 36,797 36,574
30% 30.5% 27,598 28,096
20% 20.1% 18,398 18,453
10% 10.2% 9,199 9,343
Active Idle   0 0
Graph of results
