ASUSTeK Computer Inc. RS720A-E12-RS12 SPECpower_ssj2008 = 30,064 overall ssj_ops/watt
Test Sponsor: ASUSTeK Computer Inc. SPEC License #: 9016 Test Method: Single Node
Tested By: ASUSTeK Computer Inc. Test Location: Taipei, Taiwan. Test Date: Nov 23, 2022
Hardware Availability: Nov-2022 Software Availability: Jun-2022 Publication: Dec 21, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.4% 26,359,065 817 32,269
90% 90.0% 23,876,083 697 34,257
80% 80.0% 21,207,971 577 36,738
70% 70.0% 18,562,664 498 37,274
60% 60.0% 15,903,373 442 35,941
50% 50.0% 13,252,356 410 32,286
40% 40.0% 10,613,084 378 28,059
30% 30.0% 7,953,143 340 23,385
20% 20.0% 5,301,952 300 17,654
10% 10.0% 2,644,763 257 10,280
Active Idle 0 128 0
∑ssj_ops / ∑power = 30,064
Graph of results
System Under Test
Set: 'RS720A-E12-RS12'
Set Identifier: RS720A-E12-RS12
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: ASUSTeK Computer Inc.
Model: RS720A-E12-RS12
Form Factor: 2U
CPU Name: AMD EPYC 9654
CPU Characteristics: 96-Core, 2.40GHz, AMD Core Performance Boost up to 3.70GHz, 384MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 192 cores, 2 chips, 96 cores/chip
Hardware Threads: 384 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 384 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16 GB
Memory Details: 24 x 16GB 1Rx8 PC5-4800B-R ECC RDIMM; all DIMM slots populated
Power Supply Quantity and Rating (W): 1 x 1600
Power Supply Details: CHICONY R18-1K6P1WA REV:01 P/N: 0A100-00250800
Disk Drive: 1 x 256GB Samsung P4X4 M.2 PCIE SSD P/N: 03B03-00420800
Disk Controller: Integrated PCIE controller
# and type of Network Interface Cards (NICs) Installed: 1 x Quad-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 4/4/2
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (See SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1825m -Xms1995m -Xmx1995m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes
JVM Affinity: for each even physicalCoreId { numactl -C physicalCoreId, physicalCoreId+1, physicalCoreId + 192, physicalCoreId + 193 --membind=0-23 }
JVM Instances: 96
JVM Initial Heap (MB): 1995
JVM Maximum Heap (MB): 1995
JVM Address Bits: 64
Boot Firmware Version: 0404
Management Firmware Version: 1.1.20
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: ASUS Control Center V1.4.3.5
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: ASUSTeK Computer Inc.
Model: RS200-E9-PS2
CPU Description: 1 x E3-1240L V5
Memory amount (GB): 64
Software
Operating System (OS): Windows Server 2012 R2 Datacenter (64-bit)
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT210
Serial Number: 91J615902
Connectivity: RS-232
Input Connection: Default
Metrology Institute: National Measurement Laboratory of the R.O.C.
Accredited by: OMNIO Calibration Laboratory Ltd.
Calibration Label: OCL-220624F02901
Date of Calibration: 24-Jun-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50 mm.
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 817 22.0
90% 697 21.8
80% 577 21.6
70% 498 21.4
60% 442 21.3
50% 410 21.2
40% 378 21.2
30% 340 21.1
20% 300 21.1
10% 257 21.0
Active Idle 128 20.8
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 60 Hz / 1 phase / 2 wires 20.8 132
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     26,512,985
Calibration 2     26,522,514
Calibration 3     26,524,161
ssj_ops@calibrated=26,523,337
100% 99.4% 26,523,337 26,359,065
90% 90.0% 23,871,004 23,876,083
80% 80.0% 21,218,670 21,207,971
70% 70.0% 18,566,336 18,562,664
60% 60.0% 15,914,002 15,903,373
50% 50.0% 13,261,669 13,252,356
40% 40.0% 10,609,335 10,613,084
30% 30.0% 7,957,001 7,953,143
20% 20.0% 5,304,667 5,301,952
10% 10.0% 2,652,334 2,644,763
Active Idle   0 0

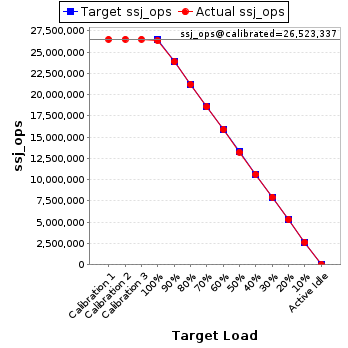

Graph of results
