Lenovo Global Technology Think System SR665 V3 SPECpower_ssj2008 = 27,501 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Oct 25, 2022
Hardware Availability: Dec-2022 Software Availability: Oct-2022 Publication: Nov 14, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 21,464,632 630 34,063
90% 89.9% 19,384,574 564 34,383
80% 79.7% 17,178,895 500 34,338
70% 70.0% 15,091,032 463 32,624
60% 60.0% 12,942,644 428 30,227
50% 50.0% 10,786,632 395 27,302
40% 40.0% 8,613,304 363 23,711
30% 30.0% 6,473,404 332 19,478
20% 20.0% 4,312,750 278 15,515
10% 10.0% 2,158,060 237 9,117
Active Idle 0 115 0
∑ssj_ops / ∑power = 27,501
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR665 V3
Form Factor: 2U
CPU Name: AMD EPYC 9654 2.40GHz
CPU Characteristics: 96-Core, 2.40GHz, 384MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 192 cores, 2 chips, 96 cores/chip
Hardware Threads: 384 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 384 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1800
Power Supply Details: Lenovo P/N:4P57A26294
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4XH7A86159
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem Ethernet 1GbE 4-Port Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2 (OS Build 20348.1129)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1825m -Xms1995m -Xmx1995m -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0-23] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances: 96
JVM Initial Heap (MB): 1995
JVM Maximum Heap (MB): 1995
JVM Address Bits: 64
Boot Firmware Version: KAE103A
Management Firmware Version: KAX303E
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5018421
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SR650
CPU Description: 2 x Intel Xeon Gold 5218
Memory amount (GB): 768
Software
Operating System (OS): Microsoft Windows Server 2019 DataCenter - Version 1809 (OS Build 17763.2268)
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3SH31009E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: GRG METROLOGY & TEST (BEIJING) CO.,LTD.
Calibration Label: J202210116758A-0004
Date of Calibration: 19-Oct-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 630 23.0
90% 564 22.9
80% 500 22.9
70% 463 22.9
60% 428 22.9
50% 395 22.8
40% 363 22.4
30% 332 22.3
20% 278 22.3
10% 237 22.5
Active Idle 115 22.4
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 50 Hz / 1 phase / 2 wires 22.3 43
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     21,595,833
Calibration 2     21,552,752
Calibration 3     21,566,051
ssj_ops@calibrated=21,559,401
100% 99.6% 21,559,401 21,464,632
90% 89.9% 19,403,461 19,384,574
80% 79.7% 17,247,521 17,178,895
70% 70.0% 15,091,581 15,091,032
60% 60.0% 12,935,641 12,942,644
50% 50.0% 10,779,701 10,786,632
40% 40.0% 8,623,761 8,613,304
30% 30.0% 6,467,820 6,473,404
20% 20.0% 4,311,880 4,312,750
10% 10.0% 2,155,940 2,158,060
Active Idle   0 0

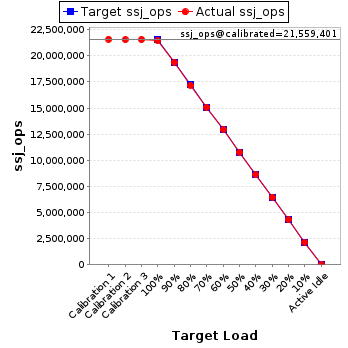

Graph of results
