Lenovo Global Technology Think System SR665 V3 SPECpower_ssj2008 = 27,118 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Oct 26, 2022
Hardware Availability: Dec-2022 Software Availability: May-2022 Publication: Nov 14, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 630 22.4
Calibration 2 633 22.4
Calibration 3 634 22.4
100% 634 22.4
90% 562 22.4
80% 504 22.4
70% 461 22.6
60% 431 22.6
50% 395 22.7
40% 358 22.7
30% 322 22.8
20% 281 22.9
10% 238 23.0
Active Idle 117 23.1

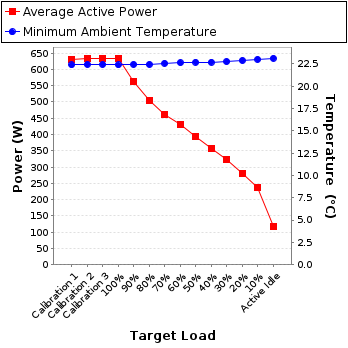

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3SH31009E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: GRG METROLOGY & TEST (BEIJING) CO.,LTD.
Calibration Label: J202210116758A-0004
Date of Calibration: 19-Oct-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 220 300.0 2.90 5.0 0.987 630 0.3%
Calibration 2 220 300.0 2.91 5.0 0.987 633 0.3%
Calibration 3 220 300.0 2.92 5.0 0.987 634 0.3%
100% 220 300.0 2.92 5.0 0.987 634 0.3%
90% 220 300.0 2.60 5.0 0.984 562 0.3%
80% 220 300.0 2.34 5.0 0.979 504 0.3%
70% 220 300.0 2.15 5.0 0.975 461 0.3%
60% 220 300.0 2.01 5.0 0.973 431 0.3%
50% 220 300.0 1.85 5.0 0.967 395 0.3%
40% 220 300.0 1.69 2.0 0.962 358 0.2%
30% 220 300.0 1.53 2.0 0.953 322 0.3%
20% 221 300.0 1.36 2.0 0.940 281 0.3%
10% 221 300.0 1.15 2.0 0.935 238 0.3%
Active Idle 221 300.0 0.671 1.0 0.790 117 0.4%

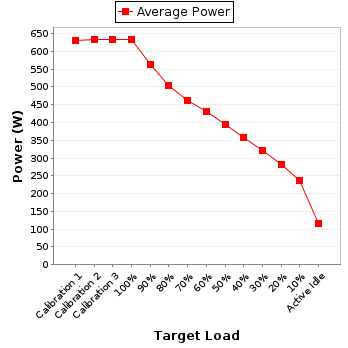

Power details for pwr1
