Hewlett Packard Enterprise ProLiant DL365 Gen11 | ssj_ops@100% = 20,146,259 ssj_ops@100% per JVM = 209,857 |
||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Oct 25, 2022 |
Hardware Availability: | Dec-2022 | Software Availability: | Dec-2022 | Publication: | Nov 10, 2022 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 20,873,711 | ||
Calibration 2 | 20,282,079 | ||
Calibration 3 | 20,235,383 | ||
ssj_ops@calibrated=20,258,731 | |||
100% | 99.4% | 20,258,731 | 20,146,259 |
90% | 89.9% | 18,232,858 | 18,210,436 |
80% | 80.0% | 16,206,984 | 16,198,541 |
70% | 70.0% | 14,181,111 | 14,178,446 |
60% | 60.0% | 12,155,238 | 12,163,307 |
50% | 50.0% | 10,129,365 | 10,122,223 |
40% | 40.0% | 8,103,492 | 8,103,491 |
30% | 30.0% | 6,077,619 | 6,077,005 |
20% | 20.0% | 4,051,746 | 4,041,792 |
10% | 10.0% | 2,025,873 | 2,021,117 |
Active Idle | 0 | 0 |
Set Identifier: | SUT |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | SUT |
Hardware | |
---|---|
Hardware Vendor: | Hewlett Packard Enterprise |
Model: | ProLiant DL365 Gen11 |
Form Factor: | 1U |
CPU Name: | AMD EPYC 9654 2.40 GHz |
CPU Characteristics: | 96-Core, 2.40 GHz, 384MB L3 Cache |
CPU Frequency (MHz): | 2400 |
CPU(s) Enabled: | 192 cores, 2 chips, 96 cores/chip |
Hardware Threads: | 384 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
Tertiary Cache: | 384 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 384 |
# and size of DIMM: | 24 x 16384 MB |
Memory Details: | 16 GB 1Rx8 PC5-4800B-R; all DIMM slots populated on each socket |
Power Supply Quantity and Rating (W): | 1 x 1000 |
Power Supply Details: | HPE 1000W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (P03178-B21) |
Disk Drive: | 1 x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD (P40497-B21) |
Disk Controller: | Embedded SATA Controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x HPE 1GbE 4p BASE-T I350-T4 OCP3 Adapter (P08449-B21) |
NICs Enabled in Firmware / OS / Connected: | 4/1/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled (see SUT Notes) |
Operating System (OS): | Windows Server 2019 Datacenter |
OS Version: | Version 1809 (OS Build 17763.3532) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Java HotSpot(TM) 64-Bit Server VM (build 17.0.2+8-LTS-86, mixed mode, sharing) |
JVM Command-line Options: | -server -Xms1500m -Xmx1500m -Xmn1300m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap |
JVM Affinity: | start /NODE [0-23] /AFFINITY [0xF,0xF0,0xF00,0xF000] |
JVM Instances: | 96 |
JVM Initial Heap (MB): | 1500 |
JVM Maximum Heap (MB): | 1500 |
JVM Address Bits: | 64 |
Boot Firmware Version: | A55 v1.10 (10/14/2022) |
Management Firmware Version: | 1.10 Oct 09 2022 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | KB5018419, HPE ProLiant Agentless Management Service for Windows X64 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 210,223 | ||
Calibration 2 | 189,916 | ||
Calibration 3 | 190,230 | ||
ssj_ops@calibrated=190,073 | |||
100% | 98.9% | 190,073 | 188,076 |
90% | 89.6% | 171,066 | 170,274 |
80% | 80.0% | 152,058 | 152,008 |
70% | 70.7% | 133,051 | 134,438 |
60% | 60.3% | 114,044 | 114,600 |
50% | 49.9% | 95,036 | 94,874 |
40% | 40.2% | 76,029 | 76,465 |
30% | 30.2% | 57,022 | 57,317 |
20% | 19.7% | 38,015 | 37,500 |
10% | 9.8% | 19,007 | 18,604 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 217,846 | ||
Calibration 2 | 209,856 | ||
Calibration 3 | 209,697 | ||
ssj_ops@calibrated=209,776 | |||
100% | 99.8% | 209,776 | 209,287 |
90% | 89.9% | 188,799 | 188,493 |
80% | 80.3% | 167,821 | 168,421 |
70% | 70.4% | 146,843 | 147,580 |
60% | 60.4% | 125,866 | 126,698 |
50% | 49.8% | 104,888 | 104,455 |
40% | 39.5% | 83,910 | 82,952 |
30% | 30.1% | 62,933 | 63,061 |
20% | 20.3% | 41,955 | 42,622 |
10% | 9.9% | 20,978 | 20,745 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 217,569 | ||
Calibration 2 | 211,119 | ||
Calibration 3 | 210,682 | ||
ssj_ops@calibrated=210,900 | |||
100% | 99.4% | 210,900 | 209,713 |
90% | 90.0% | 189,810 | 189,743 |
80% | 79.7% | 168,720 | 168,152 |
70% | 69.8% | 147,630 | 147,254 |
60% | 60.2% | 126,540 | 126,987 |
50% | 49.9% | 105,450 | 105,142 |
40% | 40.0% | 84,360 | 84,281 |
30% | 30.0% | 63,270 | 63,188 |
20% | 19.8% | 42,180 | 41,687 |
10% | 9.9% | 21,090 | 20,862 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 215,846 | ||
Calibration 2 | 212,689 | ||
Calibration 3 | 211,744 | ||
ssj_ops@calibrated=212,216 | |||
100% | 99.6% | 212,216 | 211,404 |
90% | 89.5% | 190,995 | 190,034 |
80% | 80.3% | 169,773 | 170,327 |
70% | 70.2% | 148,552 | 149,002 |
60% | 60.0% | 127,330 | 127,374 |
50% | 50.6% | 106,108 | 107,358 |
40% | 40.0% | 84,887 | 84,794 |
30% | 29.9% | 63,665 | 63,379 |
20% | 20.3% | 42,443 | 43,153 |
10% | 9.9% | 21,222 | 21,108 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 215,731 | ||
Calibration 2 | 209,410 | ||
Calibration 3 | 208,852 | ||
ssj_ops@calibrated=209,131 | |||
100% | 99.6% | 209,131 | 208,194 |
90% | 90.3% | 188,218 | 188,782 |
80% | 79.4% | 167,305 | 166,129 |
70% | 69.4% | 146,392 | 145,158 |
60% | 60.7% | 125,479 | 126,890 |
50% | 50.4% | 104,566 | 105,358 |
40% | 40.0% | 83,652 | 83,671 |
30% | 29.8% | 62,739 | 62,350 |
20% | 20.0% | 41,826 | 41,787 |
10% | 9.9% | 20,913 | 20,696 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 216,674 | ||
Calibration 2 | 208,038 | ||
Calibration 3 | 209,314 | ||
ssj_ops@calibrated=208,676 | |||
100% | 99.9% | 208,676 | 208,451 |
90% | 89.3% | 187,808 | 186,370 |
80% | 80.4% | 166,941 | 167,759 |
70% | 69.6% | 146,073 | 145,273 |
60% | 60.1% | 125,206 | 125,434 |
50% | 50.5% | 104,338 | 105,299 |
40% | 40.4% | 83,470 | 84,237 |
30% | 29.9% | 62,603 | 62,292 |
20% | 19.9% | 41,735 | 41,457 |
10% | 10.1% | 20,868 | 21,103 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 222,402 | ||
Calibration 2 | 212,517 | ||
Calibration 3 | 212,323 | ||
ssj_ops@calibrated=212,420 | |||
100% | 99.6% | 212,420 | 211,503 |
90% | 90.2% | 191,178 | 191,561 |
80% | 80.2% | 169,936 | 170,435 |
70% | 70.4% | 148,694 | 149,470 |
60% | 59.8% | 127,452 | 127,045 |
50% | 50.3% | 106,210 | 106,857 |
40% | 39.9% | 84,968 | 84,844 |
30% | 30.4% | 63,726 | 64,485 |
20% | 20.1% | 42,484 | 42,595 |
10% | 9.9% | 21,242 | 21,129 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 220,201 | ||
Calibration 2 | 213,496 | ||
Calibration 3 | 212,898 | ||
ssj_ops@calibrated=213,197 | |||
100% | 99.1% | 213,197 | 211,300 |
90% | 89.9% | 191,877 | 191,660 |
80% | 80.0% | 170,558 | 170,529 |
70% | 70.6% | 149,238 | 150,442 |
60% | 60.4% | 127,918 | 128,835 |
50% | 50.1% | 106,599 | 106,823 |
40% | 40.2% | 85,279 | 85,619 |
30% | 31.0% | 63,959 | 66,084 |
20% | 20.1% | 42,639 | 42,926 |
10% | 10.1% | 21,320 | 21,482 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 221,163 | ||
Calibration 2 | 211,605 | ||
Calibration 3 | 210,132 | ||
ssj_ops@calibrated=210,869 | |||
100% | 99.5% | 210,869 | 209,902 |
90% | 89.5% | 189,782 | 188,803 |
80% | 80.1% | 168,695 | 168,903 |
70% | 69.9% | 147,608 | 147,374 |
60% | 60.0% | 126,521 | 126,593 |
50% | 49.9% | 105,434 | 105,168 |
40% | 40.1% | 84,347 | 84,626 |
30% | 30.1% | 63,261 | 63,387 |
20% | 19.9% | 42,174 | 41,915 |
10% | 10.2% | 21,087 | 21,442 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 220,427 | ||
Calibration 2 | 217,458 | ||
Calibration 3 | 217,264 | ||
ssj_ops@calibrated=217,361 | |||
100% | 98.9% | 217,361 | 215,070 |
90% | 89.6% | 195,625 | 194,684 |
80% | 80.1% | 173,889 | 174,048 |
70% | 69.5% | 152,153 | 151,060 |
60% | 59.7% | 130,417 | 129,713 |
50% | 50.0% | 108,680 | 108,782 |
40% | 40.3% | 86,944 | 87,573 |
30% | 30.1% | 65,208 | 65,442 |
20% | 19.9% | 43,472 | 43,215 |
10% | 10.0% | 21,736 | 21,645 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 224,636 | ||
Calibration 2 | 216,984 | ||
Calibration 3 | 217,542 | ||
ssj_ops@calibrated=217,263 | |||
100% | 99.6% | 217,263 | 216,332 |
90% | 89.9% | 195,537 | 195,420 |
80% | 80.3% | 173,811 | 174,488 |
70% | 70.4% | 152,084 | 152,956 |
60% | 59.6% | 130,358 | 129,575 |
50% | 49.4% | 108,632 | 107,402 |
40% | 40.4% | 86,905 | 87,867 |
30% | 30.1% | 65,179 | 65,390 |
20% | 20.0% | 43,453 | 43,470 |
10% | 10.0% | 21,726 | 21,651 |
Active Idle | 0 | 0 |

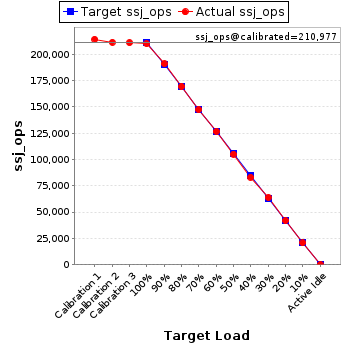

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,084 | ||
Calibration 2 | 211,199 | ||
Calibration 3 | 210,754 | ||
ssj_ops@calibrated=210,977 | |||
100% | 99.5% | 210,977 | 209,827 |
90% | 90.4% | 189,879 | 190,784 |
80% | 80.2% | 168,781 | 169,275 |
70% | 69.8% | 147,684 | 147,223 |
60% | 60.0% | 126,586 | 126,571 |
50% | 49.8% | 105,488 | 105,040 |
40% | 39.3% | 84,391 | 82,957 |
30% | 30.2% | 63,293 | 63,778 |
20% | 19.8% | 42,195 | 41,807 |
10% | 9.8% | 21,098 | 20,679 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 223,547 | ||
Calibration 2 | 215,679 | ||
Calibration 3 | 215,907 | ||
ssj_ops@calibrated=215,793 | |||
100% | 99.0% | 215,793 | 213,730 |
90% | 90.0% | 194,214 | 194,111 |
80% | 80.0% | 172,634 | 172,673 |
70% | 70.1% | 151,055 | 151,350 |
60% | 60.0% | 129,476 | 129,410 |
50% | 49.8% | 107,897 | 107,544 |
40% | 40.6% | 86,317 | 87,510 |
30% | 30.3% | 64,738 | 65,480 |
20% | 20.0% | 43,159 | 43,203 |
10% | 10.0% | 21,579 | 21,666 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,300 | ||
Calibration 2 | 210,105 | ||
Calibration 3 | 210,289 | ||
ssj_ops@calibrated=210,197 | |||
100% | 99.3% | 210,197 | 208,764 |
90% | 89.6% | 189,177 | 188,367 |
80% | 79.3% | 168,157 | 166,626 |
70% | 70.5% | 147,138 | 148,138 |
60% | 59.6% | 126,118 | 125,248 |
50% | 50.0% | 105,098 | 105,085 |
40% | 39.4% | 84,079 | 82,810 |
30% | 30.0% | 63,059 | 63,107 |
20% | 20.0% | 42,039 | 42,106 |
10% | 10.1% | 21,020 | 21,316 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 217,471 | ||
Calibration 2 | 211,783 | ||
Calibration 3 | 211,162 | ||
ssj_ops@calibrated=211,473 | |||
100% | 99.4% | 211,473 | 210,259 |
90% | 89.9% | 190,325 | 190,068 |
80% | 80.0% | 169,178 | 169,087 |
70% | 69.6% | 148,031 | 147,220 |
60% | 60.2% | 126,884 | 127,274 |
50% | 49.5% | 105,736 | 104,710 |
40% | 39.8% | 84,589 | 84,219 |
30% | 30.1% | 63,442 | 63,592 |
20% | 19.6% | 42,295 | 41,453 |
10% | 10.2% | 21,147 | 21,579 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,264 | ||
Calibration 2 | 215,822 | ||
Calibration 3 | 215,312 | ||
ssj_ops@calibrated=215,567 | |||
100% | 98.7% | 215,567 | 212,750 |
90% | 89.6% | 194,010 | 193,071 |
80% | 79.5% | 172,453 | 171,460 |
70% | 70.2% | 150,897 | 151,397 |
60% | 59.9% | 129,340 | 129,219 |
50% | 50.1% | 107,783 | 108,094 |
40% | 39.9% | 86,227 | 86,036 |
30% | 30.4% | 64,670 | 65,473 |
20% | 19.9% | 43,113 | 42,920 |
10% | 9.8% | 21,557 | 21,054 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 221,793 | ||
Calibration 2 | 213,141 | ||
Calibration 3 | 213,051 | ||
ssj_ops@calibrated=213,096 | |||
100% | 99.4% | 213,096 | 211,816 |
90% | 90.0% | 191,786 | 191,801 |
80% | 79.6% | 170,477 | 169,550 |
70% | 70.1% | 149,167 | 149,348 |
60% | 59.7% | 127,858 | 127,251 |
50% | 49.6% | 106,548 | 105,791 |
40% | 39.6% | 85,238 | 84,369 |
30% | 30.2% | 63,929 | 64,250 |
20% | 20.0% | 42,619 | 42,636 |
10% | 10.0% | 21,310 | 21,274 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 221,783 | ||
Calibration 2 | 214,690 | ||
Calibration 3 | 213,910 | ||
ssj_ops@calibrated=214,300 | |||
100% | 99.6% | 214,300 | 213,368 |
90% | 90.1% | 192,870 | 192,984 |
80% | 79.7% | 171,440 | 170,781 |
70% | 70.5% | 150,010 | 151,029 |
60% | 59.6% | 128,580 | 127,752 |
50% | 49.9% | 107,150 | 106,923 |
40% | 40.0% | 85,720 | 85,744 |
30% | 30.2% | 64,290 | 64,638 |
20% | 19.8% | 42,860 | 42,416 |
10% | 10.0% | 21,430 | 21,475 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 220,537 | ||
Calibration 2 | 213,345 | ||
Calibration 3 | 213,122 | ||
ssj_ops@calibrated=213,233 | |||
100% | 99.2% | 213,233 | 211,525 |
90% | 89.9% | 191,910 | 191,634 |
80% | 80.0% | 170,587 | 170,661 |
70% | 69.9% | 149,263 | 149,066 |
60% | 59.9% | 127,940 | 127,681 |
50% | 50.0% | 106,617 | 106,722 |
40% | 40.0% | 85,293 | 85,239 |
30% | 29.8% | 63,970 | 63,496 |
20% | 19.7% | 42,647 | 42,017 |
10% | 10.0% | 21,323 | 21,379 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,871 | ||
Calibration 2 | 213,011 | ||
Calibration 3 | 213,267 | ||
ssj_ops@calibrated=213,139 | |||
100% | 99.3% | 213,139 | 211,573 |
90% | 90.6% | 191,825 | 193,087 |
80% | 79.9% | 170,511 | 170,366 |
70% | 69.3% | 149,197 | 147,617 |
60% | 59.7% | 127,884 | 127,349 |
50% | 49.9% | 106,570 | 106,364 |
40% | 40.0% | 85,256 | 85,218 |
30% | 29.9% | 63,942 | 63,773 |
20% | 20.0% | 42,628 | 42,555 |
10% | 10.1% | 21,314 | 21,565 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 226,746 | ||
Calibration 2 | 217,370 | ||
Calibration 3 | 217,350 | ||
ssj_ops@calibrated=217,360 | |||
100% | 100.2% | 217,360 | 217,715 |
90% | 89.7% | 195,624 | 195,034 |
80% | 80.1% | 173,888 | 174,049 |
70% | 69.8% | 152,152 | 151,818 |
60% | 60.2% | 130,416 | 130,922 |
50% | 50.0% | 108,680 | 108,728 |
40% | 40.3% | 86,944 | 87,543 |
30% | 29.6% | 65,208 | 64,404 |
20% | 20.1% | 43,472 | 43,735 |
10% | 10.0% | 21,736 | 21,765 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,666 | ||
Calibration 2 | 208,155 | ||
Calibration 3 | 207,744 | ||
ssj_ops@calibrated=207,950 | |||
100% | 99.2% | 207,950 | 206,378 |
90% | 90.1% | 187,155 | 187,320 |
80% | 80.1% | 166,360 | 166,598 |
70% | 69.5% | 145,565 | 144,449 |
60% | 60.0% | 124,770 | 124,684 |
50% | 50.1% | 103,975 | 104,230 |
40% | 40.1% | 83,180 | 83,306 |
30% | 30.1% | 62,385 | 62,610 |
20% | 19.8% | 41,590 | 41,211 |
10% | 9.8% | 20,795 | 20,416 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,999 | ||
Calibration 2 | 212,455 | ||
Calibration 3 | 212,575 | ||
ssj_ops@calibrated=212,515 | |||
100% | 99.3% | 212,515 | 211,047 |
90% | 90.3% | 191,264 | 191,837 |
80% | 79.9% | 170,012 | 169,862 |
70% | 70.0% | 148,761 | 148,792 |
60% | 60.4% | 127,509 | 128,445 |
50% | 49.6% | 106,258 | 105,482 |
40% | 39.4% | 85,006 | 83,742 |
30% | 30.2% | 63,755 | 64,218 |
20% | 20.0% | 42,503 | 42,587 |
10% | 10.2% | 21,252 | 21,782 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 217,704 | ||
Calibration 2 | 213,518 | ||
Calibration 3 | 212,389 | ||
ssj_ops@calibrated=212,953 | |||
100% | 98.9% | 212,953 | 210,703 |
90% | 89.7% | 191,658 | 191,088 |
80% | 79.9% | 170,363 | 170,172 |
70% | 69.7% | 149,067 | 148,356 |
60% | 60.2% | 127,772 | 128,279 |
50% | 49.6% | 106,477 | 105,678 |
40% | 39.6% | 85,181 | 84,415 |
30% | 30.0% | 63,886 | 63,830 |
20% | 19.9% | 42,591 | 42,461 |
10% | 10.4% | 21,295 | 22,090 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,894 | ||
Calibration 2 | 214,477 | ||
Calibration 3 | 213,838 | ||
ssj_ops@calibrated=214,158 | |||
100% | 99.7% | 214,158 | 213,507 |
90% | 89.4% | 192,742 | 191,473 |
80% | 80.1% | 171,326 | 171,529 |
70% | 70.5% | 149,910 | 150,976 |
60% | 60.6% | 128,495 | 129,856 |
50% | 50.3% | 107,079 | 107,681 |
40% | 40.1% | 85,663 | 85,851 |
30% | 29.8% | 64,247 | 63,852 |
20% | 20.2% | 42,832 | 43,198 |
10% | 9.9% | 21,416 | 21,295 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 221,410 | ||
Calibration 2 | 213,455 | ||
Calibration 3 | 212,986 | ||
ssj_ops@calibrated=213,220 | |||
100% | 99.4% | 213,220 | 212,012 |
90% | 90.1% | 191,898 | 192,196 |
80% | 80.2% | 170,576 | 170,976 |
70% | 69.6% | 149,254 | 148,387 |
60% | 59.4% | 127,932 | 126,747 |
50% | 49.8% | 106,610 | 106,274 |
40% | 39.5% | 85,288 | 84,250 |
30% | 30.3% | 63,966 | 64,675 |
20% | 20.2% | 42,644 | 43,170 |
10% | 10.0% | 21,322 | 21,411 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 216,456 | ||
Calibration 2 | 208,948 | ||
Calibration 3 | 208,829 | ||
ssj_ops@calibrated=208,888 | |||
100% | 99.3% | 208,888 | 207,517 |
90% | 90.4% | 188,000 | 188,839 |
80% | 80.4% | 167,111 | 168,016 |
70% | 70.3% | 146,222 | 146,849 |
60% | 60.3% | 125,333 | 125,947 |
50% | 49.9% | 104,444 | 104,197 |
40% | 39.8% | 83,555 | 83,179 |
30% | 29.7% | 62,667 | 61,981 |
20% | 19.9% | 41,778 | 41,639 |
10% | 9.9% | 20,889 | 20,746 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 212,955 | ||
Calibration 2 | 209,921 | ||
Calibration 3 | 207,997 | ||
ssj_ops@calibrated=208,959 | |||
100% | 99.0% | 208,959 | 206,922 |
90% | 89.7% | 188,063 | 187,351 |
80% | 80.0% | 167,167 | 167,202 |
70% | 69.9% | 146,271 | 146,114 |
60% | 60.1% | 125,375 | 125,585 |
50% | 49.9% | 104,479 | 104,328 |
40% | 39.7% | 83,584 | 83,022 |
30% | 29.9% | 62,688 | 62,425 |
20% | 19.8% | 41,792 | 41,403 |
10% | 10.0% | 20,896 | 20,874 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,728 | ||
Calibration 2 | 215,121 | ||
Calibration 3 | 214,717 | ||
ssj_ops@calibrated=214,919 | |||
100% | 99.3% | 214,919 | 213,342 |
90% | 89.2% | 193,427 | 191,730 |
80% | 80.3% | 171,935 | 172,607 |
70% | 70.3% | 150,443 | 151,115 |
60% | 60.1% | 128,951 | 129,270 |
50% | 50.1% | 107,460 | 107,631 |
40% | 39.6% | 85,968 | 85,108 |
30% | 29.9% | 64,476 | 64,200 |
20% | 20.0% | 42,984 | 43,075 |
10% | 10.0% | 21,492 | 21,533 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 215,504 | ||
Calibration 2 | 211,751 | ||
Calibration 3 | 210,464 | ||
ssj_ops@calibrated=211,107 | |||
100% | 98.3% | 211,107 | 207,556 |
90% | 90.0% | 189,997 | 189,937 |
80% | 80.2% | 168,886 | 169,257 |
70% | 69.9% | 147,775 | 147,601 |
60% | 60.3% | 126,664 | 127,248 |
50% | 50.3% | 105,554 | 106,089 |
40% | 39.2% | 84,443 | 82,770 |
30% | 29.8% | 63,332 | 62,916 |
20% | 19.8% | 42,221 | 41,786 |
10% | 10.0% | 21,111 | 21,094 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 221,320 | ||
Calibration 2 | 213,293 | ||
Calibration 3 | 212,259 | ||
ssj_ops@calibrated=212,776 | |||
100% | 99.3% | 212,776 | 211,188 |
90% | 90.2% | 191,498 | 191,823 |
80% | 79.7% | 170,221 | 169,514 |
70% | 69.8% | 148,943 | 148,617 |
60% | 59.3% | 127,666 | 126,091 |
50% | 50.0% | 106,388 | 106,310 |
40% | 40.1% | 85,110 | 85,277 |
30% | 30.0% | 63,833 | 63,892 |
20% | 19.9% | 42,555 | 42,327 |
10% | 9.9% | 21,278 | 21,141 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 215,976 | ||
Calibration 2 | 211,639 | ||
Calibration 3 | 211,330 | ||
ssj_ops@calibrated=211,485 | |||
100% | 99.3% | 211,485 | 210,089 |
90% | 90.7% | 190,336 | 191,744 |
80% | 79.8% | 169,188 | 168,712 |
70% | 70.0% | 148,039 | 148,105 |
60% | 60.2% | 126,891 | 127,298 |
50% | 50.2% | 105,742 | 106,155 |
40% | 39.9% | 84,594 | 84,373 |
30% | 29.7% | 63,445 | 62,781 |
20% | 20.0% | 42,297 | 42,248 |
10% | 10.2% | 21,148 | 21,532 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 226,163 | ||
Calibration 2 | 218,029 | ||
Calibration 3 | 217,563 | ||
ssj_ops@calibrated=217,796 | |||
100% | 99.6% | 217,796 | 216,930 |
90% | 89.6% | 196,017 | 195,058 |
80% | 80.2% | 174,237 | 174,626 |
70% | 69.7% | 152,457 | 151,787 |
60% | 60.8% | 130,678 | 132,517 |
50% | 50.6% | 108,898 | 110,282 |
40% | 40.0% | 87,118 | 87,027 |
30% | 29.5% | 65,339 | 64,292 |
20% | 20.0% | 43,559 | 43,573 |
10% | 10.0% | 21,780 | 21,812 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 212,993 | ||
Calibration 2 | 208,658 | ||
Calibration 3 | 208,517 | ||
ssj_ops@calibrated=208,587 | |||
100% | 99.4% | 208,587 | 207,279 |
90% | 89.3% | 187,729 | 186,318 |
80% | 80.1% | 166,870 | 167,180 |
70% | 69.7% | 146,011 | 145,379 |
60% | 60.0% | 125,152 | 125,208 |
50% | 49.5% | 104,294 | 103,220 |
40% | 40.0% | 83,435 | 83,527 |
30% | 30.2% | 62,576 | 62,938 |
20% | 20.2% | 41,717 | 42,061 |
10% | 9.9% | 20,859 | 20,714 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 223,186 | ||
Calibration 2 | 214,858 | ||
Calibration 3 | 214,201 | ||
ssj_ops@calibrated=214,529 | |||
100% | 99.3% | 214,529 | 213,054 |
90% | 89.8% | 193,076 | 192,605 |
80% | 80.2% | 171,623 | 171,992 |
70% | 70.2% | 150,171 | 150,676 |
60% | 59.9% | 128,718 | 128,414 |
50% | 49.9% | 107,265 | 107,098 |
40% | 39.7% | 85,812 | 85,250 |
30% | 30.1% | 64,359 | 64,532 |
20% | 19.9% | 42,906 | 42,703 |
10% | 9.8% | 21,453 | 21,130 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 221,290 | ||
Calibration 2 | 214,028 | ||
Calibration 3 | 212,082 | ||
ssj_ops@calibrated=213,055 | |||
100% | 99.4% | 213,055 | 211,829 |
90% | 89.7% | 191,749 | 191,031 |
80% | 80.5% | 170,444 | 171,473 |
70% | 69.5% | 149,138 | 148,093 |
60% | 60.0% | 127,833 | 127,809 |
50% | 49.9% | 106,527 | 106,278 |
40% | 39.8% | 85,222 | 84,720 |
30% | 29.9% | 63,916 | 63,742 |
20% | 20.0% | 42,611 | 42,645 |
10% | 10.0% | 21,305 | 21,213 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 223,304 | ||
Calibration 2 | 217,238 | ||
Calibration 3 | 216,229 | ||
ssj_ops@calibrated=216,734 | |||
100% | 99.5% | 216,734 | 215,720 |
90% | 89.6% | 195,060 | 194,299 |
80% | 80.0% | 173,387 | 173,479 |
70% | 70.3% | 151,714 | 152,440 |
60% | 60.5% | 130,040 | 131,080 |
50% | 50.0% | 108,367 | 108,274 |
40% | 39.9% | 86,694 | 86,521 |
30% | 30.0% | 65,020 | 64,932 |
20% | 19.9% | 43,347 | 43,090 |
10% | 10.0% | 21,673 | 21,678 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 216,691 | ||
Calibration 2 | 211,647 | ||
Calibration 3 | 210,429 | ||
ssj_ops@calibrated=211,038 | |||
100% | 99.2% | 211,038 | 209,264 |
90% | 90.1% | 189,934 | 190,177 |
80% | 80.2% | 168,830 | 169,266 |
70% | 69.8% | 147,727 | 147,328 |
60% | 59.2% | 126,623 | 124,931 |
50% | 50.1% | 105,519 | 105,641 |
40% | 40.3% | 84,415 | 85,008 |
30% | 30.0% | 63,311 | 63,412 |
20% | 19.7% | 42,208 | 41,609 |
10% | 9.9% | 21,104 | 20,803 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,905 | ||
Calibration 2 | 210,838 | ||
Calibration 3 | 211,129 | ||
ssj_ops@calibrated=210,983 | |||
100% | 99.6% | 210,983 | 210,092 |
90% | 89.7% | 189,885 | 189,306 |
80% | 79.6% | 168,787 | 168,019 |
70% | 69.6% | 147,688 | 146,912 |
60% | 59.9% | 126,590 | 126,296 |
50% | 50.7% | 105,492 | 106,915 |
40% | 40.1% | 84,393 | 84,662 |
30% | 30.0% | 63,295 | 63,317 |
20% | 20.6% | 42,197 | 43,419 |
10% | 10.1% | 21,098 | 21,365 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,057 | ||
Calibration 2 | 206,948 | ||
Calibration 3 | 206,866 | ||
ssj_ops@calibrated=206,907 | |||
100% | 99.6% | 206,907 | 206,092 |
90% | 90.2% | 186,216 | 186,578 |
80% | 79.7% | 165,526 | 165,003 |
70% | 69.8% | 144,835 | 144,437 |
60% | 59.8% | 124,144 | 123,762 |
50% | 49.9% | 103,453 | 103,294 |
40% | 39.7% | 82,763 | 82,136 |
30% | 29.6% | 62,072 | 61,232 |
20% | 20.1% | 41,381 | 41,494 |
10% | 10.0% | 20,691 | 20,724 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,698 | ||
Calibration 2 | 212,039 | ||
Calibration 3 | 211,879 | ||
ssj_ops@calibrated=211,959 | |||
100% | 99.2% | 211,959 | 210,246 |
90% | 89.4% | 190,763 | 189,540 |
80% | 79.8% | 169,567 | 169,143 |
70% | 70.6% | 148,371 | 149,664 |
60% | 60.1% | 127,175 | 127,416 |
50% | 50.0% | 105,979 | 105,883 |
40% | 39.8% | 84,784 | 84,418 |
30% | 30.0% | 63,588 | 63,650 |
20% | 20.1% | 42,392 | 42,569 |
10% | 10.0% | 21,196 | 21,150 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,803 | ||
Calibration 2 | 211,075 | ||
Calibration 3 | 209,411 | ||
ssj_ops@calibrated=210,243 | |||
100% | 99.0% | 210,243 | 208,173 |
90% | 90.8% | 189,219 | 190,882 |
80% | 80.2% | 168,194 | 168,673 |
70% | 70.3% | 147,170 | 147,837 |
60% | 60.0% | 126,146 | 126,192 |
50% | 49.7% | 105,121 | 104,397 |
40% | 40.3% | 84,097 | 84,662 |
30% | 29.8% | 63,073 | 62,630 |
20% | 20.0% | 42,049 | 42,128 |
10% | 10.0% | 21,024 | 20,937 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,853 | ||
Calibration 2 | 214,166 | ||
Calibration 3 | 214,664 | ||

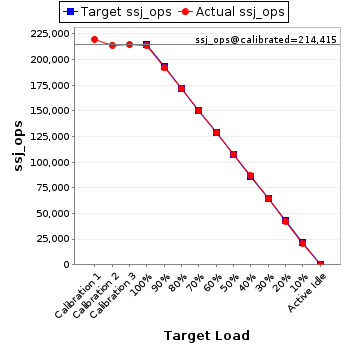

ssj_ops@calibrated=214,415 | |||
100% | 99.8% | 214,415 | 214,030 |
90% | 89.5% | 192,973 | 191,811 |
80% | 80.0% | 171,532 | 171,624 |
70% | 70.2% | 150,090 | 150,463 |
60% | 60.0% | 128,649 | 128,718 |
50% | 50.3% | 107,207 | 107,812 |
40% | 40.4% | 85,766 | 86,643 |
30% | 29.9% | 64,324 | 64,055 |
20% | 19.8% | 42,883 | 42,506 |
10% | 9.8% | 21,441 | 21,099 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 223,136 | ||
Calibration 2 | 216,693 | ||
Calibration 3 | 216,464 | ||

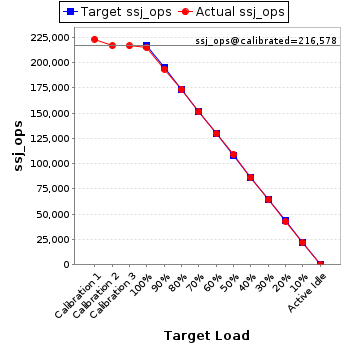

ssj_ops@calibrated=216,578 | |||
100% | 99.2% | 216,578 | 214,826 |
90% | 89.4% | 194,921 | 193,654 |
80% | 80.1% | 173,263 | 173,522 |
70% | 69.8% | 151,605 | 151,200 |
60% | 59.8% | 129,947 | 129,615 |
50% | 50.4% | 108,289 | 109,242 |
40% | 39.9% | 86,631 | 86,336 |
30% | 29.6% | 64,974 | 64,195 |
20% | 19.7% | 43,316 | 42,677 |
10% | 10.1% | 21,658 | 21,799 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,562 | ||
Calibration 2 | 214,252 | ||
Calibration 3 | 214,435 | ||
ssj_ops@calibrated=214,344 | |||
100% | 98.9% | 214,344 | 211,935 |
90% | 90.2% | 192,909 | 193,408 |
80% | 80.5% | 171,475 | 172,496 |
70% | 69.7% | 150,041 | 149,478 |
60% | 59.9% | 128,606 | 128,312 |
50% | 50.1% | 107,172 | 107,284 |
40% | 40.5% | 85,737 | 86,823 |
30% | 29.9% | 64,303 | 64,166 |
20% | 20.0% | 42,869 | 42,861 |
10% | 10.0% | 21,434 | 21,386 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 217,290 | ||
Calibration 2 | 212,021 | ||
Calibration 3 | 211,496 | ||
ssj_ops@calibrated=211,759 | |||
100% | 99.8% | 211,759 | 211,311 |
90% | 89.1% | 190,583 | 188,603 |
80% | 79.5% | 169,407 | 168,308 |
70% | 70.4% | 148,231 | 149,145 |
60% | 59.4% | 127,055 | 125,860 |
50% | 49.9% | 105,879 | 105,660 |
40% | 40.3% | 84,703 | 85,438 |
30% | 29.7% | 63,528 | 62,974 |
20% | 19.6% | 42,352 | 41,540 |
10% | 10.0% | 21,176 | 21,191 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,518 | ||
Calibration 2 | 212,304 | ||
Calibration 3 | 212,188 | ||
ssj_ops@calibrated=212,246 | |||
100% | 99.4% | 212,246 | 210,927 |
90% | 90.2% | 191,021 | 191,507 |
80% | 79.8% | 169,797 | 169,328 |
70% | 69.6% | 148,572 | 147,791 |
60% | 60.0% | 127,347 | 127,399 |
50% | 49.3% | 106,123 | 104,735 |
40% | 40.0% | 84,898 | 84,993 |
30% | 29.8% | 63,674 | 63,297 |
20% | 20.1% | 42,449 | 42,606 |
10% | 10.1% | 21,225 | 21,428 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,460 | ||
Calibration 2 | 210,310 | ||
Calibration 3 | 210,086 | ||
ssj_ops@calibrated=210,198 | |||
100% | 99.3% | 210,198 | 208,690 |
90% | 89.2% | 189,178 | 187,536 |
80% | 79.6% | 168,159 | 167,277 |
70% | 70.0% | 147,139 | 147,099 |
60% | 60.6% | 126,119 | 127,410 |
50% | 50.0% | 105,099 | 105,116 |
40% | 40.0% | 84,079 | 84,123 |
30% | 30.0% | 63,059 | 63,025 |
20% | 20.0% | 42,040 | 42,020 |
10% | 10.0% | 21,020 | 21,061 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 215,827 | ||
Calibration 2 | 210,809 | ||
Calibration 3 | 210,268 | ||
ssj_ops@calibrated=210,538 | |||
100% | 99.5% | 210,538 | 209,539 |
90% | 89.5% | 189,484 | 188,513 |
80% | 80.6% | 168,431 | 169,777 |
70% | 70.5% | 147,377 | 148,358 |
60% | 60.3% | 126,323 | 126,945 |
50% | 50.0% | 105,269 | 105,164 |
40% | 40.1% | 84,215 | 84,335 |
30% | 29.7% | 63,161 | 62,621 |
20% | 20.0% | 42,108 | 42,098 |
10% | 10.0% | 21,054 | 21,128 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 215,733 | ||
Calibration 2 | 210,862 | ||
Calibration 3 | 210,593 | ||

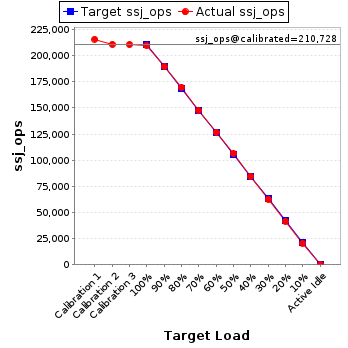

ssj_ops@calibrated=210,728 | |||
100% | 99.4% | 210,728 | 209,544 |
90% | 89.9% | 189,655 | 189,422 |
80% | 80.6% | 168,582 | 169,747 |
70% | 70.0% | 147,509 | 147,558 |
60% | 60.2% | 126,437 | 126,868 |
50% | 50.6% | 105,364 | 106,548 |
40% | 40.1% | 84,291 | 84,493 |
30% | 29.7% | 63,218 | 62,644 |
20% | 19.7% | 42,146 | 41,518 |
10% | 9.8% | 21,073 | 20,562 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 220,856 | ||
Calibration 2 | 214,855 | ||
Calibration 3 | 213,923 | ||
ssj_ops@calibrated=214,389 | |||
100% | 99.2% | 214,389 | 212,585 |
90% | 89.6% | 192,950 | 192,192 |
80% | 79.3% | 171,511 | 169,933 |
70% | 69.8% | 150,072 | 149,748 |
60% | 60.2% | 128,633 | 128,957 |
50% | 49.8% | 107,195 | 106,719 |
40% | 39.9% | 85,756 | 85,625 |
30% | 29.7% | 64,317 | 63,746 |
20% | 20.2% | 42,878 | 43,298 |
10% | 10.0% | 21,439 | 21,450 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,902 | ||
Calibration 2 | 212,266 | ||
Calibration 3 | 213,122 | ||
ssj_ops@calibrated=212,694 | |||
100% | 98.6% | 212,694 | 209,659 |
90% | 89.4% | 191,425 | 190,133 |
80% | 80.4% | 170,155 | 170,972 |
70% | 69.8% | 148,886 | 148,379 |
60% | 59.9% | 127,617 | 127,409 |
50% | 49.8% | 106,347 | 105,923 |
40% | 40.1% | 85,078 | 85,209 |
30% | 30.0% | 63,808 | 63,809 |
20% | 19.8% | 42,539 | 42,146 |
10% | 10.1% | 21,269 | 21,520 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,834 | ||
Calibration 2 | 210,710 | ||
Calibration 3 | 209,299 | ||
ssj_ops@calibrated=210,005 | |||
100% | 99.6% | 210,005 | 209,127 |
90% | 89.9% | 189,004 | 188,876 |
80% | 80.3% | 168,004 | 168,703 |
70% | 69.7% | 147,003 | 146,404 |
60% | 59.5% | 126,003 | 124,999 |
50% | 49.8% | 105,002 | 104,601 |
40% | 39.9% | 84,002 | 83,857 |
30% | 30.0% | 63,001 | 62,928 |
20% | 20.0% | 42,001 | 41,909 |
10% | 9.9% | 21,000 | 20,799 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,045 | ||
Calibration 2 | 212,836 | ||
Calibration 3 | 212,727 | ||
ssj_ops@calibrated=212,782 | |||
100% | 99.3% | 212,782 | 211,340 |
90% | 89.9% | 191,503 | 191,371 |
80% | 78.7% | 170,225 | 167,486 |
70% | 69.6% | 148,947 | 148,172 |
60% | 60.1% | 127,669 | 127,791 |
50% | 50.1% | 106,391 | 106,557 |
40% | 40.0% | 85,113 | 85,053 |
30% | 30.3% | 63,834 | 64,383 |
20% | 19.8% | 42,556 | 42,041 |
10% | 10.0% | 21,278 | 21,175 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,853 | ||
Calibration 2 | 214,666 | ||
Calibration 3 | 214,951 | ||
ssj_ops@calibrated=214,809 | |||
100% | 99.4% | 214,809 | 213,534 |
90% | 90.2% | 193,328 | 193,828 |
80% | 80.4% | 171,847 | 172,613 |
70% | 70.1% | 150,366 | 150,553 |
60% | 60.2% | 128,885 | 129,387 |
50% | 50.2% | 107,404 | 107,917 |
40% | 39.4% | 85,924 | 84,655 |
30% | 29.9% | 64,443 | 64,254 |
20% | 19.4% | 42,962 | 41,711 |
10% | 10.0% | 21,481 | 21,382 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 215,928 | ||
Calibration 2 | 212,788 | ||
Calibration 3 | 212,543 | ||
ssj_ops@calibrated=212,665 | |||
100% | 98.9% | 212,665 | 210,356 |
90% | 90.3% | 191,399 | 192,012 |
80% | 79.7% | 170,132 | 169,509 |
70% | 69.6% | 148,866 | 148,044 |
60% | 60.2% | 127,599 | 128,048 |
50% | 49.8% | 106,333 | 106,010 |
40% | 39.5% | 85,066 | 84,006 |
30% | 30.2% | 63,800 | 64,325 |
20% | 20.0% | 42,533 | 42,586 |
10% | 10.0% | 21,267 | 21,253 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,312 | ||
Calibration 2 | 212,719 | ||
Calibration 3 | 211,583 | ||
ssj_ops@calibrated=212,151 | |||
100% | 99.7% | 212,151 | 211,553 |
90% | 89.0% | 190,936 | 188,868 |
80% | 79.8% | 169,721 | 169,392 |
70% | 69.6% | 148,506 | 147,679 |
60% | 59.9% | 127,291 | 127,030 |
50% | 50.3% | 106,075 | 106,774 |
40% | 40.0% | 84,860 | 84,882 |
30% | 30.1% | 63,645 | 63,922 |
20% | 20.4% | 42,430 | 43,260 |
10% | 10.0% | 21,215 | 21,295 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 211,457 | ||
Calibration 2 | 205,663 | ||
Calibration 3 | 205,043 | ||
ssj_ops@calibrated=205,353 | |||
100% | 98.9% | 205,353 | 203,125 |
90% | 91.0% | 184,818 | 186,807 |
80% | 80.1% | 164,282 | 164,471 |
70% | 69.6% | 143,747 | 142,826 |
60% | 60.6% | 123,212 | 124,438 |
50% | 50.0% | 102,676 | 102,731 |
40% | 40.2% | 82,141 | 82,535 |
30% | 29.8% | 61,606 | 61,244 |
20% | 20.3% | 41,071 | 41,631 |
10% | 9.8% | 20,535 | 20,178 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,973 | ||
Calibration 2 | 211,742 | ||
Calibration 3 | 210,246 | ||
ssj_ops@calibrated=210,994 | |||
100% | 99.4% | 210,994 | 209,747 |
90% | 89.7% | 189,895 | 189,240 |
80% | 80.0% | 168,795 | 168,881 |
70% | 70.6% | 147,696 | 148,977 |
60% | 60.2% | 126,596 | 127,118 |
50% | 49.9% | 105,497 | 105,229 |
40% | 40.0% | 84,398 | 84,388 |
30% | 29.9% | 63,298 | 63,009 |
20% | 19.8% | 42,199 | 41,825 |
10% | 10.0% | 21,099 | 21,112 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,612 | ||
Calibration 2 | 211,131 | ||
Calibration 3 | 211,088 | ||
ssj_ops@calibrated=211,110 | |||
100% | 99.5% | 211,110 | 210,097 |
90% | 89.8% | 189,999 | 189,671 |
80% | 79.9% | 168,888 | 168,681 |
70% | 70.3% | 147,777 | 148,396 |
60% | 59.7% | 126,666 | 125,963 |
50% | 50.1% | 105,555 | 105,770 |
40% | 39.9% | 84,444 | 84,312 |
30% | 29.8% | 63,333 | 62,877 |
20% | 20.0% | 42,222 | 42,291 |
10% | 9.9% | 21,111 | 20,816 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 195,924 | ||
Calibration 2 | 191,146 | ||
Calibration 3 | 191,511 | ||
ssj_ops@calibrated=191,329 | |||
100% | 99.7% | 191,329 | 190,810 |
90% | 90.0% | 172,196 | 172,157 |
80% | 79.4% | 153,063 | 151,896 |
70% | 69.3% | 133,930 | 132,632 |
60% | 60.6% | 114,797 | 115,946 |
50% | 50.1% | 95,664 | 95,921 |
40% | 40.1% | 76,531 | 76,685 |
30% | 29.9% | 57,399 | 57,302 |
20% | 19.7% | 38,266 | 37,686 |
10% | 10.2% | 19,133 | 19,552 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,933 | ||
Calibration 2 | 214,071 | ||
Calibration 3 | 212,875 | ||
ssj_ops@calibrated=213,473 | |||
100% | 99.6% | 213,473 | 212,704 |
90% | 89.9% | 192,126 | 191,954 |
80% | 80.2% | 170,779 | 171,249 |
70% | 69.8% | 149,431 | 149,065 |
60% | 59.6% | 128,084 | 127,282 |
50% | 49.4% | 106,737 | 105,545 |
40% | 40.3% | 85,389 | 86,061 |
30% | 30.5% | 64,042 | 65,163 |
20% | 19.5% | 42,695 | 41,726 |
10% | 9.6% | 21,347 | 20,575 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,809 | ||
Calibration 2 | 207,410 | ||
Calibration 3 | 207,215 | ||
ssj_ops@calibrated=207,312 | |||
100% | 99.6% | 207,312 | 206,492 |
90% | 90.0% | 186,581 | 186,665 |
80% | 79.6% | 165,850 | 164,923 |
70% | 69.9% | 145,119 | 144,998 |
60% | 59.9% | 124,387 | 124,230 |
50% | 50.6% | 103,656 | 104,823 |
40% | 40.1% | 82,925 | 83,219 |
30% | 30.1% | 62,194 | 62,342 |
20% | 19.7% | 41,462 | 40,912 |
10% | 10.0% | 20,731 | 20,721 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 213,520 | ||
Calibration 2 | 207,813 | ||
Calibration 3 | 209,064 | ||
ssj_ops@calibrated=208,438 | |||
100% | 99.8% | 208,438 | 207,975 |
90% | 89.4% | 187,594 | 186,292 |
80% | 79.4% | 166,751 | 165,564 |
70% | 69.9% | 145,907 | 145,718 |
60% | 60.0% | 125,063 | 124,959 |
50% | 50.6% | 104,219 | 105,519 |
40% | 39.4% | 83,375 | 82,215 |
30% | 30.0% | 62,531 | 62,525 |
20% | 19.8% | 41,688 | 41,236 |
10% | 10.0% | 20,844 | 20,858 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 212,561 | ||
Calibration 2 | 208,955 | ||
Calibration 3 | 208,585 | ||
ssj_ops@calibrated=208,770 | |||
100% | 99.5% | 208,770 | 207,735 |
90% | 90.2% | 187,893 | 188,342 |
80% | 79.6% | 167,016 | 166,204 |
70% | 70.2% | 146,139 | 146,490 |
60% | 60.3% | 125,262 | 125,921 |
50% | 49.7% | 104,385 | 103,675 |
40% | 40.3% | 83,508 | 84,227 |
30% | 30.1% | 62,631 | 62,736 |
20% | 19.9% | 41,754 | 41,596 |
10% | 9.7% | 20,877 | 20,296 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,954 | ||
Calibration 2 | 210,383 | ||
Calibration 3 | 208,709 | ||
ssj_ops@calibrated=209,546 | |||
100% | 100.0% | 209,546 | 209,523 |
90% | 90.2% | 188,591 | 188,910 |
80% | 79.1% | 167,637 | 165,722 |
70% | 69.6% | 146,682 | 145,938 |
60% | 60.0% | 125,727 | 125,643 |
50% | 49.3% | 104,773 | 103,238 |
40% | 40.3% | 83,818 | 84,452 |
30% | 29.8% | 62,864 | 62,548 |
20% | 19.9% | 41,909 | 41,732 |
10% | 9.9% | 20,955 | 20,703 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 209,699 | ||
Calibration 2 | 206,269 | ||
Calibration 3 | 205,759 | ||
ssj_ops@calibrated=206,014 | |||
100% | 99.8% | 206,014 | 205,532 |
90% | 89.3% | 185,413 | 183,969 |
80% | 79.4% | 164,811 | 163,483 |
70% | 70.2% | 144,210 | 144,714 |
60% | 60.2% | 123,608 | 124,107 |
50% | 49.8% | 103,007 | 102,633 |
40% | 40.1% | 82,406 | 82,612 |
30% | 30.0% | 61,804 | 61,893 |
20% | 20.2% | 41,203 | 41,542 |
10% | 10.1% | 20,601 | 20,712 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 200,531 | ||
Calibration 2 | 193,975 | ||
Calibration 3 | 193,874 | ||
ssj_ops@calibrated=193,924 | |||
100% | 99.9% | 193,924 | 193,737 |
90% | 89.8% | 174,532 | 174,134 |
80% | 79.7% | 155,139 | 154,502 |
70% | 69.8% | 135,747 | 135,278 |
60% | 59.8% | 116,355 | 115,966 |
50% | 50.2% | 96,962 | 97,254 |
40% | 40.1% | 77,570 | 77,851 |
30% | 29.6% | 58,177 | 57,344 |
20% | 20.0% | 38,785 | 38,707 |
10% | 9.7% | 19,392 | 18,890 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 217,736 | ||
Calibration 2 | 212,323 | ||
Calibration 3 | 212,404 | ||
ssj_ops@calibrated=212,364 | |||
100% | 99.6% | 212,364 | 211,582 |
90% | 89.8% | 191,127 | 190,697 |
80% | 79.8% | 169,891 | 169,432 |
70% | 69.9% | 148,655 | 148,512 |
60% | 59.8% | 127,418 | 127,052 |
50% | 49.7% | 106,182 | 105,649 |
40% | 40.3% | 84,945 | 85,633 |
30% | 29.8% | 63,709 | 63,378 |
20% | 19.9% | 42,473 | 42,209 |
10% | 9.8% | 21,236 | 20,774 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 216,173 | ||
Calibration 2 | 210,468 | ||
Calibration 3 | 209,570 | ||
ssj_ops@calibrated=210,019 | |||
100% | 99.5% | 210,019 | 208,983 |
90% | 89.9% | 189,017 | 188,710 |
80% | 79.4% | 168,015 | 166,811 |
70% | 69.4% | 147,013 | 145,819 |
60% | 59.2% | 126,011 | 124,360 |
50% | 50.6% | 105,009 | 106,175 |
40% | 40.4% | 84,007 | 84,758 |
30% | 30.2% | 63,006 | 63,433 |
20% | 20.2% | 42,004 | 42,375 |
10% | 9.9% | 21,002 | 20,757 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 221,364 | ||
Calibration 2 | 213,137 | ||
Calibration 3 | 211,960 | ||
ssj_ops@calibrated=212,548 | |||
100% | 99.5% | 212,548 | 211,573 |
90% | 89.1% | 191,294 | 189,423 |
80% | 80.5% | 170,039 | 171,033 |
70% | 70.0% | 148,784 | 148,706 |
60% | 60.5% | 127,529 | 128,610 |
50% | 50.2% | 106,274 | 106,772 |
40% | 40.3% | 85,019 | 85,744 |
30% | 30.1% | 63,765 | 63,997 |
20% | 20.2% | 42,510 | 42,892 |
10% | 9.8% | 21,255 | 20,869 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,791 | ||
Calibration 2 | 206,982 | ||
Calibration 3 | 206,091 | ||
ssj_ops@calibrated=206,537 | |||
100% | 99.4% | 206,537 | 205,333 |
90% | 90.4% | 185,883 | 186,761 |
80% | 80.2% | 165,229 | 165,617 |
70% | 70.7% | 144,576 | 145,926 |
60% | 60.3% | 123,922 | 124,521 |
50% | 49.8% | 103,268 | 102,759 |
40% | 39.7% | 82,615 | 81,902 |
30% | 30.0% | 61,961 | 62,021 |
20% | 20.0% | 41,307 | 41,404 |
10% | 10.0% | 20,654 | 20,614 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,212 | ||
Calibration 2 | 213,874 | ||
Calibration 3 | 211,720 | ||
ssj_ops@calibrated=212,797 | |||
100% | 99.4% | 212,797 | 211,564 |
90% | 90.2% | 191,517 | 192,014 |
80% | 80.0% | 170,238 | 170,338 |
70% | 70.2% | 148,958 | 149,339 |
60% | 59.8% | 127,678 | 127,177 |
50% | 50.2% | 106,398 | 106,922 |
40% | 39.6% | 85,119 | 84,301 |
30% | 30.0% | 63,839 | 63,788 |
20% | 20.3% | 42,559 | 43,189 |
10% | 9.9% | 21,280 | 21,095 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,253 | ||
Calibration 2 | 209,458 | ||
Calibration 3 | 209,070 | ||
ssj_ops@calibrated=209,264 | |||
100% | 99.2% | 209,264 | 207,677 |
90% | 89.8% | 188,337 | 187,929 |
80% | 79.5% | 167,411 | 166,412 |
70% | 70.2% | 146,485 | 146,898 |
60% | 60.5% | 125,558 | 126,580 |
50% | 49.3% | 104,632 | 103,179 |
40% | 40.4% | 83,705 | 84,447 |
30% | 29.8% | 62,779 | 62,340 |
20% | 19.6% | 41,853 | 41,033 |
10% | 10.3% | 20,926 | 21,640 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,542 | ||
Calibration 2 | 211,177 | ||
Calibration 3 | 208,839 | ||
ssj_ops@calibrated=210,008 | |||
100% | 99.6% | 210,008 | 209,179 |
90% | 90.5% | 189,007 | 190,147 |
80% | 80.3% | 168,006 | 168,595 |
70% | 69.7% | 147,006 | 146,442 |
60% | 60.1% | 126,005 | 126,316 |
50% | 49.8% | 105,004 | 104,510 |
40% | 39.8% | 84,003 | 83,677 |
30% | 30.2% | 63,002 | 63,393 |
20% | 20.2% | 42,002 | 42,399 |
10% | 9.8% | 21,001 | 20,666 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,631 | ||
Calibration 2 | 210,682 | ||
Calibration 3 | 212,187 | ||
ssj_ops@calibrated=211,435 | |||
100% | 99.7% | 211,435 | 210,885 |
90% | 89.4% | 190,291 | 188,958 |
80% | 79.6% | 169,148 | 168,330 |
70% | 70.1% | 148,004 | 148,180 |
60% | 60.9% | 126,861 | 128,821 |
50% | 49.7% | 105,717 | 104,981 |
40% | 40.0% | 84,574 | 84,655 |
30% | 30.0% | 63,430 | 63,436 |
20% | 20.0% | 42,287 | 42,221 |
10% | 9.7% | 21,143 | 20,612 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,021 | ||
Calibration 2 | 209,712 | ||
Calibration 3 | 209,900 | ||
ssj_ops@calibrated=209,806 | |||
100% | 99.4% | 209,806 | 208,468 |
90% | 89.8% | 188,825 | 188,320 |
80% | 79.9% | 167,845 | 167,559 |
70% | 70.1% | 146,864 | 147,075 |
60% | 60.0% | 125,884 | 125,831 |
50% | 50.8% | 104,903 | 106,534 |
40% | 40.2% | 83,922 | 84,328 |
30% | 29.6% | 62,942 | 62,099 |
20% | 19.6% | 41,961 | 41,092 |
10% | 10.0% | 20,981 | 20,983 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 217,655 | ||
Calibration 2 | 212,773 | ||
Calibration 3 | 211,937 | ||
ssj_ops@calibrated=212,355 | |||
100% | 99.8% | 212,355 | 211,949 |
90% | 89.3% | 191,120 | 189,575 |
80% | 79.8% | 169,884 | 169,559 |
70% | 70.8% | 148,649 | 150,260 |
60% | 60.2% | 127,413 | 127,792 |
50% | 49.9% | 106,178 | 105,912 |
40% | 40.0% | 84,942 | 84,974 |
30% | 30.3% | 63,707 | 64,312 |
20% | 20.1% | 42,471 | 42,711 |
10% | 10.0% | 21,236 | 21,136 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 223,458 | ||
Calibration 2 | 215,312 | ||
Calibration 3 | 214,398 | ||
ssj_ops@calibrated=214,855 | |||
100% | 99.2% | 214,855 | 213,185 |
90% | 90.4% | 193,369 | 194,214 |
80% | 79.4% | 171,884 | 170,684 |
70% | 70.7% | 150,398 | 151,846 |
60% | 59.7% | 128,913 | 128,195 |
50% | 50.3% | 107,427 | 108,126 |
40% | 39.7% | 85,942 | 85,206 |
30% | 30.1% | 64,456 | 64,566 |
20% | 19.8% | 42,971 | 42,519 |
10% | 9.9% | 21,485 | 21,371 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 217,823 | ||
Calibration 2 | 213,583 | ||
Calibration 3 | 213,370 | ||
ssj_ops@calibrated=213,476 | |||
100% | 99.2% | 213,476 | 211,725 |
90% | 90.2% | 192,129 | 192,561 |
80% | 80.5% | 170,781 | 171,801 |
70% | 70.2% | 149,433 | 149,785 |
60% | 59.2% | 128,086 | 126,461 |
50% | 49.8% | 106,738 | 106,205 |
40% | 39.8% | 85,391 | 84,885 |
30% | 30.0% | 64,043 | 64,138 |
20% | 19.7% | 42,695 | 41,983 |
10% | 9.9% | 21,348 | 21,108 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 213,443 | ||
Calibration 2 | 206,104 | ||
Calibration 3 | 205,812 | ||
ssj_ops@calibrated=205,958 | |||
100% | 99.9% | 205,958 | 205,830 |
90% | 90.2% | 185,363 | 185,764 |
80% | 80.2% | 164,767 | 165,133 |
70% | 69.8% | 144,171 | 143,751 |
60% | 60.4% | 123,575 | 124,320 |
50% | 49.7% | 102,979 | 102,313 |
40% | 40.2% | 82,383 | 82,815 |
30% | 29.9% | 61,788 | 61,479 |
20% | 19.8% | 41,192 | 40,775 |
10% | 10.0% | 20,596 | 20,530 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 220,787 | ||
Calibration 2 | 213,427 | ||
Calibration 3 | 213,067 | ||
ssj_ops@calibrated=213,247 | |||
100% | 100.0% | 213,247 | 213,317 |
90% | 90.3% | 191,922 | 192,661 |
80% | 80.2% | 170,598 | 171,032 |
70% | 69.7% | 149,273 | 148,536 |
60% | 59.7% | 127,948 | 127,282 |
50% | 49.6% | 106,623 | 105,708 |
40% | 40.2% | 85,299 | 85,727 |
30% | 30.3% | 63,974 | 64,547 |
20% | 20.0% | 42,649 | 42,637 |
10% | 10.2% | 21,325 | 21,649 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 216,173 | ||
Calibration 2 | 211,767 | ||
Calibration 3 | 210,735 | ||
ssj_ops@calibrated=211,251 | |||
100% | 99.4% | 211,251 | 210,034 |
90% | 89.6% | 190,126 | 189,358 |
80% | 80.1% | 169,001 | 169,211 |
70% | 69.5% | 147,876 | 146,814 |
60% | 60.1% | 126,750 | 126,898 |
50% | 50.0% | 105,625 | 105,639 |
40% | 40.6% | 84,500 | 85,712 |
30% | 30.1% | 63,375 | 63,547 |
20% | 19.8% | 42,250 | 41,741 |
10% | 10.2% | 21,125 | 21,460 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,781 | ||
Calibration 2 | 209,700 | ||
Calibration 3 | 210,319 | ||
ssj_ops@calibrated=210,009 | |||
100% | 99.7% | 210,009 | 209,371 |
90% | 88.8% | 189,008 | 186,563 |
80% | 79.7% | 168,007 | 167,336 |
70% | 70.5% | 147,006 | 147,957 |
60% | 59.8% | 126,006 | 125,517 |
50% | 49.7% | 105,005 | 104,332 |
40% | 40.2% | 84,004 | 84,421 |
30% | 30.1% | 63,003 | 63,212 |
20% | 19.9% | 42,002 | 41,827 |
10% | 10.0% | 21,001 | 21,050 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,109 | ||
Calibration 2 | 210,951 | ||
Calibration 3 | 211,063 | ||
ssj_ops@calibrated=211,007 | |||
100% | 99.8% | 211,007 | 210,500 |
90% | 90.2% | 189,907 | 190,350 |
80% | 80.0% | 168,806 | 168,783 |
70% | 70.1% | 147,705 | 147,825 |
60% | 59.4% | 126,604 | 125,391 |
50% | 49.9% | 105,504 | 105,277 |
40% | 40.2% | 84,403 | 84,929 |
30% | 30.3% | 63,302 | 63,859 |
20% | 20.0% | 42,201 | 42,123 |
10% | 9.8% | 21,101 | 20,666 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 217,860 | ||
Calibration 2 | 212,536 | ||
Calibration 3 | 211,816 | ||
ssj_ops@calibrated=212,176 | |||
100% | 99.6% | 212,176 | 211,355 |
90% | 89.4% | 190,959 | 189,703 |
80% | 80.0% | 169,741 | 169,791 |
70% | 69.9% | 148,523 | 148,413 |
60% | 60.1% | 127,306 | 127,619 |
50% | 49.6% | 106,088 | 105,276 |
40% | 39.5% | 84,870 | 83,757 |
30% | 30.2% | 63,653 | 64,064 |
20% | 20.0% | 42,435 | 42,482 |
10% | 10.0% | 21,218 | 21,244 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 212,761 | ||
Calibration 2 | 208,970 | ||
Calibration 3 | 208,431 | ||
ssj_ops@calibrated=208,700 | |||
100% | 99.9% | 208,700 | 208,480 |
90% | 89.8% | 187,830 | 187,452 |
80% | 80.4% | 166,960 | 167,768 |
70% | 70.0% | 146,090 | 146,026 |
60% | 60.8% | 125,220 | 126,913 |
50% | 49.8% | 104,350 | 103,896 |
40% | 40.5% | 83,480 | 84,447 |
30% | 29.9% | 62,610 | 62,465 |
20% | 20.3% | 41,740 | 42,356 |
10% | 10.0% | 20,870 | 20,870 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 220,583 | ||
Calibration 2 | 215,265 | ||
Calibration 3 | 214,056 | ||
ssj_ops@calibrated=214,661 | |||
100% | 99.9% | 214,661 | 214,471 |
90% | 90.4% | 193,194 | 193,955 |
80% | 79.9% | 171,728 | 171,538 |
70% | 70.0% | 150,262 | 150,342 |
60% | 60.6% | 128,796 | 130,030 |
50% | 50.0% | 107,330 | 107,383 |
40% | 40.3% | 85,864 | 86,522 |
30% | 29.5% | 64,398 | 63,337 |
20% | 19.7% | 42,932 | 42,311 |
10% | 9.9% | 21,466 | 21,337 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,637 | ||
Calibration 2 | 215,084 | ||
Calibration 3 | 214,946 | ||
ssj_ops@calibrated=215,015 | |||
100% | 99.3% | 215,015 | 213,412 |
90% | 90.5% | 193,514 | 194,594 |
80% | 78.9% | 172,012 | 169,689 |
70% | 70.0% | 150,511 | 150,450 |
60% | 60.0% | 129,009 | 129,106 |
50% | 49.7% | 107,508 | 106,782 |
40% | 40.4% | 86,006 | 86,899 |
30% | 30.2% | 64,505 | 64,865 |
20% | 20.4% | 43,003 | 43,957 |
10% | 10.0% | 21,502 | 21,408 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 215,231 | ||
Calibration 2 | 210,853 | ||
Calibration 3 | 209,526 | ||
ssj_ops@calibrated=210,189 | |||
100% | 99.7% | 210,189 | 209,458 |
90% | 89.9% | 189,170 | 188,998 |
80% | 80.6% | 168,151 | 169,470 |
70% | 70.3% | 147,133 | 147,720 |
60% | 60.0% | 126,114 | 126,146 |
50% | 50.1% | 105,095 | 105,210 |
40% | 40.0% | 84,076 | 83,996 |
30% | 30.1% | 63,057 | 63,250 |
20% | 20.1% | 42,038 | 42,287 |
10% | 10.2% | 21,019 | 21,365 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 211,217 | ||
Calibration 2 | 206,511 | ||
Calibration 3 | 205,608 | ||
ssj_ops@calibrated=206,060 | |||
100% | 99.2% | 206,060 | 204,484 |
90% | 89.5% | 185,454 | 184,495 |
80% | 80.1% | 164,848 | 165,115 |
70% | 69.3% | 144,242 | 142,739 |
60% | 60.6% | 123,636 | 124,834 |
50% | 49.9% | 103,030 | 102,836 |
40% | 40.1% | 82,424 | 82,550 |
30% | 29.5% | 61,818 | 60,796 |
20% | 20.0% | 41,212 | 41,126 |
10% | 9.8% | 20,606 | 20,146 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,914 | ||
Calibration 2 | 210,187 | ||
Calibration 3 | 209,683 | ||
ssj_ops@calibrated=209,935 | |||
100% | 99.5% | 209,935 | 208,909 |
90% | 90.2% | 188,941 | 189,423 |
80% | 79.7% | 167,948 | 167,403 |
70% | 69.9% | 146,954 | 146,733 |
60% | 60.1% | 125,961 | 126,190 |
50% | 49.9% | 104,967 | 104,839 |
40% | 40.1% | 83,974 | 84,197 |
30% | 30.2% | 62,980 | 63,504 |
20% | 20.0% | 41,987 | 42,041 |
10% | 9.9% | 20,993 | 20,783 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 216,870 | ||
Calibration 2 | 211,253 | ||
Calibration 3 | 210,955 | ||
ssj_ops@calibrated=211,104 | |||
100% | 100.0% | 211,104 | 211,143 |
90% | 90.5% | 189,993 | 191,088 |
80% | 81.0% | 168,883 | 171,053 |
70% | 70.1% | 147,773 | 147,900 |
60% | 60.3% | 126,662 | 127,401 |
50% | 50.1% | 105,552 | 105,835 |
40% | 40.4% | 84,442 | 85,363 |
30% | 30.2% | 63,331 | 63,728 |
20% | 19.8% | 42,221 | 41,799 |
10% | 10.0% | 21,110 | 21,088 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 223,325 | ||
Calibration 2 | 214,166 | ||
Calibration 3 | 212,072 | ||
ssj_ops@calibrated=213,119 | |||
100% | 100.3% | 213,119 | 213,705 |
90% | 90.8% | 191,807 | 193,520 |
80% | 79.6% | 170,495 | 169,683 |
70% | 70.1% | 149,183 | 149,442 |
60% | 59.5% | 127,871 | 126,726 |
50% | 49.6% | 106,559 | 105,696 |
40% | 39.6% | 85,247 | 84,455 |
30% | 30.1% | 63,936 | 64,208 |
20% | 19.8% | 42,624 | 42,154 |
10% | 10.2% | 21,312 | 21,796 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,840 | ||
Calibration 2 | 208,045 | ||
Calibration 3 | 207,516 | ||
ssj_ops@calibrated=207,781 | |||
100% | 99.2% | 207,781 | 206,071 |
90% | 90.3% | 187,003 | 187,566 |
80% | 80.4% | 166,225 | 167,064 |
70% | 69.8% | 145,447 | 145,030 |
60% | 60.0% | 124,669 | 124,674 |
50% | 49.7% | 103,890 | 103,319 |
40% | 39.9% | 83,112 | 82,939 |
30% | 30.3% | 62,334 | 62,870 |
20% | 20.2% | 41,556 | 41,897 |
10% | 10.1% | 20,778 | 20,975 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 212,620 | ||
Calibration 2 | 209,642 | ||
Calibration 3 | 207,780 | ||
ssj_ops@calibrated=208,711 | |||
100% | 99.5% | 208,711 | 207,685 |
90% | 90.0% | 187,840 | 187,869 |
80% | 80.0% | 166,969 | 167,010 |
70% | 70.3% | 146,098 | 146,750 |
60% | 59.8% | 125,227 | 124,727 |
50% | 49.8% | 104,356 | 103,904 |
40% | 40.0% | 83,485 | 83,426 |
30% | 30.0% | 62,613 | 62,619 |
20% | 19.7% | 41,742 | 41,018 |
10% | 9.8% | 20,871 | 20,528 |
Active Idle | 0 | 0 |
