Hewlett Packard Enterprise ProLiant DL385 Gen11 | ssj_ops@100% = 20,119,490 ssj_ops@100% per JVM = 209,578 |
||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Oct 25, 2022 |
Hardware Availability: | Dec-2022 | Software Availability: | Dec-2022 | Publication: | Nov 10, 2022 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 20,846,553 | ||
Calibration 2 | 20,248,456 | ||
Calibration 3 | 20,218,713 | ||
ssj_ops@calibrated=20,233,584 | |||
100% | 99.4% | 20,233,584 | 20,119,490 |
90% | 90.0% | 18,210,226 | 18,217,362 |
80% | 80.0% | 16,186,867 | 16,187,806 |
70% | 70.1% | 14,163,509 | 14,174,274 |
60% | 60.0% | 12,140,151 | 12,132,438 |
50% | 50.0% | 10,116,792 | 10,119,279 |
40% | 40.0% | 8,093,434 | 8,098,007 |
30% | 30.0% | 6,070,075 | 6,071,780 |
20% | 20.0% | 4,046,717 | 4,043,355 |
10% | 10.0% | 2,023,358 | 2,022,186 |
Active Idle | 0 | 0 |
Set Identifier: | SUT |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | SUT |
Hardware | |
---|---|
Hardware Vendor: | Hewlett Packard Enterprise |
Model: | ProLiant DL385 Gen11 |
Form Factor: | 2U |
CPU Name: | AMD EPYC 9654 2.40 GHz |
CPU Characteristics: | 96-Core, 2.40 GHz, 384MB L3 Cache |
CPU Frequency (MHz): | 2400 |
CPU(s) Enabled: | 192 cores, 2 chips, 96 cores/chip |
Hardware Threads: | 384 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
Tertiary Cache: | 384 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 384 |
# and size of DIMM: | 24 x 16384 MB |
Memory Details: | 16 GB 1Rx8 PC5-4800B-R; all DIMM slots populated on each socket |
Power Supply Quantity and Rating (W): | 1 x 1000 |
Power Supply Details: | HPE 1000W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (P03178-B21) |
Disk Drive: | 1 x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD (P40497-B21) |
Disk Controller: | Embedded SATA Controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x HPE 1GbE 4p BASE-T I350-T4 OCP3 Adapter (P08449-B21) |
NICs Enabled in Firmware / OS / Connected: | 4/1/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled (see SUT Notes) |
Operating System (OS): | Windows Server 2019 Datacenter |
OS Version: | Version 1809 (OS Build 17763.3532) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Java HotSpot(TM) 64-Bit Server VM (build 17.0.2+8-LTS-86, mixed mode, sharing) |
JVM Command-line Options: | -server -Xms1500m -Xmx1500m -Xmn1300m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap |
JVM Affinity: | start /NODE [0-23] /AFFINITY [0xF,0xF0,0xF00,0xF000] |
JVM Instances: | 96 |
JVM Initial Heap (MB): | 1500 |
JVM Maximum Heap (MB): | 1500 |
JVM Address Bits: | 64 |
Boot Firmware Version: | A55 v1.10 (10/14/2022) |
Management Firmware Version: | 1.10 Oct 09 2022 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | KB5018419, HPE ProLiant Agentless Management Service for Windows X64 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,289 | ||
Calibration 2 | 202,530 | ||
Calibration 3 | 201,460 | ||
ssj_ops@calibrated=201,995 | |||
100% | 99.3% | 201,995 | 200,592 |
90% | 90.5% | 181,796 | 182,794 |
80% | 79.5% | 161,596 | 160,533 |
70% | 70.3% | 141,397 | 141,978 |
60% | 60.1% | 121,197 | 121,393 |
50% | 49.7% | 100,998 | 100,477 |
40% | 39.3% | 80,798 | 79,371 |
30% | 30.4% | 60,599 | 61,410 |
20% | 20.2% | 40,399 | 40,724 |
10% | 10.1% | 20,200 | 20,307 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,455 | ||
Calibration 2 | 210,073 | ||
Calibration 3 | 210,040 | ||
ssj_ops@calibrated=210,056 | |||
100% | 99.8% | 210,056 | 209,613 |
90% | 89.7% | 189,051 | 188,404 |
80% | 80.5% | 168,045 | 169,008 |
70% | 70.0% | 147,039 | 147,072 |
60% | 59.6% | 126,034 | 125,272 |
50% | 50.3% | 105,028 | 105,680 |
40% | 40.5% | 84,022 | 85,099 |
30% | 30.5% | 63,017 | 64,072 |
20% | 19.9% | 42,011 | 41,754 |
10% | 10.3% | 21,006 | 21,575 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 220,376 | ||
Calibration 2 | 214,329 | ||
Calibration 3 | 212,744 | ||
ssj_ops@calibrated=213,536 | |||
100% | 99.3% | 213,536 | 212,077 |
90% | 90.2% | 192,183 | 192,577 |
80% | 79.8% | 170,829 | 170,388 |
70% | 70.4% | 149,475 | 150,405 |
60% | 59.9% | 128,122 | 127,829 |
50% | 50.4% | 106,768 | 107,668 |
40% | 39.9% | 85,415 | 85,171 |
30% | 30.3% | 64,061 | 64,726 |
20% | 20.1% | 42,707 | 42,952 |
10% | 10.3% | 21,354 | 22,079 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,877 | ||
Calibration 2 | 216,582 | ||
Calibration 3 | 216,167 | ||
ssj_ops@calibrated=216,375 | |||
100% | 98.2% | 216,375 | 212,438 |
90% | 89.9% | 194,737 | 194,525 |
80% | 80.5% | 173,100 | 174,175 |
70% | 69.9% | 151,462 | 151,317 |
60% | 60.1% | 129,825 | 130,033 |
50% | 49.9% | 108,187 | 107,977 |
40% | 39.6% | 86,550 | 85,635 |
30% | 29.8% | 64,912 | 64,584 |
20% | 19.8% | 43,275 | 42,781 |
10% | 10.2% | 21,637 | 21,995 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,578 | ||
Calibration 2 | 215,353 | ||
Calibration 3 | 214,322 | ||
ssj_ops@calibrated=214,837 | |||
100% | 99.5% | 214,837 | 213,745 |
90% | 89.9% | 193,353 | 193,212 |
80% | 79.5% | 171,870 | 170,825 |
70% | 69.5% | 150,386 | 149,265 |
60% | 60.3% | 128,902 | 129,596 |
50% | 50.9% | 107,419 | 109,450 |
40% | 39.5% | 85,935 | 84,878 |
30% | 29.8% | 64,451 | 64,117 |
20% | 19.9% | 42,967 | 42,787 |
10% | 10.0% | 21,484 | 21,389 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,701 | ||
Calibration 2 | 217,262 | ||
Calibration 3 | 216,672 | ||
ssj_ops@calibrated=216,967 | |||
100% | 99.8% | 216,967 | 216,459 |
90% | 89.8% | 195,271 | 194,762 |
80% | 79.9% | 173,574 | 173,449 |
70% | 69.5% | 151,877 | 150,873 |
60% | 60.2% | 130,180 | 130,555 |
50% | 50.2% | 108,484 | 108,888 |
40% | 39.7% | 86,787 | 86,103 |
30% | 30.0% | 65,090 | 65,035 |
20% | 19.9% | 43,393 | 43,107 |
10% | 10.0% | 21,697 | 21,740 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,427 | ||
Calibration 2 | 211,723 | ||
Calibration 3 | 212,160 | ||
ssj_ops@calibrated=211,941 | |||
100% | 100.0% | 211,941 | 211,988 |
90% | 90.4% | 190,747 | 191,656 |
80% | 79.8% | 169,553 | 169,205 |
70% | 70.3% | 148,359 | 149,079 |
60% | 59.4% | 127,165 | 125,871 |
50% | 49.7% | 105,971 | 105,413 |
40% | 40.3% | 84,776 | 85,493 |
30% | 30.1% | 63,582 | 63,789 |
20% | 20.3% | 42,388 | 43,124 |
10% | 9.7% | 21,194 | 20,478 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 217,453 | ||
Calibration 2 | 211,714 | ||
Calibration 3 | 211,172 | ||
ssj_ops@calibrated=211,443 | |||
100% | 99.1% | 211,443 | 209,638 |
90% | 90.3% | 190,299 | 190,945 |
80% | 80.2% | 169,155 | 169,560 |
70% | 69.4% | 148,010 | 146,793 |
60% | 59.8% | 126,866 | 126,436 |
50% | 50.4% | 105,722 | 106,531 |
40% | 39.9% | 84,577 | 84,425 |
30% | 30.1% | 63,433 | 63,722 |
20% | 19.9% | 42,289 | 42,050 |
10% | 10.0% | 21,144 | 21,183 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 215,455 | ||
Calibration 2 | 207,390 | ||
Calibration 3 | 207,469 | ||
ssj_ops@calibrated=207,430 | |||
100% | 99.2% | 207,430 | 205,710 |
90% | 90.8% | 186,687 | 188,354 |
80% | 79.7% | 165,944 | 165,234 |
70% | 69.5% | 145,201 | 144,248 |
60% | 60.0% | 124,458 | 124,553 |
50% | 50.0% | 103,715 | 103,782 |
40% | 40.1% | 82,972 | 83,173 |
30% | 30.1% | 62,229 | 62,463 |
20% | 20.1% | 41,486 | 41,787 |
10% | 10.0% | 20,743 | 20,732 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,658 | ||
Calibration 2 | 212,875 | ||
Calibration 3 | 212,429 | ||
ssj_ops@calibrated=212,652 | |||
100% | 99.1% | 212,652 | 210,648 |
90% | 90.0% | 191,387 | 191,374 |
80% | 80.2% | 170,122 | 170,480 |
70% | 69.9% | 148,856 | 148,750 |
60% | 59.5% | 127,591 | 126,510 |
50% | 50.4% | 106,326 | 107,130 |
40% | 39.8% | 85,061 | 84,549 |
30% | 29.6% | 63,796 | 62,921 |
20% | 19.8% | 42,530 | 42,102 |
10% | 9.8% | 21,265 | 20,933 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 220,579 | ||
Calibration 2 | 216,407 | ||
Calibration 3 | 214,690 | ||
ssj_ops@calibrated=215,549 | |||
100% | 99.6% | 215,549 | 214,734 |
90% | 90.1% | 193,994 | 194,197 |
80% | 79.5% | 172,439 | 171,434 |
70% | 71.1% | 150,884 | 153,286 |
60% | 60.4% | 129,329 | 130,286 |
50% | 49.9% | 107,774 | 107,568 |
40% | 40.6% | 86,219 | 87,556 |
30% | 30.1% | 64,665 | 64,788 |
20% | 20.1% | 43,110 | 43,357 |
10% | 10.1% | 21,555 | 21,770 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,410 | ||
Calibration 2 | 210,362 | ||
Calibration 3 | 209,707 | ||
ssj_ops@calibrated=210,034 | |||
100% | 99.6% | 210,034 | 209,112 |
90% | 90.6% | 189,031 | 190,330 |
80% | 80.0% | 168,027 | 168,072 |
70% | 70.4% | 147,024 | 147,766 |
60% | 59.7% | 126,021 | 125,466 |
50% | 50.6% | 105,017 | 106,206 |
40% | 40.5% | 84,014 | 84,993 |
30% | 30.1% | 63,010 | 63,142 |
20% | 20.3% | 42,007 | 42,575 |
10% | 10.1% | 21,003 | 21,233 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 210,696 | ||
Calibration 2 | 204,376 | ||
Calibration 3 | 204,584 | ||
ssj_ops@calibrated=204,480 | |||
100% | 99.6% | 204,480 | 203,647 |
90% | 89.6% | 184,032 | 183,160 |
80% | 79.8% | 163,584 | 163,250 |
70% | 70.0% | 143,136 | 143,128 |
60% | 60.3% | 122,688 | 123,295 |
50% | 50.4% | 102,240 | 102,982 |
40% | 39.6% | 81,792 | 80,929 |
30% | 30.1% | 61,344 | 61,450 |
20% | 20.1% | 40,896 | 41,033 |
10% | 10.1% | 20,448 | 20,683 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,919 | ||
Calibration 2 | 211,736 | ||
Calibration 3 | 212,388 | ||
ssj_ops@calibrated=212,062 | |||
100% | 98.9% | 212,062 | 209,670 |
90% | 89.4% | 190,856 | 189,649 |
80% | 80.2% | 169,649 | 169,986 |
70% | 69.3% | 148,443 | 146,888 |
60% | 59.9% | 127,237 | 127,086 |
50% | 49.8% | 106,031 | 105,625 |
40% | 40.1% | 84,825 | 85,052 |
30% | 29.8% | 63,619 | 63,113 |
20% | 19.8% | 42,412 | 42,018 |
10% | 9.9% | 21,206 | 20,961 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 220,149 | ||
Calibration 2 | 211,933 | ||
Calibration 3 | 212,294 | ||
ssj_ops@calibrated=212,114 | |||
100% | 99.5% | 212,114 | 211,109 |
90% | 90.1% | 190,902 | 191,157 |
80% | 80.0% | 169,691 | 169,754 |
70% | 69.9% | 148,480 | 148,211 |
60% | 61.0% | 127,268 | 129,379 |
50% | 50.1% | 106,057 | 106,196 |
40% | 39.8% | 84,845 | 84,341 |
30% | 29.6% | 63,634 | 62,705 |
20% | 20.2% | 42,423 | 42,766 |
10% | 9.8% | 21,211 | 20,861 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 217,698 | ||
Calibration 2 | 209,072 | ||
Calibration 3 | 205,472 | ||
ssj_ops@calibrated=207,272 | |||
100% | 100.2% | 207,272 | 207,675 |
90% | 90.1% | 186,545 | 186,726 |
80% | 80.3% | 165,818 | 166,475 |
70% | 69.9% | 145,090 | 144,890 |
60% | 59.9% | 124,363 | 124,230 |
50% | 50.2% | 103,636 | 104,153 |
40% | 40.2% | 82,909 | 83,341 |
30% | 29.6% | 62,182 | 61,342 |
20% | 20.0% | 41,454 | 41,541 |
10% | 10.2% | 20,727 | 21,057 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 201,616 | ||
Calibration 2 | 197,670 | ||
Calibration 3 | 197,334 | ||
ssj_ops@calibrated=197,502 | |||
100% | 99.6% | 197,502 | 196,692 |
90% | 90.5% | 177,752 | 178,766 |
80% | 80.4% | 158,002 | 158,705 |
70% | 69.7% | 138,251 | 137,591 |
60% | 59.9% | 118,501 | 118,317 |
50% | 50.0% | 98,751 | 98,843 |
40% | 40.2% | 79,001 | 79,419 |
30% | 30.0% | 59,251 | 59,164 |
20% | 20.2% | 39,500 | 39,941 |
10% | 9.6% | 19,750 | 19,046 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,044 | ||
Calibration 2 | 213,622 | ||
Calibration 3 | 213,335 | ||
ssj_ops@calibrated=213,478 | |||
100% | 98.1% | 213,478 | 209,466 |
90% | 89.5% | 192,130 | 191,158 |
80% | 79.9% | 170,783 | 170,589 |
70% | 70.1% | 149,435 | 149,591 |
60% | 60.1% | 128,087 | 128,280 |
50% | 49.4% | 106,739 | 105,547 |
40% | 39.8% | 85,391 | 84,958 |
30% | 30.0% | 64,043 | 63,984 |
20% | 19.9% | 42,696 | 42,541 |
10% | 9.9% | 21,348 | 21,129 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,038 | ||
Calibration 2 | 208,318 | ||
Calibration 3 | 208,699 | ||
ssj_ops@calibrated=208,509 | |||
100% | 99.6% | 208,509 | 207,737 |
90% | 89.5% | 187,658 | 186,691 |
80% | 79.5% | 166,807 | 165,724 |
70% | 70.2% | 145,956 | 146,374 |
60% | 60.0% | 125,105 | 125,183 |
50% | 50.3% | 104,254 | 104,898 |
40% | 39.7% | 83,403 | 82,881 |
30% | 30.1% | 62,553 | 62,780 |
20% | 20.4% | 41,702 | 42,630 |
10% | 9.8% | 20,851 | 20,402 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 207,493 | ||
Calibration 2 | 202,280 | ||
Calibration 3 | 204,058 | ||
ssj_ops@calibrated=203,169 | |||
100% | 99.8% | 203,169 | 202,802 |
90% | 90.1% | 182,852 | 183,081 |
80% | 79.7% | 162,535 | 161,947 |
70% | 69.9% | 142,218 | 142,019 |
60% | 60.1% | 121,901 | 122,051 |
50% | 50.0% | 101,584 | 101,543 |
40% | 40.1% | 81,268 | 81,372 |
30% | 30.5% | 60,951 | 61,912 |
20% | 19.8% | 40,634 | 40,223 |
10% | 10.1% | 20,317 | 20,502 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 215,580 | ||
Calibration 2 | 210,688 | ||
Calibration 3 | 209,703 | ||
ssj_ops@calibrated=210,195 | |||
100% | 99.7% | 210,195 | 209,516 |
90% | 89.9% | 189,176 | 188,970 |
80% | 79.4% | 168,156 | 166,972 |
70% | 70.4% | 147,137 | 147,927 |
60% | 59.8% | 126,117 | 125,746 |
50% | 49.8% | 105,098 | 104,696 |
40% | 39.9% | 84,078 | 83,772 |
30% | 30.3% | 63,059 | 63,762 |
20% | 19.8% | 42,039 | 41,541 |
10% | 10.0% | 21,020 | 20,953 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 215,936 | ||
Calibration 2 | 211,906 | ||
Calibration 3 | 210,485 | ||
ssj_ops@calibrated=211,196 | |||
100% | 99.1% | 211,196 | 209,240 |
90% | 90.0% | 190,076 | 190,170 |
80% | 79.7% | 168,956 | 168,371 |
70% | 69.9% | 147,837 | 147,557 |
60% | 60.1% | 126,717 | 127,019 |
50% | 50.3% | 105,598 | 106,287 |
40% | 40.1% | 84,478 | 84,693 |
30% | 30.0% | 63,359 | 63,350 |
20% | 19.8% | 42,239 | 41,897 |
10% | 9.9% | 21,120 | 20,816 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 223,805 | ||
Calibration 2 | 213,874 | ||
Calibration 3 | 213,153 | ||
ssj_ops@calibrated=213,514 | |||
100% | 99.4% | 213,514 | 212,308 |
90% | 89.5% | 192,162 | 191,082 |
80% | 79.6% | 170,811 | 169,910 |
70% | 70.1% | 149,459 | 149,583 |
60% | 60.4% | 128,108 | 129,015 |
50% | 50.0% | 106,757 | 106,743 |
40% | 40.0% | 85,405 | 85,318 |
30% | 29.8% | 64,054 | 63,585 |
20% | 20.2% | 42,703 | 43,218 |
10% | 10.0% | 21,351 | 21,358 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,654 | ||
Calibration 2 | 210,868 | ||
Calibration 3 | 211,089 | ||
ssj_ops@calibrated=210,979 | |||
100% | 99.3% | 210,979 | 209,580 |
90% | 89.7% | 189,881 | 189,289 |
80% | 79.7% | 168,783 | 168,175 |
70% | 69.8% | 147,685 | 147,304 |
60% | 59.9% | 126,587 | 126,412 |
50% | 49.9% | 105,489 | 105,269 |
40% | 39.9% | 84,391 | 84,149 |
30% | 29.6% | 63,294 | 62,502 |
20% | 20.1% | 42,196 | 42,336 |
10% | 10.1% | 21,098 | 21,274 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 224,306 | ||
Calibration 2 | 216,138 | ||
Calibration 3 | 215,883 | ||
ssj_ops@calibrated=216,011 | |||
100% | 99.8% | 216,011 | 215,562 |
90% | 90.2% | 194,410 | 194,934 |
80% | 79.7% | 172,809 | 172,165 |
70% | 69.7% | 151,208 | 150,597 |
60% | 59.8% | 129,606 | 129,137 |
50% | 49.9% | 108,005 | 107,685 |
40% | 40.1% | 86,404 | 86,693 |
30% | 30.0% | 64,803 | 64,893 |
20% | 20.0% | 43,202 | 43,095 |
10% | 10.1% | 21,601 | 21,717 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,968 | ||
Calibration 2 | 212,435 | ||
Calibration 3 | 211,144 | ||
ssj_ops@calibrated=211,789 | |||
100% | 99.4% | 211,789 | 210,541 |
90% | 90.1% | 190,610 | 190,814 |
80% | 79.8% | 169,431 | 168,924 |
70% | 69.6% | 148,253 | 147,463 |
60% | 59.6% | 127,074 | 126,242 |
50% | 49.7% | 105,895 | 105,159 |
40% | 39.9% | 84,716 | 84,554 |
30% | 30.1% | 63,537 | 63,737 |
20% | 19.9% | 42,358 | 42,112 |
10% | 10.1% | 21,179 | 21,357 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 220,582 | ||
Calibration 2 | 213,148 | ||
Calibration 3 | 211,565 | ||
ssj_ops@calibrated=212,356 | |||
100% | 99.8% | 212,356 | 211,863 |
90% | 90.0% | 191,121 | 191,066 |
80% | 79.9% | 169,885 | 169,694 |
70% | 70.5% | 148,649 | 149,796 |
60% | 60.1% | 127,414 | 127,635 |
50% | 49.5% | 106,178 | 105,079 |
40% | 40.0% | 84,943 | 84,893 |
30% | 30.2% | 63,707 | 64,217 |
20% | 20.0% | 42,471 | 42,377 |
10% | 10.2% | 21,236 | 21,579 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 211,908 | ||
Calibration 2 | 203,947 | ||
Calibration 3 | 202,155 | ||
ssj_ops@calibrated=203,051 | |||
100% | 99.5% | 203,051 | 202,077 |
90% | 89.9% | 182,746 | 182,536 |
80% | 80.2% | 162,441 | 162,843 |
70% | 69.5% | 142,136 | 141,115 |
60% | 60.1% | 121,831 | 121,959 |
50% | 49.9% | 101,526 | 101,400 |
40% | 39.9% | 81,220 | 81,061 |
30% | 30.1% | 60,915 | 61,155 |
20% | 19.6% | 40,610 | 39,710 |
10% | 10.0% | 20,305 | 20,288 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 220,449 | ||
Calibration 2 | 211,553 | ||
Calibration 3 | 212,995 | ||
ssj_ops@calibrated=212,274 | |||
100% | 99.7% | 212,274 | 211,679 |
90% | 90.9% | 191,047 | 193,044 |
80% | 80.7% | 169,819 | 171,297 |
70% | 69.4% | 148,592 | 147,388 |
60% | 60.3% | 127,364 | 128,079 |
50% | 49.8% | 106,137 | 105,618 |
40% | 40.7% | 84,910 | 86,461 |
30% | 29.9% | 63,682 | 63,434 |
20% | 20.0% | 42,455 | 42,453 |
10% | 9.9% | 21,227 | 20,974 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 221,454 | ||
Calibration 2 | 214,291 | ||
Calibration 3 | 214,291 | ||
ssj_ops@calibrated=214,291 | |||
100% | 99.3% | 214,291 | 212,699 |
90% | 90.6% | 192,862 | 194,186 |
80% | 80.5% | 171,433 | 172,607 |
70% | 70.6% | 150,004 | 151,357 |
60% | 60.7% | 128,575 | 130,048 |
50% | 49.8% | 107,146 | 106,752 |
40% | 39.7% | 85,717 | 85,165 |
30% | 29.9% | 64,287 | 63,970 |
20% | 20.3% | 42,858 | 43,433 |
10% | 10.0% | 21,429 | 21,480 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,262 | ||
Calibration 2 | 204,445 | ||
Calibration 3 | 204,395 | ||
ssj_ops@calibrated=204,420 | |||
100% | 100.0% | 204,420 | 204,428 |
90% | 89.8% | 183,978 | 183,548 |
80% | 80.4% | 163,536 | 164,257 |
70% | 70.5% | 143,094 | 144,046 |
60% | 59.5% | 122,652 | 121,657 |
50% | 49.8% | 102,210 | 101,755 |
40% | 39.7% | 81,768 | 81,110 |
30% | 30.0% | 61,326 | 61,264 |
20% | 20.2% | 40,884 | 41,365 |
10% | 9.9% | 20,442 | 20,231 |
Active Idle | 0 | 0 |

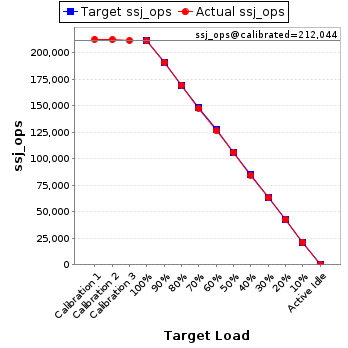

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 212,882 | ||
Calibration 2 | 212,449 | ||
Calibration 3 | 211,638 | ||
ssj_ops@calibrated=212,044 | |||
100% | 99.7% | 212,044 | 211,442 |
90% | 90.0% | 190,839 | 190,789 |
80% | 79.9% | 169,635 | 169,521 |
70% | 69.7% | 148,430 | 147,781 |
60% | 59.7% | 127,226 | 126,556 |
50% | 50.0% | 106,022 | 106,014 |
40% | 39.9% | 84,817 | 84,669 |
30% | 29.9% | 63,613 | 63,350 |
20% | 20.0% | 42,409 | 42,432 |
10% | 10.0% | 21,204 | 21,255 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 217,602 | ||
Calibration 2 | 210,966 | ||
Calibration 3 | 210,827 | ||
ssj_ops@calibrated=210,897 | |||
100% | 98.8% | 210,897 | 208,361 |
90% | 90.0% | 189,807 | 189,847 |
80% | 80.4% | 168,717 | 169,637 |
70% | 70.4% | 147,628 | 148,404 |
60% | 60.5% | 126,538 | 127,643 |
50% | 50.3% | 105,448 | 105,977 |
40% | 40.5% | 84,359 | 85,349 |
30% | 30.1% | 63,269 | 63,462 |
20% | 19.9% | 42,179 | 41,957 |
10% | 10.0% | 21,090 | 20,985 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 209,982 | ||
Calibration 2 | 207,535 | ||
Calibration 3 | 206,195 | ||
ssj_ops@calibrated=206,865 | |||
100% | 99.5% | 206,865 | 205,803 |
90% | 89.8% | 186,179 | 185,865 |
80% | 80.6% | 165,492 | 166,635 |
70% | 70.1% | 144,806 | 144,945 |
60% | 59.9% | 124,119 | 123,844 |
50% | 50.0% | 103,433 | 103,509 |
40% | 40.0% | 82,746 | 82,698 |
30% | 30.0% | 62,060 | 62,018 |
20% | 19.9% | 41,373 | 41,140 |
10% | 10.1% | 20,687 | 20,883 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 216,377 | ||
Calibration 2 | 212,807 | ||
Calibration 3 | 211,834 | ||
ssj_ops@calibrated=212,320 | |||
100% | 99.7% | 212,320 | 211,720 |
90% | 89.9% | 191,088 | 190,963 |
80% | 80.0% | 169,856 | 169,760 |
70% | 69.9% | 148,624 | 148,394 |
60% | 59.8% | 127,392 | 126,912 |
50% | 50.0% | 106,160 | 106,264 |
40% | 40.2% | 84,928 | 85,345 |
30% | 30.0% | 63,696 | 63,613 |
20% | 20.2% | 42,464 | 42,839 |
10% | 9.8% | 21,232 | 20,806 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 215,781 | ||
Calibration 2 | 208,480 | ||
Calibration 3 | 208,597 | ||
ssj_ops@calibrated=208,538 | |||
100% | 99.7% | 208,538 | 207,913 |
90% | 90.1% | 187,684 | 187,985 |
80% | 80.2% | 166,831 | 167,326 |
70% | 70.0% | 145,977 | 145,958 |
60% | 59.5% | 125,123 | 124,066 |
50% | 49.6% | 104,269 | 103,526 |
40% | 40.2% | 83,415 | 83,797 |
30% | 29.8% | 62,561 | 62,045 |
20% | 19.8% | 41,708 | 41,199 |
10% | 10.1% | 20,854 | 21,162 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 221,599 | ||
Calibration 2 | 215,404 | ||
Calibration 3 | 214,522 | ||
ssj_ops@calibrated=214,963 | |||
100% | 99.5% | 214,963 | 213,835 |
90% | 89.5% | 193,467 | 192,408 |
80% | 80.2% | 171,970 | 172,399 |
70% | 69.9% | 150,474 | 150,324 |
60% | 59.8% | 128,978 | 128,442 |
50% | 49.8% | 107,481 | 107,094 |
40% | 39.8% | 85,985 | 85,451 |
30% | 30.0% | 64,489 | 64,410 |
20% | 20.0% | 42,993 | 43,024 |
10% | 10.0% | 21,496 | 21,416 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,488 | ||
Calibration 2 | 213,529 | ||
Calibration 3 | 213,671 | ||
ssj_ops@calibrated=213,600 | |||
100% | 99.5% | 213,600 | 212,562 |
90% | 89.9% | 192,240 | 192,090 |
80% | 80.0% | 170,880 | 170,950 |
70% | 70.0% | 149,520 | 149,521 |
60% | 60.0% | 128,160 | 128,217 |
50% | 49.9% | 106,800 | 106,538 |
40% | 39.7% | 85,440 | 84,904 |
30% | 29.9% | 64,080 | 63,876 |
20% | 19.9% | 42,720 | 42,599 |
10% | 9.8% | 21,360 | 20,848 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 216,058 | ||
Calibration 2 | 212,509 | ||
Calibration 3 | 211,821 | ||
ssj_ops@calibrated=212,165 | |||
100% | 99.3% | 212,165 | 210,600 |
90% | 90.2% | 190,948 | 191,348 |
80% | 79.8% | 169,732 | 169,237 |
70% | 70.1% | 148,515 | 148,664 |
60% | 60.1% | 127,299 | 127,511 |
50% | 49.9% | 106,082 | 105,928 |
40% | 40.3% | 84,866 | 85,443 |
30% | 29.7% | 63,649 | 62,933 |
20% | 20.4% | 42,433 | 43,286 |
10% | 10.1% | 21,216 | 21,532 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 206,158 | ||
Calibration 2 | 201,591 | ||
Calibration 3 | 201,953 | ||
ssj_ops@calibrated=201,772 | |||
100% | 99.3% | 201,772 | 200,459 |
90% | 90.4% | 181,595 | 182,489 |
80% | 80.0% | 161,417 | 161,427 |
70% | 70.0% | 141,240 | 141,215 |
60% | 59.7% | 121,063 | 120,430 |
50% | 50.2% | 100,886 | 101,241 |
40% | 40.1% | 80,709 | 80,945 |
30% | 30.3% | 60,532 | 61,062 |
20% | 20.2% | 40,354 | 40,814 |
10% | 10.0% | 20,177 | 20,174 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||

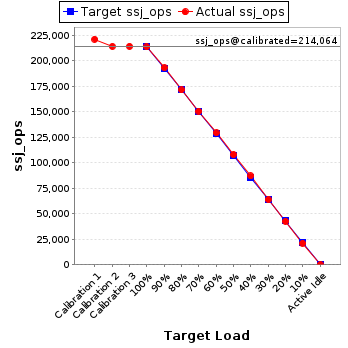

Calibration 1 | 221,016 | ||
Calibration 2 | 214,003 | ||
Calibration 3 | 214,125 | ||
ssj_ops@calibrated=214,064 | |||
100% | 99.7% | 214,064 | 213,471 |
90% | 90.2% | 192,658 | 193,008 |
80% | 80.0% | 171,251 | 171,267 |
70% | 70.3% | 149,845 | 150,526 |
60% | 60.3% | 128,438 | 129,111 |
50% | 50.4% | 107,032 | 107,912 |
40% | 40.6% | 85,626 | 86,936 |
30% | 29.8% | 64,219 | 63,807 |
20% | 19.9% | 42,813 | 42,508 |
10% | 9.8% | 21,406 | 21,058 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 217,487 | ||
Calibration 2 | 212,970 | ||
Calibration 3 | 212,373 | ||
ssj_ops@calibrated=212,672 | |||
100% | 99.1% | 212,672 | 210,677 |
90% | 89.6% | 191,404 | 190,519 |
80% | 79.0% | 170,137 | 167,945 |
70% | 69.4% | 148,870 | 147,698 |
60% | 59.3% | 127,603 | 126,175 |
50% | 49.8% | 106,336 | 106,001 |
40% | 40.1% | 85,069 | 85,241 |
30% | 30.3% | 63,801 | 64,392 |
20% | 19.8% | 42,534 | 42,082 |
10% | 10.0% | 21,267 | 21,357 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,489 | ||
Calibration 2 | 216,039 | ||
Calibration 3 | 215,752 | ||
ssj_ops@calibrated=215,895 | |||
100% | 99.6% | 215,895 | 214,948 |
90% | 89.8% | 194,306 | 193,859 |
80% | 79.6% | 172,716 | 171,782 |
70% | 70.5% | 151,127 | 152,143 |
60% | 59.8% | 129,537 | 129,141 |
50% | 50.4% | 107,948 | 108,770 |
40% | 40.6% | 86,358 | 87,608 |
30% | 30.1% | 64,769 | 64,937 |
20% | 20.1% | 43,179 | 43,399 |
10% | 10.1% | 21,590 | 21,798 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 220,031 | ||
Calibration 2 | 210,726 | ||
Calibration 3 | 210,952 | ||
ssj_ops@calibrated=210,839 | |||
100% | 99.7% | 210,839 | 210,128 |
90% | 89.1% | 189,755 | 187,926 |
80% | 80.7% | 168,671 | 170,202 |
70% | 70.5% | 147,587 | 148,667 |
60% | 59.6% | 126,503 | 125,681 |
50% | 50.2% | 105,419 | 105,766 |
40% | 40.0% | 84,335 | 84,391 |
30% | 30.3% | 63,252 | 63,843 |
20% | 20.0% | 42,168 | 42,091 |
10% | 10.1% | 21,084 | 21,332 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 222,817 | ||
Calibration 2 | 212,924 | ||
Calibration 3 | 211,920 | ||
ssj_ops@calibrated=212,422 | |||
100% | 99.8% | 212,422 | 212,076 |
90% | 90.2% | 191,180 | 191,674 |
80% | 79.9% | 169,938 | 169,731 |
70% | 69.8% | 148,695 | 148,250 |
60% | 59.9% | 127,453 | 127,301 |
50% | 50.5% | 106,211 | 107,344 |
40% | 40.4% | 84,969 | 85,767 |
30% | 29.6% | 63,727 | 62,807 |
20% | 20.1% | 42,484 | 42,712 |
10% | 10.2% | 21,242 | 21,596 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||

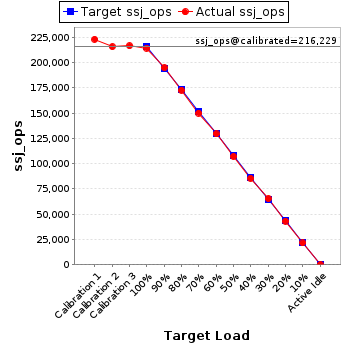

Calibration 1 | 223,249 | ||
Calibration 2 | 215,829 | ||
Calibration 3 | 216,630 | ||
ssj_ops@calibrated=216,229 | |||
100% | 99.2% | 216,229 | 214,517 |
90% | 90.2% | 194,606 | 195,007 |
80% | 79.9% | 172,983 | 172,828 |
70% | 69.5% | 151,361 | 150,175 |
60% | 59.9% | 129,738 | 129,456 |
50% | 49.6% | 108,115 | 107,168 |
40% | 39.5% | 86,492 | 85,473 |
30% | 30.2% | 64,869 | 65,365 |
20% | 20.0% | 43,246 | 43,203 |
10% | 9.9% | 21,623 | 21,482 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,830 | ||
Calibration 2 | 206,812 | ||
Calibration 3 | 206,987 | ||
ssj_ops@calibrated=206,900 | |||
100% | 99.4% | 206,900 | 205,655 |
90% | 89.5% | 186,210 | 185,223 |
80% | 79.4% | 165,520 | 164,227 |
70% | 69.6% | 144,830 | 143,906 |
60% | 60.0% | 124,140 | 124,039 |
50% | 50.1% | 103,450 | 103,576 |
40% | 40.0% | 82,760 | 82,667 |
30% | 30.0% | 62,070 | 62,104 |
20% | 19.9% | 41,380 | 41,224 |
10% | 9.9% | 20,690 | 20,520 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 217,513 | ||
Calibration 2 | 213,802 | ||
Calibration 3 | 212,986 | ||
ssj_ops@calibrated=213,394 | |||
100% | 99.8% | 213,394 | 213,027 |
90% | 89.8% | 192,055 | 191,625 |
80% | 79.5% | 170,715 | 169,665 |
70% | 70.5% | 149,376 | 150,530 |
60% | 60.7% | 128,036 | 129,547 |
50% | 50.1% | 106,697 | 106,863 |
40% | 39.7% | 85,358 | 84,646 |
30% | 30.3% | 64,018 | 64,757 |
20% | 19.9% | 42,679 | 42,461 |
10% | 10.2% | 21,339 | 21,691 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,352 | ||
Calibration 2 | 211,373 | ||
Calibration 3 | 212,062 | ||
ssj_ops@calibrated=211,718 | |||
100% | 100.1% | 211,718 | 211,832 |
90% | 90.2% | 190,546 | 190,994 |
80% | 80.0% | 169,374 | 169,368 |
70% | 69.9% | 148,202 | 148,022 |
60% | 60.0% | 127,031 | 127,066 |
50% | 49.5% | 105,859 | 104,824 |
40% | 40.2% | 84,687 | 85,203 |
30% | 30.0% | 63,515 | 63,513 |
20% | 20.0% | 42,344 | 42,447 |
10% | 9.8% | 21,172 | 20,833 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 213,973 | ||
Calibration 2 | 209,428 | ||
Calibration 3 | 209,429 | ||
ssj_ops@calibrated=209,429 | |||
100% | 99.5% | 209,429 | 208,345 |
90% | 89.5% | 188,486 | 187,380 |
80% | 79.3% | 167,543 | 166,011 |
70% | 70.2% | 146,600 | 146,995 |
60% | 59.7% | 125,657 | 124,986 |
50% | 49.8% | 104,714 | 104,385 |
40% | 40.0% | 83,772 | 83,826 |
30% | 29.4% | 62,829 | 61,606 |
20% | 20.2% | 41,886 | 42,345 |
10% | 10.3% | 20,943 | 21,500 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 211,983 | ||
Calibration 2 | 208,305 | ||
Calibration 3 | 207,859 | ||
ssj_ops@calibrated=208,082 | |||
100% | 99.1% | 208,082 | 206,254 |
90% | 90.5% | 187,274 | 188,239 |
80% | 80.2% | 166,466 | 166,799 |
70% | 70.2% | 145,658 | 146,176 |
60% | 60.1% | 124,849 | 124,994 |
50% | 50.1% | 104,041 | 104,176 |
40% | 40.3% | 83,233 | 83,786 |
30% | 30.4% | 62,425 | 63,329 |
20% | 19.9% | 41,616 | 41,474 |
10% | 9.8% | 20,808 | 20,453 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 217,133 | ||
Calibration 2 | 209,732 | ||
Calibration 3 | 209,229 | ||
ssj_ops@calibrated=209,481 | |||
100% | 99.7% | 209,481 | 208,765 |
90% | 90.3% | 188,533 | 189,140 |
80% | 80.4% | 167,584 | 168,435 |
70% | 70.0% | 146,636 | 146,560 |
60% | 60.1% | 125,688 | 125,848 |
50% | 50.0% | 104,740 | 104,697 |
40% | 39.8% | 83,792 | 83,435 |
30% | 30.0% | 62,844 | 62,760 |
20% | 20.3% | 41,896 | 42,624 |
10% | 10.1% | 20,948 | 21,223 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,569 | ||
Calibration 2 | 210,328 | ||
Calibration 3 | 210,011 | ||
ssj_ops@calibrated=210,169 | |||
100% | 99.2% | 210,169 | 208,511 |
90% | 89.9% | 189,152 | 189,034 |
80% | 80.8% | 168,135 | 169,787 |
70% | 70.6% | 147,118 | 148,368 |
60% | 59.9% | 126,102 | 125,838 |
50% | 49.8% | 105,085 | 104,656 |
40% | 40.4% | 84,068 | 84,943 |
30% | 29.9% | 63,051 | 62,913 |
20% | 19.9% | 42,034 | 41,904 |
10% | 9.9% | 21,017 | 20,898 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,949 | ||
Calibration 2 | 213,129 | ||
Calibration 3 | 213,854 | ||
ssj_ops@calibrated=213,492 | |||
100% | 99.9% | 213,492 | 213,238 |
90% | 90.4% | 192,142 | 193,102 |
80% | 80.5% | 170,793 | 171,924 |
70% | 69.7% | 149,444 | 148,884 |
60% | 60.2% | 128,095 | 128,590 |
50% | 50.2% | 106,746 | 107,194 |
40% | 40.5% | 85,397 | 86,551 |
30% | 29.5% | 64,047 | 62,913 |
20% | 19.7% | 42,698 | 42,119 |
10% | 10.0% | 21,349 | 21,425 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 224,300 | ||
Calibration 2 | 216,753 | ||
Calibration 3 | 216,772 | ||
ssj_ops@calibrated=216,762 | |||
100% | 99.5% | 216,762 | 215,587 |
90% | 89.5% | 195,086 | 194,078 |
80% | 80.6% | 173,410 | 174,811 |
70% | 70.4% | 151,734 | 152,588 |
60% | 60.4% | 130,057 | 130,993 |
50% | 50.0% | 108,381 | 108,301 |
40% | 40.1% | 86,705 | 86,886 |
30% | 29.9% | 65,029 | 64,894 |
20% | 19.9% | 43,352 | 43,091 |
10% | 10.1% | 21,676 | 21,799 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 207,982 | ||
Calibration 2 | 204,302 | ||
Calibration 3 | 204,686 | ||
ssj_ops@calibrated=204,494 | |||
100% | 98.9% | 204,494 | 202,286 |
90% | 90.2% | 184,045 | 184,455 |
80% | 80.3% | 163,595 | 164,249 |
70% | 70.0% | 143,146 | 143,106 |
60% | 59.8% | 122,697 | 122,305 |
50% | 50.1% | 102,247 | 102,364 |
40% | 40.7% | 81,798 | 83,307 |
30% | 29.9% | 61,348 | 61,228 |
20% | 19.9% | 40,899 | 40,616 |
10% | 9.9% | 20,449 | 20,221 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 217,370 | ||
Calibration 2 | 213,847 | ||
Calibration 3 | 214,907 | ||
ssj_ops@calibrated=214,377 | |||
100% | 99.6% | 214,377 | 213,599 |
90% | 90.1% | 192,939 | 193,128 |
80% | 80.8% | 171,502 | 173,197 |
70% | 69.5% | 150,064 | 149,096 |
60% | 59.9% | 128,626 | 128,482 |
50% | 50.5% | 107,188 | 108,320 |
40% | 39.9% | 85,751 | 85,485 |
30% | 29.8% | 64,313 | 63,946 |
20% | 19.8% | 42,875 | 42,489 |
10% | 10.2% | 21,438 | 21,899 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 217,786 | ||
Calibration 2 | 209,329 | ||
Calibration 3 | 209,809 | ||
ssj_ops@calibrated=209,569 | |||
100% | 99.2% | 209,569 | 207,985 |
90% | 90.6% | 188,612 | 189,832 |
80% | 79.9% | 167,655 | 167,498 |
70% | 69.4% | 146,698 | 145,542 |
60% | 60.1% | 125,741 | 125,952 |
50% | 49.7% | 104,785 | 104,138 |
40% | 40.0% | 83,828 | 83,812 |
30% | 30.2% | 62,871 | 63,325 |
20% | 19.7% | 41,914 | 41,216 |
10% | 9.8% | 20,957 | 20,475 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 213,831 | ||
Calibration 2 | 208,735 | ||
Calibration 3 | 209,470 | ||

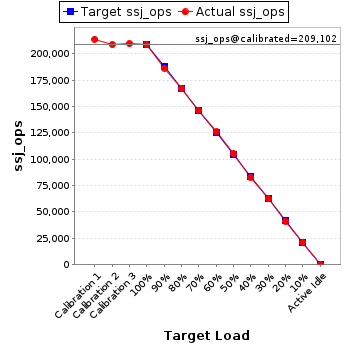

ssj_ops@calibrated=209,102 | |||
100% | 99.9% | 209,102 | 208,821 |
90% | 89.2% | 188,192 | 186,527 |
80% | 79.8% | 167,282 | 166,840 |
70% | 70.1% | 146,372 | 146,655 |
60% | 60.2% | 125,461 | 125,869 |
50% | 50.3% | 104,551 | 105,090 |
40% | 39.7% | 83,641 | 83,021 |
30% | 29.9% | 62,731 | 62,501 |
20% | 19.8% | 41,820 | 41,311 |
10% | 10.1% | 20,910 | 21,203 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 212,349 | ||
Calibration 2 | 207,411 | ||
Calibration 3 | 206,196 | ||
ssj_ops@calibrated=206,804 | |||
100% | 99.5% | 206,804 | 205,671 |
90% | 89.7% | 186,123 | 185,408 |
80% | 79.6% | 165,443 | 164,639 |
70% | 70.6% | 144,763 | 146,079 |
60% | 60.1% | 124,082 | 124,331 |
50% | 50.0% | 103,402 | 103,403 |
40% | 40.6% | 82,721 | 83,925 |
30% | 29.7% | 62,041 | 61,493 |
20% | 20.5% | 41,361 | 42,338 |
10% | 10.1% | 20,680 | 20,812 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 217,227 | ||
Calibration 2 | 209,930 | ||
Calibration 3 | 209,982 | ||
ssj_ops@calibrated=209,956 | |||
100% | 99.2% | 209,956 | 208,231 |
90% | 90.0% | 188,960 | 189,057 |
80% | 80.3% | 167,965 | 168,589 |
70% | 70.9% | 146,969 | 148,881 |
60% | 60.1% | 125,974 | 126,196 |
50% | 50.2% | 104,978 | 105,459 |
40% | 39.4% | 83,982 | 82,762 |
30% | 29.7% | 62,987 | 62,363 |
20% | 19.7% | 41,991 | 41,264 |
10% | 10.1% | 20,996 | 21,277 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 215,562 | ||
Calibration 2 | 211,954 | ||
Calibration 3 | 213,524 | ||
ssj_ops@calibrated=212,739 | |||
100% | 99.2% | 212,739 | 211,112 |
90% | 89.7% | 191,465 | 190,933 |
80% | 79.2% | 170,191 | 168,533 |
70% | 70.0% | 148,918 | 148,831 |
60% | 60.0% | 127,644 | 127,729 |
50% | 50.4% | 106,370 | 107,127 |
40% | 40.1% | 85,096 | 85,300 |
30% | 30.1% | 63,822 | 64,051 |
20% | 20.4% | 42,548 | 43,297 |
10% | 10.0% | 21,274 | 21,182 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 211,799 | ||
Calibration 2 | 208,530 | ||
Calibration 3 | 207,741 | ||
ssj_ops@calibrated=208,136 | |||
100% | 99.5% | 208,136 | 207,054 |
90% | 90.1% | 187,322 | 187,612 |
80% | 79.4% | 166,508 | 165,273 |
70% | 69.7% | 145,695 | 145,108 |
60% | 59.6% | 124,881 | 124,133 |
50% | 49.6% | 104,068 | 103,331 |
40% | 40.0% | 83,254 | 83,222 |
30% | 30.0% | 62,441 | 62,374 |
20% | 20.1% | 41,627 | 41,765 |
10% | 10.2% | 20,814 | 21,278 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 217,070 | ||
Calibration 2 | 209,097 | ||
Calibration 3 | 208,686 | ||

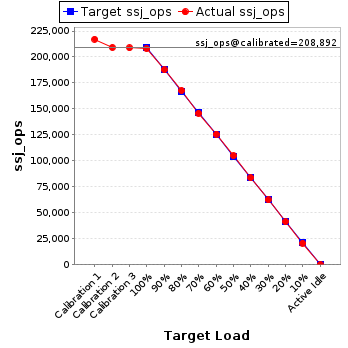

ssj_ops@calibrated=208,892 | |||
100% | 99.6% | 208,892 | 208,010 |
90% | 89.8% | 188,002 | 187,616 |
80% | 80.3% | 167,113 | 167,772 |
70% | 69.8% | 146,224 | 145,767 |
60% | 60.2% | 125,335 | 125,728 |
50% | 50.2% | 104,446 | 104,886 |
40% | 40.0% | 83,557 | 83,601 |
30% | 29.9% | 62,667 | 62,356 |
20% | 19.8% | 41,778 | 41,283 |
10% | 9.9% | 20,889 | 20,721 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,427 | ||
Calibration 2 | 213,407 | ||
Calibration 3 | 212,735 | ||
ssj_ops@calibrated=213,071 | |||
100% | 99.4% | 213,071 | 211,722 |
90% | 90.3% | 191,764 | 192,396 |
80% | 80.7% | 170,457 | 171,897 |
70% | 69.6% | 149,150 | 148,351 |
60% | 59.9% | 127,843 | 127,606 |
50% | 50.2% | 106,535 | 106,948 |
40% | 40.4% | 85,228 | 86,007 |
30% | 30.0% | 63,921 | 63,828 |
20% | 20.1% | 42,614 | 42,865 |
10% | 9.9% | 21,307 | 21,091 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 216,313 | ||
Calibration 2 | 203,668 | ||
Calibration 3 | 203,167 | ||
ssj_ops@calibrated=203,418 | |||
100% | 100.2% | 203,418 | 203,768 |
90% | 90.2% | 183,076 | 183,542 |
80% | 79.8% | 162,734 | 162,392 |
70% | 70.4% | 142,392 | 143,126 |
60% | 60.2% | 122,051 | 122,489 |
50% | 50.2% | 101,709 | 102,128 |
40% | 39.8% | 81,367 | 81,026 |
30% | 30.2% | 61,025 | 61,423 |
20% | 20.0% | 40,684 | 40,593 |
10% | 10.0% | 20,342 | 20,271 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 217,923 | ||
Calibration 2 | 211,983 | ||
Calibration 3 | 212,538 | ||
ssj_ops@calibrated=212,261 | |||
100% | 99.1% | 212,261 | 210,329 |
90% | 89.9% | 191,035 | 190,855 |
80% | 79.7% | 169,809 | 169,087 |
70% | 70.2% | 148,583 | 148,952 |
60% | 59.6% | 127,356 | 126,553 |
50% | 50.0% | 106,130 | 106,181 |
40% | 39.8% | 84,904 | 84,543 |
30% | 30.0% | 63,678 | 63,592 |
20% | 20.4% | 42,452 | 43,261 |
10% | 9.9% | 21,226 | 21,075 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 220,675 | ||
Calibration 2 | 213,369 | ||
Calibration 3 | 212,713 | ||
ssj_ops@calibrated=213,041 | |||
100% | 99.5% | 213,041 | 211,963 |
90% | 90.5% | 191,737 | 192,907 |
80% | 80.6% | 170,433 | 171,632 |
70% | 69.6% | 149,129 | 148,358 |
60% | 60.4% | 127,825 | 128,632 |
50% | 50.1% | 106,521 | 106,746 |
40% | 40.0% | 85,216 | 85,292 |
30% | 30.0% | 63,912 | 63,907 |
20% | 20.1% | 42,608 | 42,882 |
10% | 10.1% | 21,304 | 21,612 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 215,723 | ||
Calibration 2 | 211,555 | ||
Calibration 3 | 211,357 | ||
ssj_ops@calibrated=211,456 | |||
100% | 99.0% | 211,456 | 209,273 |
90% | 89.7% | 190,310 | 189,738 |
80% | 80.6% | 169,165 | 170,393 |
70% | 69.9% | 148,019 | 147,902 |
60% | 59.1% | 126,874 | 124,973 |
50% | 49.8% | 105,728 | 105,203 |
40% | 40.1% | 84,582 | 84,861 |
30% | 30.1% | 63,437 | 63,592 |
20% | 20.1% | 42,291 | 42,508 |
10% | 10.1% | 21,146 | 21,260 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 225,252 | ||
Calibration 2 | 217,834 | ||
Calibration 3 | 217,135 | ||
ssj_ops@calibrated=217,485 | |||
100% | 99.3% | 217,485 | 215,867 |
90% | 90.0% | 195,736 | 195,712 |
80% | 80.0% | 173,988 | 173,998 |
70% | 70.5% | 152,239 | 153,307 |
60% | 60.0% | 130,491 | 130,563 |
50% | 49.7% | 108,742 | 108,143 |
40% | 40.0% | 86,994 | 86,957 |
30% | 30.4% | 65,245 | 66,184 |
20% | 19.9% | 43,497 | 43,382 |
10% | 10.0% | 21,748 | 21,655 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 215,772 | ||
Calibration 2 | 213,552 | ||
Calibration 3 | 213,559 | ||
ssj_ops@calibrated=213,556 | |||
100% | 99.2% | 213,556 | 211,787 |
90% | 90.4% | 192,200 | 192,990 |
80% | 80.4% | 170,844 | 171,606 |
70% | 70.4% | 149,489 | 150,375 |
60% | 59.8% | 128,133 | 127,731 |
50% | 49.9% | 106,778 | 106,477 |
40% | 40.3% | 85,422 | 86,083 |
30% | 30.1% | 64,067 | 64,211 |
20% | 20.1% | 42,711 | 42,913 |
10% | 10.2% | 21,356 | 21,707 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 215,855 | ||
Calibration 2 | 208,859 | ||
Calibration 3 | 208,647 | ||
ssj_ops@calibrated=208,753 | |||
100% | 99.6% | 208,753 | 207,941 |
90% | 89.9% | 187,878 | 187,602 |
80% | 80.7% | 167,002 | 168,420 |
70% | 70.7% | 146,127 | 147,497 |
60% | 60.1% | 125,252 | 125,468 |
50% | 49.8% | 104,377 | 103,903 |
40% | 39.3% | 83,501 | 81,984 |
30% | 29.6% | 62,626 | 61,771 |
20% | 19.7% | 41,751 | 41,142 |
10% | 9.8% | 20,875 | 20,359 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,611 | ||
Calibration 2 | 212,635 | ||
Calibration 3 | 211,455 | ||
ssj_ops@calibrated=212,045 | |||
100% | 99.1% | 212,045 | 210,087 |
90% | 90.2% | 190,840 | 191,278 |
80% | 80.7% | 169,636 | 171,104 |
70% | 69.9% | 148,431 | 148,215 |
60% | 59.5% | 127,227 | 126,155 |
50% | 50.2% | 106,022 | 106,505 |
40% | 39.7% | 84,818 | 84,168 |
30% | 30.3% | 63,613 | 64,149 |
20% | 19.8% | 42,409 | 42,035 |
10% | 10.0% | 21,204 | 21,154 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 211,567 | ||
Calibration 2 | 206,459 | ||
Calibration 3 | 205,850 | ||
ssj_ops@calibrated=206,155 | |||
100% | 99.3% | 206,155 | 204,738 |
90% | 91.0% | 185,539 | 187,575 |
80% | 79.9% | 164,924 | 164,748 |
70% | 70.2% | 144,308 | 144,639 |
60% | 60.1% | 123,693 | 123,958 |
50% | 49.7% | 103,077 | 102,421 |
40% | 40.2% | 82,462 | 82,803 |
30% | 29.8% | 61,846 | 61,512 |
20% | 19.9% | 41,231 | 41,072 |
10% | 10.0% | 20,615 | 20,707 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 219,285 | ||
Calibration 2 | 213,743 | ||
Calibration 3 | 212,989 | ||
ssj_ops@calibrated=213,366 | |||
100% | 99.8% | 213,366 | 212,963 |
90% | 90.6% | 192,029 | 193,324 |
80% | 79.5% | 170,693 | 169,599 |
70% | 69.9% | 149,356 | 149,189 |
60% | 59.8% | 128,020 | 127,510 |
50% | 50.2% | 106,683 | 107,033 |
40% | 39.8% | 85,346 | 84,974 |
30% | 30.4% | 64,010 | 64,796 |
20% | 20.0% | 42,673 | 42,644 |
10% | 9.9% | 21,337 | 21,022 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 217,530 | ||
Calibration 2 | 212,683 | ||
Calibration 3 | 211,367 | ||
ssj_ops@calibrated=212,025 | |||
100% | 99.5% | 212,025 | 211,021 |
90% | 90.4% | 190,822 | 191,691 |
80% | 80.1% | 169,620 | 169,804 |
70% | 70.3% | 148,417 | 148,999 |
60% | 59.9% | 127,215 | 127,048 |
50% | 50.7% | 106,012 | 107,523 |
40% | 40.1% | 84,810 | 85,046 |
30% | 29.6% | 63,607 | 62,799 |
20% | 20.0% | 42,405 | 42,492 |
10% | 10.0% | 21,202 | 21,202 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 222,755 | ||
Calibration 2 | 212,960 | ||
Calibration 3 | 212,510 | ||
ssj_ops@calibrated=212,735 | |||
100% | 99.1% | 212,735 | 210,827 |
90% | 89.7% | 191,461 | 190,844 |
80% | 79.7% | 170,188 | 169,611 |
70% | 70.1% | 148,914 | 149,148 |
60% | 59.3% | 127,641 | 126,222 |
50% | 49.9% | 106,367 | 106,222 |
40% | 39.7% | 85,094 | 84,521 |
30% | 29.8% | 63,820 | 63,401 |
20% | 19.8% | 42,547 | 42,093 |
10% | 9.9% | 21,273 | 21,145 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,803 | ||
Calibration 2 | 211,613 | ||
Calibration 3 | 210,009 | ||
ssj_ops@calibrated=210,811 | |||
100% | 99.2% | 210,811 | 209,161 |
90% | 90.0% | 189,730 | 189,722 |
80% | 79.7% | 168,649 | 167,998 |
70% | 69.8% | 147,568 | 147,156 |
60% | 59.9% | 126,487 | 126,366 |
50% | 50.1% | 105,406 | 105,545 |
40% | 40.2% | 84,325 | 84,688 |
30% | 30.5% | 63,243 | 64,276 |
20% | 20.1% | 42,162 | 42,421 |
10% | 9.8% | 21,081 | 20,633 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 221,766 | ||
Calibration 2 | 213,480 | ||
Calibration 3 | 213,462 | ||
ssj_ops@calibrated=213,471 | |||
100% | 99.6% | 213,471 | 212,660 |
90% | 89.9% | 192,124 | 191,941 |
80% | 79.1% | 170,777 | 168,818 |
70% | 70.4% | 149,430 | 150,236 |
60% | 60.1% | 128,083 | 128,240 |
50% | 50.2% | 106,736 | 107,109 |
40% | 40.0% | 85,388 | 85,325 |
30% | 29.7% | 64,041 | 63,366 |
20% | 19.9% | 42,694 | 42,436 |
10% | 10.0% | 21,347 | 21,375 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,602 | ||
Calibration 2 | 207,167 | ||
Calibration 3 | 208,063 | ||
ssj_ops@calibrated=207,615 | |||
100% | 99.2% | 207,615 | 205,898 |
90% | 89.8% | 186,853 | 186,402 |
80% | 80.7% | 166,092 | 167,463 |
70% | 69.7% | 145,330 | 144,810 |
60% | 60.1% | 124,569 | 124,777 |
50% | 50.1% | 103,807 | 104,026 |
40% | 40.1% | 83,046 | 83,300 |
30% | 30.1% | 62,284 | 62,441 |
20% | 20.6% | 41,523 | 42,861 |
10% | 10.1% | 20,761 | 20,975 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 199,558 | ||
Calibration 2 | 195,151 | ||
Calibration 3 | 194,820 | ||
ssj_ops@calibrated=194,985 | |||
100% | 99.4% | 194,985 | 193,897 |
90% | 90.0% | 175,487 | 175,430 |
80% | 80.1% | 155,988 | 156,153 |
70% | 69.7% | 136,490 | 135,868 |
60% | 59.9% | 116,991 | 116,888 |
50% | 50.1% | 97,493 | 97,690 |
40% | 39.6% | 77,994 | 77,243 |
30% | 29.4% | 58,496 | 57,359 |
20% | 20.1% | 38,997 | 39,122 |
10% | 9.8% | 19,499 | 19,093 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,209 | ||
Calibration 2 | 210,046 | ||
Calibration 3 | 210,096 | ||
ssj_ops@calibrated=210,071 | |||
100% | 99.4% | 210,071 | 208,774 |
90% | 89.5% | 189,064 | 188,048 |
80% | 80.2% | 168,057 | 168,481 |
70% | 70.4% | 147,050 | 147,958 |
60% | 60.3% | 126,043 | 126,774 |
50% | 50.0% | 105,036 | 104,939 |
40% | 40.4% | 84,029 | 84,772 |
30% | 30.1% | 63,021 | 63,240 |
20% | 19.9% | 42,014 | 41,765 |
10% | 10.2% | 21,007 | 21,340 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,085 | ||
Calibration 2 | 211,889 | ||
Calibration 3 | 210,127 | ||
ssj_ops@calibrated=211,008 | |||
100% | 99.3% | 211,008 | 209,489 |
90% | 90.4% | 189,907 | 190,694 |
80% | 80.1% | 168,807 | 169,103 |
70% | 70.4% | 147,706 | 148,655 |
60% | 59.7% | 126,605 | 125,944 |
50% | 50.0% | 105,504 | 105,444 |
40% | 40.0% | 84,403 | 84,470 |
30% | 30.4% | 63,302 | 64,213 |
20% | 20.0% | 42,202 | 42,100 |
10% | 10.0% | 21,101 | 21,111 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 224,377 | ||
Calibration 2 | 216,222 | ||
Calibration 3 | 216,246 | ||
ssj_ops@calibrated=216,234 | |||
100% | 99.3% | 216,234 | 214,783 |
90% | 89.8% | 194,610 | 194,092 |
80% | 79.7% | 172,987 | 172,409 |
70% | 70.3% | 151,364 | 151,985 |
60% | 59.6% | 129,740 | 128,781 |
50% | 50.2% | 108,117 | 108,630 |
40% | 40.3% | 86,494 | 87,123 |
30% | 29.7% | 64,870 | 64,246 |
20% | 19.6% | 43,247 | 42,445 |
10% | 9.9% | 21,623 | 21,415 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,066 | ||
Calibration 2 | 210,363 | ||
Calibration 3 | 208,959 | ||
ssj_ops@calibrated=209,661 | |||
100% | 99.3% | 209,661 | 208,282 |
90% | 89.9% | 188,695 | 188,489 |
80% | 80.0% | 167,729 | 167,712 |
70% | 70.4% | 146,762 | 147,596 |
60% | 59.2% | 125,796 | 124,109 |
50% | 49.7% | 104,830 | 104,300 |
40% | 40.5% | 83,864 | 84,816 |
30% | 30.5% | 62,898 | 63,983 |
20% | 19.6% | 41,932 | 41,157 |
10% | 9.8% | 20,966 | 20,646 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,161 | ||
Calibration 2 | 212,431 | ||
Calibration 3 | 211,931 | ||
ssj_ops@calibrated=212,181 | |||
100% | 99.6% | 212,181 | 211,276 |
90% | 90.1% | 190,963 | 191,209 |
80% | 79.8% | 169,745 | 169,259 |
70% | 69.4% | 148,527 | 147,311 |
60% | 60.2% | 127,309 | 127,725 |
50% | 50.2% | 106,090 | 106,464 |
40% | 39.7% | 84,872 | 84,282 |
30% | 30.0% | 63,654 | 63,630 |
20% | 19.5% | 42,436 | 41,443 |
10% | 9.9% | 21,218 | 21,070 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,945 | ||
Calibration 2 | 214,150 | ||
Calibration 3 | 213,855 | ||
ssj_ops@calibrated=214,002 | |||
100% | 99.0% | 214,002 | 211,889 |
90% | 89.9% | 192,602 | 192,319 |
80% | 79.0% | 171,202 | 169,046 |
70% | 70.4% | 149,802 | 150,712 |
60% | 60.6% | 128,401 | 129,637 |
50% | 50.2% | 107,001 | 107,434 |
40% | 39.7% | 85,601 | 85,049 |
30% | 29.6% | 64,201 | 63,390 |
20% | 20.2% | 42,800 | 43,158 |
10% | 10.1% | 21,400 | 21,545 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 211,198 | ||
Calibration 2 | 206,366 | ||
Calibration 3 | 206,521 | ||
ssj_ops@calibrated=206,443 | |||
100% | 99.5% | 206,443 | 205,320 |
90% | 90.3% | 185,799 | 186,384 |
80% | 80.3% | 165,155 | 165,741 |
70% | 70.1% | 144,510 | 144,649 |
60% | 59.4% | 123,866 | 122,594 |
50% | 50.0% | 103,222 | 103,121 |
40% | 39.9% | 82,577 | 82,298 |
30% | 30.2% | 61,933 | 62,269 |
20% | 20.0% | 41,289 | 41,216 |
10% | 9.9% | 20,644 | 20,461 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 222,733 | ||
Calibration 2 | 217,090 | ||
Calibration 3 | 217,072 | ||
ssj_ops@calibrated=217,081 | |||
100% | 99.4% | 217,081 | 215,802 |
90% | 89.4% | 195,373 | 194,014 |
80% | 80.7% | 173,665 | 175,165 |
70% | 70.2% | 151,956 | 152,446 |
60% | 60.0% | 130,248 | 130,306 |
50% | 49.8% | 108,540 | 108,001 |
40% | 40.2% | 86,832 | 87,170 |
30% | 29.9% | 65,124 | 64,944 |
20% | 20.0% | 43,416 | 43,394 |
10% | 9.8% | 21,708 | 21,186 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 220,967 | ||
Calibration 2 | 214,306 | ||
Calibration 3 | 214,737 | ||
ssj_ops@calibrated=214,521 | |||
100% | 99.0% | 214,521 | 212,422 |
90% | 90.0% | 193,069 | 192,997 |
80% | 80.2% | 171,617 | 172,031 |
70% | 70.0% | 150,165 | 150,059 |
60% | 59.6% | 128,713 | 127,935 |
50% | 49.5% | 107,261 | 106,258 |
40% | 40.3% | 85,809 | 86,413 |
30% | 30.3% | 64,356 | 64,943 |
20% | 19.8% | 42,904 | 42,540 |
10% | 10.2% | 21,452 | 21,887 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 212,069 | ||
Calibration 2 | 207,820 | ||
Calibration 3 | 208,327 | ||
ssj_ops@calibrated=208,073 | |||
100% | 100.0% | 208,073 | 208,020 |
90% | 89.9% | 187,266 | 187,154 |
80% | 79.3% | 166,459 | 164,982 |
70% | 70.6% | 145,651 | 146,805 |
60% | 59.9% | 124,844 | 124,566 |
50% | 49.5% | 104,037 | 103,005 |
40% | 39.9% | 83,229 | 83,071 |
30% | 29.9% | 62,422 | 62,293 |
20% | 19.8% | 41,615 | 41,266 |
10% | 9.9% | 20,807 | 20,575 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,199 | ||
Calibration 2 | 213,441 | ||
Calibration 3 | 213,310 | ||
ssj_ops@calibrated=213,376 | |||
100% | 99.6% | 213,376 | 212,553 |
90% | 90.1% | 192,038 | 192,329 |
80% | 80.4% | 170,701 | 171,647 |
70% | 70.9% | 149,363 | 151,362 |
60% | 60.3% | 128,026 | 128,605 |
50% | 49.6% | 106,688 | 105,863 |
40% | 39.9% | 85,350 | 85,167 |
30% | 30.5% | 64,013 | 64,998 |
20% | 20.0% | 42,675 | 42,628 |
10% | 10.0% | 21,338 | 21,300 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,947 | ||
Calibration 2 | 214,256 | ||
Calibration 3 | 214,336 | ||
ssj_ops@calibrated=214,296 | |||
100% | 99.7% | 214,296 | 213,757 |
90% | 90.8% | 192,867 | 194,628 |
80% | 79.8% | 171,437 | 171,000 |
70% | 70.3% | 150,007 | 150,717 |
60% | 59.7% | 128,578 | 128,042 |
50% | 49.9% | 107,148 | 106,963 |
40% | 40.2% | 85,719 | 86,251 |
30% | 30.4% | 64,289 | 65,137 |
20% | 19.8% | 42,859 | 42,407 |
10% | 10.0% | 21,430 | 21,429 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,466 | ||
Calibration 2 | 212,136 | ||
Calibration 3 | 211,350 | ||
ssj_ops@calibrated=211,743 | |||
100% | 99.4% | 211,743 | 210,511 |
90% | 90.1% | 190,569 | 190,865 |
80% | 79.8% | 169,394 | 168,880 |
70% | 70.2% | 148,220 | 148,569 |
60% | 60.5% | 127,046 | 128,194 |
50% | 49.5% | 105,872 | 104,871 |
40% | 40.2% | 84,697 | 85,033 |
30% | 30.2% | 63,523 | 64,052 |
20% | 19.7% | 42,349 | 41,774 |
10% | 10.0% | 21,174 | 21,142 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 218,687 | ||
Calibration 2 | 211,753 | ||
Calibration 3 | 211,265 | ||
ssj_ops@calibrated=211,509 | |||
100% | 99.3% | 211,509 | 210,125 |
90% | 90.2% | 190,358 | 190,843 |
80% | 79.9% | 169,207 | 169,097 |
70% | 70.2% | 148,056 | 148,378 |
60% | 60.4% | 126,905 | 127,770 |
50% | 49.7% | 105,754 | 105,194 |
40% | 39.5% | 84,604 | 83,604 |
30% | 30.4% | 63,453 | 64,353 |
20% | 20.3% | 42,302 | 42,903 |
10% | 9.8% | 21,151 | 20,645 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 214,620 | ||
Calibration 2 | 206,610 | ||
Calibration 3 | 207,151 | ||
ssj_ops@calibrated=206,881 | |||
100% | 99.1% | 206,881 | 205,048 |
90% | 90.4% | 186,193 | 187,030 |
80% | 80.4% | 165,505 | 166,258 |
70% | 69.4% | 144,816 | 143,531 |
60% | 59.3% | 124,128 | 122,593 |
50% | 50.3% | 103,440 | 104,145 |
40% | 40.0% | 82,752 | 82,660 |
30% | 30.0% | 62,064 | 62,052 |
20% | 19.6% | 41,376 | 40,549 |
10% | 10.1% | 20,688 | 20,924 |
Active Idle | 0 | 0 |
