Lenovo Global Technology ThinkSystem SN550 V2 SPECpower_ssj2008 = 9,878 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Apr 20, 2022
Hardware Availability: Jul-2021 Software Availability: Dec-2019 Publication: May 24, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 5,632 22.8
Calibration 2 5,640 22.4
Calibration 3 5,647 21.8
100% 5,637 21.6
90% 5,087 21.6
80% 4,682 21.7
70% 4,377 21.6
60% 4,087 21.7
50% 3,822 21.9
40% 3,568 21.9
30% 3,294 21.7
20% 3,021 21.8
10% 2,709 22.0
Active Idle 2,115 22.4
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3UG05014E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: GUANG ZHOU GRG METROLOGY & TEST CO.,LTD.
Calibration Label: J202110137471A-0004
Date of Calibration: 21-Oct-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: Connected to PSU 1,PSU 2,PSU 3
Power Analyzer pwr2
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3UG05013E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: GUANG ZHOU GRG METROLOGY & TEST CO.,LTD.
Calibration Label: J202110137471A-0001
Date of Calibration: 21-Oct-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: Connected to PSU 4,PSU 5,PSU 6
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version.

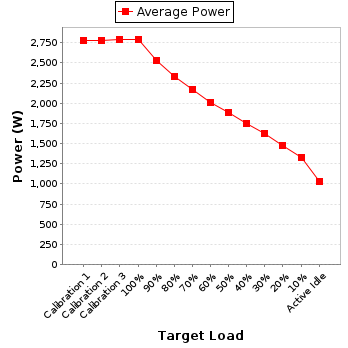

Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 220 300.0 12.7 20.0 0.992 2,776 0.3%
Calibration 2 220 300.0 12.7 20.0 0.992 2,781 0.3%
Calibration 3 220 300.0 12.8 20.0 0.992 2,791 0.3%
100% 220 300.0 12.8 20.0 0.992 2,793 0.3%
90% 220 300.0 11.6 20.0 0.991 2,524 0.3%
80% 220 300.0 10.7 20.0 0.991 2,331 0.3%
70% 220 300.0 9.97 20.0 0.990 2,175 0.3%
60% 220 300.0 9.24 20.0 0.989 2,014 0.3%
50% 220 300.0 8.66 20.0 0.988 1,885 0.3%
40% 220 300.0 8.08 10.0 0.986 1,755 0.2%
30% 220 300.0 7.48 10.0 0.984 1,621 0.2%
20% 220 300.0 6.86 10.0 0.980 1,482 0.3%
10% 220 300.0 6.15 10.0 0.976 1,323 0.3%
Active Idle 221 300.0 4.87 10.0 0.962 1,033 0.3%
Power details for pwr1

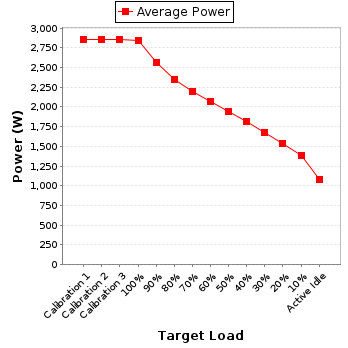

Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 220 300.0 13.1 20.0 0.992 2,856 0.3%
Calibration 2 220 300.0 13.1 20.0 0.992 2,859 0.3%
Calibration 3 220 300.0 13.1 20.0 0.992 2,856 0.3%
100% 220 300.0 13.0 20.0 0.992 2,843 0.3%
90% 220 300.0 11.7 20.0 0.991 2,562 0.3%
80% 220 300.0 10.8 20.0 0.991 2,350 0.3%
70% 220 300.0 10.1 20.0 0.990 2,202 0.3%
60% 220 300.0 9.52 20.0 0.989 2,073 0.3%
50% 220 300.0 8.91 20.0 0.988 1,938 0.3%
40% 220 300.0 8.34 10.0 0.987 1,813 0.2%
30% 220 300.0 7.72 10.0 0.984 1,673 0.2%
20% 220 300.0 7.12 10.0 0.982 1,539 0.2%
10% 220 300.0 6.44 10.0 0.978 1,386 0.3%
Active Idle 220 300.0 5.08 10.0 0.965 1,082 0.3%
Power details for pwr2
