Hewlett Packard Enterprise ProLiant DL325 Gen10 Plus ssj_ops@100% = 6,573,563
ssj_ops@100% per JVM = 205,424
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: May 8, 2021
Hardware Availability: Mar-2022 Software Availability: Jun-2021 Publication: Mar 24, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,335,087
Calibration 2     6,587,149
Calibration 3     6,591,835
ssj_ops@calibrated=6,589,492
100% 99.8% 6,589,492 6,573,563
90% 89.9% 5,930,543 5,925,433
80% 79.8% 5,271,594 5,259,867
70% 70.1% 4,612,644 4,616,061
60% 60.1% 3,953,695 3,957,114
50% 50.0% 3,294,746 3,292,881
40% 40.0% 2,635,797 2,634,325
30% 30.1% 1,976,848 1,983,076
20% 20.0% 1,317,898 1,316,706
10% 10.0% 658,949 657,680
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL325 Gen10 Plus
Form Factor: 1U
CPU Name: AMD EPYC 7773X 2.20 GHz
CPU Characteristics: 64-Core, 2.20 GHz, 768MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 64 cores, 1 chip, 64 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 768 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16384 MB
Memory Details: 16 GB 2Rx8 PC4-3200AA-R; slots 1, 3, 5, 7, 10, 12, 14 and 16 populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (865438-B21)
Disk Drive: 1 x HPE 480GB SATA 6G SSD (P05976-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet I350 4-Port 1Gb NIC
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP3
OS Version: 5.3.18-57-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:UseSSE=4 -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each even physicalCoreId { numactl -C physicalCoreId, physicalCoreId+1, physicalCoreId + 64, physicalCoreId + 65 }
JVM Instances: 32
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: A43 v2.56 (02/10/2022)
Management Firmware Version: 2.55 Oct 01 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
dl325.001 201,748
dl325.002 209,191
dl325.003 203,362
dl325.004 203,482
dl325.005 205,286
dl325.006 207,294
dl325.007 206,899
dl325.008 204,061
dl325.009 209,090
dl325.010 202,185
dl325.011 208,860
dl325.012 199,063
dl325.013 202,311
dl325.014 207,495
dl325.015 205,546
dl325.016 205,595
dl325.017 209,056
dl325.018 208,224
dl325.019 203,889
dl325.020 207,014
dl325.021 202,293
dl325.022 206,393
dl325.023 203,119
dl325.024 210,654
dl325.025 209,709
dl325.026 203,074
dl325.027 203,450
dl325.028 199,316
dl325.029 204,045
dl325.030 203,247
dl325.031 212,524
dl325.032 206,088
ssj_ops@100% 6,573,563
ssj_ops@100% per JVM 205,424
Graph of per-instance results
JVM 'dl325.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,855
Calibration 2     202,902
Calibration 3     202,782
ssj_ops@calibrated=202,842
100% 99.5% 202,842 201,748
90% 90.7% 182,558 184,076
80% 79.6% 162,274 161,446
70% 69.9% 141,989 141,775
60% 59.4% 121,705 120,513
50% 50.2% 101,421 101,863
40% 40.2% 81,137 81,523
30% 30.2% 60,853 61,305
20% 19.8% 40,568 40,199
10% 9.9% 20,284 20,179
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     203,068
Calibration 2     209,244
Calibration 3     209,589
ssj_ops@calibrated=209,416
100% 99.9% 209,416 209,191
90% 89.3% 188,475 186,968
80% 79.8% 167,533 167,035
70% 70.3% 146,591 147,262
60% 60.9% 125,650 127,460
50% 49.7% 104,708 104,183
40% 39.9% 83,766 83,536
30% 29.9% 62,825 62,534
20% 19.9% 41,883 41,700
10% 9.9% 20,942 20,766
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,447
Calibration 2     204,692
Calibration 3     204,819
ssj_ops@calibrated=204,755
100% 99.3% 204,755 203,362
90% 90.7% 184,280 185,748
80% 79.9% 163,804 163,641
70% 69.9% 143,329 143,116
60% 59.8% 122,853 122,419
50% 50.7% 102,378 103,810
40% 39.8% 81,902 81,475
30% 30.3% 61,427 62,013
20% 20.0% 40,951 40,899
10% 9.9% 20,476 20,214
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     201,167
Calibration 2     204,737
Calibration 3     203,500
ssj_ops@calibrated=204,118
100% 99.7% 204,118 203,482
90% 89.6% 183,706 182,872
80% 79.9% 163,294 163,042
70% 70.1% 142,883 143,065
60% 60.2% 122,471 122,833
50% 50.2% 102,059 102,395
40% 39.9% 81,647 81,371
30% 29.8% 61,235 60,840
20% 20.0% 40,824 40,729
10% 9.9% 20,412 20,270
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,732
Calibration 2     207,545
Calibration 3     205,009
ssj_ops@calibrated=206,277
100% 99.5% 206,277 205,286
90% 90.0% 185,650 185,695
80% 80.0% 165,022 165,116
70% 69.2% 144,394 142,812
60% 60.0% 123,766 123,811
50% 49.7% 103,139 102,449
40% 40.2% 82,511 82,855
30% 30.3% 61,883 62,572
20% 20.2% 41,255 41,627
10% 9.9% 20,628 20,479
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,032
Calibration 2     205,865
Calibration 3     207,645
ssj_ops@calibrated=206,755
100% 100.3% 206,755 207,294
90% 89.6% 186,080 185,203
80% 79.5% 165,404 164,432
70% 70.2% 144,729 145,053
60% 59.7% 124,053 123,378
50% 49.9% 103,378 103,230
40% 40.3% 82,702 83,281
30% 29.8% 62,027 61,603
20% 20.0% 41,351 41,258
10% 10.1% 20,676 20,792
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,298
Calibration 2     206,684
Calibration 3     207,954
ssj_ops@calibrated=207,319
100% 99.8% 207,319 206,899
90% 90.3% 186,587 187,106
80% 80.4% 165,855 166,651
70% 70.4% 145,123 145,869
60% 59.8% 124,391 124,003
50% 49.9% 103,660 103,495
40% 40.1% 82,928 83,146
30% 30.4% 62,196 63,107
20% 19.9% 41,464 41,246
10% 9.9% 20,732 20,612
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,735
Calibration 2     203,212
Calibration 3     204,222
ssj_ops@calibrated=203,717
100% 100.2% 203,717 204,061
90% 89.4% 183,345 182,027
80% 79.7% 162,974 162,422
70% 69.5% 142,602 141,659
60% 60.1% 122,230 122,474
50% 49.7% 101,858 101,269
40% 39.7% 81,487 80,958
30% 30.0% 61,115 61,065
20% 20.1% 40,743 40,987
10% 9.9% 20,372 20,110
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     201,504
Calibration 2     210,321
Calibration 3     210,431
ssj_ops@calibrated=210,376
100% 99.4% 210,376 209,090
90% 89.9% 189,338 189,032
80% 79.7% 168,301 167,702
70% 70.5% 147,263 148,331
60% 60.0% 126,225 126,331
50% 50.0% 105,188 105,125
40% 39.2% 84,150 82,495
30% 29.7% 63,113 62,521
20% 20.3% 42,075 42,810
10% 10.1% 21,038 21,145
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,910
Calibration 2     203,684
Calibration 3     203,105
ssj_ops@calibrated=203,394
100% 99.4% 203,394 202,185
90% 90.3% 183,055 183,706
80% 79.4% 162,715 161,556
70% 70.3% 142,376 142,929
60% 59.9% 122,036 121,746
50% 50.1% 101,697 101,839
40% 39.6% 81,358 80,574
30% 30.4% 61,018 61,752
20% 20.0% 40,679 40,708
10% 9.8% 20,339 20,025
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     202,205
Calibration 2     210,550
Calibration 3     209,259
ssj_ops@calibrated=209,905
100% 99.5% 209,905 208,860
90% 89.4% 188,914 187,623
80% 79.8% 167,924 167,559
70% 70.1% 146,933 147,130
60% 59.6% 125,943 125,080
50% 50.1% 104,952 105,176
40% 40.0% 83,962 83,992
30% 30.0% 62,971 63,022
20% 19.8% 41,981 41,623
10% 9.9% 20,990 20,733
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,531
Calibration 2     199,887
Calibration 3     200,911
ssj_ops@calibrated=200,399
100% 99.3% 200,399 199,063
90% 89.6% 180,359 179,567
80% 80.2% 160,319 160,759
70% 69.3% 140,279 138,926
60% 60.4% 120,239 121,096
50% 50.2% 100,200 100,566
40% 39.5% 80,160 79,190
30% 30.6% 60,120 61,275
20% 20.3% 40,080 40,704
10% 10.1% 20,040 20,242
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,087
Calibration 2     201,920
Calibration 3     203,077
ssj_ops@calibrated=202,498
100% 99.9% 202,498 202,311
90% 90.1% 182,248 182,425
80% 79.2% 161,999 160,381
70% 69.5% 141,749 140,771
60% 60.0% 121,499 121,439
50% 50.1% 101,249 101,420
40% 40.1% 80,999 81,132
30% 29.9% 60,749 60,522
20% 20.2% 40,500 40,908
10% 9.9% 20,250 19,996
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,803
Calibration 2     207,538
Calibration 3     207,514
ssj_ops@calibrated=207,526
100% 100.0% 207,526 207,495
90% 89.3% 186,773 185,281
80% 79.7% 166,021 165,343
70% 71.0% 145,268 147,383
60% 60.2% 124,516 124,993
50% 49.8% 103,763 103,433
40% 39.9% 83,010 82,877
30% 30.1% 62,258 62,408
20% 20.0% 41,505 41,488
10% 10.1% 20,753 20,904
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,780
Calibration 2     206,560
Calibration 3     206,850
ssj_ops@calibrated=206,705
100% 99.4% 206,705 205,546
90% 90.0% 186,034 186,109
80% 79.3% 165,364 163,980
70% 70.7% 144,693 146,114
60% 60.5% 124,023 125,077
50% 50.7% 103,352 104,721
40% 39.8% 82,682 82,358
30% 30.3% 62,011 62,621
20% 19.8% 41,341 40,958
10% 10.0% 20,670 20,746
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,329
Calibration 2     206,219
Calibration 3     205,547
ssj_ops@calibrated=205,883
100% 99.9% 205,883 205,595
90% 89.6% 185,295 184,467
80% 79.7% 164,707 164,083
70% 70.4% 144,118 144,852
60% 59.9% 123,530 123,375
50% 50.3% 102,942 103,527
40% 40.0% 82,353 82,301
30% 29.9% 61,765 61,471
20% 20.1% 41,177 41,367
10% 10.0% 20,588 20,531
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     202,450
Calibration 2     209,907
Calibration 3     209,649
ssj_ops@calibrated=209,778
100% 99.7% 209,778 209,056
90% 89.4% 188,800 187,570
80% 79.6% 167,822 166,894
70% 69.9% 146,845 146,691
60% 60.1% 125,867 126,102
50% 49.8% 104,889 104,436
40% 40.1% 83,911 84,093
30% 30.2% 62,933 63,344
20% 20.1% 41,956 42,142
10% 10.1% 20,978 21,089
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,838
Calibration 2     207,657
Calibration 3     209,163
ssj_ops@calibrated=208,410
100% 99.9% 208,410 208,224
90% 90.1% 187,569 187,816
80% 80.1% 166,728 166,985
70% 69.6% 145,887 145,146
60% 60.1% 125,046 125,335
50% 49.6% 104,205 103,453
40% 40.2% 83,364 83,682
30% 29.8% 62,523 62,134
20% 19.9% 41,682 41,467
10% 10.0% 20,841 20,906
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,590
Calibration 2     204,272
Calibration 3     204,272
ssj_ops@calibrated=204,272
100% 99.8% 204,272 203,889
90% 90.6% 183,845 185,119
80% 79.5% 163,418 162,449
70% 70.0% 142,990 143,070
60% 60.2% 122,563 122,877
50% 49.7% 102,136 101,611
40% 39.8% 81,709 81,346
30% 29.8% 61,282 60,810
20% 19.9% 40,854 40,699
10% 10.0% 20,427 20,350
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,147
Calibration 2     208,312
Calibration 3     207,806
ssj_ops@calibrated=208,059
100% 99.5% 208,059 207,014
90% 90.1% 187,253 187,384
80% 79.9% 166,447 166,313
70% 69.9% 145,641 145,527
60% 59.8% 124,835 124,365
50% 49.8% 104,029 103,716
40% 39.6% 83,223 82,431
30% 30.1% 62,418 62,636
20% 20.0% 41,612 41,676
10% 10.0% 20,806 20,772
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,040
Calibration 2     202,874
Calibration 3     203,738
ssj_ops@calibrated=203,306
100% 99.5% 203,306 202,293
90% 90.2% 182,976 183,379
80% 79.8% 162,645 162,234
70% 70.5% 142,314 143,257
60% 59.8% 121,984 121,545
50% 50.7% 101,653 103,059
40% 40.2% 81,323 81,811
30% 30.2% 60,992 61,321
20% 19.9% 40,661 40,423
10% 10.1% 20,331 20,475
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,614
Calibration 2     207,006
Calibration 3     206,183
ssj_ops@calibrated=206,594
100% 99.9% 206,594 206,393
90% 89.5% 185,935 184,799
80% 79.9% 165,276 165,101
70% 70.3% 144,616 145,260
60% 60.4% 123,957 124,702
50% 49.7% 103,297 102,577
40% 40.1% 82,638 82,870
30% 30.2% 61,978 62,335
20% 19.8% 41,319 40,898
10% 9.9% 20,659 20,537
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,914
Calibration 2     202,365
Calibration 3     203,732
ssj_ops@calibrated=203,048
100% 100.0% 203,048 203,119
90% 89.8% 182,743 182,428
80% 80.6% 162,439 163,745
70% 70.1% 142,134 142,418
60% 59.8% 121,829 121,369
50% 50.0% 101,524 101,466
40% 39.8% 81,219 80,835
30% 29.9% 60,914 60,704
20% 19.6% 40,610 39,768
10% 9.9% 20,305 20,172
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

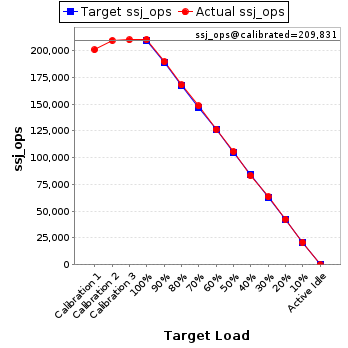

JVM 'dl325.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     200,856
Calibration 2     209,583
Calibration 3     210,079
ssj_ops@calibrated=209,831
100% 100.4% 209,831 210,654
90% 90.5% 188,848 189,838
80% 80.0% 167,865 167,898
70% 70.7% 146,881 148,403
60% 60.3% 125,898 126,582
50% 50.4% 104,915 105,825
40% 39.6% 83,932 83,166
30% 30.3% 62,949 63,542
20% 20.3% 41,966 42,659
10% 10.0% 20,983 21,083
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     200,261
Calibration 2     208,006
Calibration 3     212,303
ssj_ops@calibrated=210,154
100% 99.8% 210,154 209,709
90% 89.1% 189,139 187,231
80% 79.5% 168,123 167,165
70% 69.7% 147,108 146,501
60% 59.5% 126,093 125,121
50% 49.4% 105,077 103,830
40% 40.5% 84,062 85,097
30% 30.3% 63,046 63,659
20% 20.0% 42,031 41,973
10% 10.1% 21,015 21,216
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,811
Calibration 2     205,033
Calibration 3     203,834
ssj_ops@calibrated=204,434
100% 99.3% 204,434 203,074
90% 90.0% 183,990 183,894
80% 80.4% 163,547 164,289
70% 69.9% 143,104 142,918
60% 60.2% 122,660 123,054
50% 49.5% 102,217 101,216
40% 40.6% 81,774 82,948
30% 30.4% 61,330 62,117
20% 19.7% 40,887 40,200
10% 10.1% 20,443 20,700
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,439
Calibration 2     204,649
Calibration 3     202,759
ssj_ops@calibrated=203,704
100% 99.9% 203,704 203,450
90% 89.6% 183,334 182,575
80% 80.1% 162,963 163,235
70% 70.7% 142,593 143,929
60% 60.8% 122,222 123,760
50% 49.5% 101,852 100,932
40% 39.7% 81,482 80,833
30% 30.0% 61,111 61,110
20% 20.0% 40,741 40,774
10% 9.9% 20,370 20,237
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,451
Calibration 2     200,050
Calibration 3     199,554
ssj_ops@calibrated=199,802
100% 99.8% 199,802 199,316
90% 90.4% 179,822 180,558
80% 80.3% 159,842 160,367
70% 69.8% 139,861 139,450
60% 60.4% 119,881 120,610
50% 50.4% 99,901 100,699
40% 40.0% 79,921 79,970
30% 30.3% 59,941 60,511
20% 20.2% 39,960 40,342
10% 10.1% 19,980 20,083
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,390
Calibration 2     204,075
Calibration 3     203,899
ssj_ops@calibrated=203,987
100% 100.0% 203,987 204,045
90% 89.5% 183,589 182,619
80% 79.3% 163,190 161,708
70% 70.0% 142,791 142,755
60% 59.9% 122,392 122,147
50% 49.9% 101,994 101,717
40% 40.2% 81,595 82,093
30% 30.0% 61,196 61,192
20% 19.6% 40,797 39,928
10% 10.0% 20,399 20,321
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,367
Calibration 2     202,279
Calibration 3     203,016
ssj_ops@calibrated=202,647
100% 100.3% 202,647 203,247
90% 89.5% 182,383 181,456
80% 79.8% 162,118 161,638
70% 69.1% 141,853 140,019
60% 59.9% 121,588 121,317
50% 50.1% 101,324 101,473
40% 40.0% 81,059 81,100
30% 29.8% 60,794 60,437
20% 20.1% 40,529 40,700
10% 10.1% 20,265 20,387
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     204,687
Calibration 2     212,074
Calibration 3     212,855
ssj_ops@calibrated=212,464
100% 100.0% 212,464 212,524
90% 90.7% 191,218 192,650
80% 80.0% 169,971 169,987
70% 69.9% 148,725 148,455
60% 60.1% 127,478 127,764
50% 49.6% 106,232 105,421
40% 40.3% 84,986 85,661
30% 30.4% 63,739 64,516
20% 20.1% 42,493 42,622
10% 9.9% 21,246 21,044
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl325.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,748
Calibration 2     207,449
Calibration 3     206,781
ssj_ops@calibrated=207,115
100% 99.5% 207,115 206,088
90% 90.9% 186,404 188,212
80% 79.5% 165,692 164,713
70% 70.1% 144,981 145,217
60% 60.1% 124,269 124,440
50% 49.7% 103,558 102,946
40% 40.2% 82,846 83,326
30% 30.0% 62,135 62,076
20% 19.9% 41,423 41,223
10% 9.9% 20,712 20,562
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
