Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module ssj_ops@100% = 105,145
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Dec 5, 2021
Hardware Availability: Apr-2021 Software Availability: Sep-2021 Publication: Feb 3, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,712
Calibration 2     105,259
Calibration 3     105,330
ssj_ops@calibrated=105,295
100% 99.9% 105,295 105,145
90% 90.7% 94,765 95,542
80% 79.6% 84,236 83,828
70% 70.2% 73,706 73,890
60% 60.5% 63,177 63,691
50% 49.4% 52,647 52,038
40% 40.1% 42,118 42,235
30% 30.3% 31,588 31,932
20% 20.4% 21,059 21,513
10% 10.2% 10,529 10,758
Active Idle   0 0

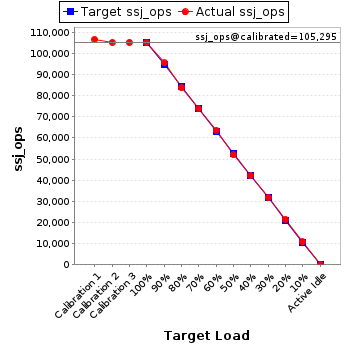

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 10
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Plus Compute Module
Form Factor: Blade
CPU Name: Intel Xeon Platinum 8380 CPU @ 2.30GHz (Intel Turbo Boost Technology up to 3.4GHz)
CPU Characteristics: 40-Core, 2.30 GHz, 60MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200-T; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: HPE 240GB SATA 6G Read Intensive SFF (P18420-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 4820C 10/20/25Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809 (Build 17763.2183)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000,300000000,C00000000,3000000000,C000000000]
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: I44 v1.40 (03/05/2021)
Management Firmware Version: 2.40 pass 31 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5005568
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 7,770,458 1,384
Payment 7,770,456
Order Status 777,046
Delivery 777,045
Stock Level 777,046
Customer Report 7,770,455
Calibration 2 New Order 7,657,678 1,384
Payment 7,657,675
Order Status 765,767
Delivery 765,768
Stock Level 765,767
Customer Report 7,657,675
Calibration 3 New Order 7,661,368 1,384
Payment 7,661,365
Order Status 766,137
Delivery 766,136
Stock Level 766,136
Customer Report 7,661,363
100% 99.9% New Order 7,654,455 1,384
Payment 7,654,455
Order Status 765,446
Delivery 765,445
Stock Level 765,446
Customer Report 7,654,457
90% 90.7% New Order 6,949,196 1,384
Payment 6,949,195
Order Status 694,920
Delivery 694,919
Stock Level 694,920
Customer Report 6,949,197
80% 79.6% New Order 6,100,103 1,384
Payment 6,100,104
Order Status 610,011
Delivery 610,011
Stock Level 610,010
Customer Report 6,100,106
70% 70.2% New Order 5,374,233 1,384
Payment 5,374,227
Order Status 537,423
Delivery 537,422
Stock Level 537,423
Customer Report 5,374,229
60% 60.5% New Order 4,632,701 1,384
Payment 4,632,706
Order Status 463,270
Delivery 463,270
Stock Level 463,268
Customer Report 4,632,700
50% 49.4% New Order 3,785,343 1,384
Payment 3,785,337
Order Status 378,533
Delivery 378,534
Stock Level 378,535
Customer Report 3,785,335
40% 40.1% New Order 3,072,519 1,384
Payment 3,072,517
Order Status 307,253
Delivery 307,252
Stock Level 307,251
Customer Report 3,072,518
30% 30.3% New Order 2,322,429 1,384
Payment 2,322,421
Order Status 232,244
Delivery 232,241
Stock Level 232,242
Customer Report 2,322,423
20% 20.4% New Order 1,564,688 1,384
Payment 1,564,681
Order Status 156,468
Delivery 156,469
Stock Level 156,468
Customer Report 1,564,691
10% 10.2% New Order 782,426 1,384
Payment 782,423
Order Status 78,241
Delivery 78,243
Stock Level 78,242
Customer Report 782,425
Active Idle New Order 0 1,384
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
