Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module ssj_ops@100% = 103,966
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Dec 5, 2021
Hardware Availability: Apr-2021 Software Availability: Sep-2021 Publication: Feb 3, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,024
Calibration 2     105,054
Calibration 3     105,185
ssj_ops@calibrated=105,120
100% 98.9% 105,120 103,966
90% 90.7% 94,608 95,340
80% 79.6% 84,096 83,679
70% 69.8% 73,584 73,333
60% 59.9% 63,072 62,918
50% 49.2% 52,560 51,700
40% 40.2% 42,048 42,245
30% 30.0% 31,536 31,577
20% 20.2% 21,024 21,190
10% 9.9% 10,512 10,437
Active Idle   0 0

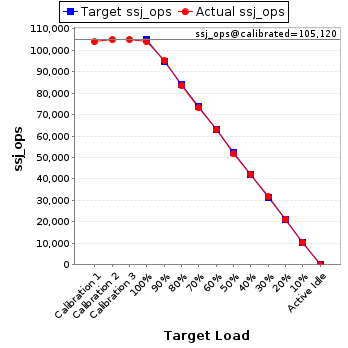

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 10
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Plus Compute Module
Form Factor: Blade
CPU Name: Intel Xeon Platinum 8380 CPU @ 2.30GHz (Intel Turbo Boost Technology up to 3.4GHz)
CPU Characteristics: 40-Core, 2.30 GHz, 60MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200-T; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: HPE 240GB SATA 6G Read Intensive SFF (P18420-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 4820C 10/20/25Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809 (Build 17763.2183)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000,300000000,C00000000,3000000000,C000000000]
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: I44 v1.40 (03/05/2021)
Management Firmware Version: 2.40 pass 31 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5005568
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 7,579,671 1,384
Payment 7,579,671
Order Status 757,968
Delivery 757,966
Stock Level 757,968
Customer Report 7,579,669
Calibration 2 New Order 7,642,882 1,384
Payment 7,642,882
Order Status 764,288
Delivery 764,289
Stock Level 764,289
Customer Report 7,642,880
Calibration 3 New Order 7,651,824 1,384
Payment 7,651,822
Order Status 765,182
Delivery 765,183
Stock Level 765,182
Customer Report 7,651,819
100% 98.9% New Order 7,563,292 1,384
Payment 7,563,288
Order Status 756,329
Delivery 756,330
Stock Level 756,329
Customer Report 7,563,287
90% 90.7% New Order 6,933,959 1,384
Payment 6,933,964
Order Status 693,395
Delivery 693,396
Stock Level 693,395
Customer Report 6,933,964
80% 79.6% New Order 6,086,461 1,384
Payment 6,086,460
Order Status 608,647
Delivery 608,645
Stock Level 608,646
Customer Report 6,086,465
70% 69.8% New Order 5,334,915 1,384
Payment 5,334,913
Order Status 533,491
Delivery 533,490
Stock Level 533,491
Customer Report 5,334,913
60% 59.9% New Order 4,576,060 1,384
Payment 4,576,059
Order Status 457,606
Delivery 457,607
Stock Level 457,606
Customer Report 4,576,062
50% 49.2% New Order 3,760,548 1,384
Payment 3,760,555
Order Status 376,055
Delivery 376,054
Stock Level 376,056
Customer Report 3,760,545
40% 40.2% New Order 3,072,516 1,384
Payment 3,072,524
Order Status 307,250
Delivery 307,254
Stock Level 307,253
Customer Report 3,072,515
30% 30.0% New Order 2,296,576 1,384
Payment 2,296,576
Order Status 229,659
Delivery 229,658
Stock Level 229,657
Customer Report 2,296,576
20% 20.2% New Order 1,541,211 1,384
Payment 1,541,210
Order Status 154,121
Delivery 154,121
Stock Level 154,121
Customer Report 1,541,216
10% 9.9% New Order 759,092 1,384
Payment 759,092
Order Status 75,908
Delivery 75,909
Stock Level 75,909
Customer Report 759,090
Active Idle New Order 0 1,384
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
